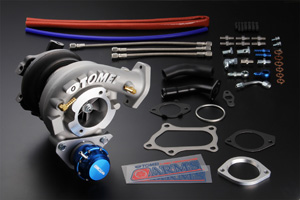

ARMS 1JZ-GTE M8280 TURBINE KIT

↑ Click on the above picture to enlarge.

PART NUMBER ：173025

MSRP $1,490.00 (USD）

Specifically For The 1JZ-GTE Engines.
The 450+ HP Bolt On Turbo Kit.

With the main points addressed "Outstanding Performance", "Reliability" & "Affordability", our new ARMS Turbos gets a warm welcoming by end users. After passing all the extensive extreme testing phases, the long awaited 1JZ turbo is now here! Each component from the turbine, compressor & the center housing has all been designed to deliver the best all round balance of performance. This Turbo comes complete with the special Tomei compressor housing as well as our special Forged Billet Blue Actuator. Both the Torque & Power gains characteristics were made possible from the extensive amount of R&D and testing time that we have invested with the design process. Each component was optimized, without compromise. Completely designed specifically for the 1JZ engine. Designed to deliver great performance for all kinds of conditions, Street, Track and Drift, for an all round "Fun" Performance Turbo Kit.

FEATURES

Flat Primary Exhaust Pressure.

The boost build up is neither sluggish nor abrupt; we have designed this to be natural and smooth. This characteristic provides a stress free driving experience with easy vehicle operation.

Response Equal to Stock Trim

Generally, a larger turbocharger relative to stock, results in decreased response of the engine. However, we have managed to keep the response equal to that of the stock trim by matching the most ideal turbine and compressor wheel. Countless hours of testing was of course performed to achieve these results.

Increased Peak Power

To achieve an increased peak power with the various restrictions such as the turbo size limit is considered a great achievement. We are also proud of the perfectly instant response where there is no lag and no abrupt boost pressures.

Maintains Boost Pressure at High RPMs

It is evident that the stock turbocharger cannot maintain or extend boost pressure above 5,500 RPMs. The M7760 has the capacity to far extend this limit, making it an ideal step for further advanced tuning.

Repair Parts For Rebuilds & Overhauls.

All parts are kept in stock for general repairs, rebuilds & overhauls. So even from aged and or extensive use we will have parts readily available for replacement.

100% Bolt On

The ARMS series turbo kits all come supplied with all the required gaskets and fitting accessories for a true bolt on application out of the box. So it can be installed immediately without the need to hunt for other parts.

1 Year Limited Warranty

The ARMS Turbine Kits come with a 1 year limited warranty after the product has been registered with Tomei Powered shortly after purchase.

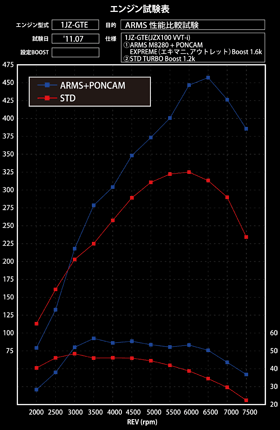

STOCK COMPARISON & SPECIFICATIONS

　◆COMPRESOR WHEEL DATA

　◆TURBINE WHEEL DATA

	TYPE	TRIM	INNER DIA. (mm)	OUTER DIA.(mm)	BLADES
1JZ-GTE STD	-	50	46.0	65.0	5/5
ARMS M8280	80	60	66.0	84.0	6/6

	TYPE	TRIM	OUTER DIA.(mm)	EXHAUST DIA.(mm)	BLADES
1JZ-GTE STD	-	64	60.0	48.0	10
ARMS M8280	82	77	67.0	58.8	11

INTERNAL COMPONENT ANALYSIS

COMPRESSOR HOUSING	TURBINE HOUSING	BEARING HOUSING	BILLET ACTUATOR

All the housings made with different materials of metal were first closely examined and tested for energy absorption, friction, and cooling capabilities. The most ideal components were designed and utilized.			Our all new Billet Aluminum actuator is designed for added strength. This will give that extra support when needed for higher boost applications.
