Now
comes standard with the new Billet Actuator. Retains
the response feel of the original stock turbo,
but delivers increased power gains even at higher
up in the power band range without sacrificing
torque.
PART NUMBER: 173016
$1,490.00
(USD)
400PS+
Retains
the low speed power range, with that extra punch
at mid to high speed range. This is turbo has
the balanced transient characteristics to produce
peak power to suit those who want the best of
both worlds.
PART NUMBER: 173023
$1,490.00
(USD)
450PS+
This
turbo has the potential to deliver 450PS with
the stock layout; from 4000RPM upwards is where
peak power comes in. This Turbo's special characteristics
will really show when added engine tuning and
internal upgrades are done.
PART NUMBER: 173024
$1,490.00
(USD)
Previously compatible with GD chassis, it is now compatible with both GR/GV chassis with a newly designed actuator bracket
The actuator rod has also been newly designed, securing the clearance with the intercooler.
Compressor OUT hose is now included to secure the clearance from the electric throttle position sensor.
FEATURES
FLAT PRIMARY EXHAUST
PRESSURE
The
initial spool characteristics is just right, with
a seamless linear power curve that matches the engines
RPM with the power output. This gives the best drivability
results.
MAINTAINING OUTPUT
EVEN AT HIGHER TUNED LEVELS
With
the stock displacement, you can expect to see good
power around the 5500rpm mark and higher. But with
the increase in the engines displacement, even more
potential gains are possible.
AVAILABLE IN 3 SIZES
The
M7760 retains the stock response feel, with added
power gains. The M7960 delivers great upper mid
range power, with even more power gains possible.
When peak power is a priority over response, there
is only one option. The M8265 will deliver unleash
your engines full potential.
100% BOLT ON
The ARMS series turbo kits all come supplied with all the required gaskets
and fitting accessories for a true bolt on
application out of the box. So it can be installed
immediately without the need to hunt for other
parts.
1 YEAR WARRANTY
The ARMS RB26 M7655/8260 Turbine Kits come with a 1 year limited warranty
after the product has been registered with
Tomei Powered shortly after purchase.

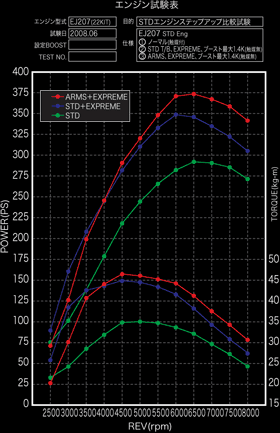

M7760+EJ20 S/S

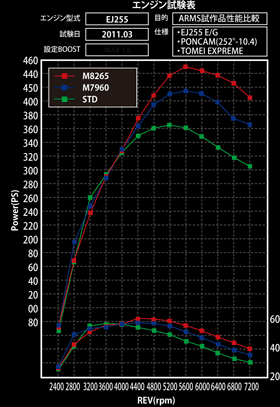

M7960/8265+EJ25 S/S
SPECIFICATIONS
@

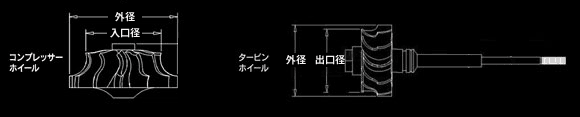

COMPRESSOR WHEEL DATA
TYPE
TRIM
ENTRANCE DIAMETER
(mm)
OUTER DIAMETER (mm)
BLADES
EJ20 STD
-
-
-
APPROX. 60.0
6/6
EJ25 STD
-
-
-
APPROX. 60.0
6/6
ARMS M7760
60
60
52.6
68.0
6/6
ARMS M7960
60
60
52.6
68.0
6/6
ARMS M8265
65
52
54.8
76.2
6/6
@
TURBINE WHEEL DATA
TYPE
TRIM
OUTER DIAMETER (mm)
EXIT DIAMETER (mm)
BLADES
EJ20 STD
-
-
-
APPROX. 53.0
-
EJ25 STD
-
-
-
APPROX. 53.0
-
ARMS M7760
77
76.9
49.1
56.0
12
ARMS M7960
79
78.4
54.0
61.0
12
ARMS M8265
82
77.1
58.8
67.0
11
INTERNAL COMPONENT ANALYSIS
COMPRESSOR HOUSING
TURBINE HOUSING
BEARING HOUSING
BILLET ACTUATOR
All the housings made with different materials
of metal were first closely examined and tested for energy
absorption, friction, and cooling capabilities. The most
ideal components were designed and utilized.
Our all new Billet Aluminum actuator is designed for added
strength. This will give that extra support when needed
for higher boost applications.
