Specifically For The Hyundai Genesis.
The 400+ HP Bolt On Turbo Kit.
ith the main points addressed "Outstanding Performance", "Reliability" & "Affordability", our new ARMS Turbos gets a warm welcoming by end users. After passing all the extensive extreme testing phases, the long awaited Hyundai Genesis Coupe turbo is now here! Each component from the turbine, compressor & the center housing has all been designed to deliver the best all round balance of performance. This Turbo comes complete with the special Tomei compressor housing as well as our special Forged Billet Blue Actuator. Both the Torque & Power gains characteristics were made possible from the extensive amount of R&D and testing time that we have invested with the design process. Each component was optimized, without compromise. Completely designed specifically for the Hyundai Genesis Coupe engine. Designed to deliver great performance for all kinds of conditions, Street, Track and Drift, for an all round "Fun" Performance Turbo Kit.
FEATURES
Flat Primary Exhaust Pressure.
The boost build up is neither sluggish nor abrupt; we have designed this to be natural and smooth. This characteristic provides a stress free driving experience with easy vehicle operation.
Response Equal to Stock Trim
Generally, a larger turbocharger relative to stock, results in decreased response of the engine. However, we have managed to keep the response equal to that of the stock trim by matching the most ideal turbine and compressor wheel. Countless hours of testing was of course performed to achieve these results.
Increased Peak Power
To achieve an increased peak power with the various restrictions such as the turbo size limit is considered a great achievement. We are also proud of the perfectly instant response where there is no lag and no abrupt boost pressures.
Maintains Boost Pressure at High RPMs.
t is evident that the stock turbocharger cannot maintain or extend boost pressure above 6,000 RPMs. The M7960 has the capacity to far extend this limit, making it an ideal step for further advanced tuning.
Repair Parts For Rebuilds & Overhauls.
The ARMS series turbo kits all come supplied with all the required gaskets and fitting accessories for a true bolt on application out of the box. So it can be installed immediately without the need to hunt for other parts.
100% Bolt On
The ARMS series turbo kits all come supplied with all the required gaskets and fitting accessories for a true bolt on application out of the box. So it can be installed immediately without the need to hunt for other parts.。
1 Year Limited Warranty
The ARMS Turbine Kits come with a 1 year limited warranty after the product has been registered with Tomei Powered shortly after purchase.

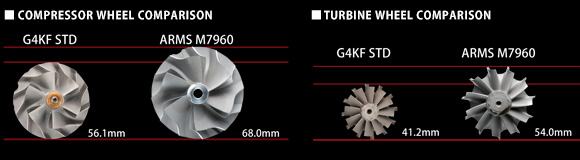

STOCK COMPARISON & SPECIFICATIONS
◆COMPRESSOR WHEEL DATA
◆TURBINE WHEEL DATA
TYPE
TRIM
INNER DIA.(mm)
OUTER
DIA.(mm)
BLADES
G4KF STD
-
52
40.6
56.1
6/6
ARMS
M7960
60
60
52.6
68.0
6/6
TYPE
TRIM
OUTER
DIA.(mm)
EXHAUST
DIA.(mm)
BLADES
G4KF STD
-
76
47.2
41.2
12
ARMS
M7960
79
78
61.0
54.0
11
INTERNAL COMPONENT ANALYSIS
COMPRESSOR HOUSING
TURBINE HOUSING
BEARING HOUSING
BILLET ACTUATOR
All the housings made with different materials of metal were first closely examined
and tested for energy absorption, friction, and cooling capabilities. The most ideal components were designed and utilized.
Our all new Billet Aluminum actuator is designed for added strength. This will give that extra support when needed for higher boost applications.
APPLICATION
HYUNDAI GENESIS COUPE 2.0 TURBO EARLY MODEL
