ARMS M7760 TURBINE KIT EJ TWIN SCROLL for GDB C-G JDM
APPLICATION
PART NUMBER
MSRP
GDB C-G JDM TWIN SCROLL
173018
DISCONTINUED

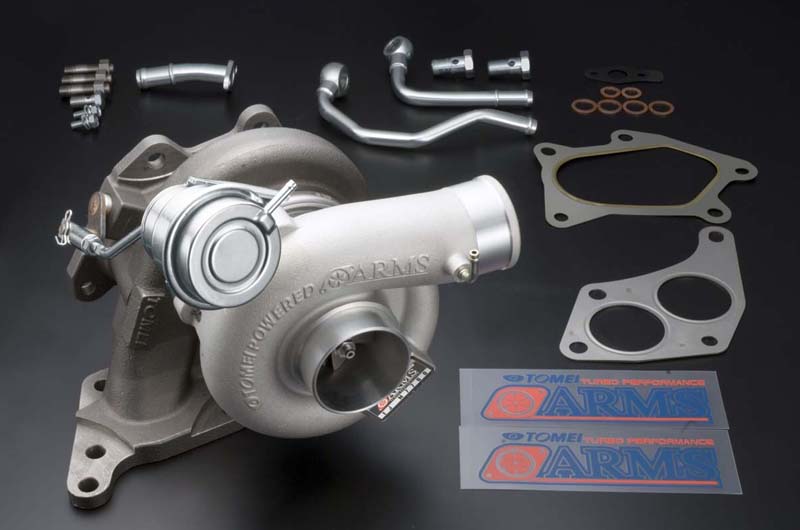

KIT CONTENTS
TURBO ASSEMBLY, WATER PIPE, OIL RETURN PIPE, GASKETS & BOLTS
←Click on the above picture to enlarge.
A New Proposal for EJ Tuning
Complete the Upgrade of Turbine,
Intake & Exhaust Systems!
The ARMS M7760 T/S is constrained in the terms of space and plumbing, so this is the largest bolton turbo kit that Tomei can design for the EJ engine. With the largest size possible, torque was the main objective without sacrificing response from low revs and high revs. This exceptional performance gains has achieved a new level of tuning options for the EJ engines. When used together with Tomei camshafts you can see the new potential of the EJ engine.

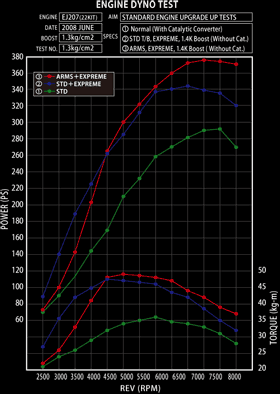

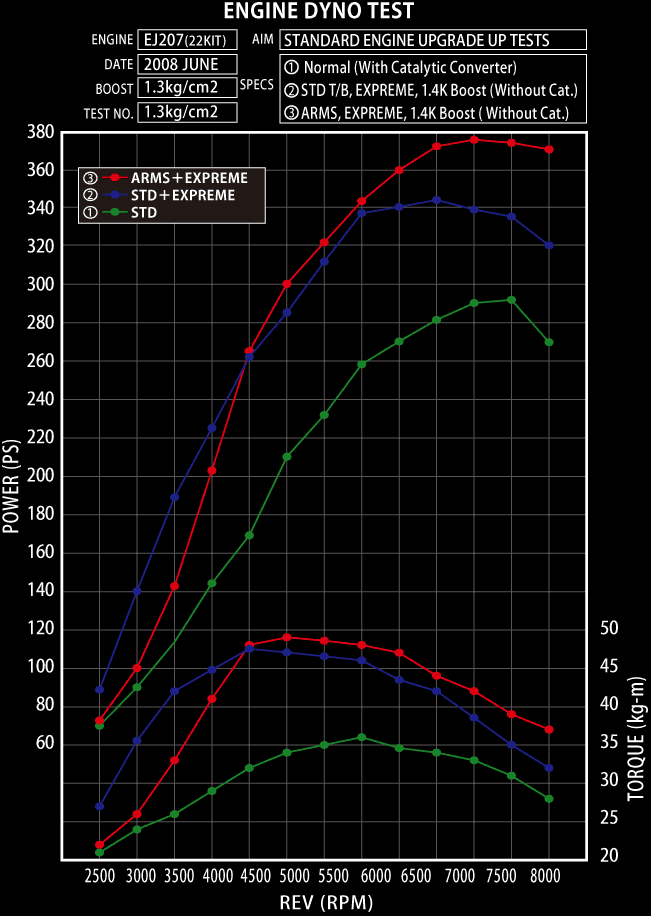

STOCK COMPARISION
SPECIFICATIONS
◆ COMPRESSOR HOUSING DATA
TYPE
INRET DIAMETER
OUTLET DIAMETER
CFM
A / R
EJ20 T/S STD
VF36
56.00
48.00
EJ25 S/S STD
VF41
56.00
48.00
ARMS M7760 T/S
60
58.00
51.00
640

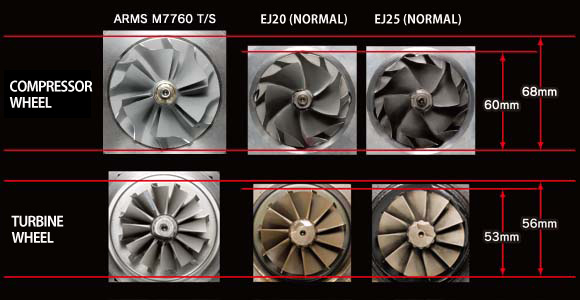

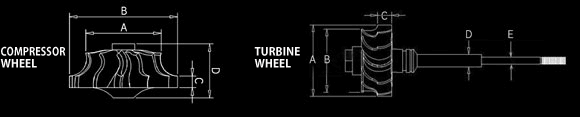

◆ COMPRESSOR WHEEL DATA
TRIM
A
B
C
D
BLADES
EJ20 T/S STD
60
46.50
60.00
6.70
34.00
6 / 6
EJ25 S/S STD
60
46.50
60.00
6.70
34.00
6 / 6
ARMS M7760 T/S
60
52.59
68.00
6.43
31.50
6 / 6
◆ TURBINE HOUSING DATA
SIZE
A / R
EJ20 T/S STD
EJ25 S/S STD
ARMS M7760 T/S
◆ TURBINE WHEEL DATA
TRIM
A
B
C
D
E
BLADES
EJ20 T/S STD
82
53.00
48.00
9.40
8.00
6.10
11
EJ25 S/S STD
82
53.00
48.00
9.40
9.00
6.10
11
ARMS M7760 T/S
77
56.00
49.10
9.75
9.00
6.50
12
ORIGINAL DESIGN
The turbine housing and compressor housing is all Tomei original even down to the materials used. The manufacturing process for the Twin Scroll turbine housing is a difficult process to maintain quality so extra attention to details is made with this process to optimize its end results.
