ARMS M7960 TURBINE KIT for EVO4-9 |
ͺCLICK ON IMAGE TO ENLARGE |
![](image/turbinekit_4g63/renew_e.gif)
PRICE DROP, & COMES WITH
A BILLET ACTUATOR! |
|
|
|
|
APPLICATION:
EVO4`9

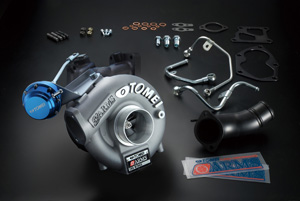

KIT CONTENTS: TURBO, WATERLINE, OIL RETURN LINE,
GASKETS, BOLTS |
![](image/kara10.gif) |
PART
NUMBER: 173017 |
$1,490.00
(USD) |
|
|
|
|
Over
400 Horsepower, Ample Torque, Best Response.
The Best Bolt On turbo available for the EVO 4-9. |
|
The
stock turbo for the EVO 4-9 series was already an improvement
from the previous models. Since the turbo design is
now reversed there has not been any bolt on turbos made
readily available on the market until now.@Our all
new ARMS M7960 turbo greatly exceeds all performance
aspects over the stock unit and delivers the most power
and torque gains possible on a direct bolt on replacement
turbo. With the design aspects of this ARMS turbo it
is a good all round balance for various engine setups
through all power ranges. |
|
![](image/kara10.gif) |
FEATURES |
![](image/kara10.gif) |
Flat
Primary Exhaust Pressure. |
The
boost build up is neither sluggish nor abrupt;
we have designed this to be natural and smooth.
This characteristic provides a stress free driving
experience with easy vehicle operation. |
|
Response
Equal to Stock Trim |
Generally,
a larger turbocharger relative to stock, results
in decreased response of the engine. However,
we have managed to keep the response equal to
that of the stock trim by matching the most ideal
turbine and compressor wheel. Countless hours
of testing was of course performed to achieve
these results. |
|
Increased
Peak Power |
To
achieve an increased peak power with the various
restrictions such as the turbo size limit is considered
a great achievement. We are also proud of the
perfectly instant response where there is no lag
and no abrupt boost pressures. |
|
Maintains
Boost Pressure at High RPMs |
It
is evident that the stock turbocharger cannot
maintain or extend boost pressure above 5,500
RPMs. The M7760 has the capacity to far extend
this limit, making it an ideal step for further
advanced tuning. |
|
Repair
Parts for Rebuilds and Overhauls. |
All
parts are kept in stock for general repairs, rebuilds
& overhauls. So even from aged and or extensive
use we will have parts readily available for replacement. |
|
|
|
|
|
|
|

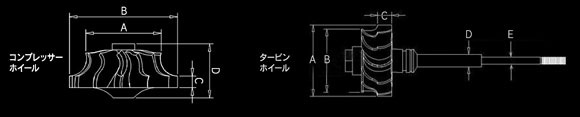

TYPE |
COMPRESSOR
WHEEL |
COMPRESSOR
HOUSING |
TURBINE
WHEEL |
TRIM |
ENTRANCE
DIA. (mm) |
OUTER
DIA. (mm) |
ENTRANCE
DIA. (mm) |
EXIT
DIA. (mm) |
TRIM |
OUTER
DIA. (mm) |
EXIT
DIA. (mm) |
ARMS
M7960 |
60 |
52.50 |
68.0 |
53.50 |
50.00 |
79 |
61.00 |
54.00 |
|
|
|

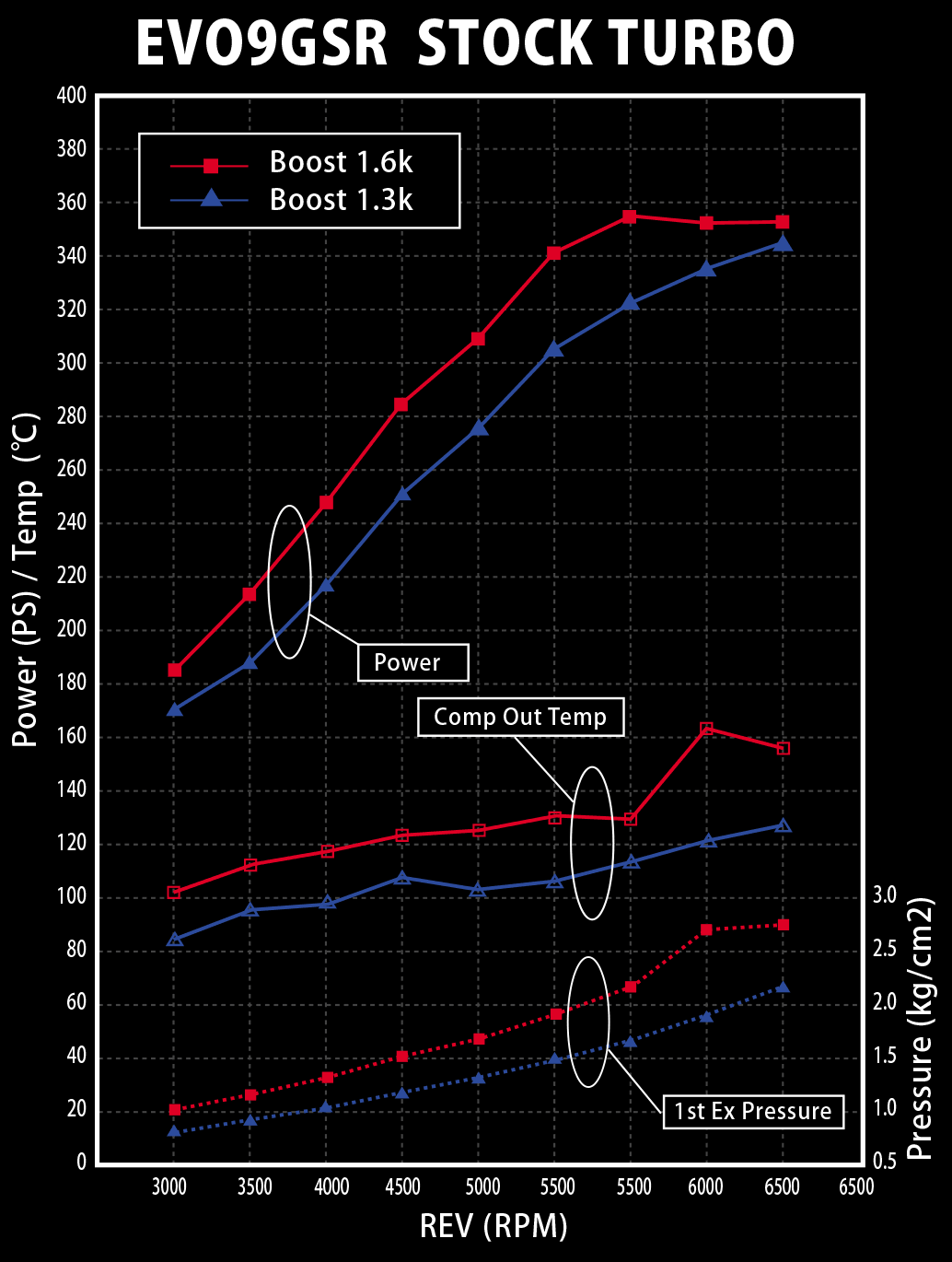

COMPARISON
TO STOCK |
|
|
|
![NbNΕgε](image/turbinekit_4g63/gluf02.gif) |
![NbNΕgε](image/turbinekit_4g63/gluf03.gif) |

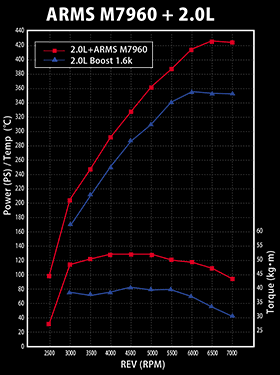

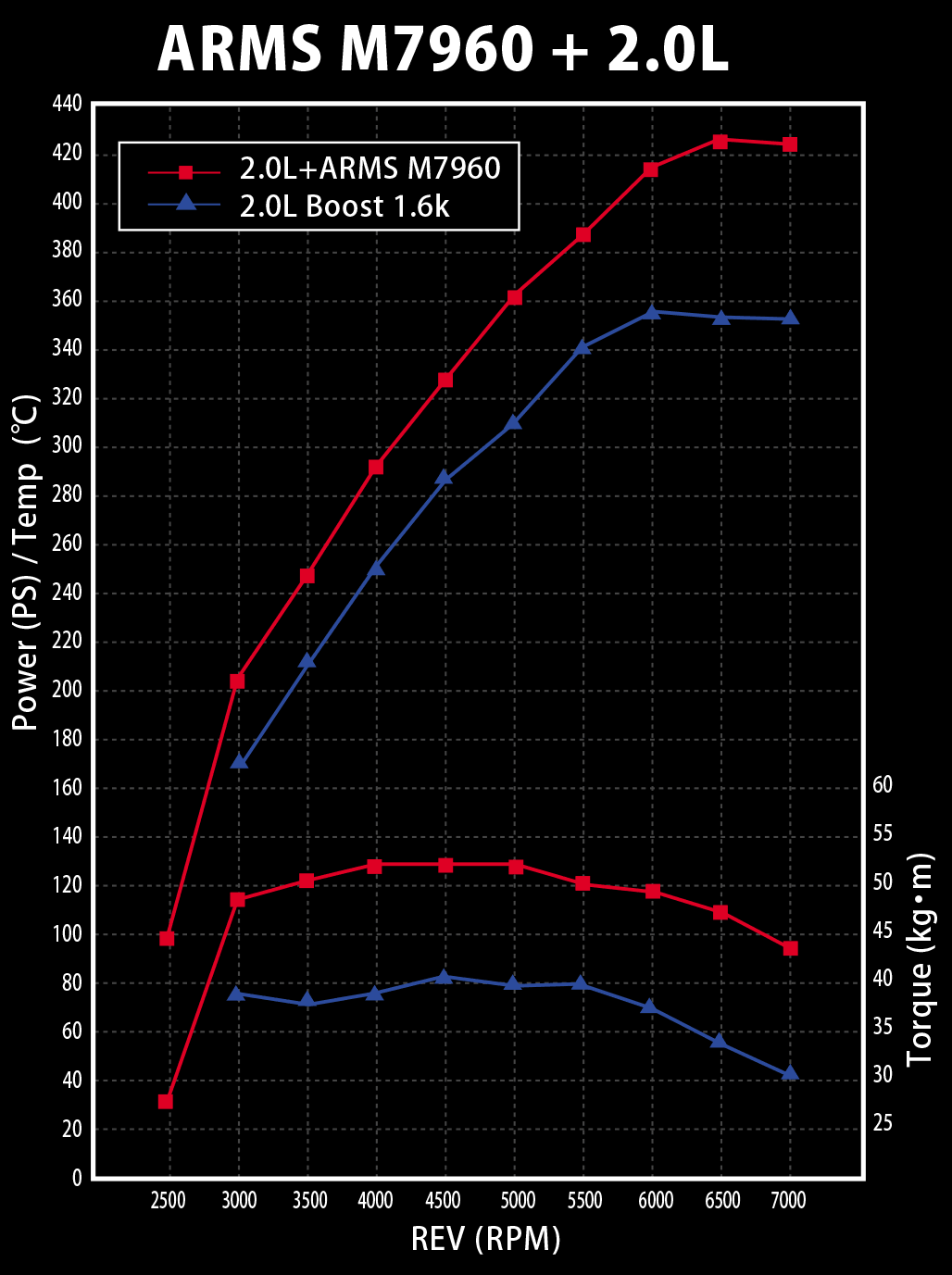

RESULTS |
Over
400HP is attainable without sacrificing response
and torque. This unit exceeds the stock EVO 9
turbo in all areas. |
|

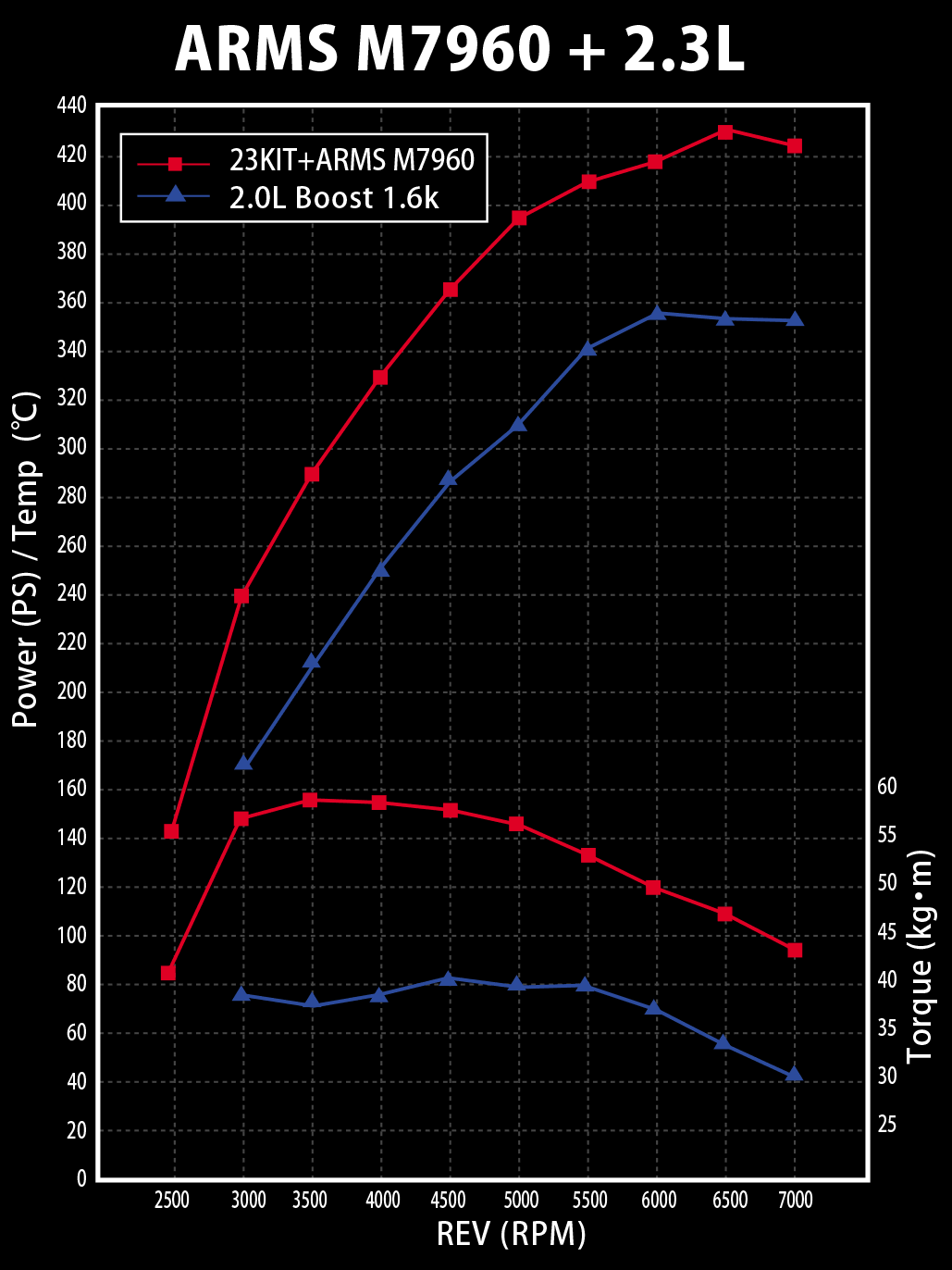

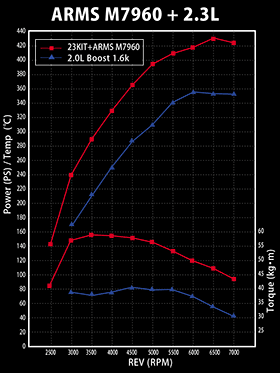

RESULTS |
The
combined torque 2.3L upgrade + ARMS M7960 will be
the perfect balance for the entire power band. |
|
|
