@@M8270 FOR BIG POWER 450PS+
@@@@@@@@@@@@@@@@M7960 FOR RESPONSE 400PS+
Even to this day, TOMEI is listening to what our devoted SR userfs requests. So we have invested additional time and funds into our continued efforts with R&D on the SR20 engine. All to improve torque, response, durable power for drivability to extract outstanding performance at an affordable range that is within everyonefs budgets.
With the latest in our turbo developments, we have made various designs and have changed everything. From housings to actuators to the turbine blades, everything! All this from several master prototypes with added variations.
Finally this has produced the 2 models that we are releasing this month! More room for choices to suit your SR tuning options.
FEATURES
‘ M7960 TURBINE KIT
This model is designed for low to mid range torque characteristics. The response is immediate with the light use of the throttle. Max boost is achieved at 4000 RPM. Best suited for street tuned cars and weekend track machines. Great for drifting, and grip race applications, with the best driving characteristics.
PART NUMBER: 173019
$1,390.00 (USD)
‘ M8270 TURBINE KIT
This model is designed for high power at high RPM. With full boost on the bench test at 4,500 RPM and will maintain it all the way to high RPM without dropping. This will best suit the dedicated track cars that need best power at high RPM.
PART NUMBER: 173020
$1,390.00 (USDj
SPECIFICATIONS

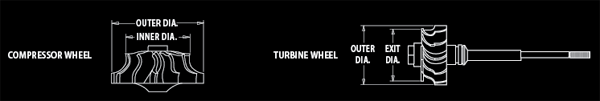

@ COMPRESSOR WHEEL DATA
TYPE
TRIM
INNER DIAMETER (mm)
OUTER DIAMETER (mm)
BLADES
PS13 STD
-
-
43.4
56.0
-
S14 /15 STD
-
-
46.6
60.1
-
ARMS M7960
60
60
52.6
68.0
6/6
ARMS M8270
70
60
59.0
76.2
6/6
@ TURBINE WHEEL DATA
TYPE
TRIM
OUTER DIAMETER (mm)
EXIT OPENING (mm)
BLADES
PS13 STD
-
-
53.8
42.4
-
S14 /15 STD
-
-
53.8
47.4
-
ARMS M7960
79
78
61.0
54.0
11
ARMS M8270
82
77
67.0
58.8
11
100% BOLT ON
This turbine kit comes with everything that is needed for a direct bolt on upgrade. Piping, gaskets, fitting accessories and the installation manual are included. When needed separate repair parts can also be purchased for general maintenance and complete rebuilds.
1 YEAR WARRANTY
The new ARMS SR M8270/7960 Turbine kits come with a 1 Year limited warranty. The warranty is valid once the warranty form (supplied in the kit) has been completed and sent in to Tomei Powered.

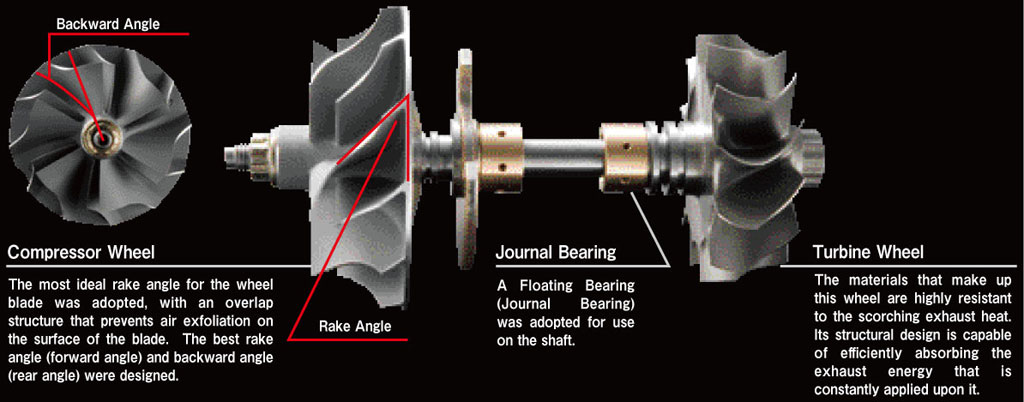

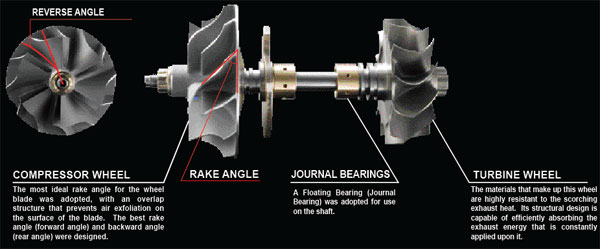

INTERNAL COMPONENT ANALYSIS
COMPRESSOR HOUSING
TURBINE HOUSING
BEARING HOUSING
FORGED BILLET ACTUATOR
All the housings are made with various alloy materials, each which has been closely examined and tested for their energy absorption, friction and cooling capabilities. Then each component was developed with the right material to suit that particular pieces role.
Our all new Billet Aluminum Actuator is designed for added strength. This will give that extra support when needed for higher boost applications.
