Detailed, step-by-step guide, complete with photos.

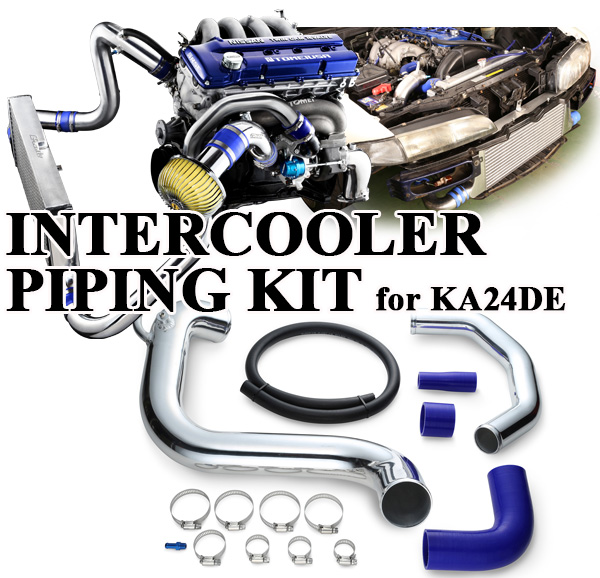

KIT CONTENTS INTERCOOLER PIPING KIT
Intake Pipe A Φ70
1
#8 Straight 1/8PT
1
Hose Band 18-32mm
2
Intake Pipe B Φ50
1
Silicone Hose Φ50×L=70 Straight
1
Hose Band 46-70mm
4
Silicone Hose Φ50 Elbow
1
Silicone Hose Φ28-Φ22
1
Hose Band 18-32mm
1
Hose Band 21-44mm
1
Oil Proof Hose
1
240SX DYNO TEST
SPEC 240SX KA24DE ‘96
>TOMEI TURBO KIT M8290
>TOMEI TUBO PIPING KIT
>TOMEI Camshaft 270°- 9.8mm
>TOMEI Exhaust Manifold
>TOMEI Outlet Pipe
>TOMEI EXPREME Ti Cat Straight pipe
>TOMEI EXPREME Ti Muffler
>TOMEI Fuel Pump Universal 255L/h
>GREDDY SPEC-LS TYPE-24E
>GREDDY Suction Kit Φ80
>TOMEI Prototype Piston 89.5mm
>TOMEI Prototype Connecting Rod
>TOMEI Head Gasket Φ90-1.2mm
>INJECTOR DYNAMICS 725-48-14
>HALTECH Platinum Sport 1000
This product is designed to be used in conjunction with the TOMEI KA24DET CORE TURBO PARTS and GREDDY ■SUCTION KIT ■INTERCOOLER KIT listed below.Alternative products from other manufacturers can also be used instead but may require additional modifications to complete the installation.
