EXHAUST MANIFOLD KIT EXPREME EJ SINGLE SCROLL WRX/STI EQUAL LENGTH
with TITAN EXHAUST BANDAGE

4-2-1 Isometric Design for Optimum Results at High End RPM

expreme
expreme
@

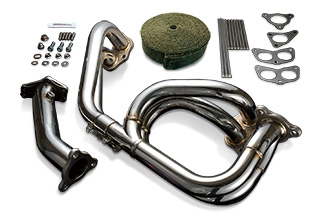

KIT CONTENTS
Exhaust Manifold

Turbine Support Pipe

Titan Exhaust Bandage
Bandage Band
Gaskets
Bolts
Bolt Smooth Paste
expreme

ƒNƒŠƒbƒN‚ΕŠg‘ε

Material Pipe Dia.
(φ)
Pipe Thickness
(mm)
Weight
(k‚‡)
Design
Pipe Flange
SUS304 SUS304 Main 42.7
Tip 45

Support Pipe Tip 60
2.5 8.85
(Normal 13.9)
4-2-1

Application Model Part No.
IMPREZA EJ25 TB6010-SB02B
(Previous P/N 193105)

MSRP $790.00 (USD)


FEATURES

4-2-1 Isometric Design for Optimum Results at High End RPM

With our ever popular EXPREME exhaust manifolds which is now used throughout the world. Our EXPREME Manifolds have received numerous high appraisals on all aspects of efficiency, durability and performance gains. Now with this new addition to the EJ25 user family we now have a manifold specifically to optimize the EJ25 true power output potential.

‘
Perfect Pipe Size, All Equal Length.
We designed the headers to be the 4-2-1 layout with ƒΣ42.7mm, ƒΣ45.0mm, ƒΣ60.0mm sizes to help extract the absolute maximum from your EJ25 turbine with the equal length design. The exhaust pressure is controlled best by this layout & you can see the peak power gains & at high RPM.
‘
Stronger, More Precise Lost Wax Collector
The Lost Wax process was used to eliminate cracking from welded weak points and for aiding smoother exhaust gas flow without any interference.
‘ An All New Boxer Sound!
You will have a new higher pitched racing sound from this isometric design. With 2.5mm thick pipes made from SUS304 stainless steel.
