STRAIGHT DOWN PIPE KIT EXPREME EJ SINGLE SCROLL GD Ver.2
with TITAN EXHAUST BANDAGE


Maximum Weight Reduction,
Optimum Performance,
Catless Design

Tomei Catless Straight Down Pipe dramatically improve exhaust flow and significantly
reduce over 53% of weight vs. stock down pipe. Addition to massive torque and power increase,
lightness dramatically improves handling.

APPLICATION
WRX
02-03 GD EJ205
WRX
04-05 EJ205
STI
EJ257
WRX
06-07 EJ255
STI
EJ257

APPLICATION PART NUMBER
WRX/STI '02-'07 TB6060-SB02A
(Previous P/N 431105)

MSRP $390.00 (USD)
Designed for Competition Use only

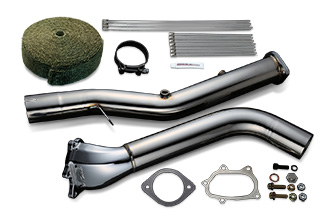

KIT CONTENTS
DOWN PIPE A (1)
DOWN PIPE B (1)
TURBINE GASKET (1)
MUFFLER GASKET (1)
CLAMP BAND (1)
CAP BOLT (1)
FLANGE BOLT (2)
FLANGE NUT (2)
HEX NUT (2)
BLIND PLUG (1)
COPPER WASHER (1)
DISC SPRING (1)
TITAN EXHAUST BANDAGE (1)
BANDAGE BAND (10)
BOLT SMOOTH PASTE (1)

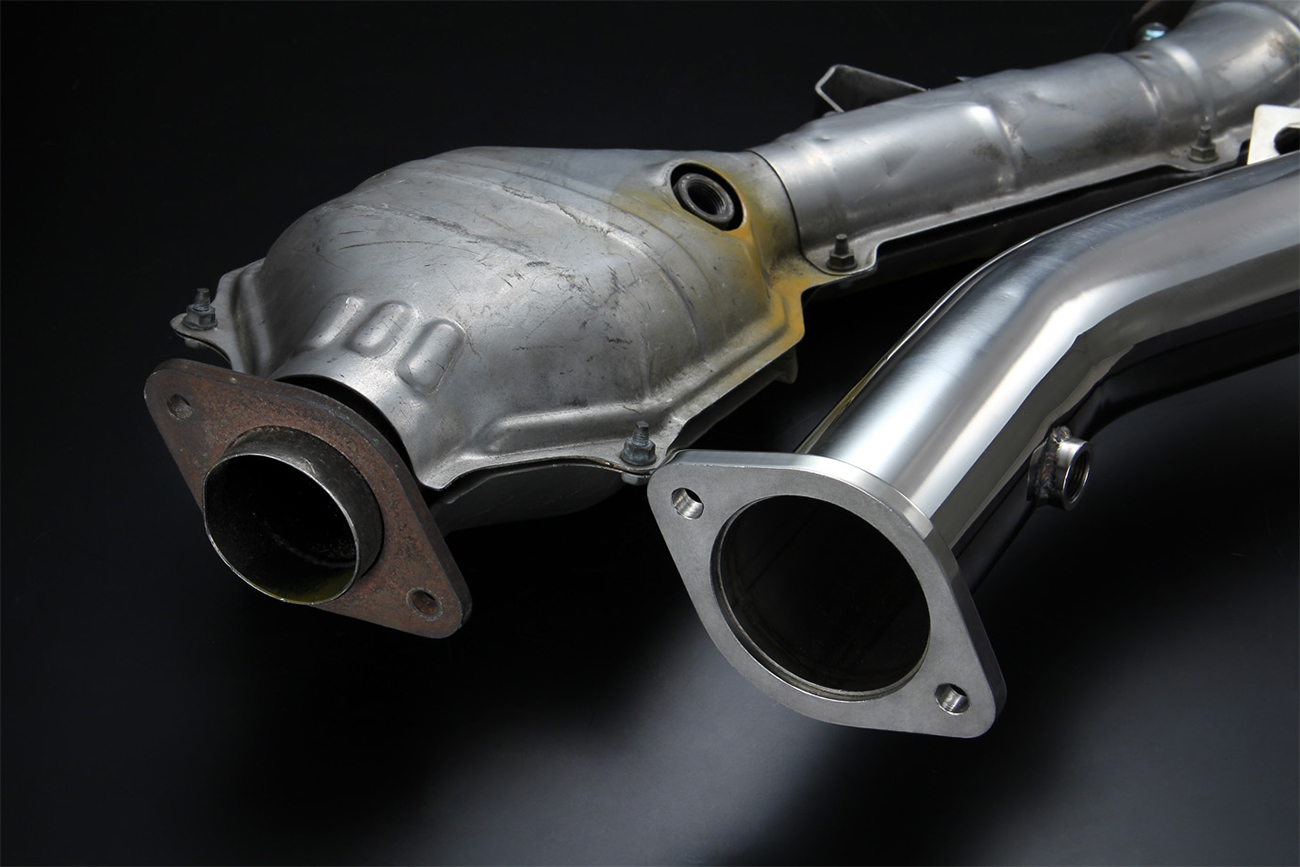

SPECIFICATIONS COMPARISON VS STOCK

Enlarged pipe diameter and catless design boost up exhaust flow.

STD
TOMEI
MATERIAL
STEEL
SUS304
PIPE DIAMETER (Φ)
60.5
76.3
PIPE THICKNESS (mm)
1.5
1.5
FLANGE THICKNESS (mm)
10.0-8.0
11.0-10.0
WEIGHT (kg / lbs)
10.3 / 22.71
4.3 / 9.48

2 Piece Layout
The newly designed 2 piece Layout promote even weight distribution, minimize dimension changes from heat expansion and complete precise installation.

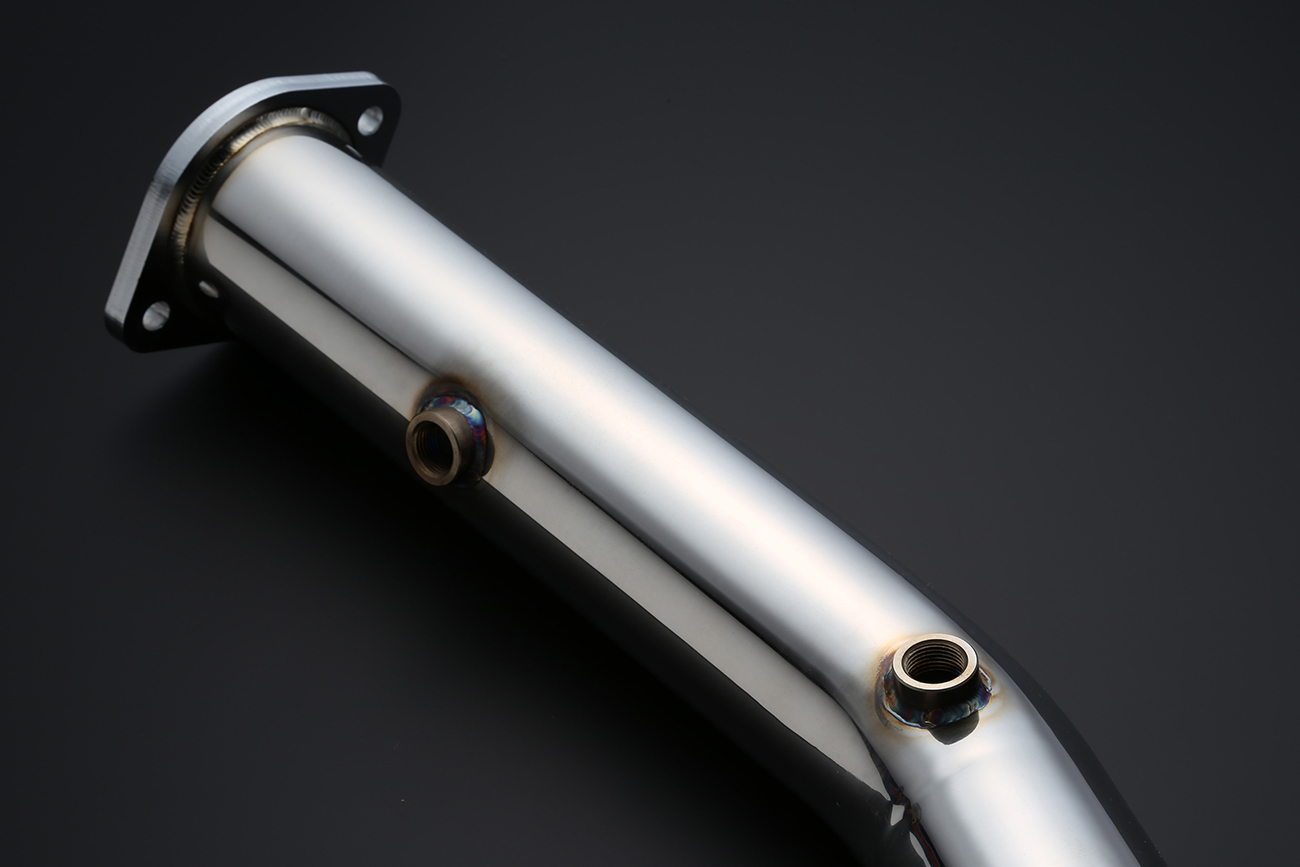

OUTLET
Lost-Wax casting requires NO welding thus delivering superior precision and strength.

T/C FLANGE
Significant diameter increase resulting in dramatic exhaust flow improvement.

EXIT FLANGE
The flat flange adapts wide range of aftermarket exhaust systems. (excluding stock).

SENSOR BUNG
A/F sensor ready.
