With an overall dramatic performance
improvement & weight reduction.
The 180SX & Silvias are reborn.

High quality production, for true competition use without compromise. Only the best Titanium grade materials are used. From the special racing layout design, made as straight as possible, to the high flow silencer. We have poured our knowledge into it all. When you see our EXPREME Ti system, you can then understand that ours is unrivaled.

PS13

RPS13

S14

S15


(R)PS13 Part Number :TB6090-NS08A
(Previous P/N 440011)
S14 Part Number :TB6090-NS08B
(Previous P/N 440012)

S15 Part Number :TB6090-NS08C
(Previous P/N 440013)
MSRP $1,090.00
(USD)
※FOR OFF ROAD USE ONLY.




STOCK COMPARISION
The exhaust flow design was the main focus in the pipe design, the best pipe thickness for weight and strength with pipe diameter to suit torque and all power gains throughout the entire power band.

▲S15純正

(R)PS13
S14
S15
TOMEI
STD
TOMEI
STD
TOMEI
STD
MATERIAL
TITANIUM

STEEL

TITANIUM
STEEL
TITANIUM

STEEL

MAIN PIPE DIAMETER
Φ80.0

Φ54.0

Φ80.0
-
Φ80

Φ47-Φ63mm

MAIN PIPE THICKNESS
1mm

1.5mm

1mm
-
1mm

1.5mm

SILENCER DIAMETER
Φ152
-
Φ152
-
Φ152
-
SILENCER BROAD THICKNESS

1mm
-
1mm
-
1mm
-
TIP DIAMETER
Φ115

Φ38.1×2

Φ115
-
Φ115

Φ48.6×2

TIP BROAD THICKNESS
1mm
-
1mm
-
1mm
-
FLANGE THICKNESS
8.0mm
8.0mm
8.0mm
8.0mm
8.0mm
8.0mm
WEIGHT
4.65kg
14.50kg
4.85kg
16.00kg
4.85kg
16.00kg

9.85kg LIGHTER
11.15kg LIGHTER
 3 PIECE ASSEMBLY
No flanges were fitted for increased weight savings and for a better finish with the race look secure springs and clamp methods.
 GLASS WOOL

The long fiber wool threads were adopted for the silencer. This type has proven to last longer than the traditional fiberglass materials even over a longer period of time with extensive high temperature exposure both at high and low pressures.


 RACING LAYOUT
For the best exhaust efficiency results minimal bends and curves was the design focus points on this product which aided with the supreme results.
 EXPREME Ti TESTAMENT

The sign of quality and performance is clearly visible with the laser marked "EXPREME Ti" logo on the side of the muffler tip.


 PERFORMANCE VALUE
The best performance is made possible with the best materials and still with keeping it within everyone's reach.
 DRY RACE SOUND

The instinctive sound of a true race exhaust sound that a Titanium material exhaust gives will intoxicate you with the dry race exhaust sound.



 KIT CONTENTS
MAIN PIPE A (1)
MAIN PIPE B (1)
SILENCER ASSY (1)
FLANGE NUT M10 (P=1.25mm) (2)
GASKET (1)
CLAMP BAND (2)
SPRING (4)
SILENCER BAND (1)
SILENCER BAND RUBBER (1)
FLANGE BOLT M8 (L=25mm) (1)
FLANGE NUT M8 (1)
SOUND REDUCER VER.2 (1)


Additional bolt holes may be required when using the sound reducer ver.2 .
Click here for details.

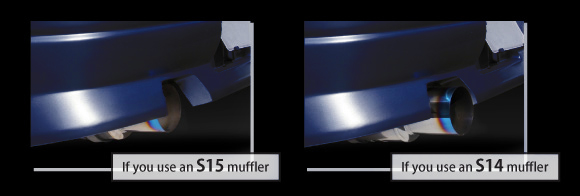

Use the S14 muffler if you require that extra length,
to protrude from the large S15 bumper.
※Approximately 60mm longer.
