EVO IX EVO VIII EVO VIII



 STOCK COMPARISION

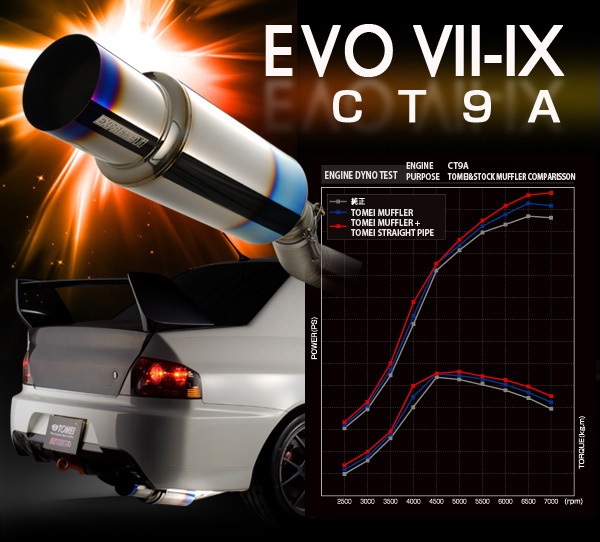

The exhaust flow design was the main focus in the pipe design, the best pipe thickness for weight and strength with pipe diameter to suit torque and all power gains throughout the entire power band.
TOMEI
STD
MATERIAL
TITANIUM
STAINLESS
DIAMETER MAIN PIPE
80
60.5
MAIN PIPE THICKNESS
1mm

1.5

SILENCER DIAMETER
152
100~440mm (Oval)
SILENCER BROAD THICKNESS
1mm
N/A
TIP DIAMETER
115
100
TIP BROAD THICKNESS
1mm
N/A
FLANGE THICKNESS
6mm
12mm
WEIGHT
4.85kg
16.00kg
11.15 kg LIGHTER!

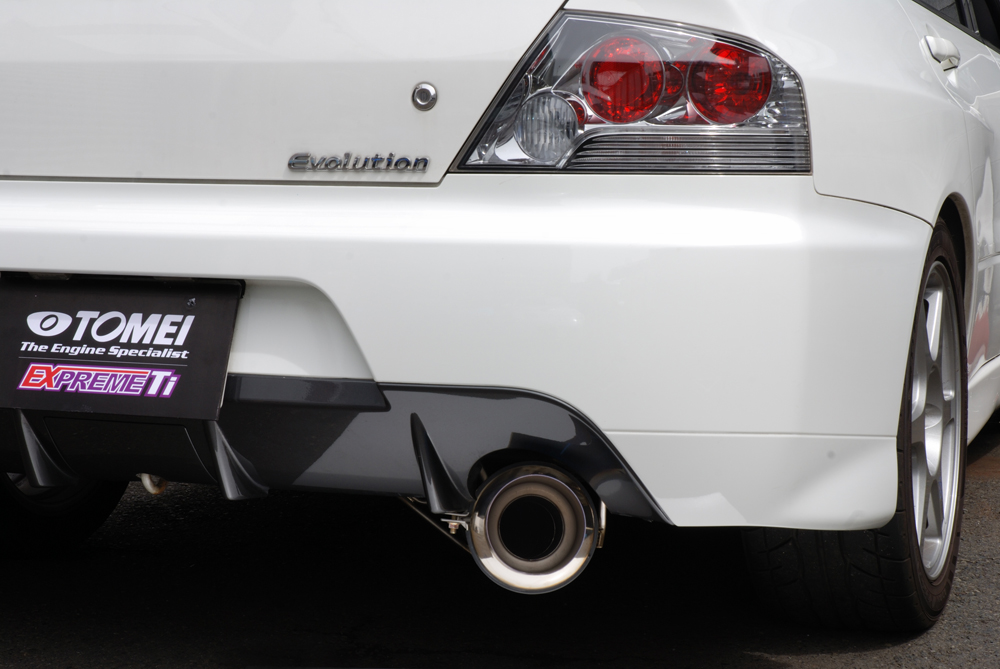

STANDARD EVO IX

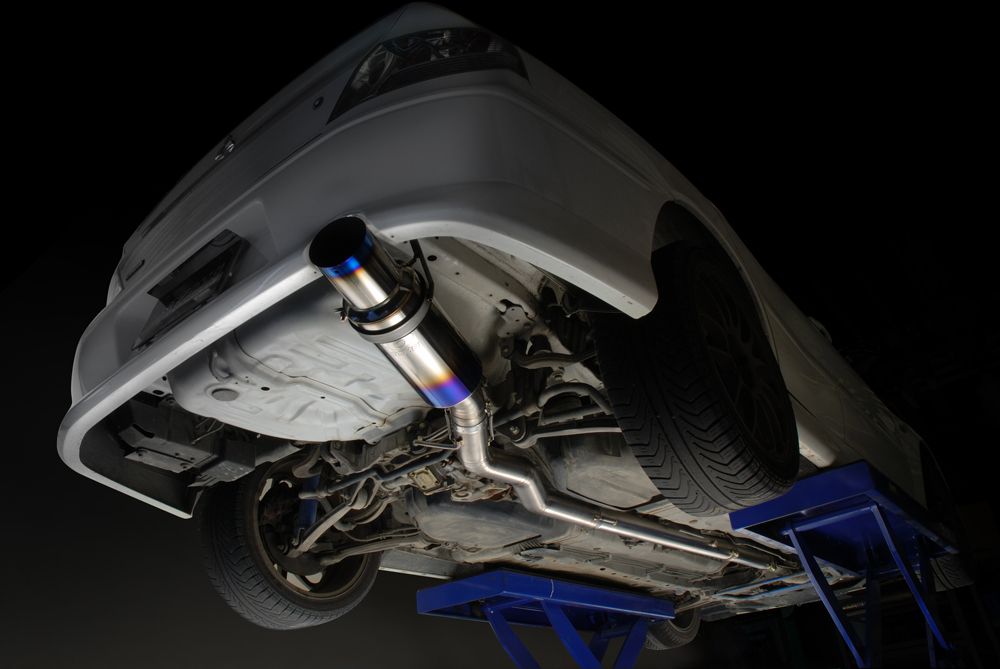

 RACING LAYOUT

For the best exhaust efficiency results minimal bends and curves was the design focus points on this product which aided with the supreme results.

 3 PEICE ASSEMBLY
No flanges were fitted for increased weight savings and for a better finish with the race look secure springs and clamp methods.

 DRY RACE SOUND

The instinctive sound of a true race exhaust sound that a Titanium material exhaust gives will intoxicate you with the dry race exhaust sound.

 PERFORMANCE VALUE
The best performance is made possible with the best materials and still with keeping it within everyonefs reach.


 KIT CONTENTS
MAIN PIPE A
MAIN PIPE B
SILENCER ASSEMBLY
GASKET
WASHER M12 x2
NUT M12 x2

A/F BOSS PLUG@*1

COPPER WASHER@*1
CLAMP BAND x2
SPRING x4
SILENCER BAND
SILENCER BAND INSULATOR
BOLT M8 L=25mm
NUT M8
SOUND REDUCER ver.2

MUFFLER HANGERS@*2
SPACER@*2
SPRING WASHER@*2
BOLT M8 L=60mm @*2
BOLT SMOOTH PASTE
1* Exculding North American models.
2* Excluding EVO IX Japanese models.
This model does not include North America.

COMPATIBLE WITH ALL CT9A EVO MODELS

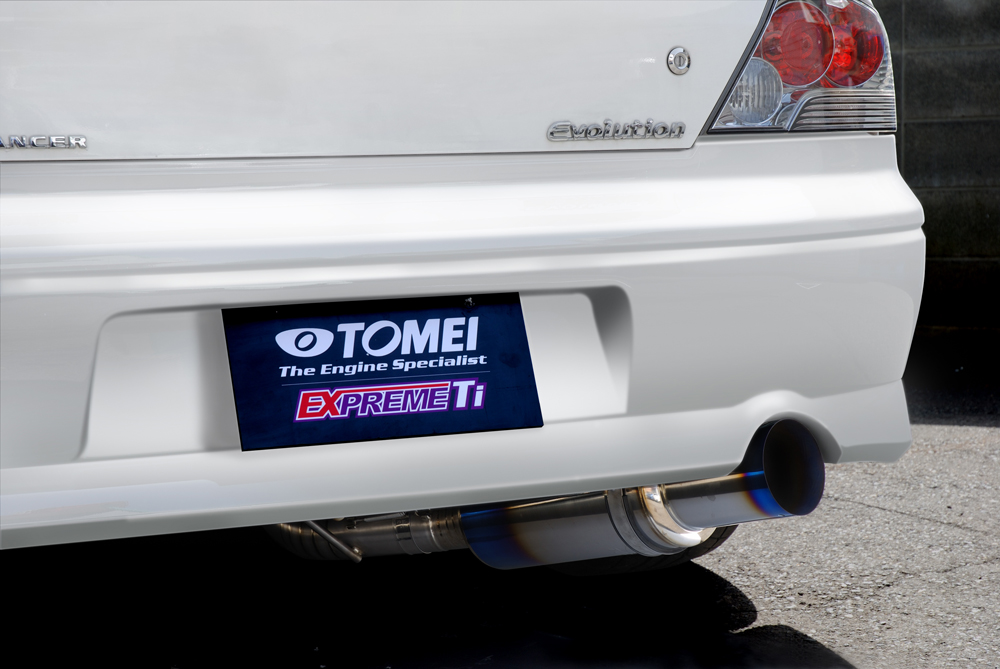

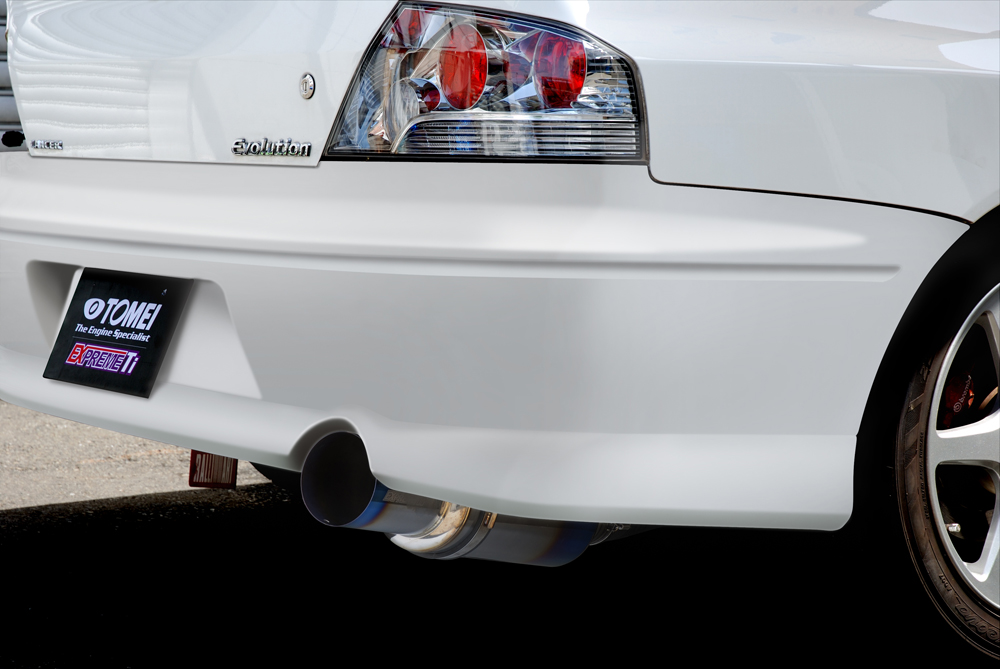

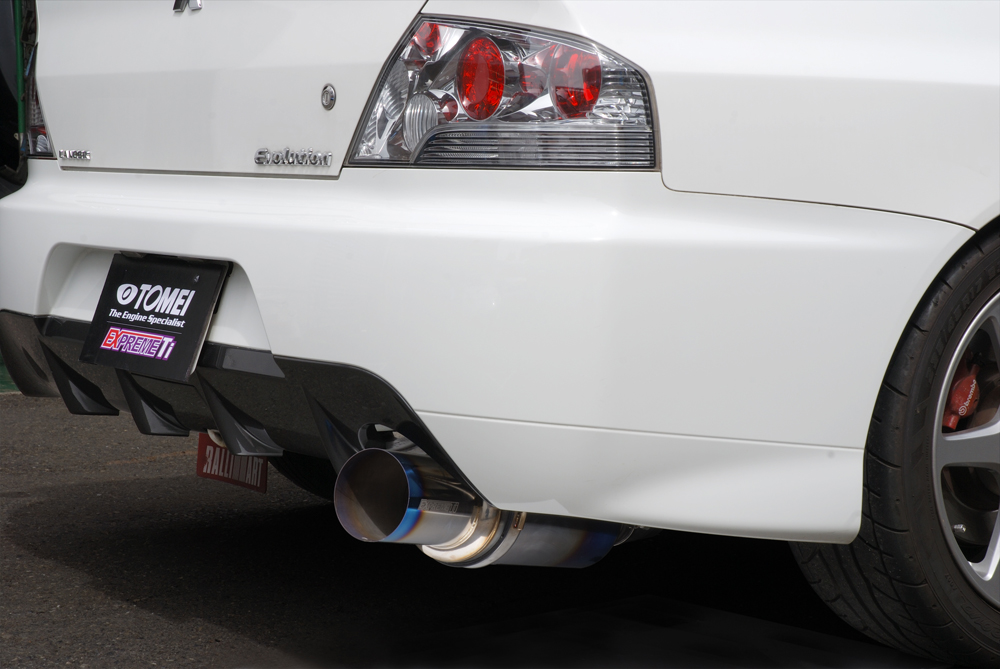

JAPANESE BUMPER @EVO VII VIII

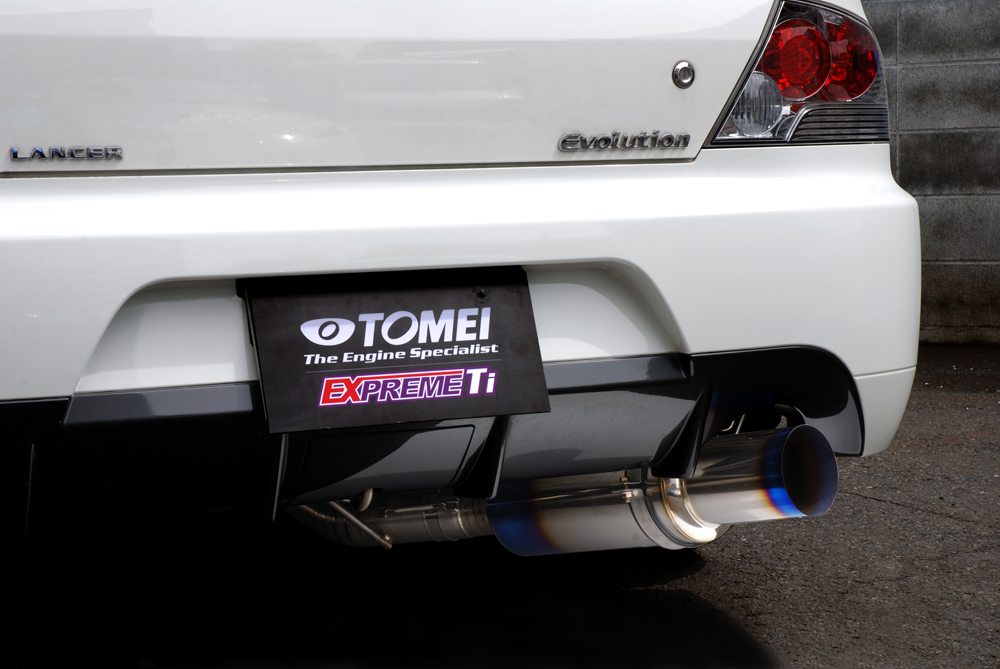

JAPANESE BUMPER@EVO IX

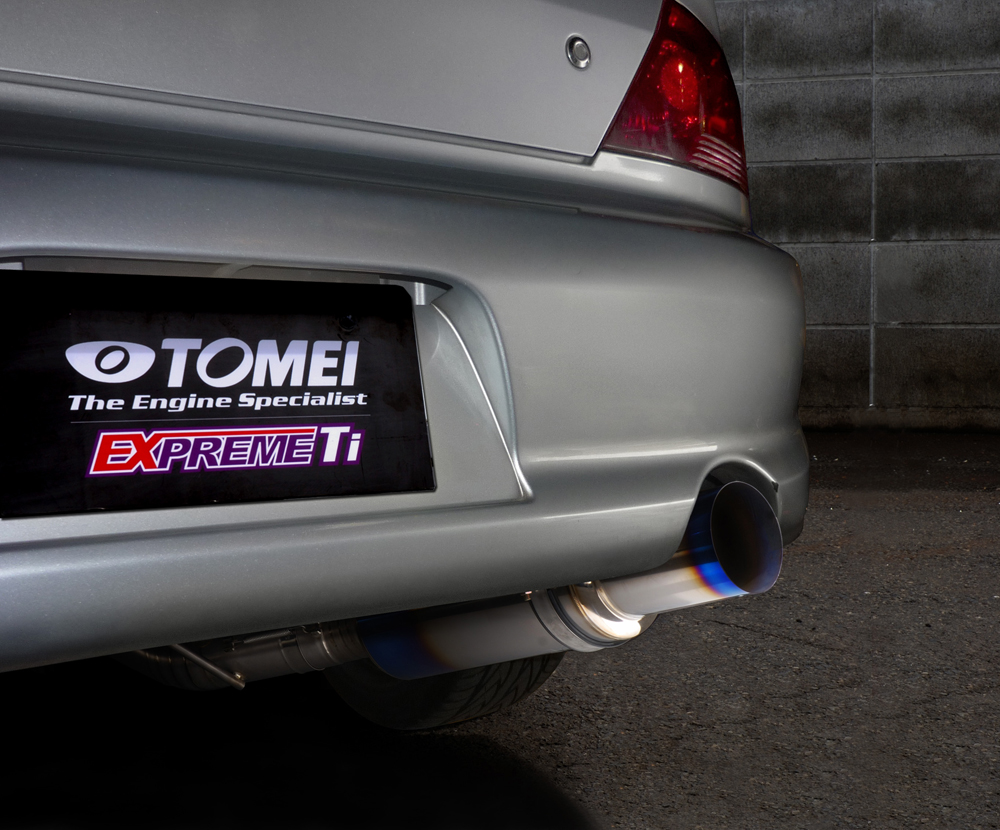

NORTH AMERICAN BUMPER @EVO VIII / IX

EVO VII / VIII / IX - for JAPANESE BUMPER -
PART NUMBER F
TB6090-MT01A (Previous P/N 440003)
MSRP $1,090.00 (USD)
* FOR OFF ROAD USE ONLY.
EVO VIII / IX - for NORTH AMERICAN BUMPER-
TB6090-MT01B (Previous P/N 440004)
MSRP $1,090.00 (USD)
* FOR OFF ROAD USE ONLY.

Additional bolt holes may be required when using the sound reducer ver.2 .
