Redefine the AE86
The 2 ultimate exhausts for every AE86 enthusiast.

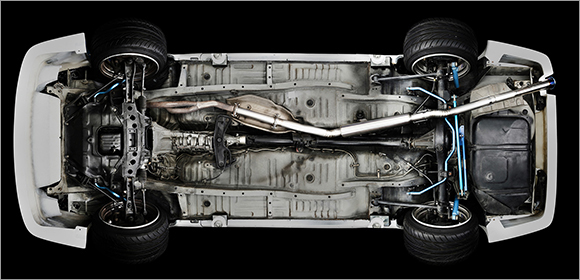

TYPE-R　Ultra lightweight under axle exhaust

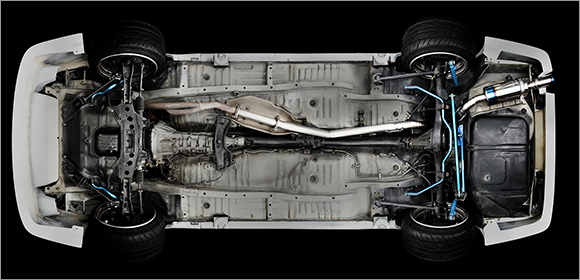

TYPE-S　High performance exhaust with hassle-free stock layout
Application : AE86
MSRP $1,290.00 (USD)
PART NUMBER 　TYPE-R：TB6090-TY01A
TYPE-S：TB6090-TY01B
Designed for Competition Use only

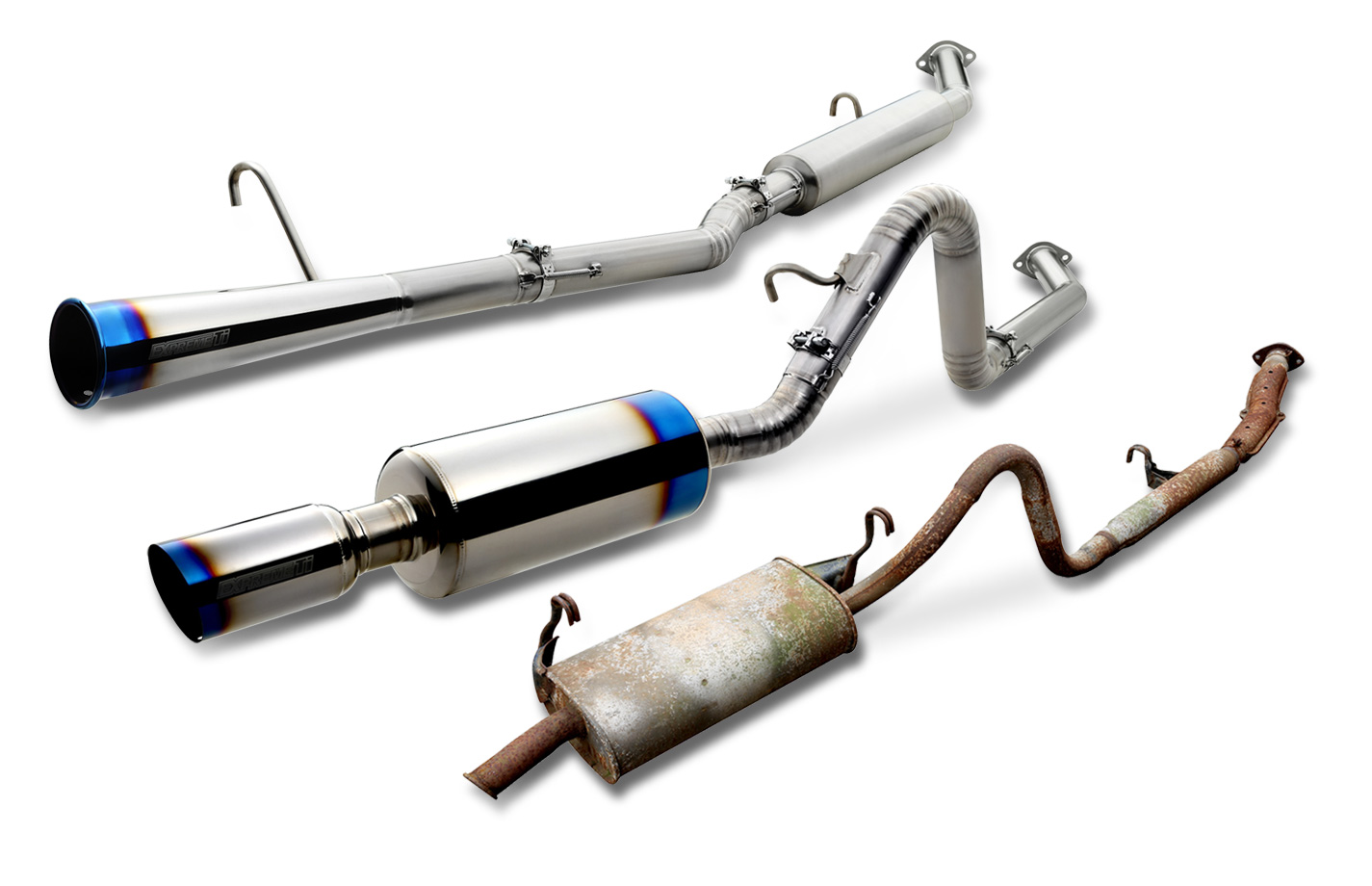

SPECIFICATION COMPARISON VS STOCK
TYPE-R
TYPE-S
STD
PART No.
TB6090-TY01A
TB6090-TY01B
ー
MSRP
 $1,190.00 (USD) ー
MATERIAL
Ti
Ti
ー
MAIN PIPE A DIAMETER
2.38inch(60.5mm)
2.38inch(60.5mm)
1.9inch(48.6mm)
MAIN PIPE THICKNESS
1.0 mm
1.0 mm
1.5mm
SILENCER DIAMETER
4inch(102.0mm)
<Center silencer>
5.98inch(152mm)
<Rear silencer>
5.98inch(152mm)×
3.54inch(90mm) Oval
SILENCER THICKNESS
1.0mm
1.0mm
ー
EXIT DIAMETER
3.5inch(89.1mm)
R=4 curl
3.5inch(89.1mm)
1.9inch(48.6mm)
R=3 curl
EXIT THICKNESS
1.0mm
1.0mm
1.5mm
FLANGE THICKNESS
8.0mm
8.0mm
9.0mm
WEIGHT
8.16lb (3.7kg)
9.37b (4.25kg)
23.81lb(10.8kg)

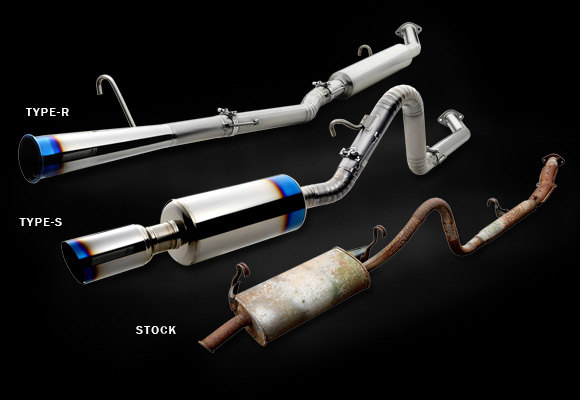

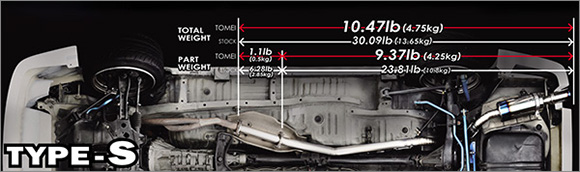

WEIGHT COMPARISON TYPE- R TYPE- S STOCK
8.16 lbs (3.7 kg) 9.37 lbs (4.25 kg) 23.81 lbs(10.8 kg)
15.65~14.44lbs
(7.1kg~6.55kg)
Weight Reduction!!

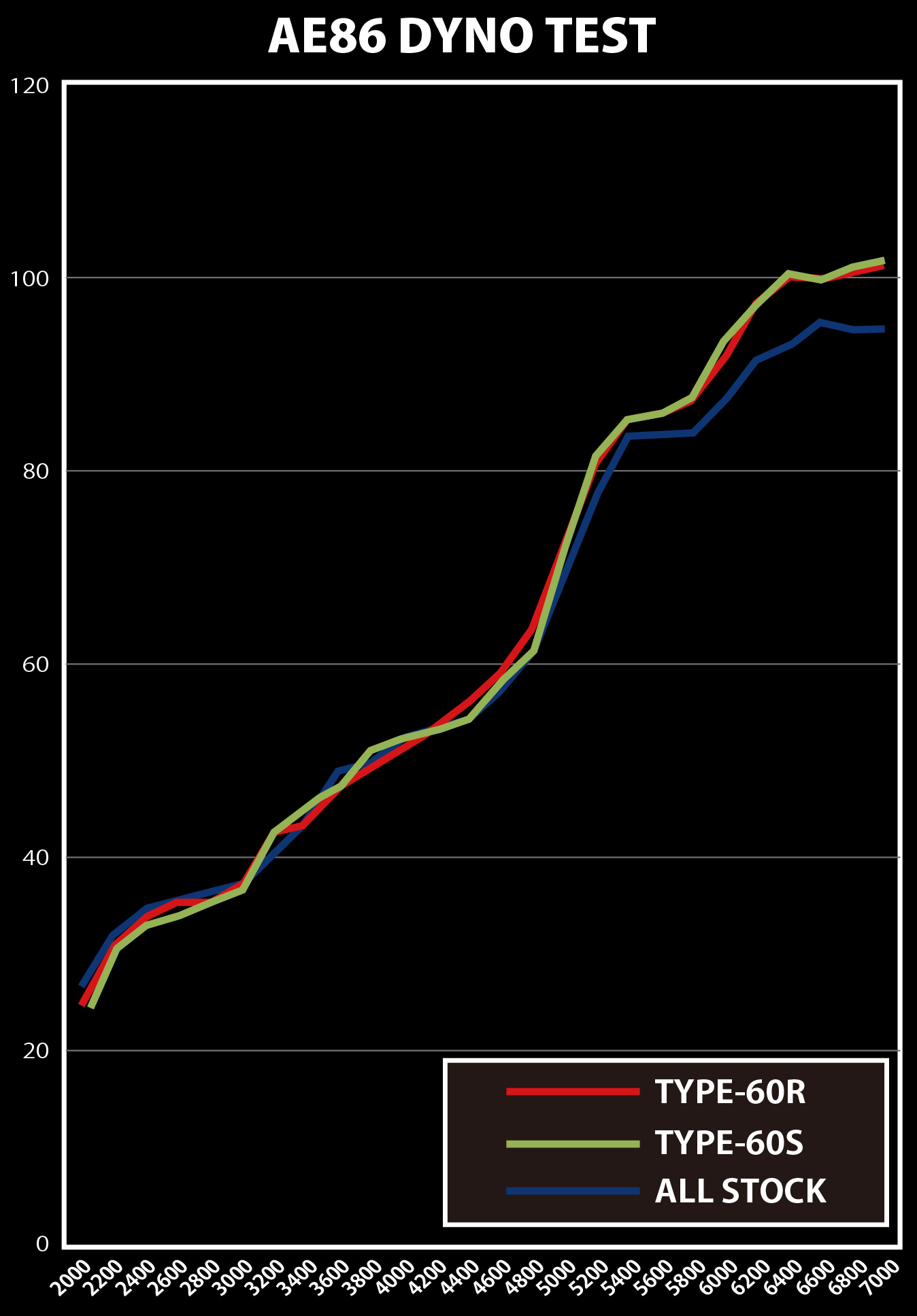

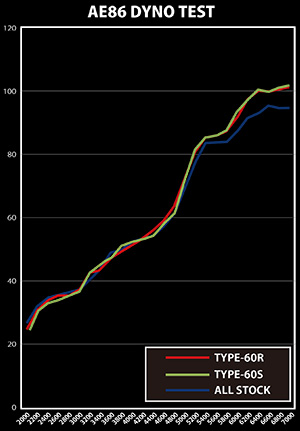

TEST DATA

EXHAUST NOISE TEST
AE86 TESTED @4950rpm
 Exh : Unknown　Catlyst : STOCK　Muffer : TYPE-R
with out inner silencer
 102db
with inner silencer
 100db
 Exh : Unknown　Catlyst : STOCK　Muffer : TYPE-S
with out inner silencer
 104db
with inner silencer
 99db
 KIT CONTENTS
MAIN PIPE A (1)
MAIN PIPE B (1)
GASKET Φ60 (1)
FLANGE BOLT M10 (2)
FLANGE NUT M10 (2)
CLAMP BAND (2)
SPRING (4)
THERMAL INSULATION SHEET (1)
TIE WRAPS (2)
SOUND REDUCER ver.2 (1)
BOLT SMOOTH PASTE (1)
TYPE-R only ＊TAIL PIPE (1)
TYPE-S only＊SILENCER (1)
                   ＊SILENCER BAND (1)
                   ＊SILENCER BAND RUBBER (1)
                   ＊FLANGE BOLT M8 (1)
                   ＊FLANGE NUT M8 (1)

TYPE-R   TYPE-S


Additional bolt holes may be required when using the sound reducer ver.2 .
Click here for details.
