| Application |
BNR32 / BCNR33 / BNR34 *Cars equipped with RB26DETT engine |
|
| |
| PART No. |
PRODUCT NAME |
MSRP(USD) |
| TB6080-NS05A |

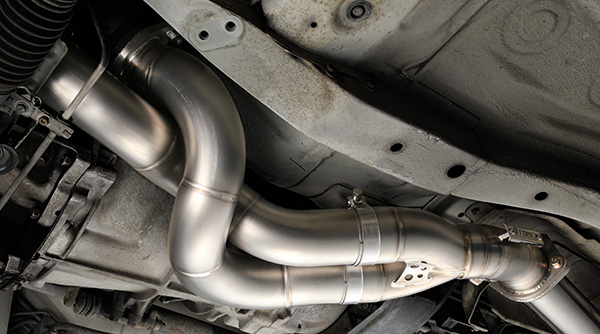

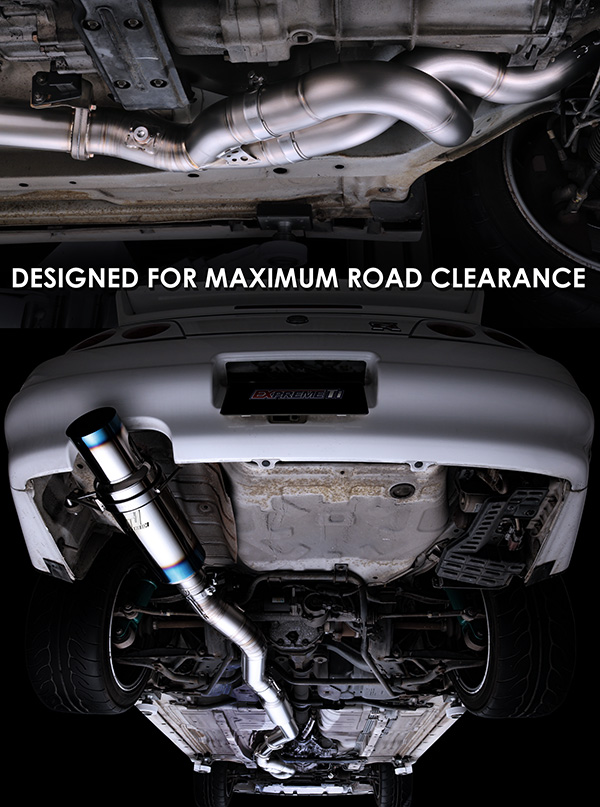

FULL TITANIUM FRONT PIPE KIT
EXPREME Ti RB26DETT |
$1,290.00 |
|
| |
|
| |
| |
 |
 |
 |
| |
 |
 |
 |
| |
 |
| |
 |
| |
 |
| |
| |
 |
 |
| |
 |
| |
TOMEI
|
STOCK |
| PART No. |
TB6080-NS05A |
- |
| MSRP |
$1,190.00（USD） |
- |
| MATERIAL |
Ti |
Steel system |

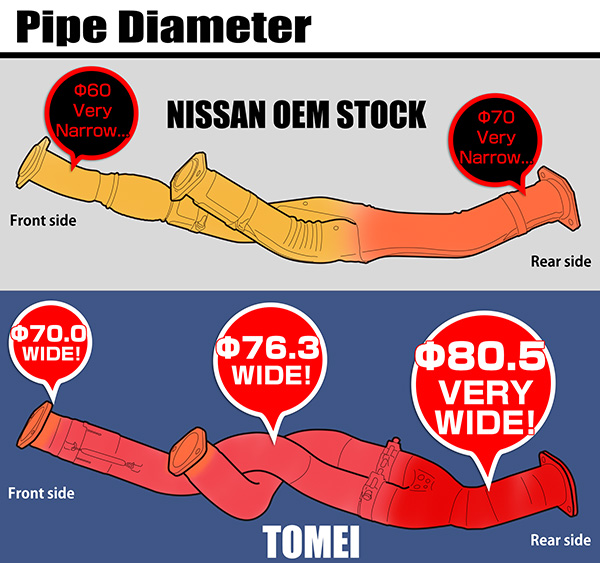

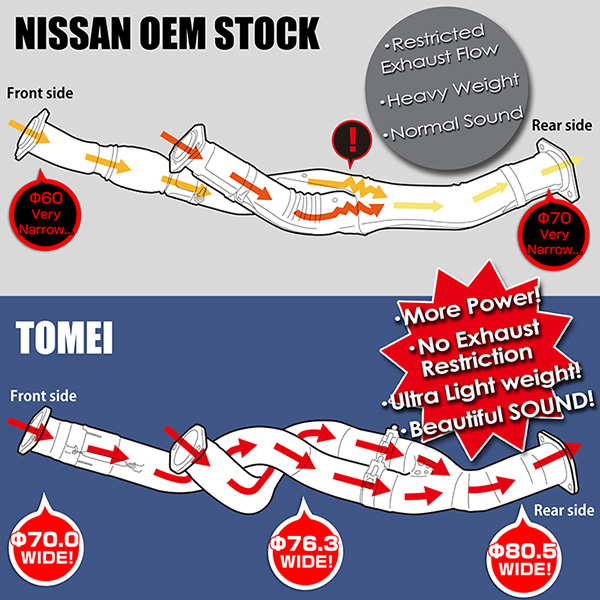

| MAIN PIPE DIAMETER |
2.8-3.0-3.2inch
(70.0-76.3-80.5mm) |
2.4-2.8inch
(60.0-70.0mm) |
| MAIN PIPE THICKNESS |
1.2mm |
2.0mm |

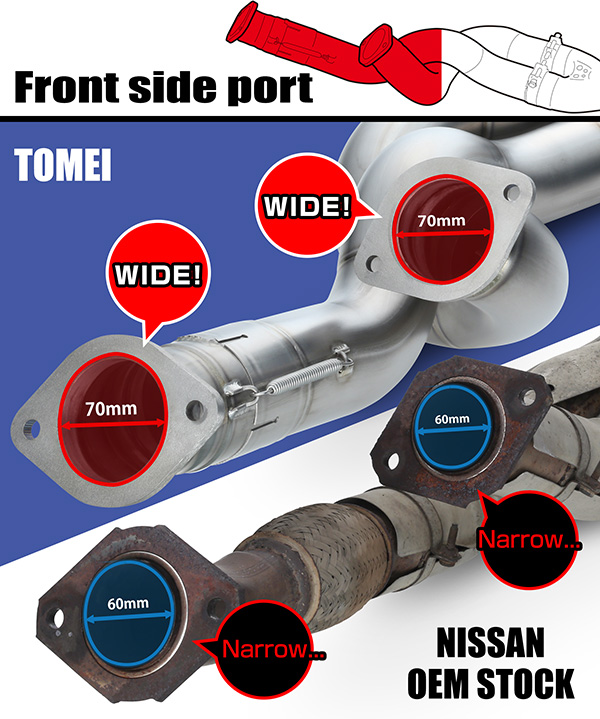

| FLANGE DIAMETER |

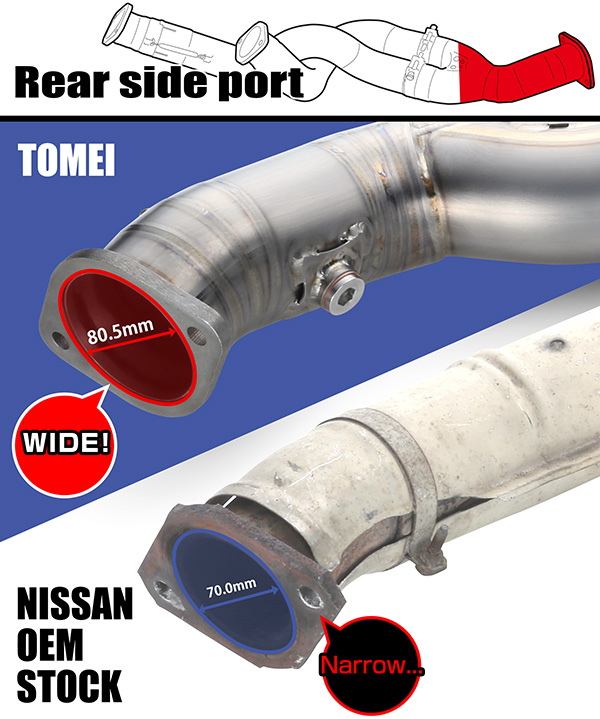

F:2.8 / R:3.2inch
(F:70.0 / R:80.5) |
F:2.4 / R:2.8inch
(F:60.0 / R:70.0) |
| FLANGE THICKNESS |
8.0mm |
8.0mm |

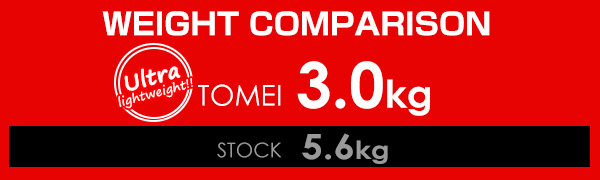

| WEIGHT |
6.6lbs(3.0kg) |
12.4lbs(5.6kg) |
|
| |
 |
| |
 |
 |
| |
 |
 |
| |
 |
 |
| |
 |
 |
| |
 |
 |
 |
 |
 |

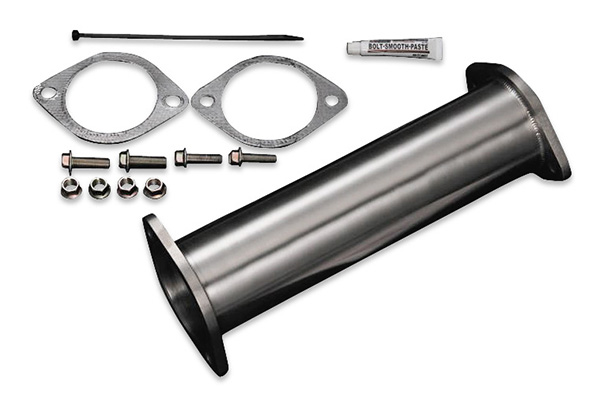

| Part No. TB6100-NS00A
|
|
 |
|
Part No.
BNR32 :
TB6090-NS05A
BCNR33 : TB6090-NS05B
BNR34 :
TB6090-NS05C |
|
|
|
|
|
|
