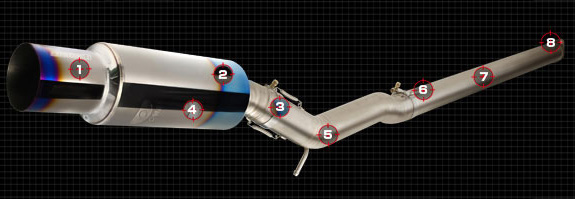

DESIGN BREAKDOWN
The secrets behind the quality and performance of the EXPREME Ti series.

Click on the number to go to the details on that part.
1
 TAIL PIPE
Made from Titanium material to 115mm diameter and 1mm thick piping. Straight cut designed and finished for race use. Finished off with the EXPREME Ti logo laser etched on the tip with the Titanium gradation blue colours.
2
 SILENCER BAND
Made from stainless steel, this part is designed to support the main body and to allow more freedom during the installation process. The heat resistant rubber insulator was chosen to help with absorbing vibrations.
3
 CLAMP BAND
This clamp design is much stronger than the conventional flange and bolt type. It secures the pipe in place and can keep an airtight fixture whilst still being able to cope with the high heat, the stress loads and the vibrations that it will endure.
4
 SILENCER
SILENCER CASE
This part is made from Titanium with the pipe size of 152 and 1mm thickness. The oversized shell design optimizes exhaust gas flow which helps with power gains. Then with the embossed Tomei logo and beautiful heat gradation colouring gives it the finishing touch that you'd expect.
SILENCER
PUNCHED MESH
Made entirely from Titanium of 1mm thickness and with the open slot ratio of 32.6%. With the combination of light weight Titanium material, the high flow design delivers a really nice racing exhaust sound.

SILENCER
GLASS WOOL
The long fiber wool threads were adopted for the silencer. This type has proven to last longer than the traditional fiberglass materials even over a longer period of time with extensive high temperature exposure both at high and low pressures.

5
 PRECISION WELDS
Titanium is known to be difficult to weld but with our experienced methods we are able to achieve the best results with strength, durability and quality in finish. With the use of the right equipement, attention to details to yeild the best results you would expect.
6
 CONNECTING SPRINGS
The pipes are connected together with the use of the hook and spring design. This allows the pipe with some movement to help absorb vibrations. The hook springs alone is sufficient enough to hold the pipes together. However you will get the best secured pipe joints when using the clamp band and the springs together.
7
 MAIN PIPE
Made entirely of 80mm and 1mm thickness titanium piping. These pipes are designed with minimal bends and weight for optimum flow characteristics. True race purpose design.
8
 FLANGE
Made from 6mm titanium plate for weight reduction and the 6mm prevents cracking and distortions. The size is the same as stock for ease of fitment to your car.

@
