Significantly Lighter With Improved
Gains From Mid to High RPM.
The Tomei Full Titanium Mid Y Pipe features an optimized layout and pipe diameter that maximizes the performance of both the VQ35DE/HR and VR37VHR.
When installed together with the Tomei Titanium Cat Straight Pipe and Muffler, even greater weight reduction and performance gains can be achieved.
APPLICATION
PART NUMBER
MSRP(USD)
350Z
2003-2004 VQ35DE
TB6110-NS02A
$890.00
2005-2006 VQ35DE Rev Up
2007-2009 VQ35HR
370Z
2009-2011 VQ37VHR
＊NOT COMPATIBLE WITH 2012 onwards stock muffler, TOMEI MUFFLER recommended.
※ Designed for Competition Use only
KIT CONTENTS
CENTER PIPE ASSY (1)
CLAMP BAND (2)
GASKET, FRONT (2)
GASKET, REAR (1)
FLANGE NUT (4)
COPPER WASHER (1)
PLUG (1)
FLANGE BOLT (2)
BOLT SMOOTH PASTE (1)

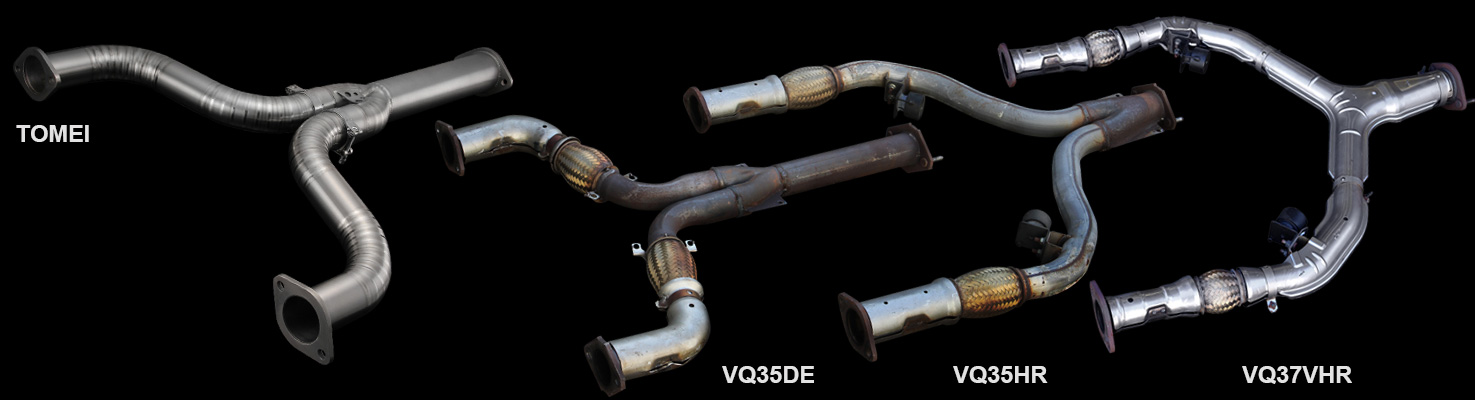

SPECIFICATIONS COMPARISON VS STOCK
TOMEI
STOCK
VQ35DE
VQ35HR
VQ37VHR
MATERIAL
TITANIUM
STAINLESS
PIPE DIAMETER
Φ60.5 / 76.3
Φ54 / 63.5
Φ54 / 70
Φ45 / 63.5
PIPE THICKNESS
1mm
1.5mm
WEIGHT
5.07lbs (2.3kg)
15.43lbs (7.0kg)
17.64lbs (8.0kg)
14.33lbs (6.5kg)
FEATURES

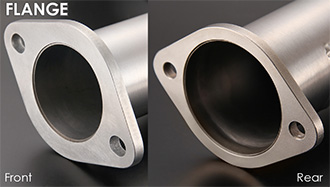

Precision lightweight Titanium flange
Minimalist design helps reduce the overall weight.
Comes equipped with an A/F seisor boss for convenience when tuning.

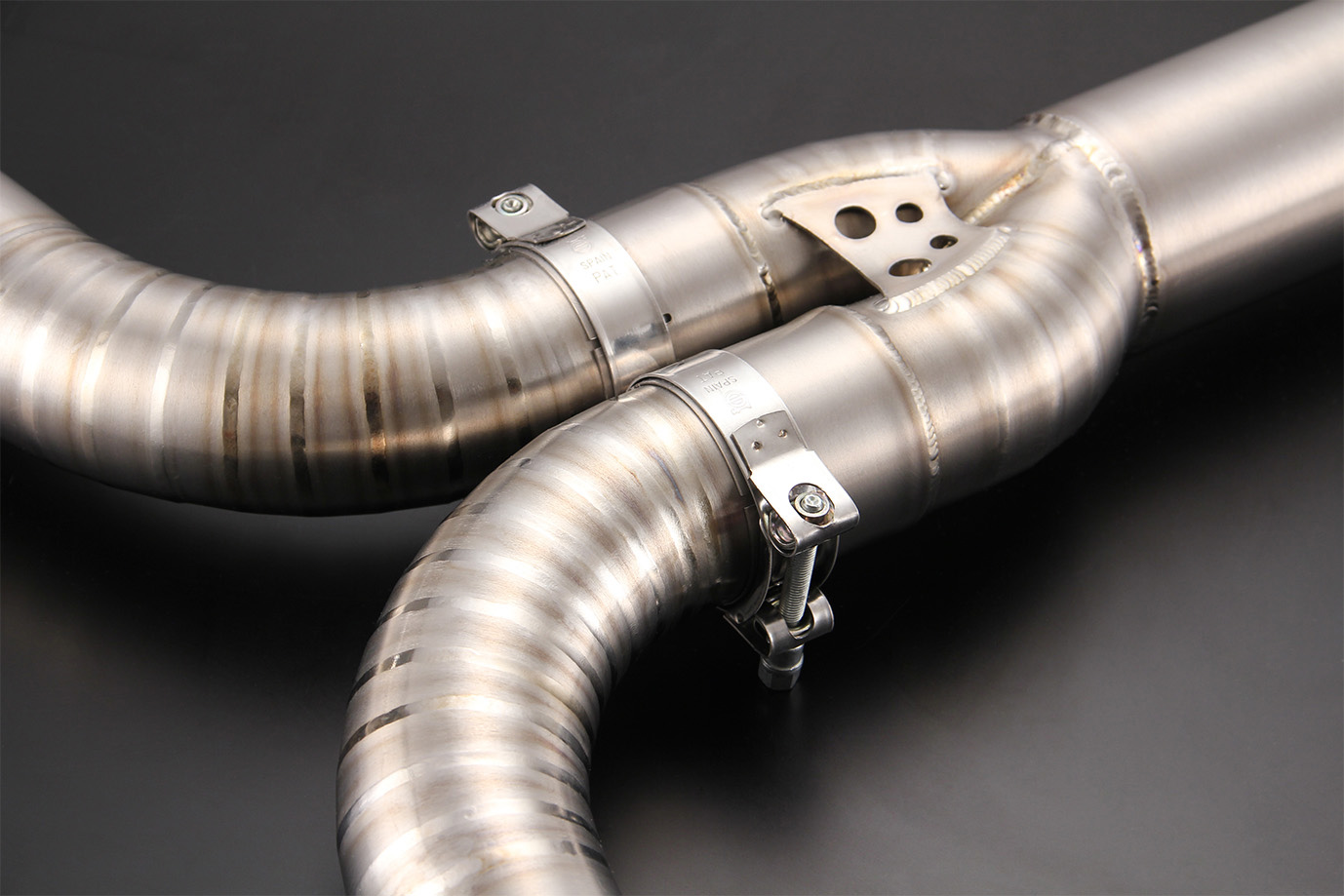

3 section pipe layout for ease of installation and a Mikalor damp band.
