High performance & super lightweight design.
Unleash the R35's full potential with
the new FULL TITANIUM EXHAUST SYSTEM.
|
![](http://www.tomeipowered-usa.com/usa/allen/NewsLetter/enews/2011Dec16/kara_10.gif) |
|
![](http://www.tomeipowered-usa.com/usa/allen/NewsLetter/enews/2011Dec16/kara_10.gif) |
Application : R35 GT-R |
MSRP $3,800.00 (USD) |
|
PART NUMBER : TB6070-NS01A |
![](http://www.tomeipowered-usa.com/usa/allen/NewsLetter/enews/2011Dec16/kara_10.gif) |
Designed for Competition Use only |
|
![](http://www.tomeipowered-usa.com/usa/allen/NewsLetter/enews/2011Dec16/kara_10.gif) |
COMPLETE SYSTEM INCLUDING MID SECTION |
|
![](http://www.tomeipowered-usa.com/usa/allen/NewsLetter/enews/2011Dec16/kara_10.gif) |
COMPATIBLE WITH STOCK DIFFUSER |

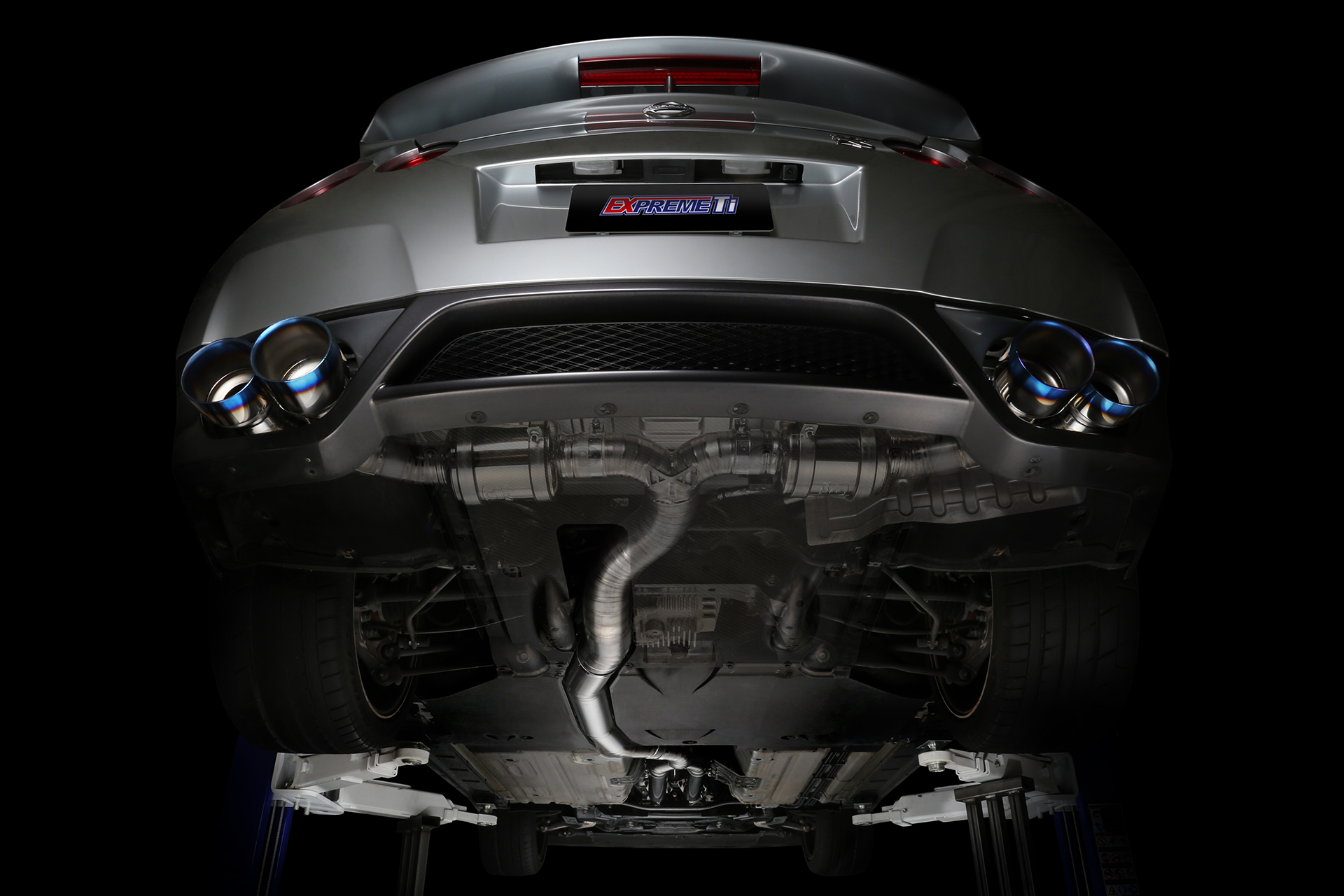

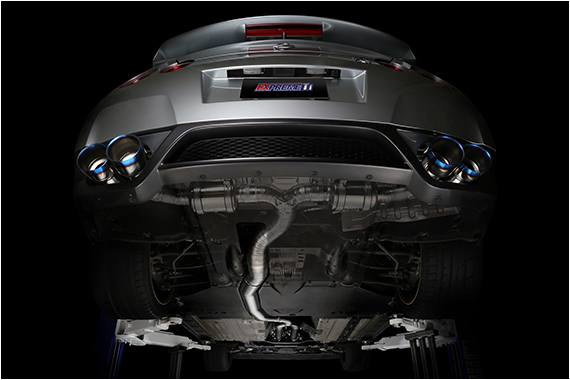

![](image_ti/R35muffler_lift_cover.jpg) |
![](http://www.tomeipowered-usa.com/usa/allen/NewsLetter/enews/2011Dec16/kara_10.gif) |

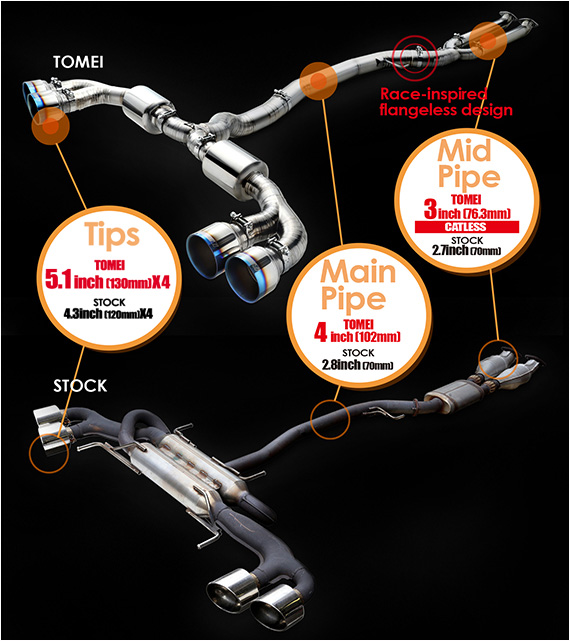

SPECIFICATION COMPARISON VS STOCK |
![](image_ti/ti_r35_muffler_hikaku.jpg) |
![](http://www.tomeipowered-usa.com/usa/allen/NewsLetter/enews/2011Dec16/kara_10.gif) |
![](image_ti/R35_weight_image.jpg) |
![](http://www.tomeipowered-usa.com/usa/allen/NewsLetter/enews/2011Dec16/kara_10.gif) |
|
TOMEI |
STD |
MATERIAL |
Ti |
― |
MAIN PIPE A DIAMETER |
4inch(102.0mm) |
2.8inch(70.0mm)
|
MAIN PIPE B DIAMETER |
4inch(102.0mm)-3inch(76.3mm) |
2.8inch(70.0mm) |
MAIN PIPE THICKNESS |
1.0mm |
1.5mm |
SILENCER DIAMETER |
6inch(152.0mm)×L=170×2 |
4.3inch(110.0mm)×L=400×2 |
SILENCER THICKNESS |
1.0mm |
― |
EXIT DIAMETER |
5.1inch(130.0mm)×4 |
4.7inch(120.0mm)×4
|
EXIT THICKNESS |
1.0mm |
1.5mm
|
FLANGE THICKNESS |
8.0mm |
10.0/6.0/6.0mm |
WEIGHT |
31.75lb(14.40kg) |
66.69lb(30.25kg) |
|
|
![](http://www.tomeipowered-usa.com/usa/allen/NewsLetter/enews/2011Dec16/kara_10.gif) |

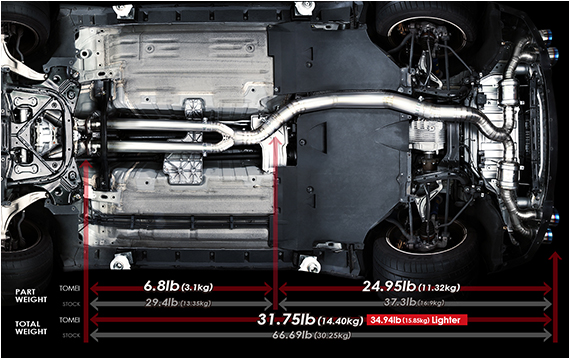

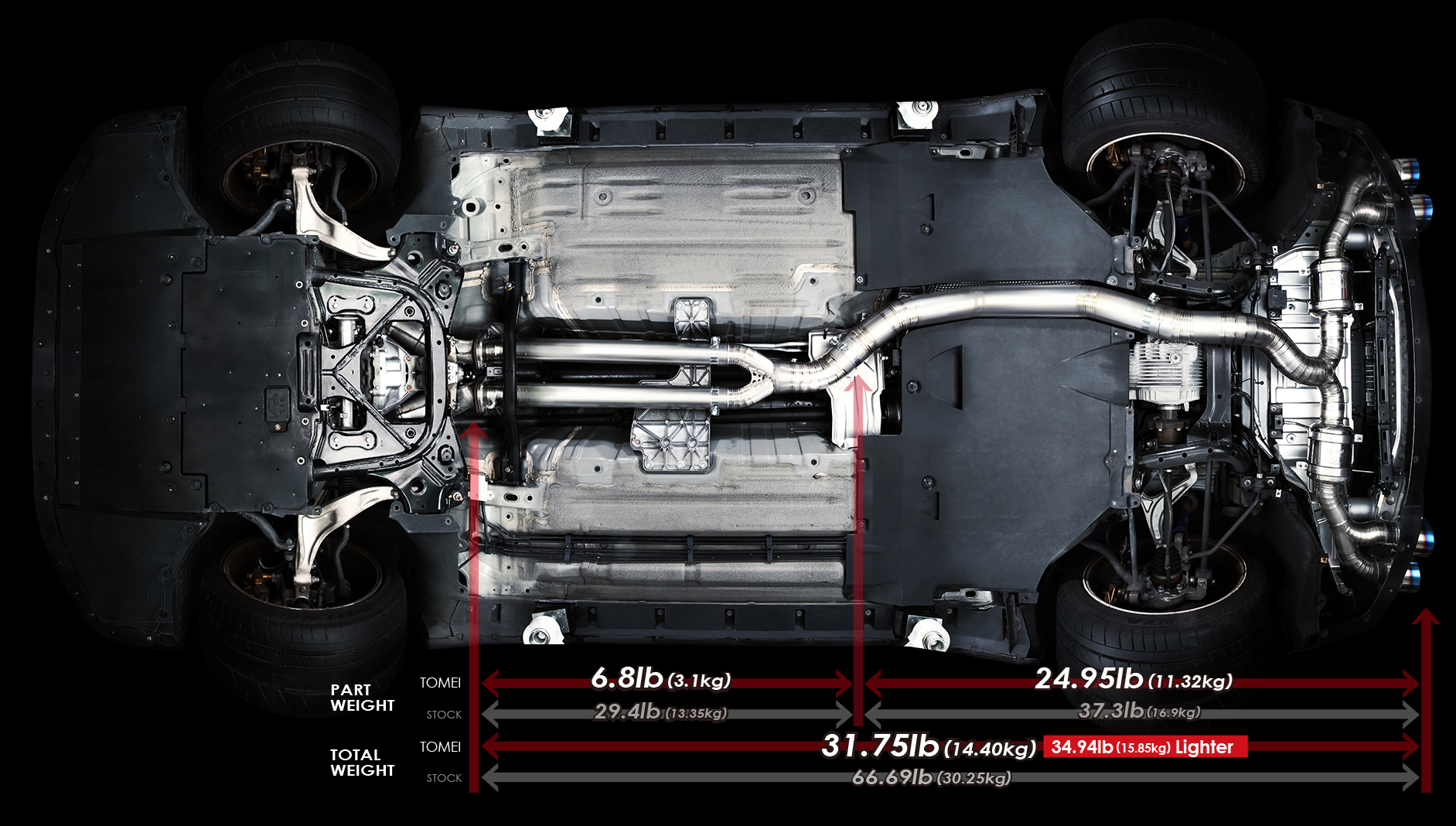

WEIGHT COMPARISON |
STOCK : 66.69lbs(30.25kg) TOMEI : 31.75lbs(14.40kg) |
34.94lbs (15.85kg)
Weight Reduction!! |
|
![](http://www.tomeipowered-usa.com/usa/allen/NewsLetter/enews/2011Dec16/kara_10.gif) |

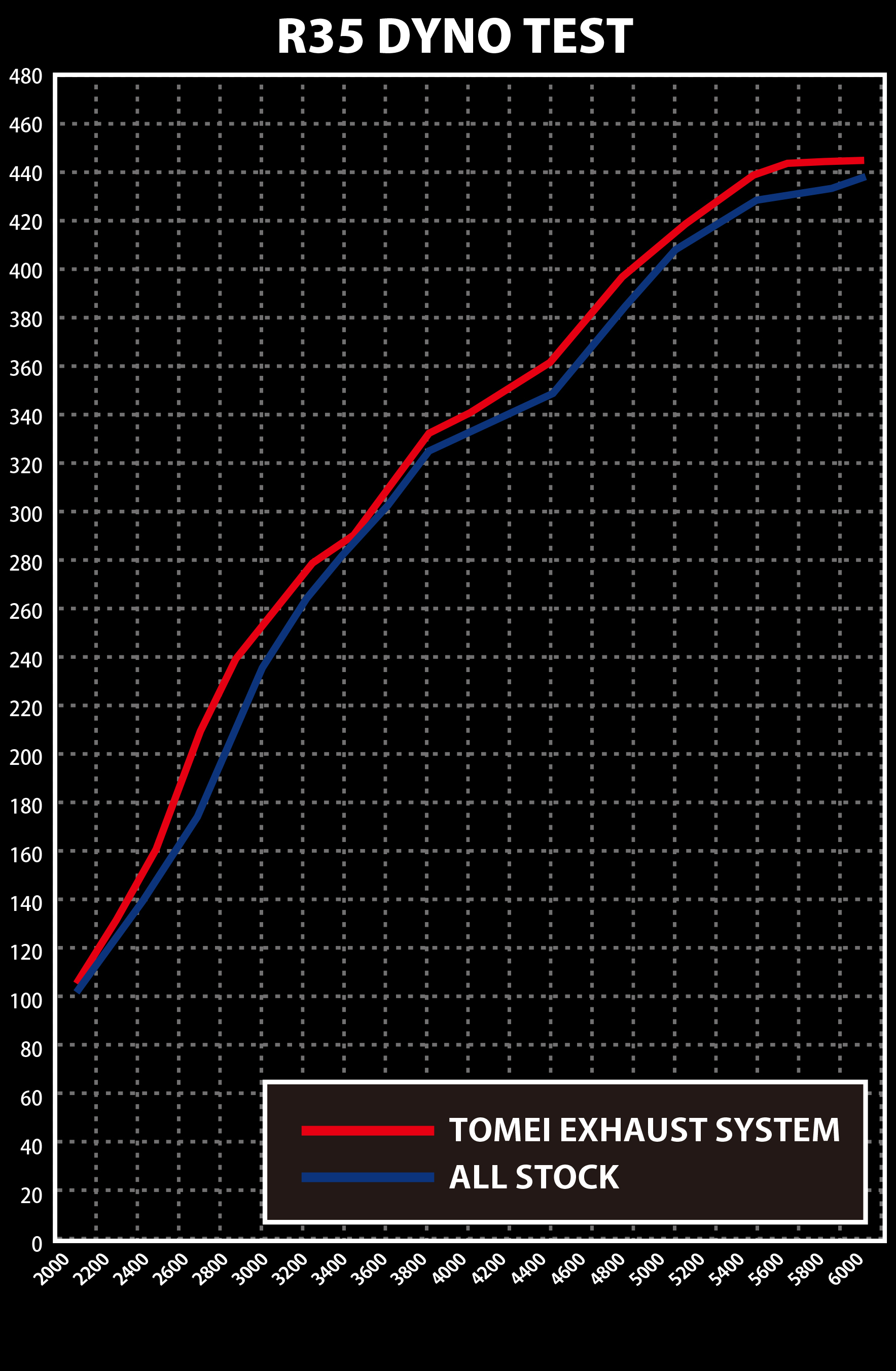

TEST DATA |
![](image_ti/20_20space.gif) |
|
|
|
![](http://www.tomeipowered-usa.com/usa/allen/NewsLetter/enews/2011Dec16/kara_10.gif) |

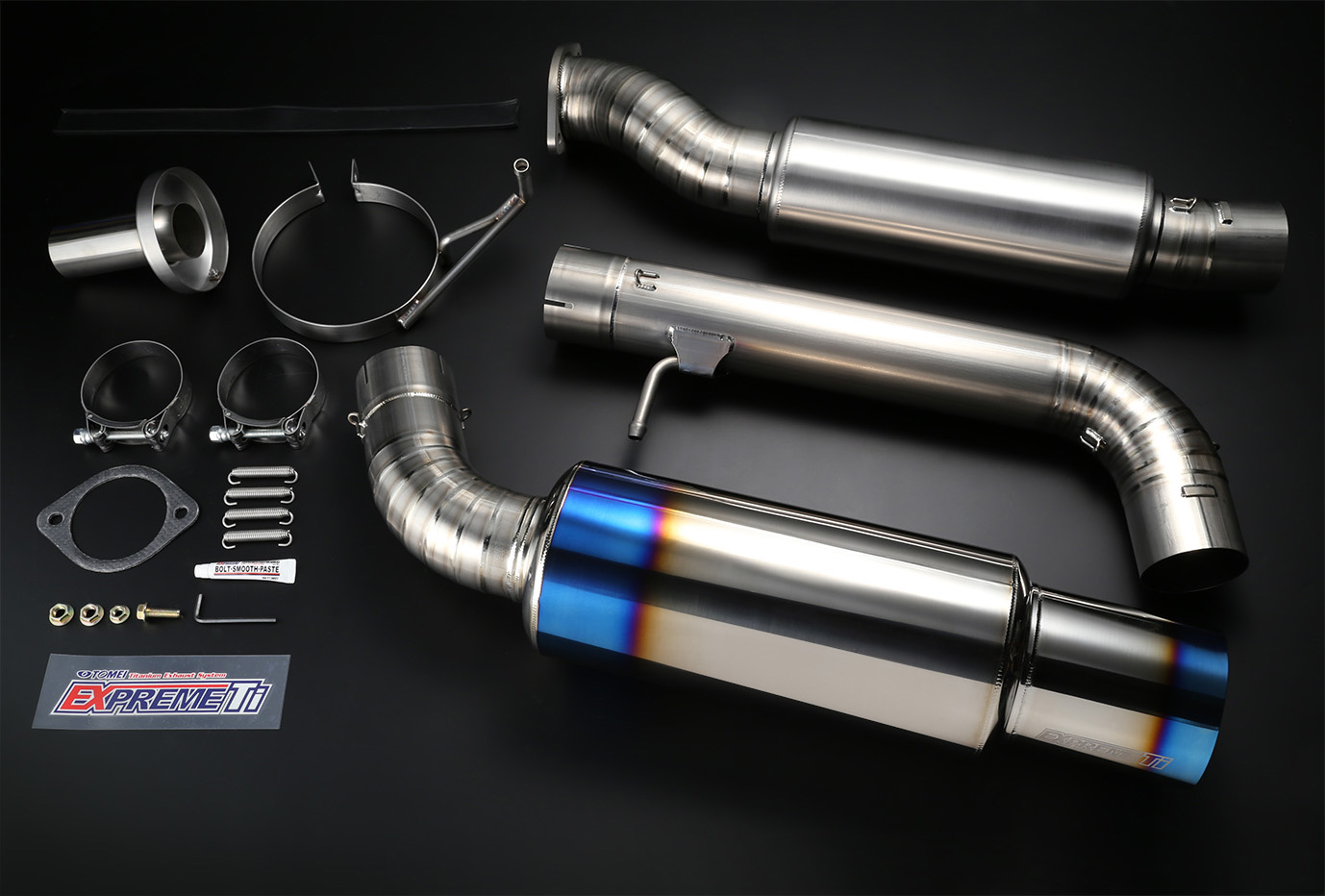

KIT CONTENTS |
![](image_ti/20_20space.gif) |
![](image_ti/20_20space.gif) |
MID PIPE LH (1) |
![](image_ti/20_20space.gif) |
MID PIPE RH (1) |
![](image_ti/20_20space.gif) |
Y PIPE (1) |
|
MAIN PIPE A (1) |
|
MAIN PIPE B (1) |
|
SILENCER LH (1) |
|
SILENCER RH (1) |
|
SILENCER BAND LH1 (1) |
|
SILENCER BAND LH2 (1) |
|
SILENCER BAND RH1 (1) |
|
SILENCER BAND RH2 (1) |
|
EXHAUST TIP LONG (2) |
|
EXHAUST TIP SHORT (2) |
|
SILENCER BAND RUBBER (4) |
|
GASKET (2) |
|
FLANGE NUT M10 (4) |
|
A/F SENSOR PLUG (1) |
|
COPPER WASHER
(1) |
|
FLANGE BOLT M8 (4) |
|
FLANGE NUT M8 (4) |
|
CLAMP BAND 104-112 (2) |
|
CLAMP BAND 79-85 (8) |
|
BOLT SMOOTH PASTE (1) |
|
THERMAL INSULATION SHEET (1) |
|
|
![](image_ti/20_20space.gif) |
|
COMPLETE KIT |
This kit includes all the components necessary for installation including the bolts and nuts. Bolt Smooth Paste is also included to help prevent the bolts becoming
seized under heat. |
|
|
|
|
|
