DRAMATIC WEIGHT REDUCTION
REDEFINE YOUR S2000!
|
| |
 |
|
|
| Application : HONDA S2000 AP1/AP2 ‘99-’09 |
MSRP $1,290.00 (USD) |
|
| PART NUMBERFTB6090-HN04A |
|
|
|
|
|
| SPECIFICATION COMPARISON VS STOCK |
|
| |
 |
|
|
TOMEI |
STOCK |
PART No. |
TB6090-HN04A |
| |
MSRP |
$1,190.00 (USD) |
| |
MATERIAL |
Ti |
| |

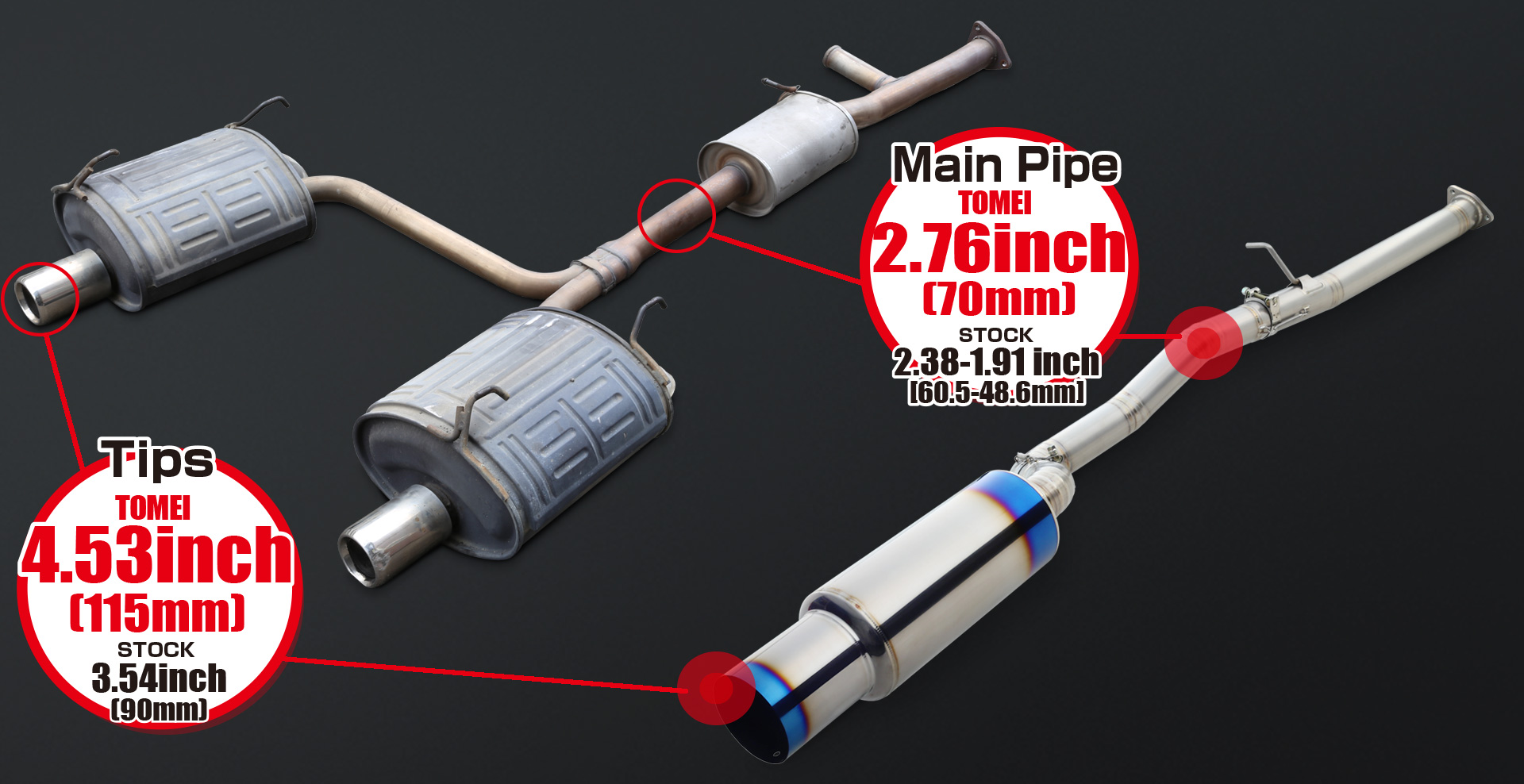

MAIN PIPE A DIAMETER |
2.76inch(70mm) |
2.38inch(60.5mm)×1@
1.91inch(48.6mm)×2 |
MAIN PIPE THICKNESS |
1.0 |
1.5 |
SILENCER DIAMETER |
5.98inch(152mm)
|
7.87inch(200mm)×1
1.81inch(300mm)×2 Oval |
SILENCER THICKNESS |
1.0 |
1.5 |
EXIT DIAMETER |
4.53inch(115mm)
|
Outer : 3.54inch(90mm)
Inner : 2.28inch(58mm)
|
EXIT THICKNESS |
1.0mm |
1.5mm |
FLANGE THICKNESS |
8.0mm |
9.0 |
WEIGHT |
9.15lbs(4.15kg) |
51.8bs(23.5 kg) |
|
|
|

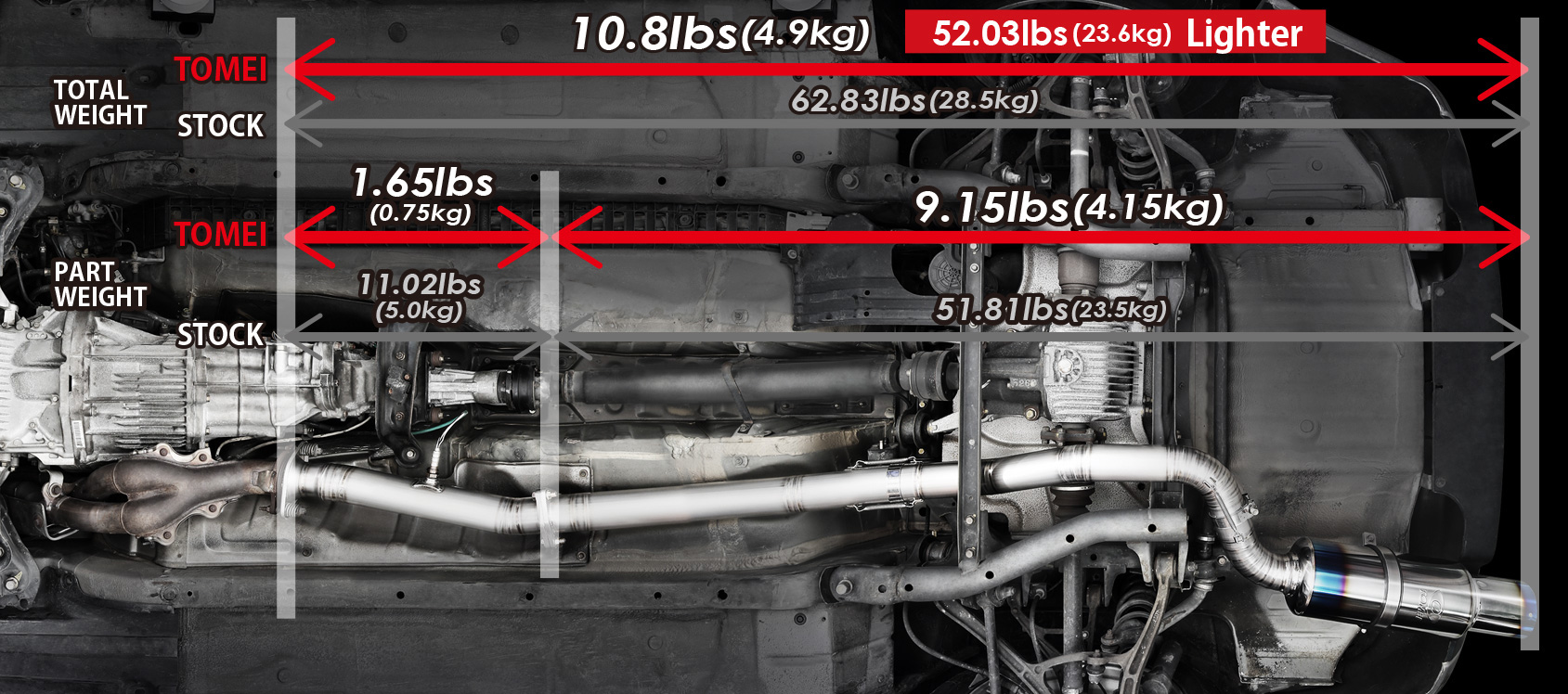

| WEIGHT COMPARISON |
TOMEI |
STOCK |
| 9.15 lbs (4.15 kg) |
51.8 lbs(23.5 kg) |
|
|
42.65lbs
(19.35kg)
Weight Reduction!! |
|
|

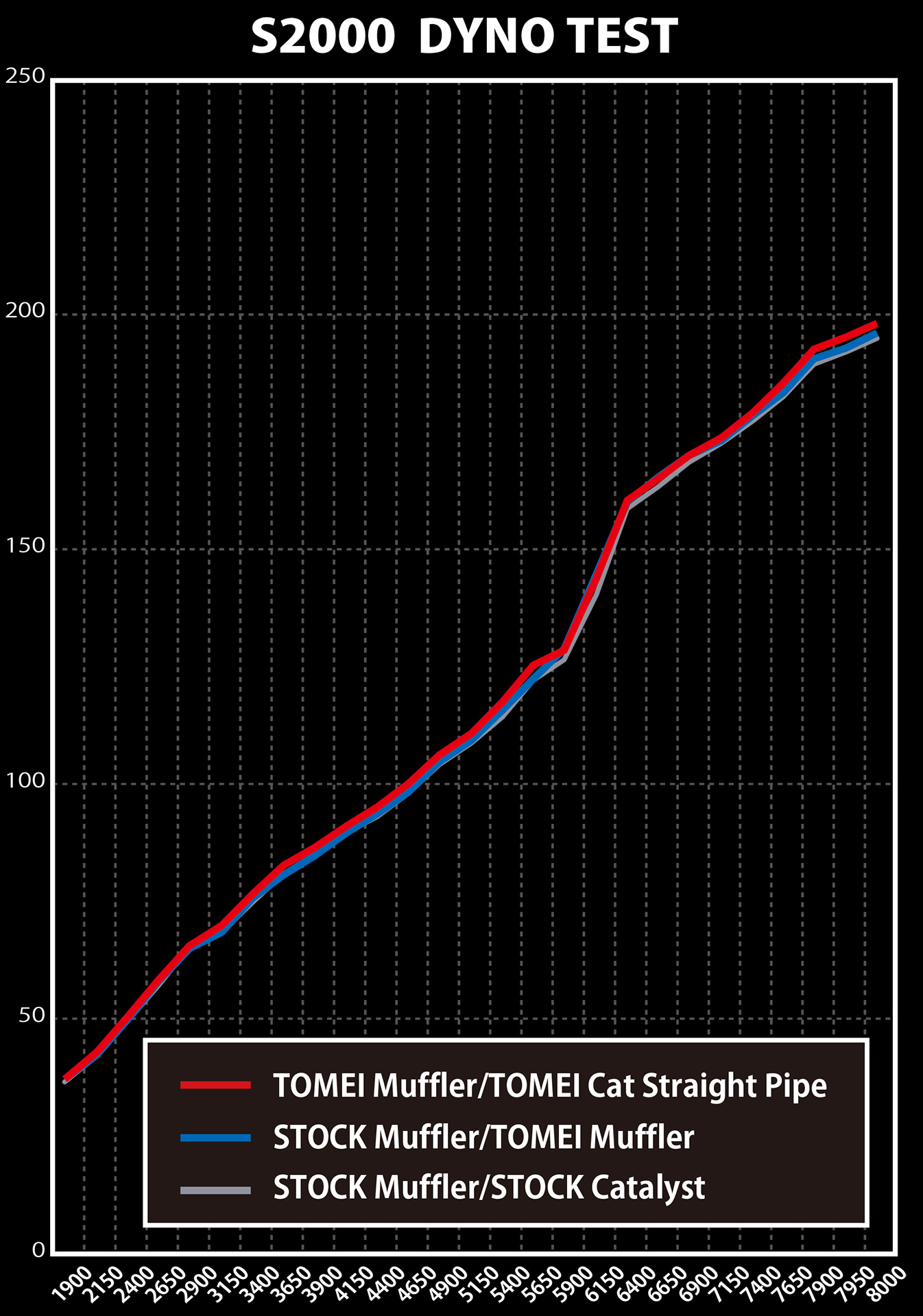

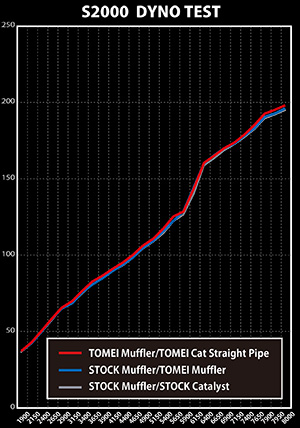

| TEST DATA |
|
| |
|
|
|
|
|
|
