With an overall dramatic performance
improvement & weight reduction.
Breathe new life into your 350Z.

High quality production, for true competition use without compromise. Only the best Titanium grade materials are used. From the special racing layout design, made as straight as possible, to the high flow silencer. We have poured our knowledge into it all. When you see our EXPREME Ti system, you can then understand that ours is unrivaled.




APPLICATION :
350Z VQ35DE/HR
Part Number :TB6090-NS04A
(Previous P/N 440014)
MSRP $1,090.00
(USD)
※ FOR OFF ROAD USE ONLY.




STOCK COMPARISION

The exhaust flow design was the main focus in the pipe design, the best pipe thickness for weight and strength with pipe diameter to suit torque and all power gains throughout the entire power band.

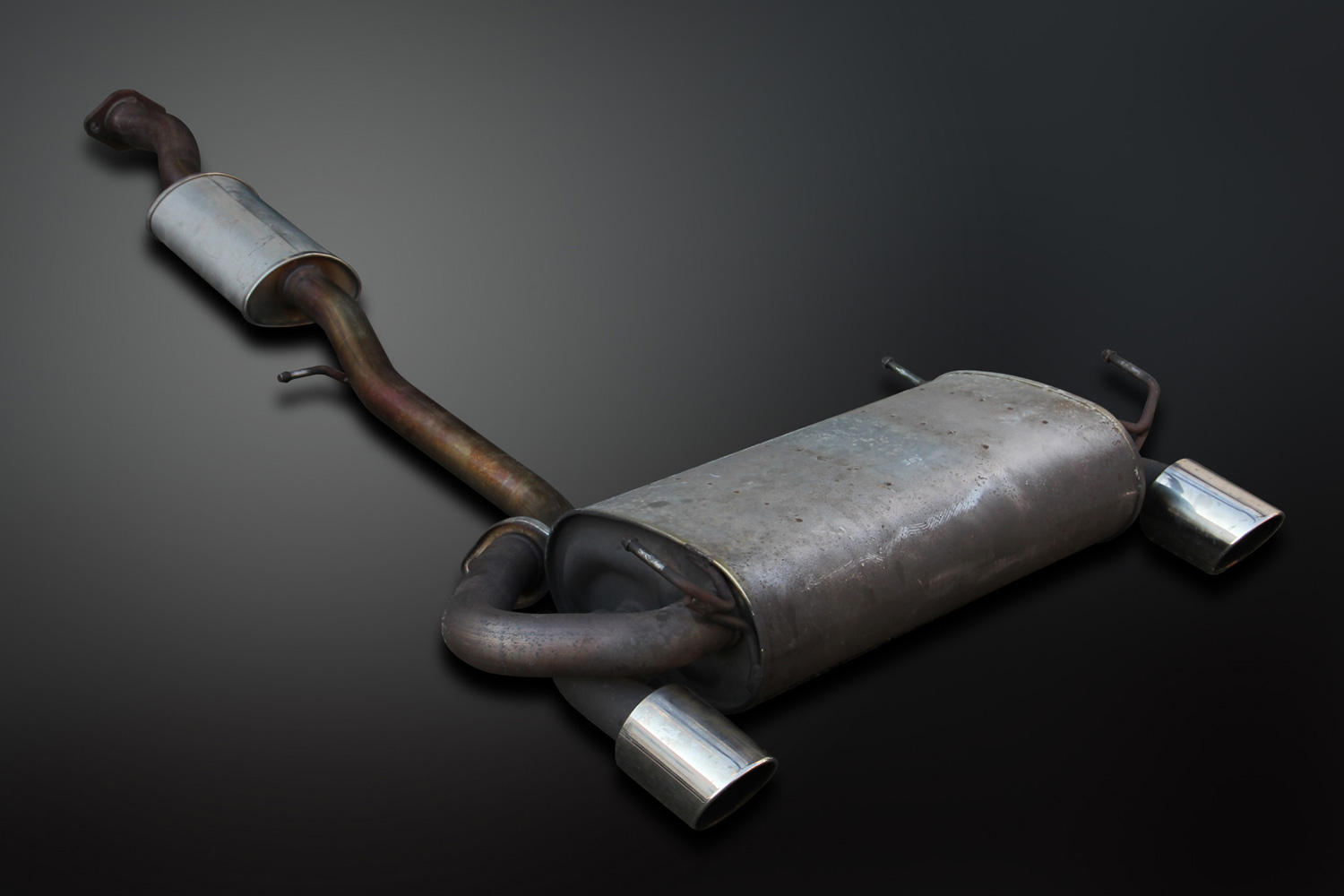

▲STOCK VQ35DE

Z33/350Z
TOMEI
STD
MATERIAL
TITANIUM
STAINLESS
MAIN PIPE DIAMETER
Φ80.0
Φ60.5
MAIN PIPE THICKNESS
1mm
1.5mm
SILENCER DIAMETER
Φ152mm
-
SILENCER THICKNESS
1mm
-
TIP DIAMETER
Φ115
Φ101×2
TIP THICKNESS
1mm
-
FLANGE THICKNESS
8.0mm
8.0mm
WEIGHT
5.9kg
21kg

15.1kg Lighter
 3 PIECE ASSEMBLY
No flanges were fitted for increased weight savings and for a better finish with the race look secure springs and clamp methods.
 GLASS WOOL

The long fiber wool threads were adopted for the silencer. This type has proven to last longer than the traditional fiberglass materials even over a longer period of time with extensive high temperature exposure both at high and low pressures.


 RACING LAYOUT
For the best exhaust efficiency results minimal bends and curves was the design focus points on this product which aided with the supreme results.
 EXPREME Ti TESTAMENT

The sign of quality and performance is clearly visible with the laser marked "EXPREME Ti" logo on the side of the muffler tip.


 PERFORMANCE VALUE
The best performance is made possible with the best materials and still with keeping it within everyone's reach.
 DRY RACE SOUND

The instinctive sound of a true race exhaust sound that a Titanium material exhaust gives will intoxicate you with the dry race exhaust sound.



 KIT CONTENTS
MAIN PIPE A (1)
MAIN PIPE B (1)
SILENCER ASSY (1)
GASKET t=2.0mm (1)
FLANGE NUT M10 P=1.25mm (2)
CLAMP BAND "MIKALOR" SW2 79-85 (2)
SPRING (4)
SILENCER BAND (1)
SILENCER BAND RUBBER (1)
BOLT M8 L=25mm (1)
NUT M8 (1)
SOUND REDUCER ver.2 (1)
BOLT SMOOTH PASTE (1)


Additional bolt holes may be required when using the sound reducer ver.2 .
Click here for details.
