MORE POWER, LESS WEIGHT
DRAMATICALLY CHANGE YOUR 370Z.

High quality production, for true competition use without compromise. Only the best Titanium grade materials are used.
From the special racing layout design, made as straight as possible, to the high flow silencer.
We have poured our knowledge into it all. When you see our EXPREME Ti system, you can then understand that ours is unrivaled.


Application : 370Z 2009-2011 VQ37VHR
＊NOT COMPATIBLE WITH 2012 onwards stock mid Y pipe,
   TOMEI mid Y pipe Recommended.
MSRP $1,290.00 (USD)
PART NUMBER : TB6090-NS02A
Designed for Competition Use only

 KIT CONTENTS
MAIN PIPEA　(1)
MAIN PIPE B 　(1)
SILENCER ASSY 　(1)
GASKET 　(1)
CLAMPBAND　(2)
SPRING　(4)
FLANGE NUT M10 P=1.25mm　(2)
FLANGE BOLT M8 L=25mm　(1)
FLANGE NUT M8　(1)
SILENCER BAND　(1)
SILENCER BAND RUBBER　(1)
SOUND REDUCER ver.2　(1)
BOLT SMOOTH PASTE　(1)


Additional bolt holes may be required when using the sound reducer ver.2 .
Click here for details.



TEST DATA


■EXHAUST TEST LEVELS
370Z MT TESTED @4700rpm
Catalyst : STD / Y-pipe : STD / Muffler : TOMEI
Without Inner Silencer
 112db
With Inner Silencer
 105db
Catalyst : STD / Y-pipe : TOMEI / Muffler : TOMEI
Without Inner Silencer
 111db
With Inner Silencer
 104db



TOMEI
STD
MATERIAL
 Ti
―
MAIN PIPE DIAMETER
Φ80.0
Φ65.0×1　Φ42.7×2
MAIN PIPE THICKNESS
1.0ｍｍ
1.5ｍｍ
SILENCER DIAMETER
152ｍｍ
110*95ｍｍ　Oval　25°slush
SILENCER THICKNESS
1.0mm
UNKNOWN
EXIT DIAMETER
Φ115
Φ80×2
EXIT THICKNESS
1.0ｍｍ
15ｍｍ
FLANGE THICKNESS
8.0ｍｍ
8.0ｍｍ
WEIGHT
12.6lbs / 5.7kg
54.01lbs / 24.5kg

WEIGHT COMPARISON STOCK : 54.0lbs(24.5kg) TOMEI : 12.6lbs(5.7kg)
41.43lbs (18.8kg)
Weight Reduction!!

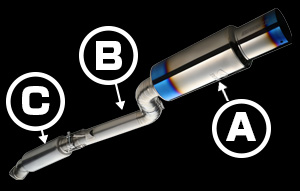

LAYOUT
 TOMEI

A : MAIN SILENCER/TAIL END
Compared with the stock design, our design is single piping all the way for max weight reduction. We have also focused on the design of the muffler to produce the best exhaust sound without compromising performance.
B : MAIN PIPE
The pipe diameter was chosen for optimum exhaust flow efficiency. For performance use in mind and weigh reduction. Thus the slide joints was made instead of using the conventional flange and gasket design.
C : SUB SILENCER
This sub silencer was designed with a simple structure and minimal size to reduce unwanted noise. Without hindering exhaust gas flow.
○
Designed For True Performance Use.

・Lightweight (For total balance)
・Optimum Exhaust Flow (To extract the engines full potential,Will benefit greatly with additonal tuning.)

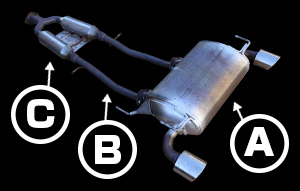

 STOCK MUFFLER

A : MAIN SILENCER
This is even larger than the mid section, to help reduce noise, smog & exhaust emissions. All to comply with street use regulations. The internals are complex and very heavy which greatly hinders performance.
B : MAIN PIPE
Torque quality and sound are restricted. The piping layout is designed mainly to help reduce thermal damage to the surrounding parts.
C : SUB SILENCER
A pre-muffler setup that helps reduces exhaust noise. This further assists the purpose of the main muffler.
×
Inadequate For Real Performance Use.

・Heavy　・Poor Exhaust Efficiency
PRECISION WELDS
Titanium is known to be difficult to weld but with our experienced methods we are able to achieve the best results with strength, durability and quality in finish.
 GLASS WOOL

The long fiber wool threads were adopted for the silencer. This type has proven to last longer than the traditional fiberglass materials even over a longer period of time with extensive high temperature exposure both at high and low pressures.
