MITSUBISHI 4G63-22 Kit/Conrod Bearing Bundle Package




　Bore (Φ)
Φ85.5
Φ86.0
STD Φ85.0
　Stroke (mm)
94.0
STD 　88.0
　Displacement (cc)
2158
2183
STD　1997
　Piston Crown Volume(cc)
20.5
 ―

THE SUPER RESPONSIVE CRANKSHAFT, FOR HIGH RPM!
THE TRUE COMPETITION KIT!!

Application
Bore
Part No.
MSRP
(USD)
Part No.
With Conrod Bearings
Bundle Pack.
MSRP (USD)
EVO I -
EVO IX
 Φ85.5 221040
$4,290.00
223022
Discontinued
Φ86.0 221041 223023

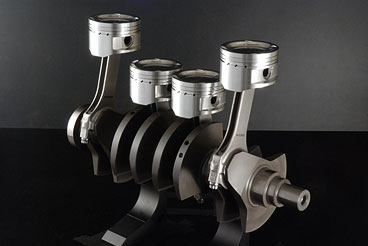

●Kit Contents　Special Forged Piston Kit、 Fullcounter Forged Crankshaft、 Forged H-Beam Conrods (Application Specific)
* The intake side balancer shaft is removed for this application and a blocking cap is used in it's place.
* The conrod bearing option kit is supplied with the conrod bearings for the 1 engine application.



MITSUBISHI 4G63-23 Kit/Conrod Bearing Bundle Package



Now includes a new billet crankshaft featuring
a superior balance design

This new crankshaft improves upon the previous model
with even better balance and performance

Feel the plentiful torque that a 2.3 liter engine produces over the stock displacement and dominate the competition at any given condition! Having a torque advantage creates a feeling of almightiness as well as enhanced drivability, and adds much more sporty characteristic to the vehicle. This stroker kit can be used in conjunction with a larger turbocharger if even more power is the objective.

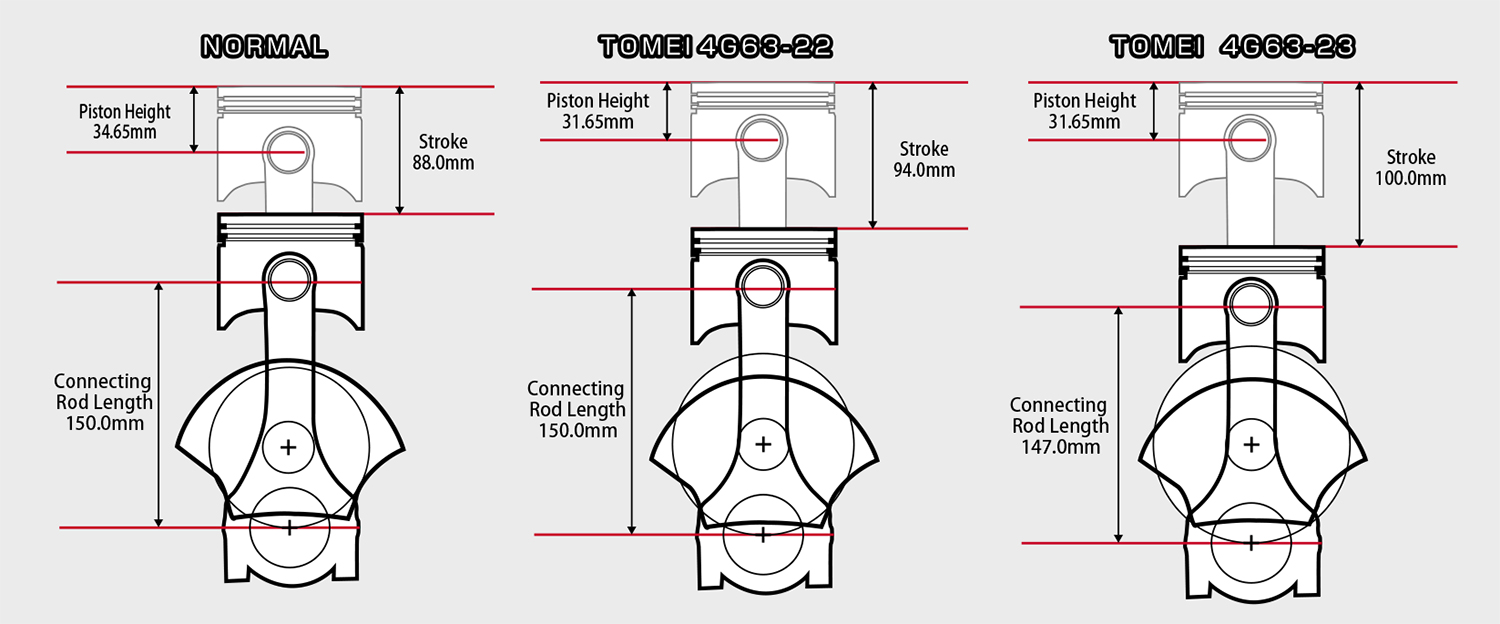

■Displacement Comparison
Piston Size
Normal
4G63-22
4G63-23
Φ85.5 2020cc 2158cc 2295cc
Φ86.0 2044cc 2183cc 2323cc

■Compression Comparison
Product
Piston Size
Compression Ratio（Gasket Sizes）
4G63-23

t-1.0mm
t-1.2mm
t-1.5mm
t-1.8mm
4G63-23 Φ85.5 9.2 9.1 8.9 8.7 Φ86.5
Φ86.0 9.3 9.2 9.0 8.8

クリックで拡大

エンジン試験表

Application
Bore
Part No.
MSRP (USD)
Part No.
With Conrod Bearings
Bundle Pack.
MSRP (USD)
EVO I -
EVO IX
 Φ85.5 252002
$4,290.00
250016
Discontinued
Φ86.0 252003 250017

●Kit Contents　Forged Piston Kit、 Forged Billet Full Counter Crankshaft、 Forged H-Beam Conrods
* The conrod bearing option kit is supplied with the conrod bearings for the 1 engine application.
