RACING VALVE
APPLICATION IN/
EX
@
HEAD

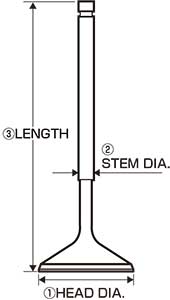

DIA.
(mm)
A
STEM
DIA.
(mm)

B
LENGTH
(mm)

SET
PART NO.
IN/EX
SET MSRP
(USD)
EACH
PART NO.
EACH
MSRP
(USD)
VR38DETT IN 38.15 [+1.0] 5.96
95.00
TA303A-NS01A

(Previous
Part No.
163404)
$720.00

TA303D-NS01A

(Previous
Part No.
161408)

$25.00
EX 33.15 [+1.0] 5.95 92.00 TA303E-NS01A

(Previous
Part No.
161409)
$35.00
VQ35DE IN 38.15 [+1.0] 5.96
96.60
TA303A-NS04A $720.00 TA303D-NS04A $25.00
EX 32.35 [+1.0] 5.97 94.00 TA303E-NS04A $35.00
RB26DETT IN 35.65 [+1.0] 5.97 102.30 TA303A-NS05A

(Previous
Part No.
163400)
$720.00 TA303D-NS05A

(Previous
Part No.
161400)
$25.00
EX 31.15 [+1.0] 6.94 101.20 TA303E-NS05A

(Previous
Part No.
161401)
$35.00
SR20DET
(Excl. RNN14)
IN 35.15 [+1.0] 5.97 101.40 TA303A-NS08A

(Previous
Part No.
163401)
$480.00 TA303D-NS08A

(Previous
Part No.
161402)
$25.00
EX 31.15 [+1.0] 6.94 102.40 TA303E-NS08A

(Previous
Part No.
161403)
$35.00
VG30DETT IN 34.50 [+0.5] 5.97 103.15 TA303A-NS10A $720.00 TA303D-NS10A $25.00
EX 30.00 [+0.5] 5.97 103.70 TA303E-NS10A $35.00
KA24DE IN 37.10 [+0.5] 6.97 101.32 TA303A-NS16A $480.00 TA303D-NS16A $25.00
EX 32.00 [+0.7] 6.94 99.00 TA303E-NS16A $35.00
2JZ-G(T)E IN 34.50 [+1.0] 5.98 98.55 TA303A-TY03A $720.00 TA303D-TY03A $25.00
EX 30.00 [+1.0] 5.97 99.10 TA303E-TY03A $35.00
4B11 IN 36.00 [+1.0] 5.47 113.25 TA303A-MT02A

(Previous
Part No.
163405)
$480.00 TA303D-MT02A

(Previous
Part No.
161410)
$25.00
EX 30.00 [+1.0] 5.46 105.90 TA303E-MT02A

(Previous
Part No.
161411)
$35.00
4G63 IN 35.00 [+1.0] 6.57 109.60 TA303A-MT01A

(Previous
Part No.
163402)
$480.00 TA303D-MT01A

(Previous
Part No.
161404)
$25.00
EX 31.50 [+1.0] 6.54 109.60 TA303E-MT01A

(Previous
Part No.
161405)
$35.00
EJ20/25
TURBO
IN 37.00 [+1.0] 5.96 104.35 TA303A-SB01A

(Previous
Part No.
163403)
$480.00 TA303D-SB01A

(Previous
Part No.
161406)
$25.00
EX 33.00 [+1.0] 5.96 104.70 TA303E-SB01A

(Previous
Part No.
161407)
$35.00
FA20
i`2013j
IN 35.00 [STD] 5.46 103.30 TA303A-SB03A $480.00 TA303D-SB03A $25.00
EX 29.00 [STD] 5.45 95.15 TA303E-SB03A $35.00
B16A/B17A
/B18C
IN 34.00 [+1.0] 5.48 102.50 TA303A-HN03A $480.00 TA303D-HN03A $25.00
EX 28.50 [+0.5] 5.45 102.50 TA303E-HN03A $35.00
K20/K24 IN 36.00 [+1.0] 5.48 108.85 TA303A-HN01A $480.00 TA303D-HN01A $25.00
EX 30.50 [+0.5] 5.45 108.65 TA303E-HN01A $35.00

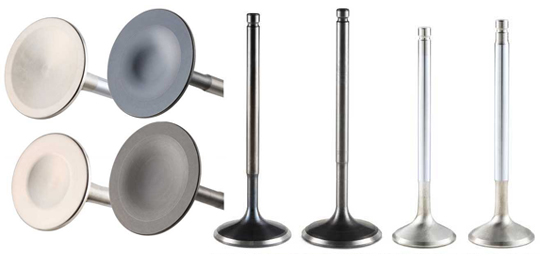

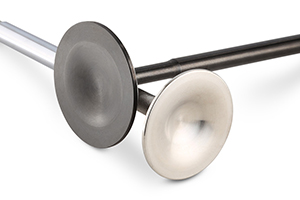

OVERSIZED VALVES
The oversized head diameter is designed specifically for each application, significantly improving the flow rate. (Excl. FA20)

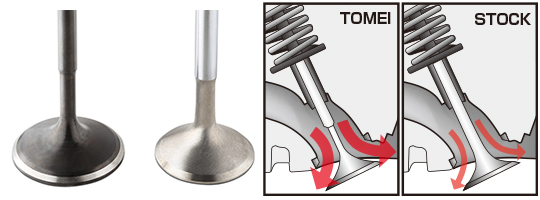

WAISTED STEM
The waisted stem allows a greater volume of air/gases to enter and exit the combustion chamber as the valve extends. (not available on some models)
ENGINE SPECIFIC DESIGN
Each valve is designed and precision machined specifically for the intended engine/application.The head, face, stem and lock groove designs have also been optimized to enhance sealing performance, efficiency and durability.
HEAT RESISTANCE & DURABILITY

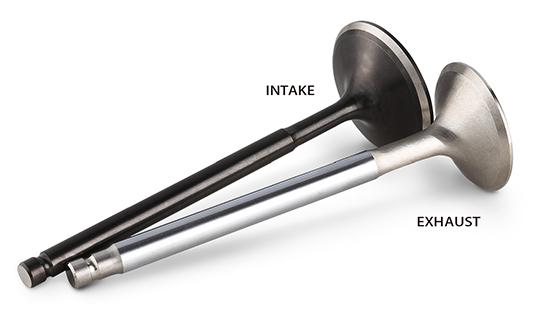

INTAKE
SUH35 HEAT RESISTANT STEEL
with SPECIALLY FORMULATED COATING.
The intake valves are made using SUH35 HEAT RESISTANT STEEL which is more commonly used to make exhaust valves. These are then coated with a special formula that further improves the valves' resistance to heat, wear and corrosion.
EXHAUST
INCONEL 751 ALLOY
In order to withstand temperatures of up to around 1000, the exhaust valves are made using a nickel based heat resistant alloy, INCONEL 751.

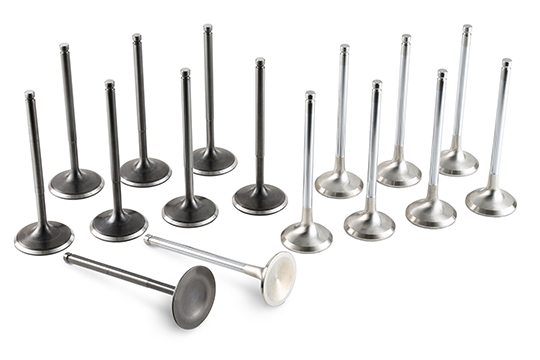

IN&EX COMPLETE SET
Although sold as an IN&EX complete set, each valve can also be purchased individually.
