APPLICATION |
TYPE |
COMPATIBLE
LIFT (mm) |
PART
NO. |
MSRP |
NOTES |
VR38DETT |
|
IN~12.30 |
TA304A-NS01A |
$450.00 |
OVAL CORE WIRE |
EX~11.33 |
RB26DETT |
A |
~10.85 |
TA304A-NS05A |
$300.00 |
|
B |
~11.50 |
TA304A-NS05B |
$540.00 |
*
With Special Retainers |
R33 RB25DE(T) |
A |
~8.50 |
TA304A-NS06A |
|
*
For Hydraulic lash adjuster camshafts |
B |
~10.25 |
TA304A-NS06B |
$540.00 |
With Intake side retainers for
solid conversions
*NOT compatible with NEO 6 |
RB20DE(T)
VG30DE(TT) |
|
~10.35 |
TA304A-NS07A |
$300.00 |
|
SR20DE(T) |
A |
~12.50 |
TA304A-NS08A |
$200.00 |
|
CA18DE(T) |
|
~10.35 |
TA304A-NS11A |
$200.00 |
|
VQ35DE
/ HR |
|
~11.0 |
TA304A-NS02A |
$450.00 |
*1
Oval Core Wire
* High Lift Type |
KA24DE |
|
~12.0 |
TA304A-NS16A |
$300.00 |
*1
Oval Core Wire
* High Lift Type |
|
4G63 |
*1 |
~12.0 |
TA304A-MT01A |
$200.00 |
*1
Oval Core Wire
* High Lift Type |
4B11/G4KF |
|
~12.0 |
TA304A-MT02A |
$300.00 |
*1
Oval Core Wire
* High Lift Type |
EJ205/207/255/257 |
GDB,GDA |
~11.0 |
TA304A-SB01A |
$200.00 |
*1
Oval Core Wire
* High Lift Type |
*1 Stock EVO7 or TOMEI Titanium Retainers are required when using TOMEI Valve Springs on the EVO 8/9 models.
*2 Application/ TOYOTA MR2(SW20) 3S-GE 93.11~97.4(Inner Shim)
TOYOTA Celica (ST 202) 3S-GE 93.9~97.4 Inner Shim. |
![](image/pic/P109_vr38.jpg) |
![](image/pic/P109_rb26_a.jpg) |
![](image/pic/P109_rb26_b.jpg) |
VR38DETT |
RB26
Type A |
RB26
Type B |

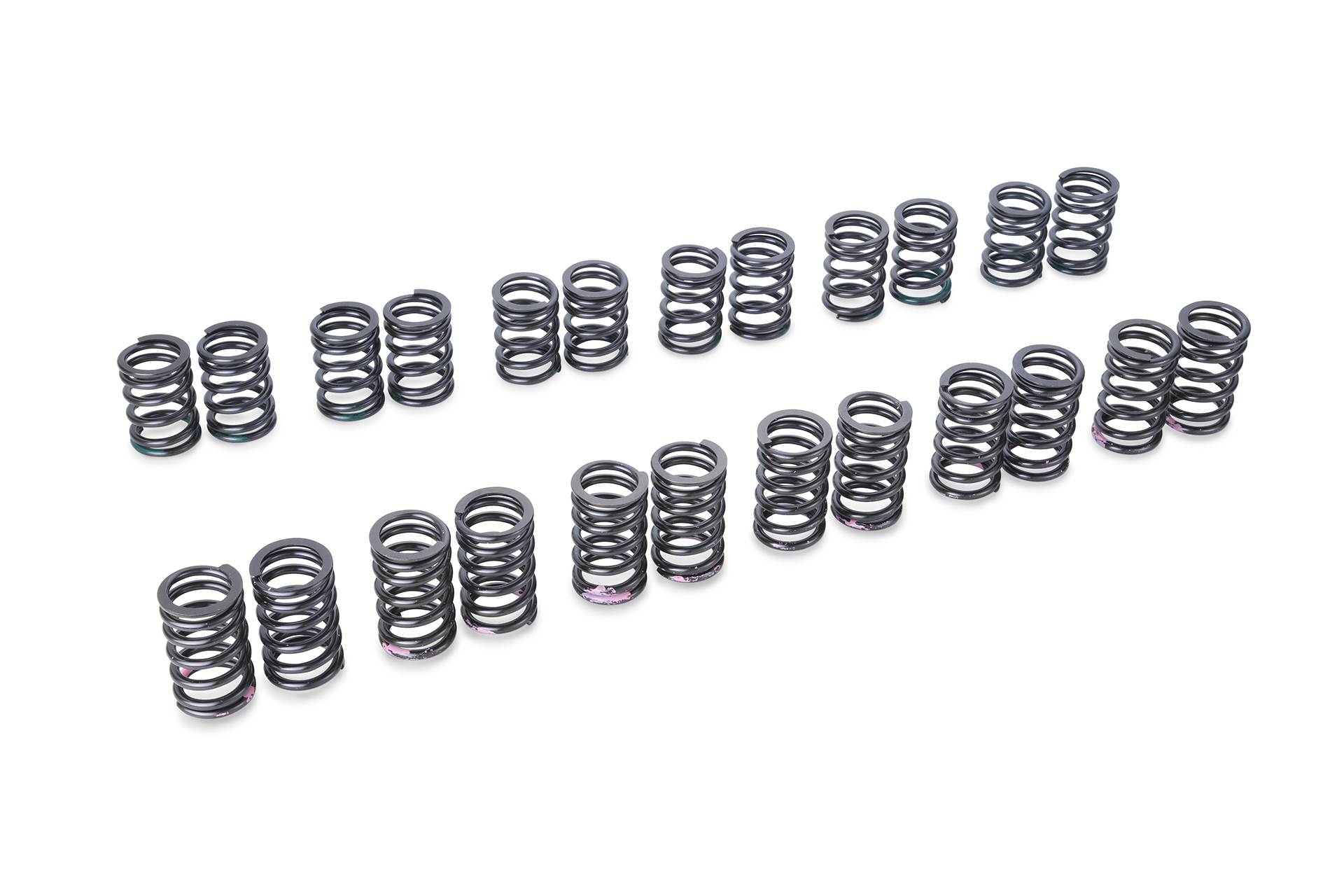

![](../SearchImage/Open/TA304A-NS06A.jpg) |

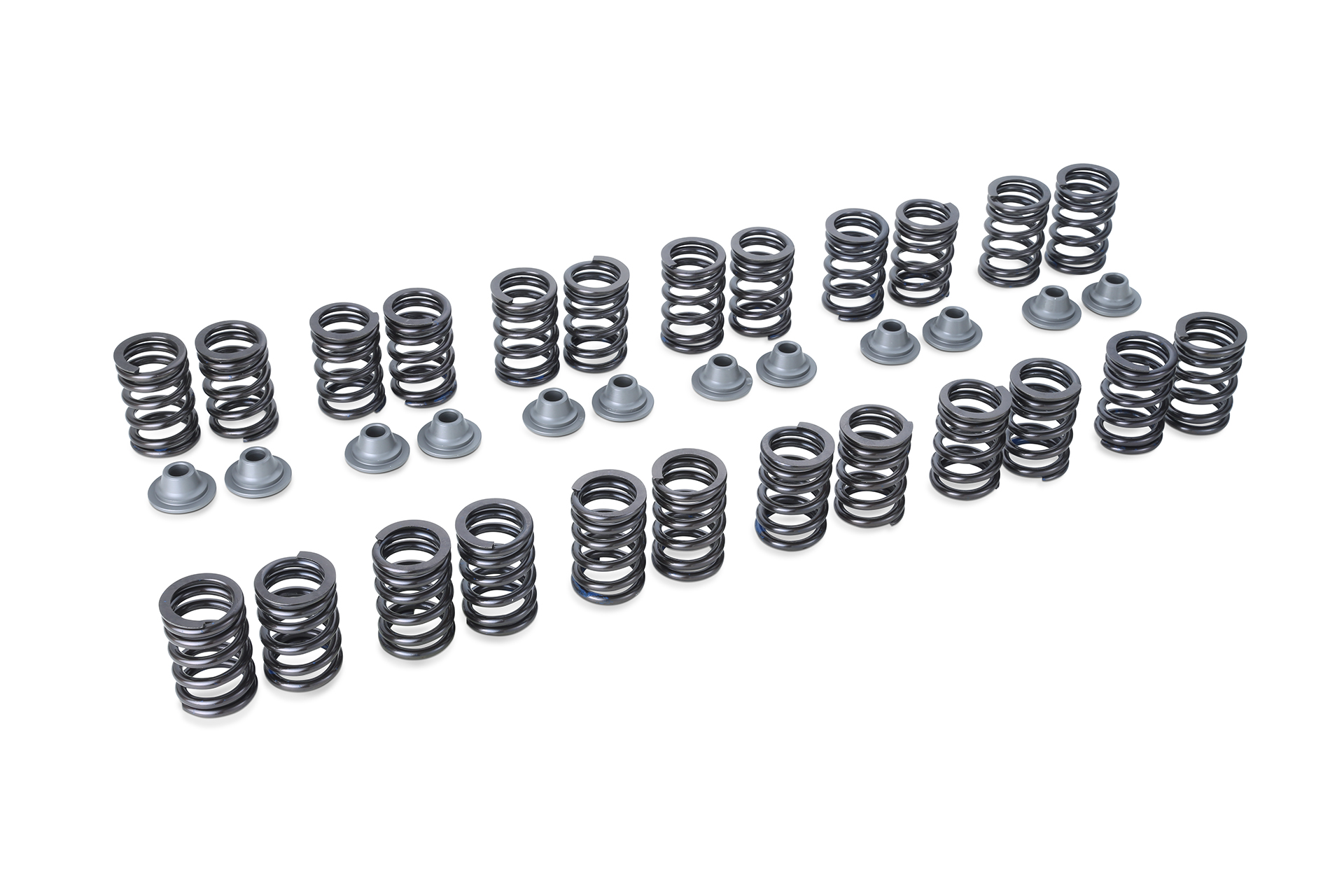

![](../SearchImage/Open/TA304A-NS06B.jpg) |
![](image/pic/P109_rb20-vg30.jpg) |
RB25
Type A |
RB25
Type B |
RB20,VG30 |
![](image/pic/P109_sr-a.jpg) |

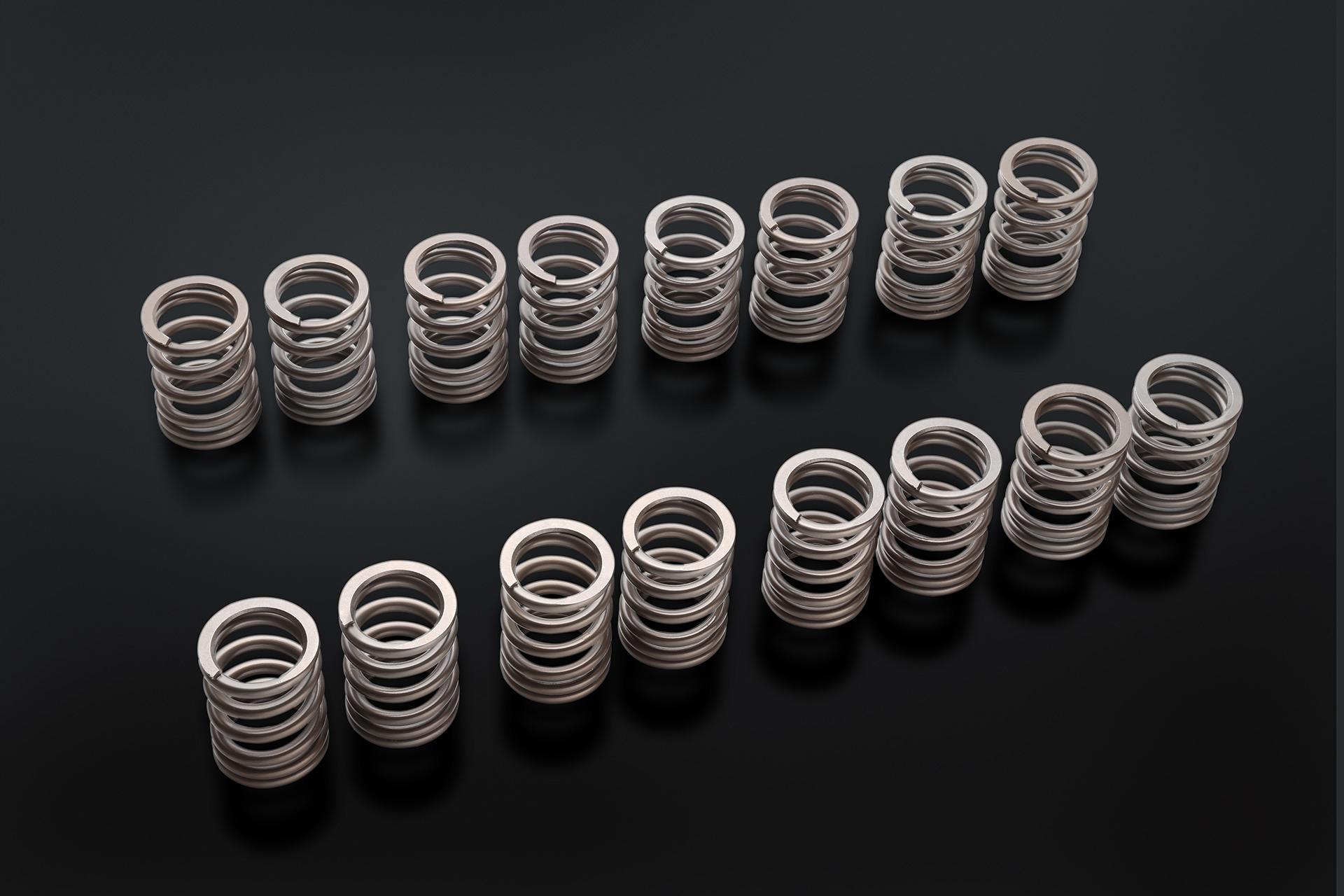

![](image/pic/ka_valvespring_set_s.jpg) |
![](image/pic/P109_sr-a.jpg) |
SR
Type A |
KA24DE |
EJ20
& EJ25 |
![](image/pic/P109_4b11.jpg) |
![](image/pic/P109_4g63.jpg) |
|
4B11/G4KF |
4G63 |
|
|
|
|
DIA
METER |
SET
LENGTH
(mm) |
LIFT
LENGTH
(mm) |
COMPATIBLE LIFT(mm)
|
SET
LOAD
(kgf) |
LIFT
LOAD
(kgf) |
REV
LIMIT
(Ref.) |
MATERIAL |
PROCESS |
COLOR
ID |
VR38DETT |
|
IN |
3.05×3.81 |
36.6 |
25.6 |
12.30 |
22.0±6% |
60.0±6% |
8000 |
SWOSC-V |
Nitride |
Nil |
EX |
33.7 |
22.5 |
11.33 |
32.0±6% |
70.0±6% |
Nil |
RB26 |
A Type |
|
ø3.9 |
37.7 |
27.2 |
10.85 |
24.0±7% |
77.2±7% |
8500 |
SWOSC-V |
Nitride |
White |
B Type |
|
ø4.2 |
40.2 |
29.0 |
11.50 |
24.0±7% |
97.8±7% |
9500 |
SWOSC-V |
Nitride |
Yellow |
R33 RB25DET (+ IN Retainers) |
A Type |
IN |
ø3.6 |
30.6 |
21.8 |
8.80 |
25.6±7% |
63.8±7% |
8000 |
SWOSC-V |
Nitride |
Green |
EX |
ø4.2 |
34.4 |
25.6 |
8.80 |
34.4±7% |
68.6±7% |
8000 |
SWOSC-V |
Nitride |
Pink |
B Type |
|
ø3.9 |
35.0 |
25.0 |
10.25 |
24.2±7% |
80.6±7% |
8500 |
SWOSC-V |
Nitride |
Blue |
RB20,VG,CA |
|
|
ø3.9 |
35.0 |
25.0 |
10.35 |
24.2±7% |
80.6±7% |
8500 |
SWOSC-V |
Nitride |
Blue |
SR20 |
A Type |
|
ø4.0 |
40.0 |
27.5 |
12.50 |
25.6±7% |
81.6±7% |
7500 |
SWOSC-V |
Nitride |
Red |
B Type |
INNER |
ø2.5 |
32.2 |
19.7 |
12.50 |
3.4±8% |
23.4±8% |
8000 |
SWOSC-V |
Nitride |
Red |
OUTER |
ø4.0 |
40.0 |
27.5 |
25.6±7% |
81.6±7% |
SWOSC-V |
Nitride |
Red |
When
Combined |
|
|
|
29.0±8% |
105.0±8% |
|
A12/13/14/15 |
B Type |
INNER |
ø2.7 |
35.5 |
24.0 |
7.90
|
7.1±7% |
28.0±7% |
9000 |
SWOSC-V |
|
White |
OUTER |
ø4.0 |
40.0 |
27.5 |
25.6±7% |
81.6±7% |
SWOSC-V |
Nitride |
Red |
When
Combined |
|
|
|
32.7±7% |
109.6±7% |
|
|
|
VQ35DE/HR |
|
|
3.00x3.75 |
37.0 |
26.0 |
11.0 |
24.0±6% |
56.8±6% |
|
SWOSC-V |
Nitride |
Blue |
KA24DE |
|
|
3.50x4.38 |
35.0 |
23.0 |
22.0 |
21.5±6% |
72.6±6% |
|
SWOSC-V |
Nitride |
Nil |
4G63 |
|
|
3.60x4.50 |
39.6 |
28.1 |
11.50 |
33.6±6% |
82.0±6% |
8000 |
SWOSC-V |
Nitride |
Nil |
4B11/G4KF |
|
|
3.40x4.25 |
35.0 |
23.0 |
12.00 |
27.0±7% |
85.0±7% |
8500 |
SWOSC-V |
Nitride |
L Blue |
EJ20/25 |
|
|
Φ3.8 |
36.2 |
25.5 |
11.0 |
32±6% |
85.0±6% |
|
SWOSC-V |
Nitride |
Blue |
TOYOTA
3S-G |
|
|
ø3.9 |
35.0 |
25.0 |
10.00 |
24.2±7% |
80.6±7% |
|
SWOSC-V |
Nitride |
Blue |
|
|
|
|
|
|
|
|
