RB26 GASKET

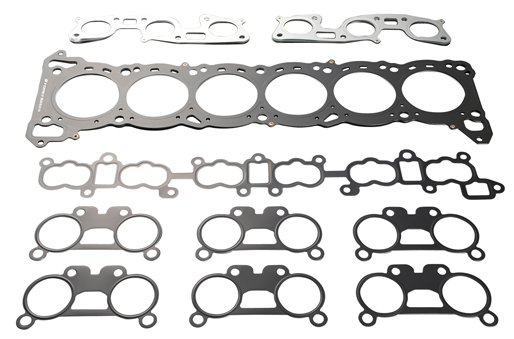

RB26DETT GASKET COMBINATION

BORE	THICKNESS	PART NO.	MSRP	CONTENTS
Φ87.0	1.2mm	TA4010-NS05A	$280.00	・Head gasket ・Throttle Gasket ・Intake Manifold Gasket ・Exhaust Manifold Gasket ・Oil gallery orifice
	1.5mm	TA4010-NS05B
	1.8mm	TA4010-NS05C
Φ88.0	1.2mm	TA4010-NS05D
	1.5mm	TA4010-NS05E
	1.8mm	TA4010-NS05F


Oil Gallery Orifice Included

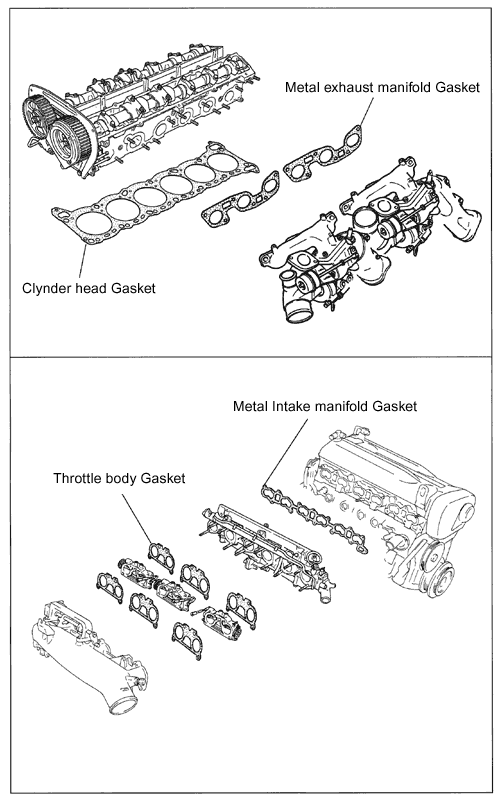

This kit includes RB26 Head gasket and other manifold gaskets required.
Also, attachment of oil gallery orifice at the time of replacing head gasket allows controlling
the amount of oil to flow. Replacement of manifold gasket can gain strength
and sealing characteristics.
We set the price of this kit as low as the price of one head gasket,
and even including manifold gasket kit and oil gallery orifice.
All the products in this kit are performance parts that can be used from overhaul to the tuning
for the drag racing.

RB26DETT HEAD GASKET

BORE	THICKNESS	PART NO.	MSRP	MATERIAL
Φ87.0	0.8mm	TA4070-NS05G	$180.00	Metal
	1.2mm	TA4070-NS05A
	1.5mm	TA4070-NS05B
	1.8mm	TA4070-NS05C
Φ88.0	1.2mm	TA4070-NS05D
	1.5mm	TA4070-NS05E
	1.8mm	TA4070-NS05F

Oil Gallery Orifice Included　

COMPRESSION RATIO CALCULATION TOOLS

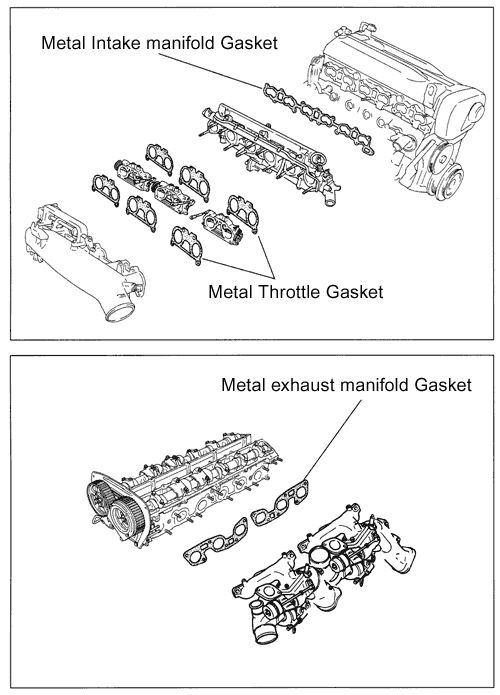

RB26DETT MANIFOLD GASKET

Manifold Gasket Set

QTY.	MSRP	PART NO.	NOTE
1car	$100.00	TA4020-NS05A	・ThrottleGasket ・IN-manifold Gasket ・EX-manifold Gasket

Throttle Gasket

QTY.	MSRP	PART NO.	NOTE
6 (SET)	$48.00	TA4030-NS05A	・Steel ・Fluorine coating ・Bead type
1	$8.00	TA4040-NS05A	・Steel ・Fluorine coating ・Bead type

Intake-Manifold Gasket

QTY.	MSRP	PART NO.	NOTE
1	$20.00	TA4050-NS05A	・Steel ・t=0.38 ・Bead type

Exhaust-manifold Gasket

QTY.	MSRP	PART NO.	NOTE
2	$32.00	TA4060-NS05A	・Steel 3core ・t=1.3 ・Bead type
