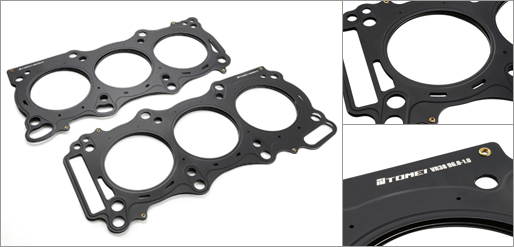

VR38DETT HEAD GASKET

BORE
THICKNESS
PART NO.
MSRP
MATERIAL
Φ96.0
0.8mm
TA4070-NS01A
$180.00
Metal
1.0mm
TA4070-NS01B
Φ100.0
0.8mm
TA4070-NS01C
1.0mm
TA4070-NS01D


CROSS SECTION
Φ96.0/100.0 - 1.0mm L/R
Φ96.0/100.0 - 0.8mm L/R



BEAD TYPE
OPPOSING TYPE

TOPSIDE
RECESSED

UNDERSIDE
RAISED
*Images are for illustration purposes only.

SEAL TYPE
STOPPER TYPE

STOPPER (TOP SIDE)

STOPPER (UNDER SIDE)
*Images are for illustration purposes only.


COMPRESSION RATIO CALCULATION TOOLS


@


VR38DETT MANIFOLD GASKET
Exhaust-manifold Gasket
QTY.
MSRP
PART NO.
NOTE
2
$35.00
TA4060-NS01A
EMetal 4 layers
Et=0.80mm
EBead type
