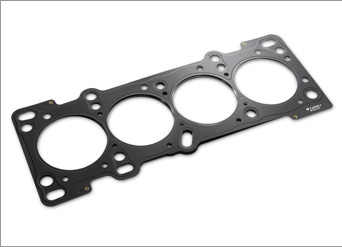

BP-ZE HEAD GASKET


BORE
THICKNESS
PART NO.
MSRP
MATERIAL
Φ85.5
0.8mm
TA4070-MZ01A
$120.00
1.0mm
TA4070-MZ01B

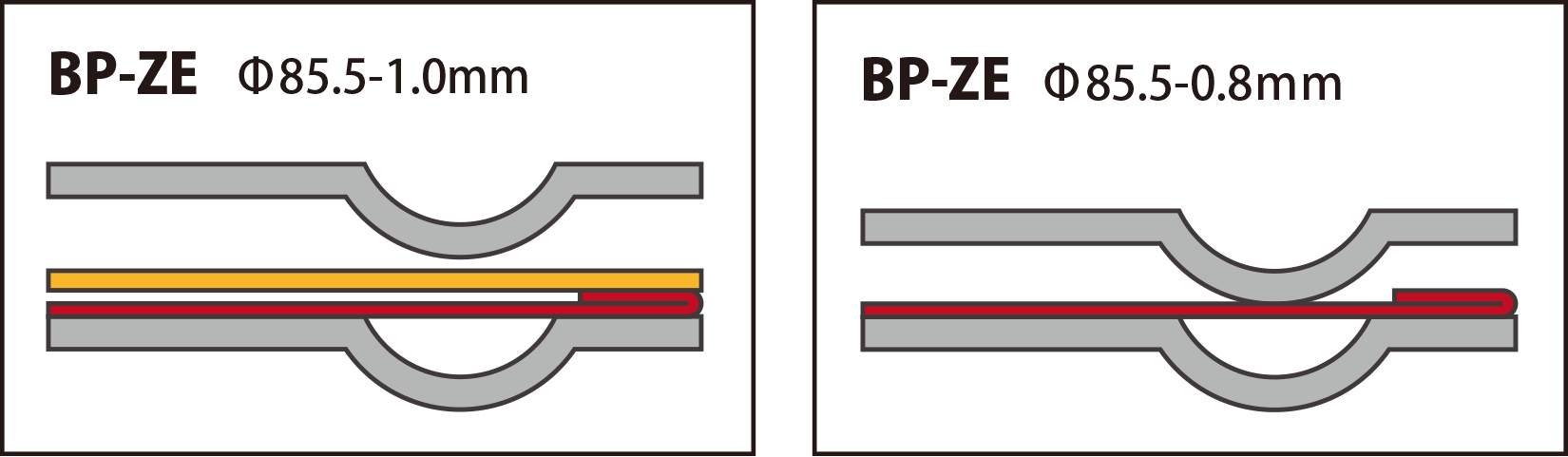

CROSS SECTION

Φ85.5 - 0.8

Φ85.5 - 1.0


BEAD TYPE
RECESSED TYPE

SEAL TYPE
STOPPER TYPE
TOP SIDE

UNDER SIDE
*Images are for illustration purposes only.
