255L/h FUEL PUMP

  UNIVERSAL

255L/h 600ps
INTERNAL TYPE FUEL PUMP
PUMP SIZE


When upgrading your engine to get more power, just by upgrading the turbo and camshafts alone are not enough. Larger turbos and cams will require more fuel to feed the engine to match the increased air flow. So this 255L/h fuel pump will often be enough to suit most engines for the desired power increase that most end users are after. This pump is quiet, doesn't require much electrical power. An effective budget performance fuel pump.
APPLICATION
PART NUMBER
MSRP
FLOW RATE (Fuel Pressure)
OUTPUT (PS)
SYSTEM
EVO4-9
183011
$200.00
(USD)
255L/h(3kg/cm2)
600PS
Approx.
Trochoid
JZX100
183013
FD3S
183012
UNIVERSAL
183020


FUEL PUMP
183001
183002
183003
17042585
17042R595
183004

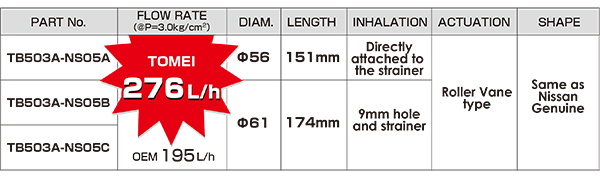

APPLICATION
PART NUMBER
MSRP
AMOUNT L/h
( ) : STD
OUTPUT (PS)
SkylineGT-R
BNR32
17042R585
$600.00
276 (195)
590
BCNR33
17042R595
BNR34
183004
SkylineGTS
HCR32
183001
$550.00
248 (136)
540
ECR33
183002
ER34
183003
Silvia
[P]S13
183001
$550.00
S14
183002
S15
183003
180SX
[R]PS13
183001
$550.00
※Output above is culculated out under the condition below.
PUMP VOLTAGE
BOOST
VOLUME @ P=4.5kg/cm2
MILAGE
FUEL SPECIFIC GRAVITY
EFFICIENCY
12.5V
1.5kg/cm2
・Silvia, GTS: 225L/h
・GT-R: 245L/h
280g/psh
0.75
90%

BOSCH FUEL PUMP


BOSCH fuel pump
Assembly example

Bracket

PRODUCT
PART NUMBER
MSRP
NOTES
BOSCH fuel pump
193014
DISCONTINUED
・with Bracket
・in/out adapter set sold separately
Bracket
191069
$33.00
・66g t=1.5
Adapter set
193017
DISCONTINUED
・IN: AN8/M18 P=1.5 x1
・OUT: AN6/M12 P=1.5 x1

SPEC.
VOLUME
POWER CONSUMPTION
SIZE
WEIGHT
LENGTH
DIAM.
IN
OUT
240.9l/h (P=3.0kg/h)
10.6A
155mm
ø60
AN8 M18/P=1.5
AN8 M12/P=1.5
1026g
