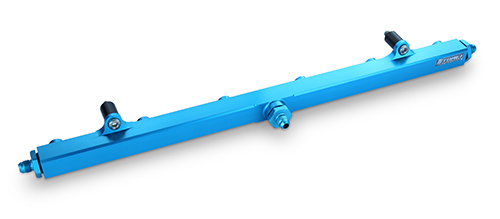

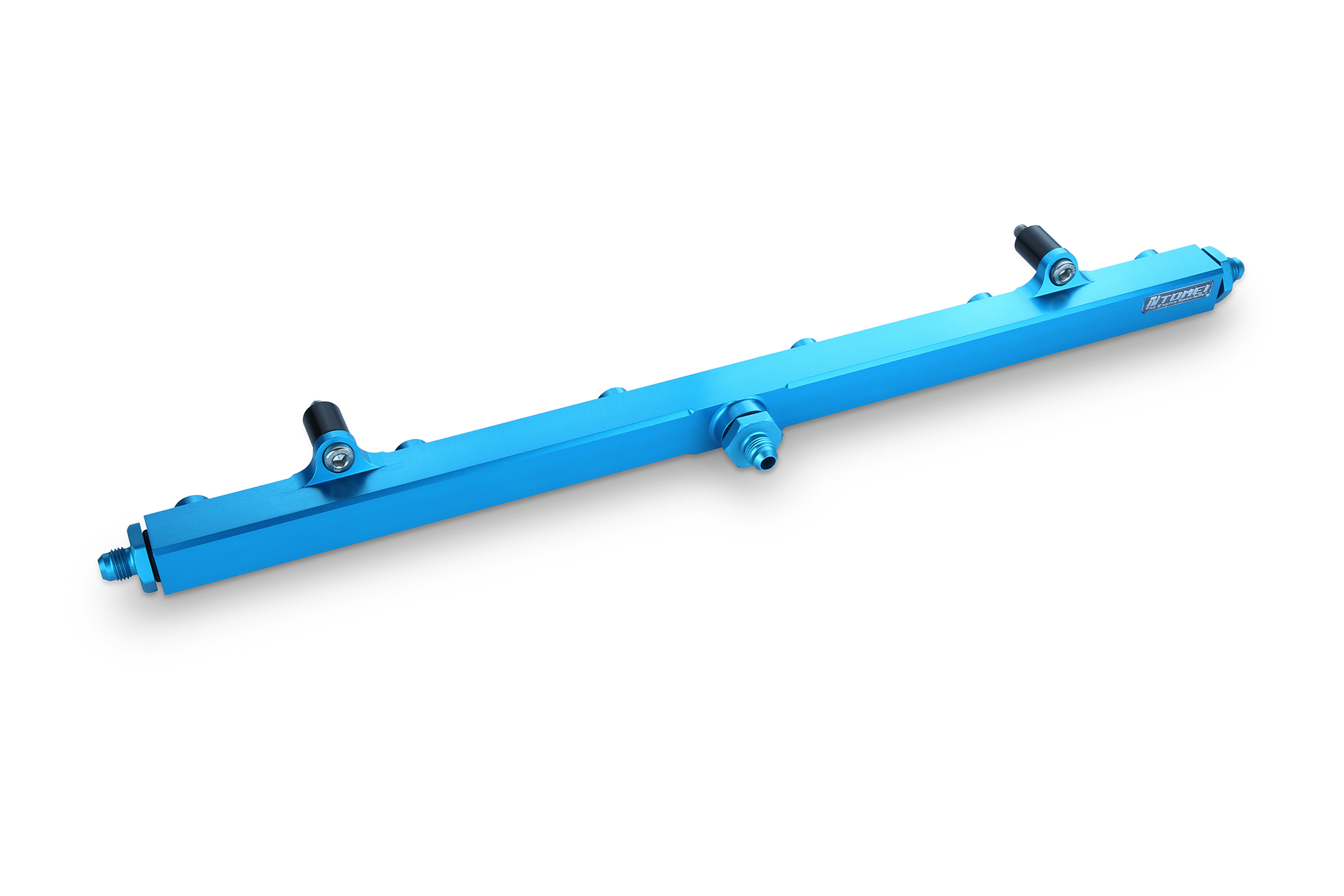

FUEL DELIVERY PIPE

TOMEI fuel delivery pipe secures the performance indispensable to tuning engine, such as pipe capacity that sends in gasoline certainly even when oversized injector is attached, high heat radiation which prevents percolation, and stable pumping pressure.
Product
Part number
MSRP
Application
Note
RB26
delivery pipe
JECS
253001
$370.00
RB26DETT
R32,R33,R34
GT-R

DENSO
253002
$370.00

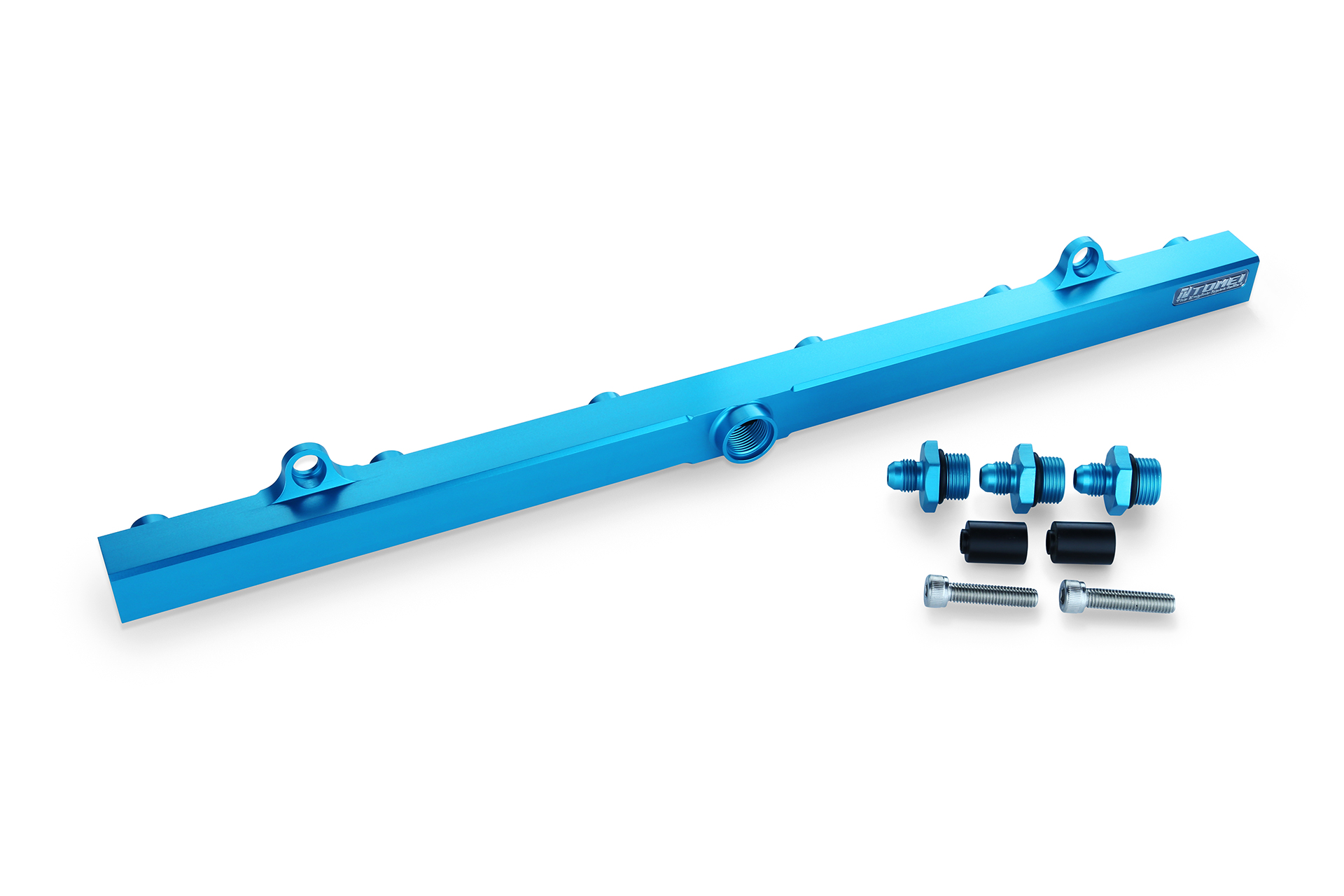

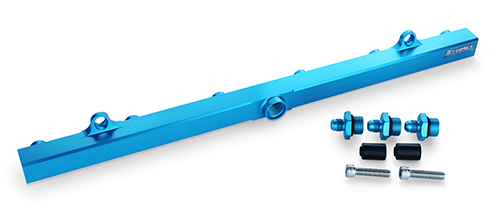

Kit Contents: pipe (carved from aluminium block, blue alumite finish), fitting

SPECS.
Material
Coating
cc
Weight
Injector Hole Size
Applicable Injectors (TOMEI)
Aluminium
Almite(Blue)
140cc
670g
(including fitting)
JECS@dia.:@ø10.45
555cc@195014
600cc@195015
DENSO@dia.:@ø10.90


Special fiting@M20 P1.5-AN6
INJ dia.@JECS ø10.45, DENSO ø10.90

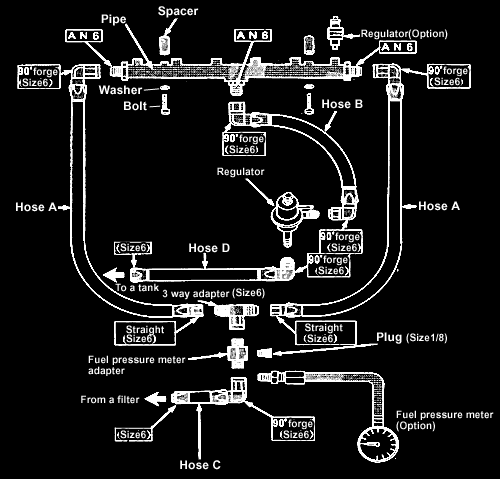

system outline

4G63 Fuel Rail
Our fuel rail for the 4G63 will supply adequate and a stable supply of fuel to your tuned engine. One of the vital upgrades necessary when you start tuning any engines and especially for those aiming for big power. This will compliment your injector upgrades. Made from high grade light weight aluminum material as a solid billet bar and then manufactured with the push out method this will ensure the durability of this fuel rail and also it's strength. Non corrosive and will suit any tuning needs. Finished off in anodized blue color to add that finishing touch to your engine bay.
Part Name
Part Number
MSRP (USD)
Application
Notes
4G63
Fuel Rail
183010
$440.00
EVO IV-IX

Kit Contents; Fuel Rail, (Billet Aluminium) & necessary Fittings

SPEC.
Materials
Aluminium
Manufacturing Method
Billet core, Pressed method
Pipes Internal Diameter
11.0
Adapted injector
EVO IV|IX OEM Injectors
Also compatible with DENSO injectors
Capacity Comparison
Mitsubishi OEM@EVO IV-VII (Cast Type) 50cc
Mitsubishi@OEM EVO VIII-IX (Metal Plate Type) 75cc
TOMEI Fuel Rail 95cc
Surface treatment
Anodized Blue
Entry and Exit Layout
Inlet situated at both ends & exit is in the center. AN6 fittings on all sides.

Mitsubishi OEM
EVO IV|VII
Capacity 50cc
Mitsubishi OEM
EVO VIII|IX
Capacity 75cc
TOMEI
EVO IV|IX
Capacity 95cc
High-grade aluminum material used in the manufacturing process.
Internals are very smooth and resistance to corrosion.

P.M.B.C.

This was designed for the PS13 for fuel economy improvement and for operational noise reduction. The problem with the factory genuine part is that when you begin to tune to improve the overall output, there is a risk at higher RPM when there are times when the factory part can hinder adequate fuel flow and fuel pressure. This is a possible risk of running too lean which can result to engine failure.

The PMBC will fix all those fuel supply stability problems and make it possible tp deliver the adequate amount amount of flow & pressure required for high end tuning. So this is the best value for money type of insurance to help protect your investment and to avoid any possible disasters.

Part Name
Part Number
MSRP (USD)
Application
Notes
P.M.B.C
811037
$20.00
PS13,RPS13
(SR20DET)

Direct Replacement


INJECTOR COUPLER
This is required with all DENSO injector upgrades for those who need to upgrade their injectors when aiming for high power gains from tuned engines. With all Nissan and Subaru owners who do upgrade their injectors to DENSO types will require this part for installation. This coupler is the most compatible injector with all DENSO made round coupler connectors.
Part Name
Part Number
MSRP (USD)
Notes
Injector Coupler
193069
$5.00
  Kit Contents; 1x Coupler, 2x Terminals, 2x Wire Seals
* Compatible with both top feed and side feed oval connector type injectors.
* Sorry but we do not sell DENSO injectors.
* Non compatible with sqaure shaped connector injectors.







BNR34 FUEL PUMP RELAY HARNESS
BNR34 fluctuates the amount of electric current to a fuel pump by fuel pump modulator in order to reduce noise and power consumption. However, if engine tuning is advanced, it becomes hard to deliver the proper amount of electricity and stable fuel pressure can no longer maintained. TOMEI fuel pump relay harness is made to obtain stabilized fuel pressure by taking voltage directly from a battery, and makes it possible to pull out the 100% of performance of BNR34.
Application
Part number
MSRP
Note
Fuel pump relay harness
184001
$70.00


STD data of fuel line
Type
Engine
INJ type
INJ amount (cc)
Fuel pump amount
S13
CA18DET
top feed
370
136
P10
SR20DE
side feed
259
85
PS13
SR20DET
370
136
SR20DE
259
136
S14
SR20DET
370
136
SR20DE
259
136
S15
SR20DET
444(MT)
136
SR20DE
259
136
RNN14
SR20DET
top feed
444
150
DR30
FJ20ET
370
120
R31
RB20DET
259
115
HCR32
RB20DET
259
136
ECR33
RB25DET
side feed
370
136
ER34
RB25DET
top feed
370
136
BNR32
RB26DETT
444
195
BCNR33
RB26DETT
444
195
BNR34
RB26DETT
444
195
Z32 before M/C
VG30DETT
side feed
370
130
Z32 after M/C
370
210
EVO I
4G63
top feed
510
80
EVO II
510
100
EVO III
510
100
EVO IV
510
120
EVO V
560
150
EVO VI
560
150
EVO VII
560
150
