| DURATION (°) | LIFT (mm) | IN/ EX | PART No. | |||
|---|---|---|---|---|---|---|
| EACH | SET | |||||
| MSRP $440.00 | MSRP $880.00 | |||||
| 2JZ-GTE Non VVT-i |  | 260 | 8.9 | IN | TA301C-TY03A | TA301A-TY03A |
| 9.1 | EX | TA301E-TY03A | ||||
 | 270 | 11.0 | IN | TA301C-TY03B | TA301A-TY03B | |
| EX | TA301E-TY03B | |||||
| 280 | 11.0 | IN | TA301C-TY03C | TA301A-TY03C | ||
| EX | TA301E-TY03C | |||||
| 290 | 11.0 | IN | TA301C-TY03D | TA301A-TY03D | ||
| EX | TA301E-TY03D | |||||
| 2JZ-GTE VVT-i | | 260 | 8.9 | IN | TA301C-TY03E | TA301A-TY03E |
| 9.1 | EX | TA301E-TY03E | ||||
| 270 | 11.0 | IN | TA301C-TY03F | TA301A-TY03F | |
| EX | TA301E-TY03F | |||||
| 280 | 11.0 | IN | TA301C-TY03G | TA301A-TY03G | ||
| EX | TA301E-TY03G | |||||
| 290 | 11.0 | IN | TA301C-TY03H | TA301A-TY03H | ||
| EX | TA301E-TY03H | |||||
| Diameter of Base circle | Valve Spring | Valve Lifter | Valve Timing | Best For | |
|---|---|---|---|---|---|

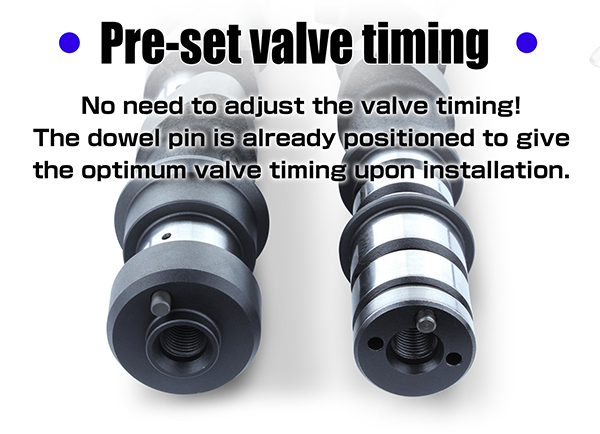

| 36.0mm | Compatible with OEM Springs | Compatible with OEM Lifters | Pre-set | Street |

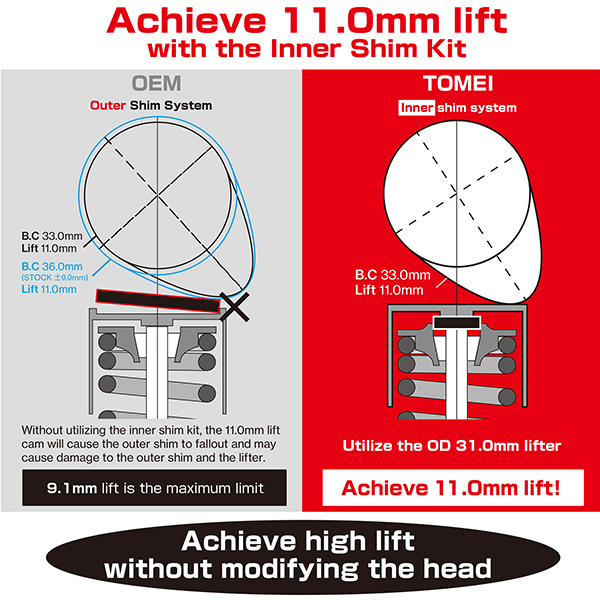

| 33.0mm | TOMEI INNER SHIM KIT Required | Pre-set | Racing | |

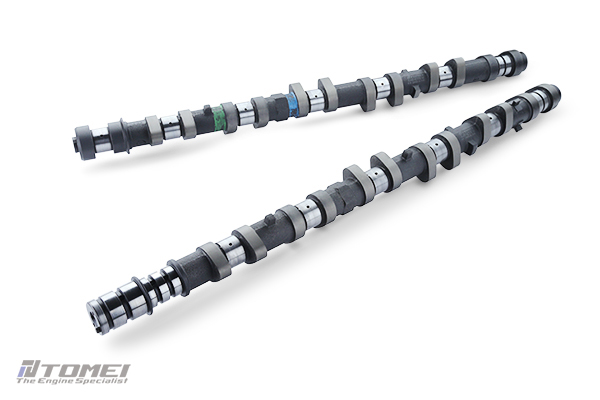

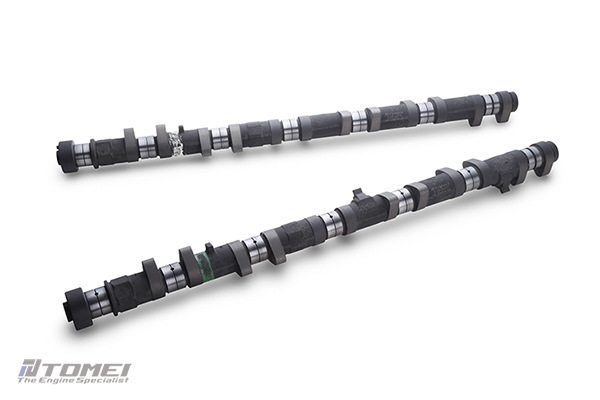

2JZ-GTE VVT-i CAMSHAFT SET

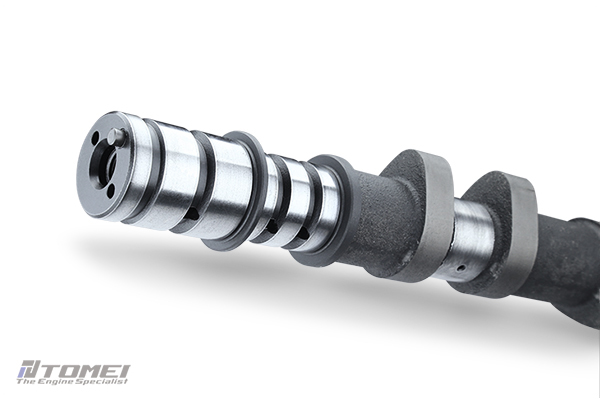

2JZ-GTE VVT-i CAMSHAFT IN

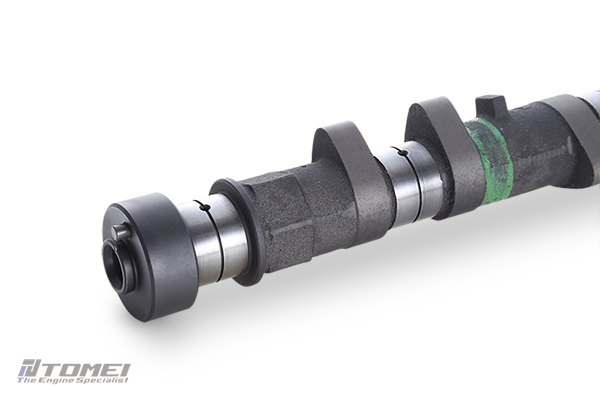

2JZ-GTE Non VVT-i CAMSHAFT SET
2JZ-GTE Non VVT-i CAMSHAFT IN
| DURATION (°) | LIFT (mm) | IN/ EX | PART No. | ||
|---|---|---|---|---|---|
| EACH | SET | ||||
| MSRP $440.00 | MSRP $880.00 | ||||
| 2JZ-GTE Non VVT-i | 270 | 11.0 | IN | TA301C-TY03B | TA301A-TY03B |
| EX | TA301E-TY03B | ||||
| 280 | 11.0 | IN | TA301C-TY03C | TA301A-TY03C | |
| EX | TA301E-TY03C | ||||
| 290 | 11.0 | IN | TA301C-TY03D | TA301A-TY03D | |
| EX | TA301E-TY03D | ||||
| 2JZ-GTE VVT-i | 270 | 11.0 | IN | TA301C-TY03F | TA301A-TY03F |
| EX | TA301E-TY03F | ||||
| 280 | 11.0 | IN | TA301C-TY03G | TA301A-TY03G | |
| EX | TA301E-TY03G | ||||
| 290 | 11.0 | IN | TA301C-TY03H | TA301A-TY03H | |
| EX | TA301E-TY03H | ||||
| PART No. | PRODUCT NAME | MSRP(USD) | |
|---|---|---|---|

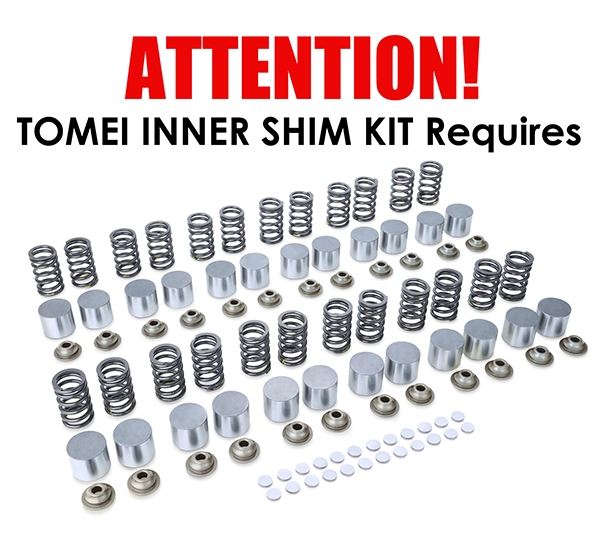

| TA312A-TY03A | INNER SHIM KIT 2JZ-GTE INVENTORY→ | $1,140.00 |  |
| DURATION (°) | LIFT (mm) | IN/ EX | PART No. | ||
|---|---|---|---|---|---|
| EACH | SET | ||||
| MSRP $440.00 | MSRP $880.00 | ||||
| 2JZ-GTE Non VVT-i | 260 | 8.9 | IN | TA301C-TY03A | TA301A-TY03A |
| 9.1 | EX | TA301E-TY03A | |||
| 2JZ-GTE VVT-i | 260 | 8.9 | IN | TA301C-TY03E | TA301A-TY03E |
| 9.1 | EX | TA301E-TY03E | |||
SPEC.| DURATION (°) | IN EX | CAM LIFT (mm) | VALVE LIFT (mm) | COLD VALVE CLEARANCE (mm)[±0.01] | CENTER LINE (°) | BASE CIRCLE (°) | REQUIRED VALVE SPRING | REQUIRED VALVE LIFTER |
|---|---|---|---|---|---|---|---|---|
2JZ-GTE Non VVT-i | ||||||||
| 260 | IN | 8.90 | 8.70 | 0.20 | 110.0 | 36.0 | OEM | OEM |
| EX | 9.10 | 8.80 | 0.30 | 115.0 | ||||
| 270 | IN | 11.0 | 10.80 | 0.20 | 110.0 | 33.0 | REQUIRED INNER SHIM KIT TA312A-TY03A | |
| EX | 10.70 | 0.30 | 115.0 | |||||
| 280 | IN | 11.0 | 10.80 | 0.20 | 110.0 | |||
| EX | 10.70 | 0.30 | 115.0 | |||||
| 290 | IN | 11.0 | 10.80 | 0.20 | 110.0 | |||
| EX | 10.70 | 0.30 | 115.0 | |||||
2JZ-GTE VVT-i | ||||||||
| 260 | IN | 8.90 | 8.70 | 0.20 | 123.0 | 36.0 | OEM | OEM |
| EX | 9.10 | 8.80 | 0.30 | 116.0 | ||||
| 270 | IN | 11.0 | 10.80 | 0.20 | 123.0 | 33.0 | REQUIRED INNER SHIM KIT TA312A-TY03A | |
| EX | 10.70 | 0.30 | 116.0 | |||||
| 280 | IN | 11.0 | 10.80 | 0.20 | 123.0 | |||
| EX | 10.70 | 0.30 | 116.0 | |||||
| 290 | IN | 11.0 | 10.80 | 0.20 | 123.0 | |||
| EX | 10.70 | 0.30 | 116.0 | |||||
