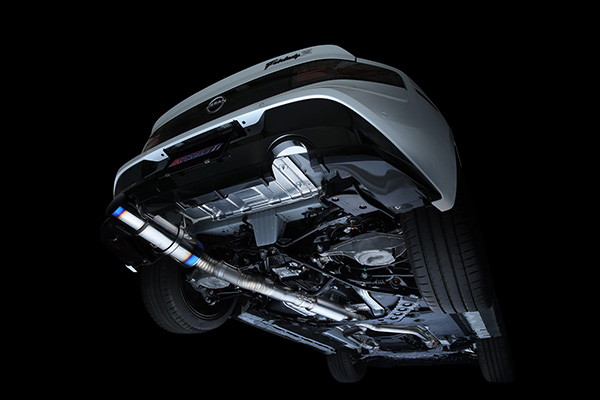

Expreme Titanium Full Titanium Muffler for Nissan 400Z RZ34
By TOMEI USA

Expreme Titanium Full Titanium Muffler for Nissan 400Z RZ34

PART No.PRODUCT NAME
TB6090-NS21C
FULL TITANIUM MUFFLER KIT
EXPREME Ti 400Z RZ34

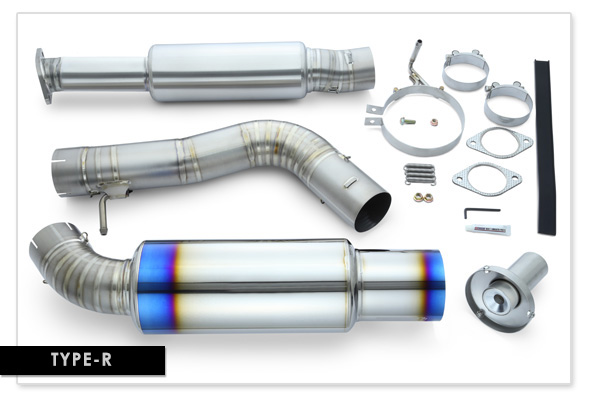

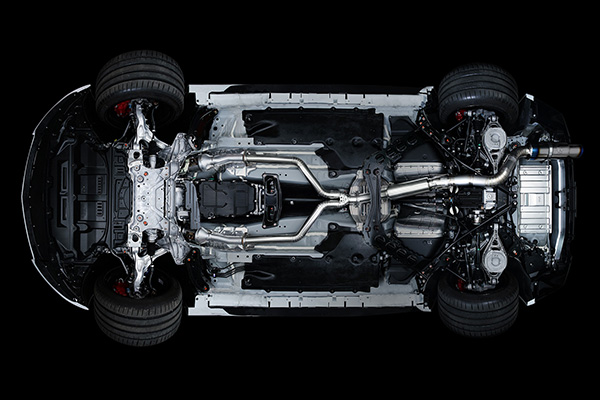

TYPE-R
INVENTORY→
TB6090-NS21D
FULL TITANIUM MUFFLER KIT
EXPREME Ti 400Z RZ34

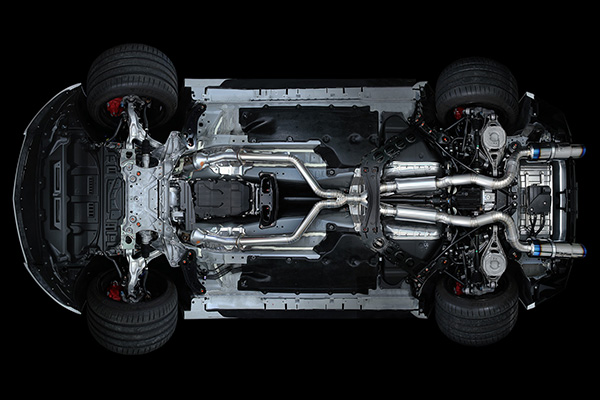

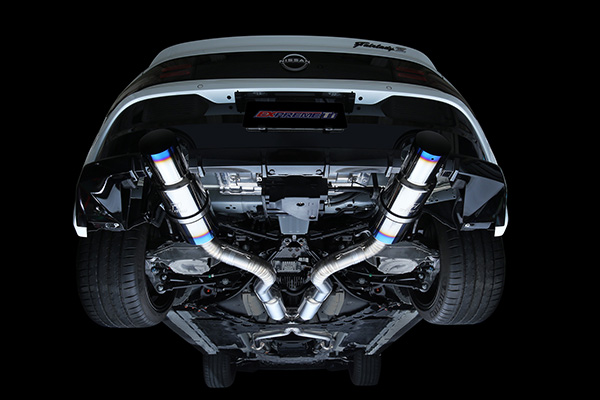

TYPE-D
INVENTORY→
APPLICATION
MAKERENGINEMODEL
NISSANVR30DDTT400Z RZ34

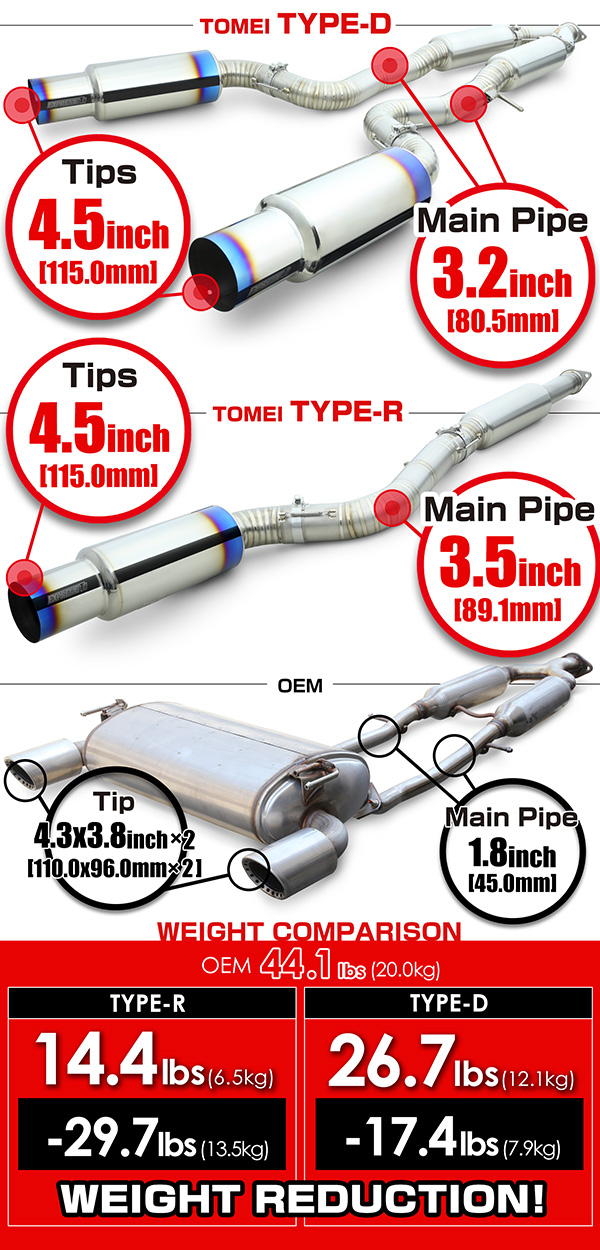

FULL TITANIUM MUFFLER SPECIFICATION

TOMEIOEM
TYPE-RTYPE-D
PART No.TB6090-NS21CTB6090-NS21D
MATERIALTitaniumSteel
MAIN PIPE
DIAMETER		3.5inch
(89.1mm)		3.2inch
(80.5mm)		3.17-2.72inch
(80.5-69.0mm)
MAIN PIPE
THICKNESS		1.0mm2.0mm
MAIN SILENCER
DIAMETER		6.0inch
(152mm)		6.0inch x2
(152mm x2)		8.66x8.66inch Square
(220x220mm)
SUB SILENCER
DIAMETER		4.7inch
(118.0mm)		4.7inch x2
(118.0mm x2)		8.58x17.72inch Oval
(218x450mm)
MAIN SILENCER
THICKNESS		1.0mm-
EXIT DIAMETER4.5inch
(115.0mm)		4.5inch x2
(115.0mm x2)		3.9inch (99mm)
EXIT THICKNESS1.0mm-

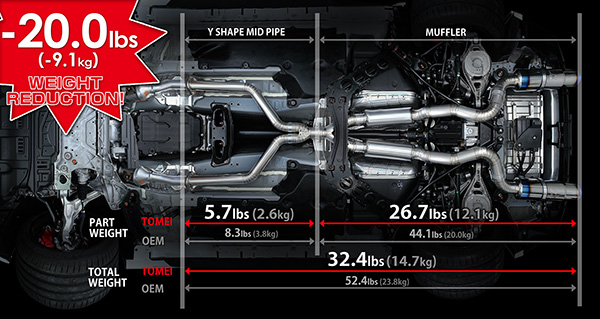

WEIGHT14.4lbs
(6.5kg)		26.7lbs
(12.1kg)		44.1lbs
(20.0kg)



Only Muffler installed.

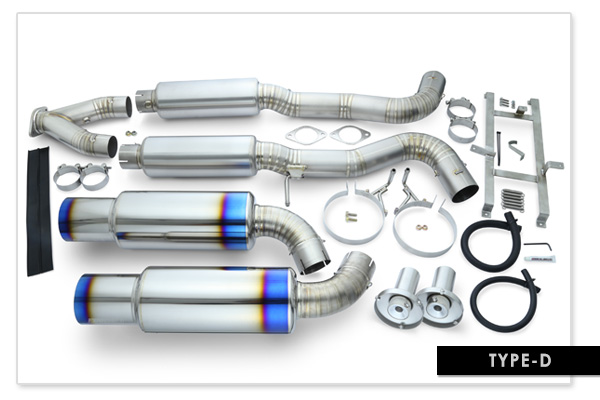

This kit includes all the components necessary for installation including the bolts and nuts.
Bolt Smooth Paste is also included to help prevent the bolts becoming seized under heat.







PART No.PRODUCT NAME
TB6110-NS21A

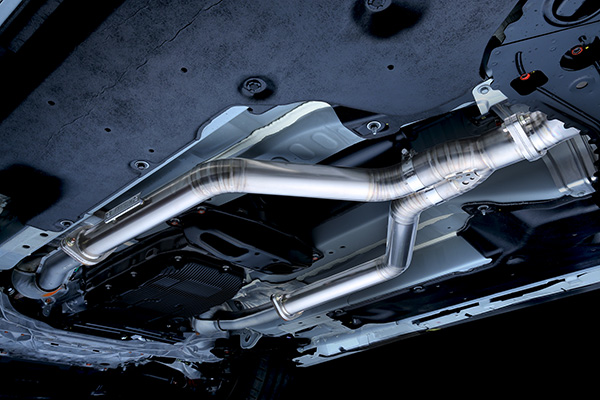

FULL TITANIUM Y PIPE KIT
EXPREME TI
Q50/Q60/400Z
INVENTORY→

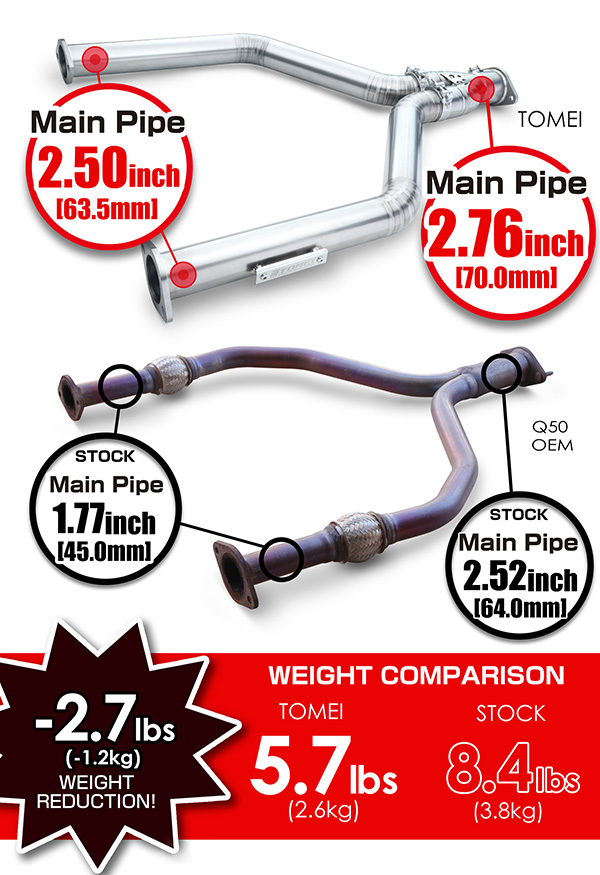

APPLICATION

MAKERENGINEMODEL
NISSANVR30DDTT / VQ37VHR400Z RZ34 / Q50 / Q60




 TOMEIOEM
PART No.TB6110-NS21A-
MATERIALTITANIUM-
MAIN PIPE DIAMETER2.5-2.76inch
(63.5-70.0mm)		1.77-2.52inch
(45.0-64.0mm)
MAIN PIPE THICKNESS1.0mm-
FLANGE THICKNESS8.0mm8.0mm
WEIGHT5.7lbs
(2.6kg)		8.3lbs
(3.8kg)
<












  EXHAUST PRODUCTS COMPATIBILITY LIST
MODELCATEGORYMATERIALTYPEPARTS NO.
NISSAN INFINITI
35 GT-RJDM/
USDM		MUFFLERTIQUADTB6070-NS01A
400ZJDM/
USDM		MUFFLERTISINGLETB6090-NS21C
DUALTB6090-NS21D
Y PIPETI TB6110-NS21A
370ZJDM/
USDM		MUFFLERTISINGLETB6090-NS02A
Y PIPETI TB6110-NS02A
MID PIPETI TB6100-NS02A
350ZJDM/
USDM		MUFFLERTISINGLETB6090-NS04A
EX-MANIFOLDSUSVQ35DETB6010-NS04A
Y PIPETI TB6110-NS02A
MID PIPETIVQ35DETB6100-NS04A
VQ35HRTB6100-NS02A
32 GT-RJDMMUFFLERTISINGLETB6090-NS05A
33 GT-RJDMMUFFLERTISINGLETB6090-NS05B
34 GT-RJDMMUFFLERTISINGLETB6090-NS05C
32,33,34 GT-RJDMEX-MANIFOLDSUS TB6010-NS05A
TURBINE OUTLETSUS TB6020-NS05A
FRONT PIPETI TB6080-NS05A
34 SKYLINE
2DOOR		JDMMUFFLERTISINGLETB6090-NS06A
34 SKYLINE
4DOOR		JDMMUFFLERTISINGLETB6090-NS06B
32,33,34
SKYLINE		JDMTURBINE OUTLETSUSRB20,25DETTB6020-NS06A
13 SILVIA,
180SX,240SX		JDM/
USDM		MUFFLERTISINGLETB6090-NS08A
14 SILVIA,
240SX		JDM/
USDM		MUFFLERTISINGLETB6090-NS08B
15 SILVIAJDMMUFFLERTISINGLETB6090-NS08C
13,14,15 SILVIA,180SXJDMEX-MANIFOLDSUSSR20DETTB6010-NS08A
TURBINE OUTLETSUSSR20DETTB6020-NS08C
VARIOUS
NISSAN		MID PIPETITYPE-ATB6100-NS00A
2017+ Q60USDMMUFFLERTISINGLETB6090-NS21B
Y PIPETI TB6110-NS21A
G35 COUPE SKYLINE V35 COUPEJDM/
USDM		MUFFLERTISINGLETB6090-NS04G
EX-MANIFOLDSUSVQ35DETB6010-NS04A
Y PIPETI TB6110-NS02A
MID PIPETIVQ35DETB6100-NS04A
Q50,RV37 SKYLINE 400RJDM/
USDM		MUFFLERTISINGLETB6090-NS21A
Y PIPETI TB6110-NS21A
TOYOTA
2013+ 86,
SCION FR-S		JDM/
USDM		MUFFLERTISINGLE 60STB6090-SB03A
SINGLE 60RTB6090-SB03B
SINGLE 80TB6090-SB03C
SINGLE 80 ver.2TB6090-SB05A
DUALTB6090-SB05B
EX-MANIFOLDSUSUNEQUALTB6010-SB03B
EQUALTB6010-SB03A
UNEQUAL ver.2TB6010-SB05A
EQUAL ver.2TB6010-SB05B
JOINT PIPESUS TB6060-SB03A
ver.2TB6060-SB05A
MID PIPETIFOR 60S,60R
(M/T ONLY)		TB6100-SB03A
FOR 80,ver2,DUAL
(M/T ONLY)		TB6100-SB03B
BUMPER COVERCARBONEARLY LHTE301A-SB03A
EARLY RHTE301A-SB03B
FRP86 LATE LHTE301A-SB03C
86 LATE RHTE301A-SB03D
2021+ GR86JDM/
USDM		MUFFLERTISINGLE 80 ver.2TB6090-SB05A
DUALTB6090-SB05B
EX-MANIFOLDSUSUNEQUAL ver.2TB6010-SB05A
EQUAL ver.2TB6010-SB05B
JOINT PIPESUSver.2TB6060-SB05A
MID PIPETIFOR 80,ver2,DUAL
(M/T ONLY)		TB6100-SB03B
GR SUPRA
3.0L		JDM/
USDM		MUFFLERTISINGLETB6090-TY06A
TIDUALTB6090-TY06B
80 SUPRAJDM/
USDM		MUFFLERTISINGLETB6090-TY03A
MID PIPETITB6110-TY03A
ADAPTERTITB6120-0000A
86 LEVIN/TRUENOJDM/
USDM		MUFFLERTISINGLE RTB6090-TY01A
SINGLE STB6090-TY01B
MID PIPETI TB6100-TY01A
100 CHASER,MARK2JDMMUFFLERTISINGLETB6090-TY04A
TURBINE OUTLETSUS TB6020-TY04A
MITSUBISHI
EVO7-9 JDM BUMPERJDMMUFFLERTISINGLETB6090-MT01A
EVO8-9 USDM BUMPERUSDMMUFFLERTISINGLETB6090-MT01B
EVO4-9JDM/
USDM		EX-MANIFOLDSUS TB6010-MT01A
EVO7-9JDM/
USDM		OUTLET COMPONENTSUS TB6060-MT01A
MID PIPETI TB6100-MT01A
EVO10JDM/
USDM		MUFFLERTISINGLETB6090-MT02A
OUTLET COMPONENTSUS TB6060-MT02A
MID PIPETI TB6100-MT02A
SUBARU
2013+ BRZJDM/
USDM		MUFFLERTISINGLE 60STB6090-SB03A
SINGLE 60RTB6090-SB03B
SINGLE 80TB6090-SB03C
SINGLE 80 ver.2TB6090-SB05A
DUALTB6090-SB05B
EX-MANIFOLDSUSUNEQUALTB6010-SB03B
EQUALTB6010-SB03A
UNEQUAL ver.2TB6010-SB05A
EQUAL ver.2TB6010-SB05B
JOINT PIPESUS TB6060-SB03A
ver.2TB6060-SB05A
MID PIPETIFOR 60S,60R
(M/T ONLY)		TB6100-SB03A
FOR 80,ver2,DUAL
(M/T ONLY)		TB6100-SB03B
BUMPER COVERCARBONEARLY LHTE301A-SB03A
EARLY RHTE301A-SB03B
FRP86 LATE LHTE301A-SB03C
86 LATE RHTE301A-SB03D
2021+ BRZJDM/
USDM		MUFFLERTISINGLE 80 ver.2TB6090-SB05A
DUALTB6090-SB05B
EX-MANIFOLDSUSUNEQUAL ver.2TB6010-SB05A
EQUAL ver.2TB6010-SB05B
JOINT PIPESUSver.2TB6060-SB05A
MID PIPETIFOR 80,ver2,DUAL
(M/T ONLY)		TB6100-SB03B
2002+ WRX,WRX STI GDF USDMUSDMMUFFLERTISINGLETB6090-SB02A
2002+ WRX,WRX STI GDUSDMDOWN PIPESUSEJ25TB6060-SB02A
2008+ WRX,WRX STI GH/GRF USDMUSDMMUFFLERTISINGLETB6090-SB02B
2011+ WRX,WRX STI GE/GVF/VA USDMUSDMMUFFLERTISINGLETB6090-SB02C
DUALTB6090-SB02D
2008+ WRX,WRX STI
GR/GV/GE/GH/VA		USDMDOWN PIPESUSEJ25TB6060-SB02B
2002+ WRX
2004+ WRX STI		JDM/
USDM		EX-MANIFOLDSUSUNEQUALTB6010-SB02A
EQUALTB6010-SB02B
2015+ WRXJDM/
USDM		EX-MANIFOLDSUSUNEQUALTB6010-SB04A
EQUALTB6010-SB04B
USDMMID PIPETI TB6100-SB04A
2022+ WRXJDM/
USDM		MUFFLERTISINGLETB6090-SB06A
DUALTB6090-SB06B
WRX,WRX STI GDB A-D JDMJDMMUFFLERTISINGLETB6090-SB01A
WRX,WRX STI GDB E-G JDMJDMMUFFLERTISINGLETB6090-SB01B
WRX,WRX STI GR JDMJDMMUFFLERTISINGLETB6090-SB01C
WRX, WRX STI GV/VA JDMJDMMUFFLERTISINGLETB6090-SB01D
DUALTB6090-SB02D
WRX STI TWIN SCROLLJDMEX-MANIFOLDSUSEQUALTB6010-SB01A
MAZDA
NA MX-5JDM/
USDM		MUFFLERTISINGLETB6090-MZ01A
NB MX-5JDM/
USDM		MUFFLERTISINGLETB6090-MZ02A
NC MX-5JDM/
USDM		MUFFLERTISINGLETB6090-MZ03A
MID PIPETI TB6100-MZ03A
ND MX-5JDM/
USDM		MUFFLERTISINGLETB6090-MZ06A
FD RX-7JDM/
USDM		MUFFLERTISINGLETB6090-MZ05A
MID PIPETI TB6100-MZ05A
HONDA
FL5 CIVIC
TYPE-R		JDM/
USDM		MUFFLERTISINGLETB6090-HN06D
DUALTB6090-HN06E
FK8 CIVIC
TYPE-R		JDM/
USDM		MUFFLERTISINGLE RTB6090-HN06A
SINGLE STB6090-HN06B
DUALTB6090-HN06C
S2000JDM/
USDM		MUFFLERTISINGLETB6090-HN04A
MID PIPETI TB6100-HN04A
ACURA
DE5 INTEGRA
TYPE S		USDMMUFFLERTIDUALTB6090-HN06F
HYUNDAI
GENESIS
COUPE 2.0T		USDMMUFFLERTISINGLETB6090-HY01A
MID PIPETI TB6100-HY01A
BUMPER COVERCARBON TE301A-HY01A
FORD
2015+
MUSTANG ECOBOOST		USDMMUFFLERTISINGLETB6090-FR01A
BUMPER COVERCARBONPREMIUMTE301A-FR01A
 TE301A-FR01B
FOCUS STUSDMMUFFLERTISINGLETB6090-FR02A
