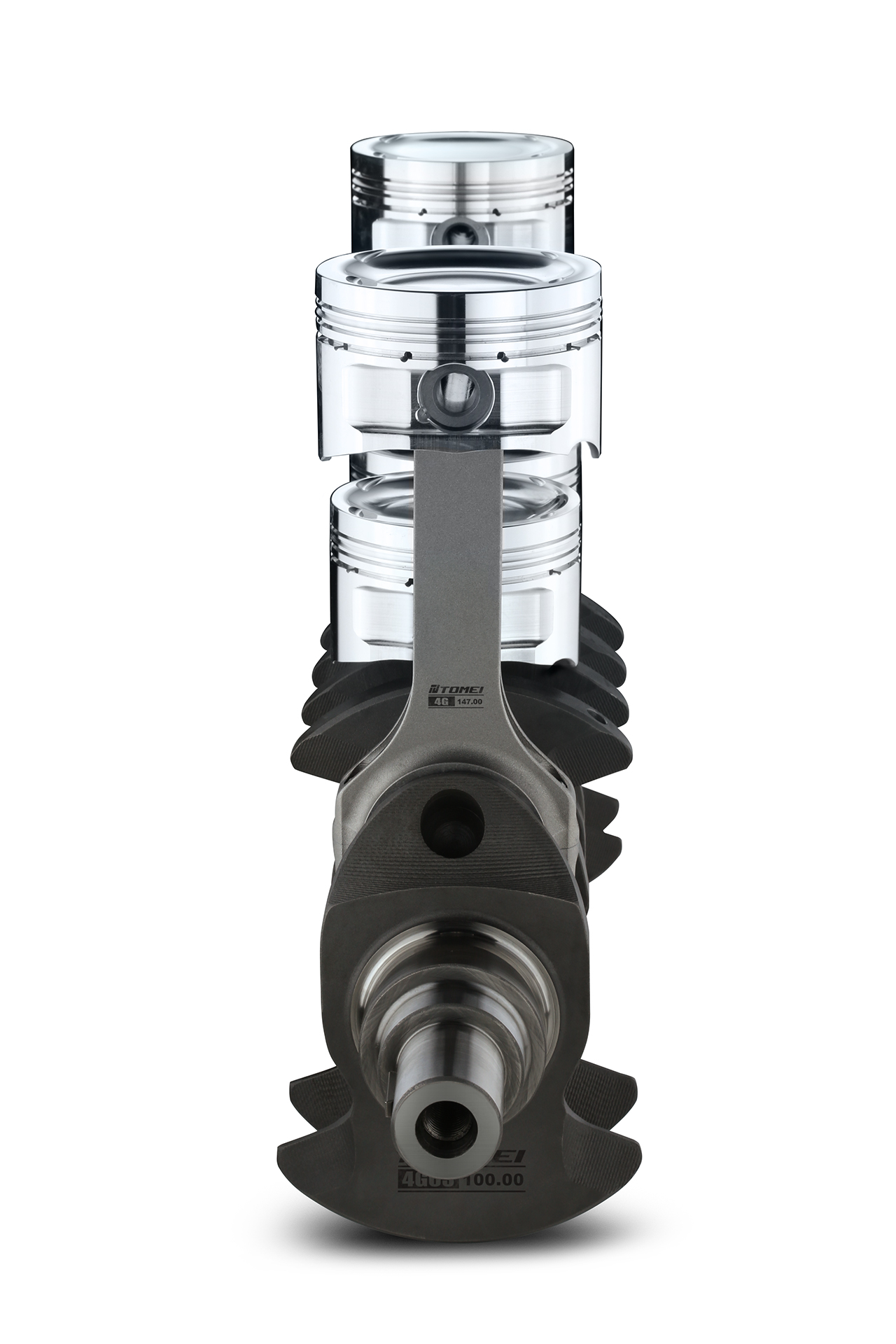

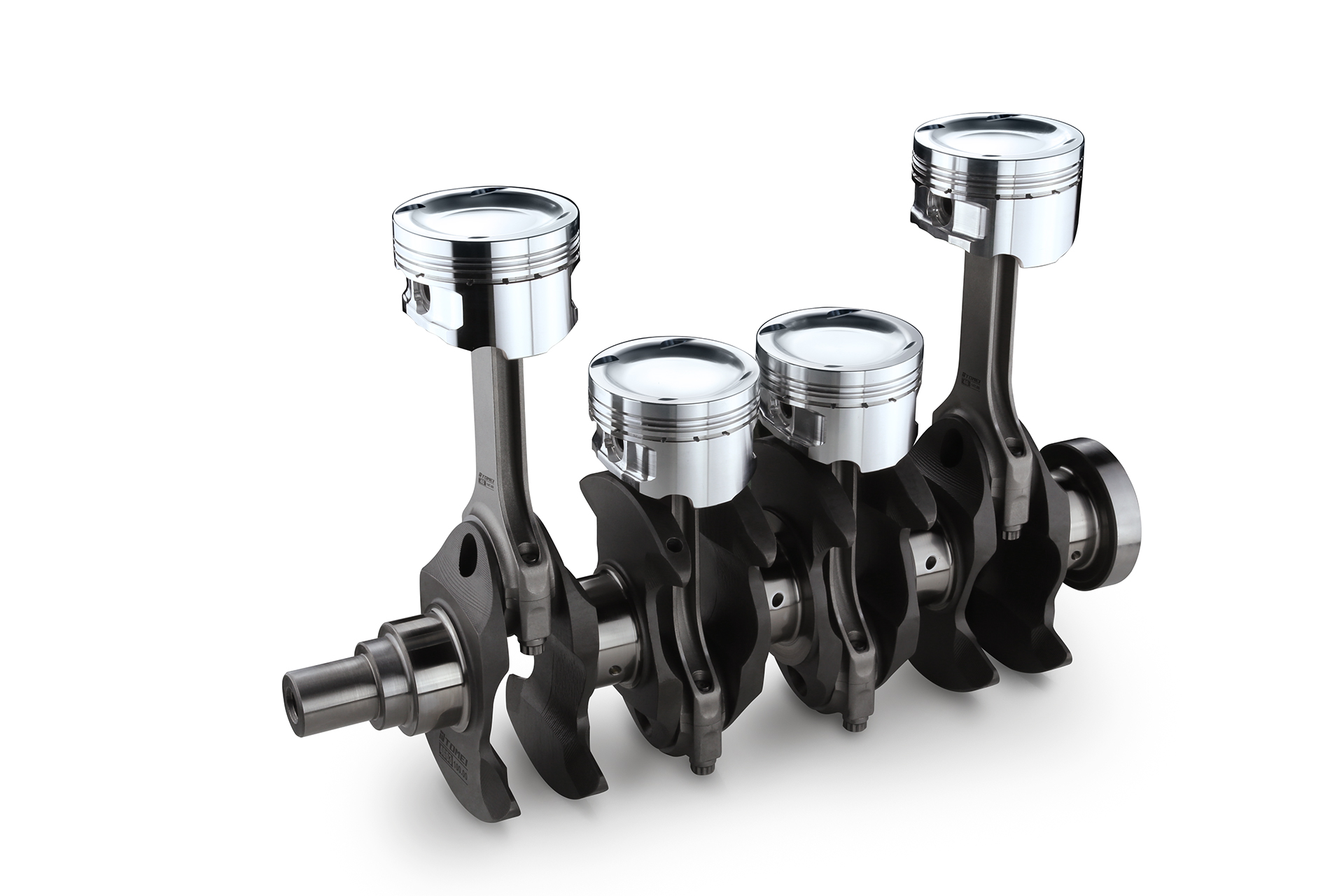

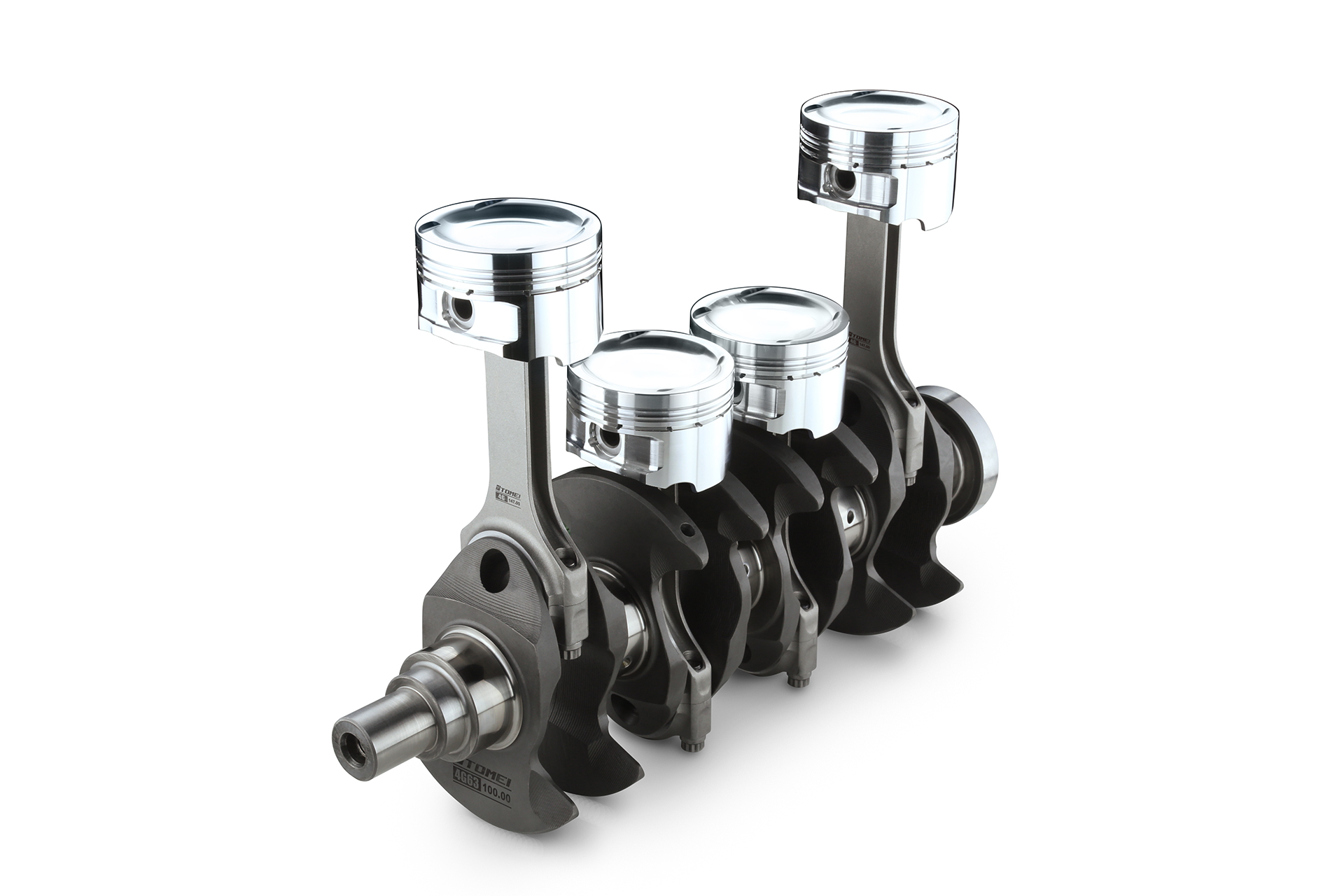

4G63 2.3L 86mm x 100mm Stroker-Kit

KIT

PART NO.	PRODUCT NAME	IMAGE

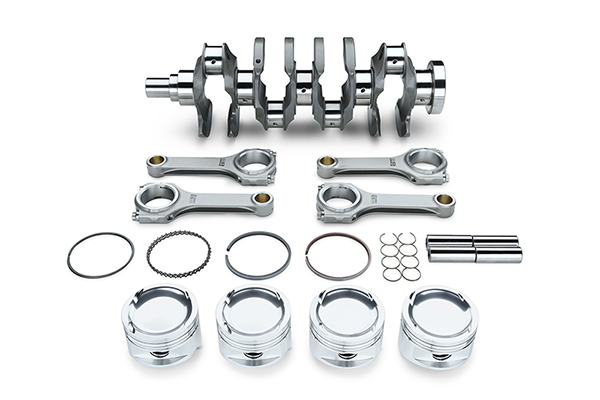

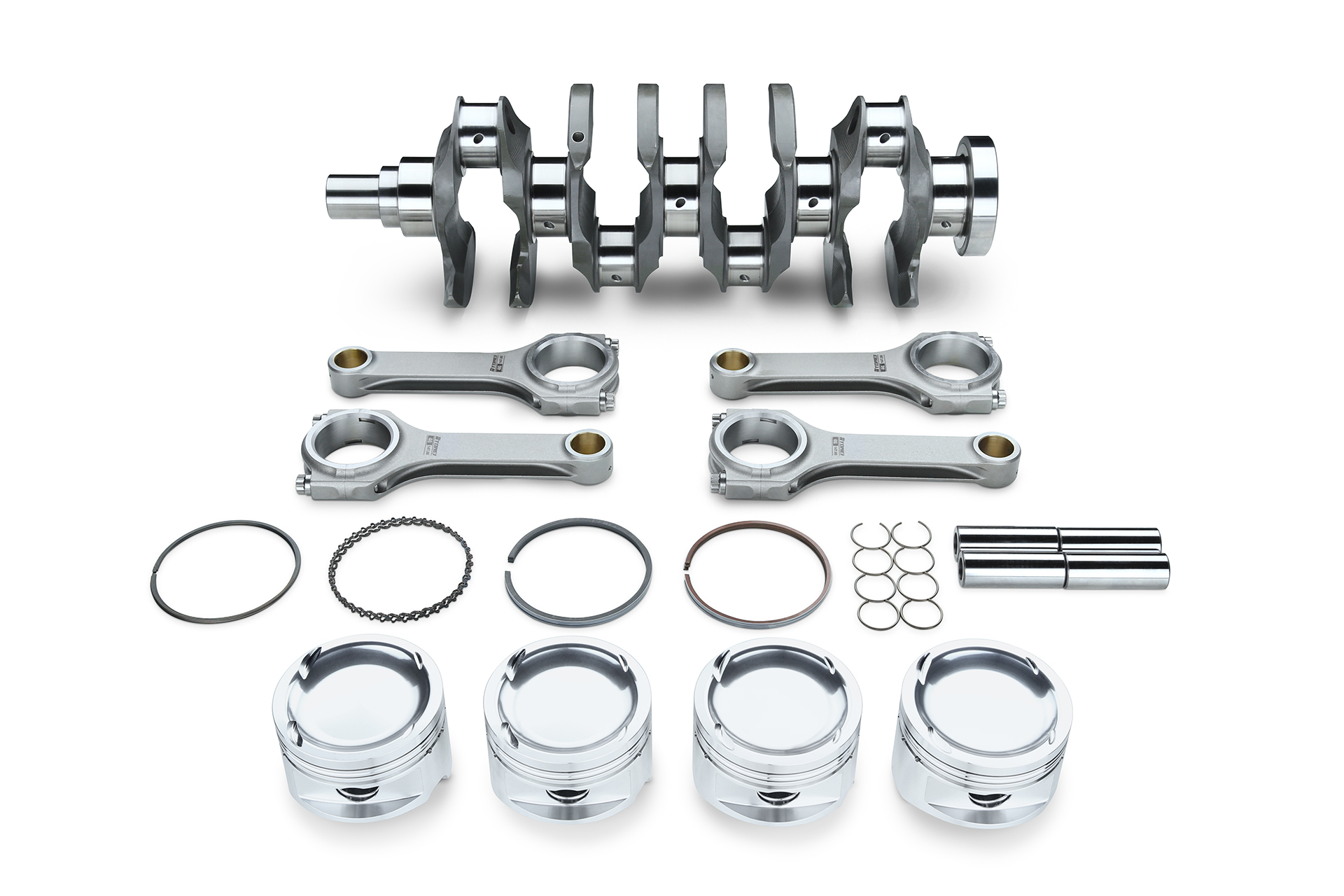

TA201A-MT01B	STROKER KIT 4G63 EVO1-9 2.3　TOMEI PISTON More details ->
TA201A-MT01BP	STROKER KIT 4G63 EVO1-9 2.3　CP PISTON More details ->

COMPONENTS

PART NO.	PRODUCT NAME	IMAGE

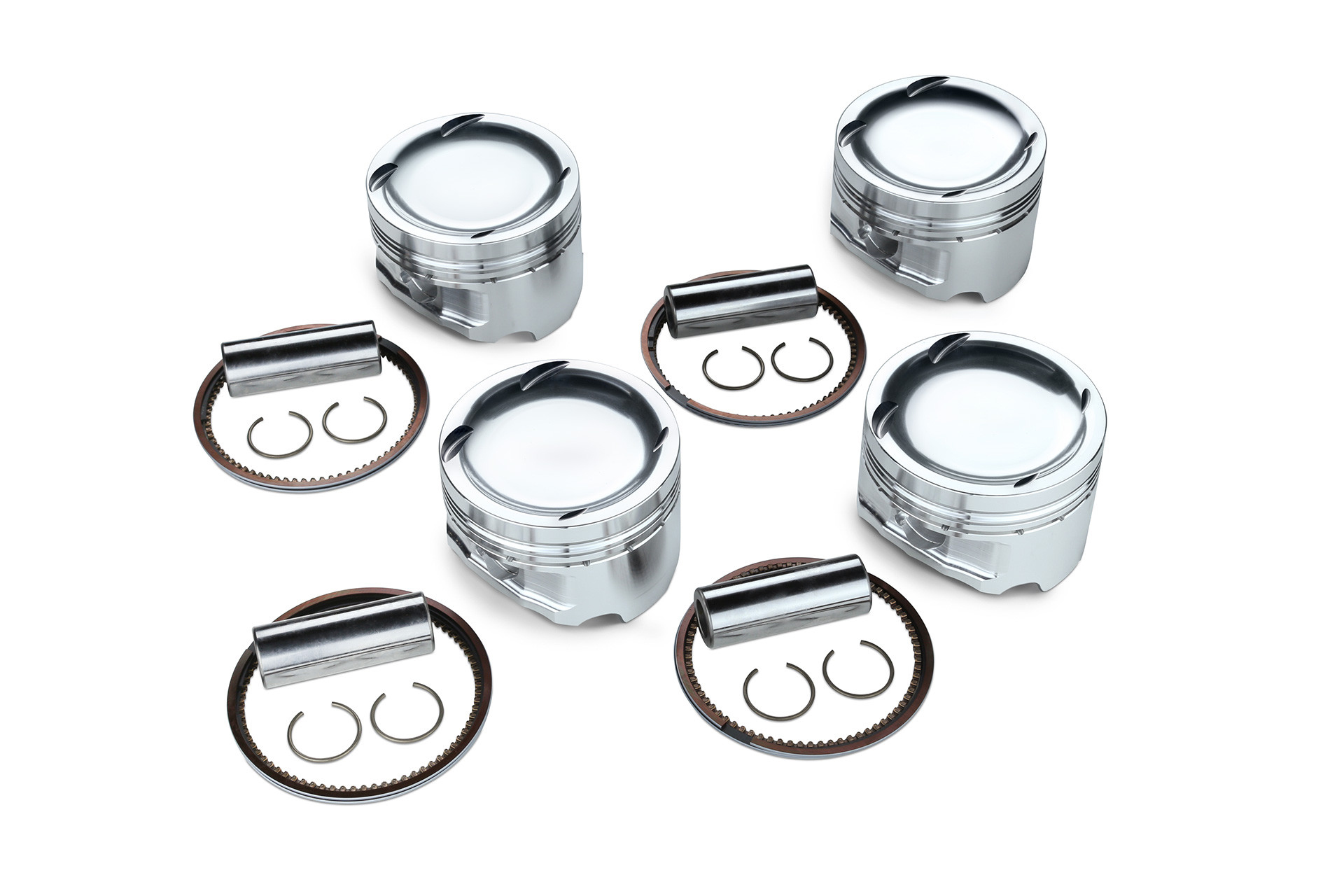

TA202A-MT01A	FORGED PISTON KIT 4G63 86.00MM　CH31.65 (2.2/2.3) More details ->
TA202A-MT01AP	FORGED PISTON KIT 4G63 86.00MM　CH31.65 (2.2/2.3) CP More details ->

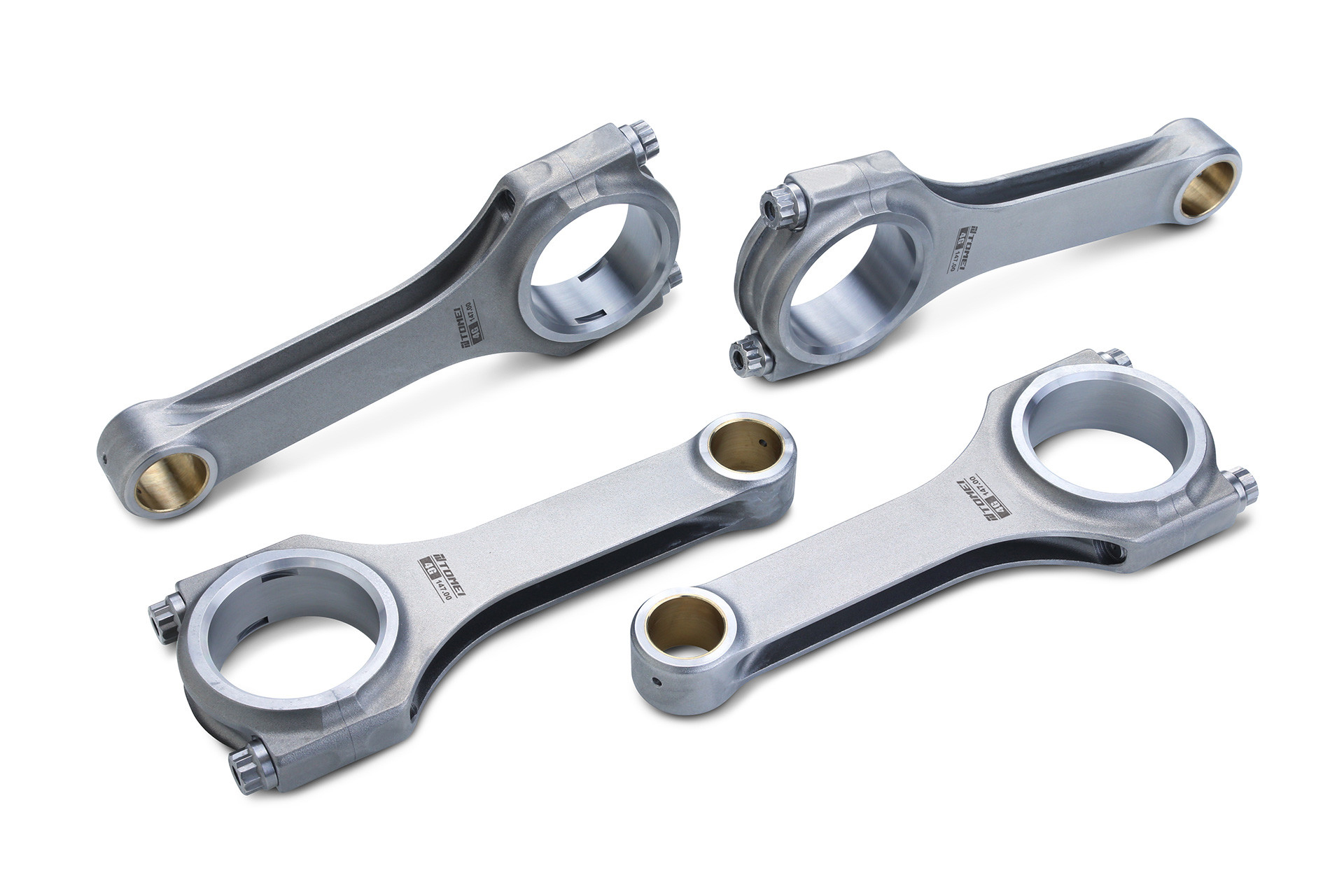

TA203A-MT01B	FORGED H-BEAM CON-ROD SET 4G63 147.00MM　(2.3) More details ->

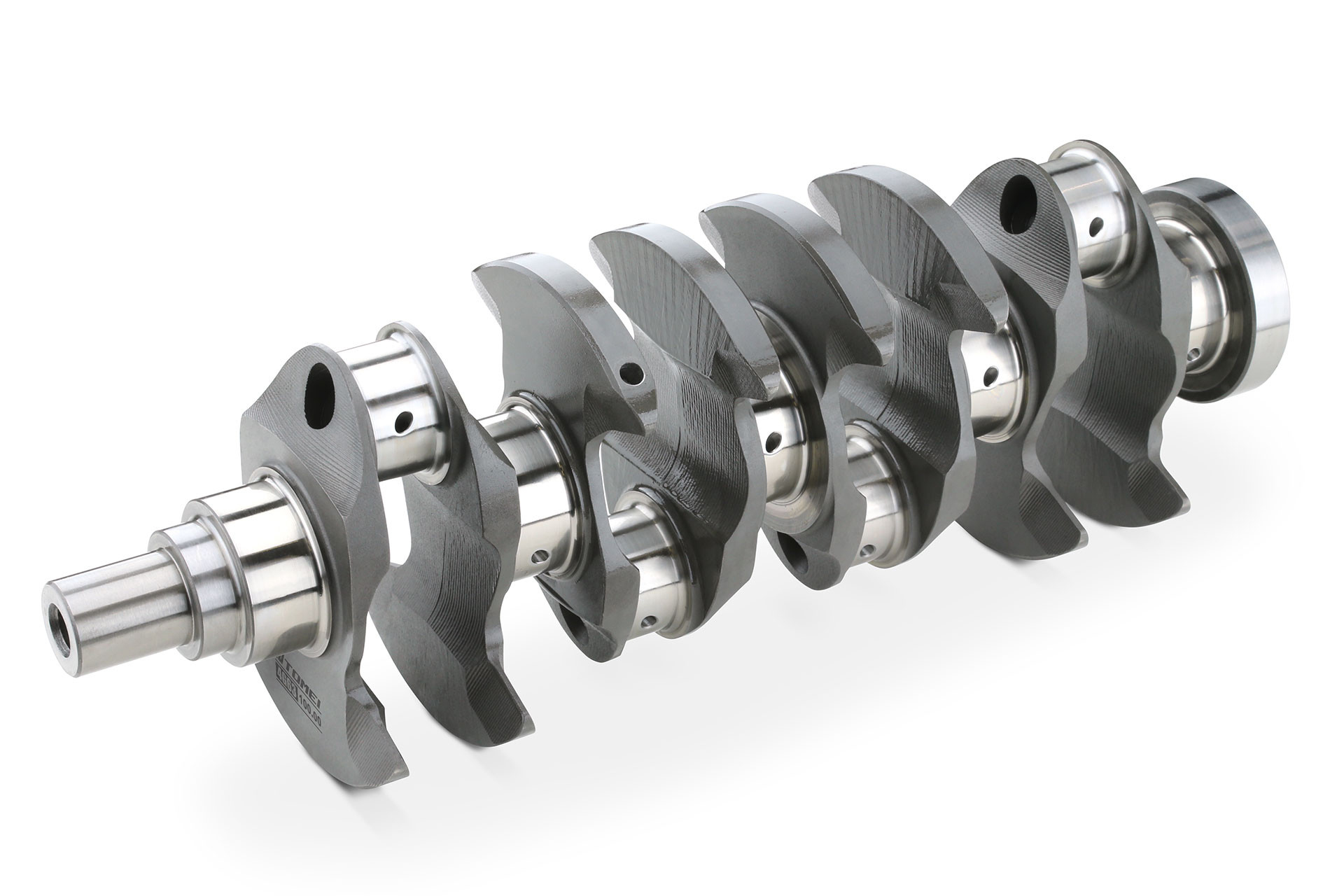

TA204B-MT01B	FORGED BILLET FULL COUNTERWEIGHT CRANKSHAFT 4G63 EVO1-9 2.3 100.0MM More details ->

DESCRIPTION

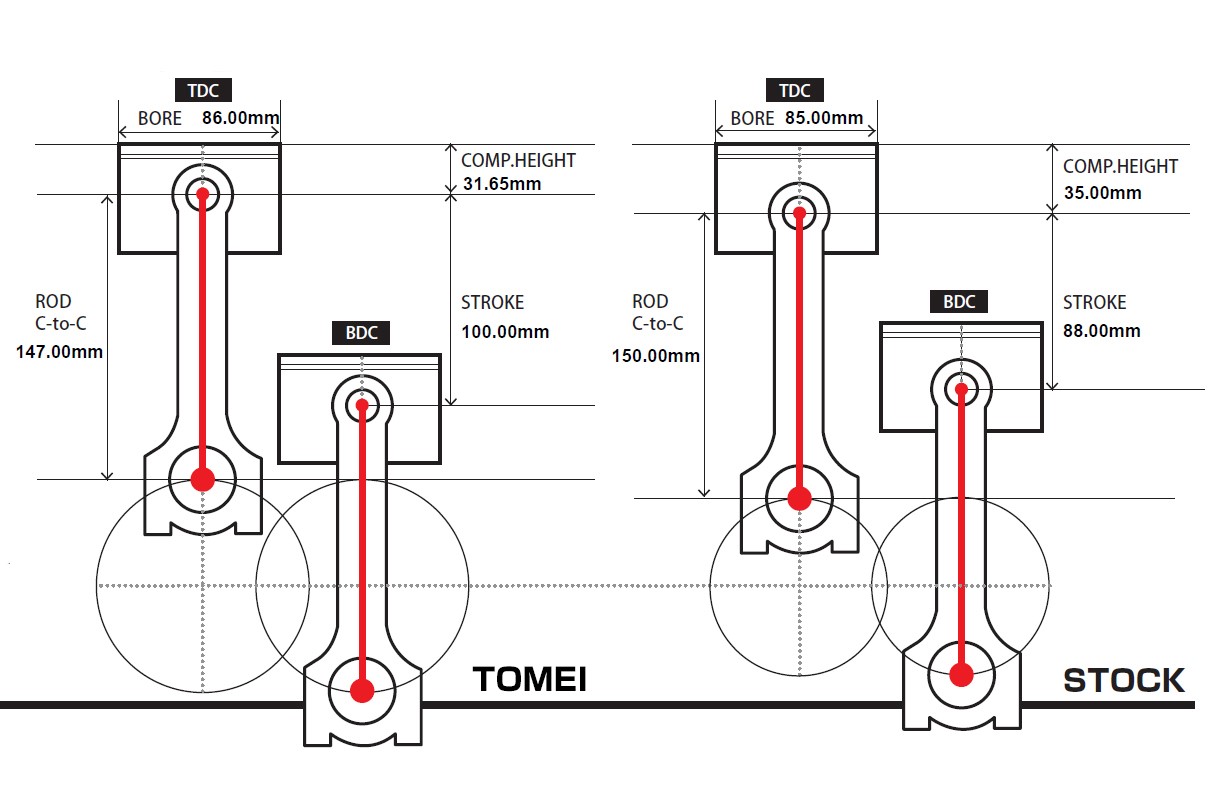

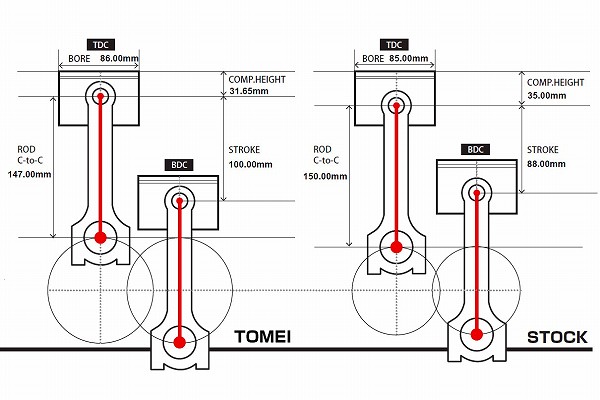

SPECIFICATIONS

	TOMEI PISTON	CP PISTON
BORE	86.0mm (OEM+1.0)
STROKE	100.00mm (OEM+12.0)
DISPLACEMENT	2,323.5cc
C.C. VOLUME	-19.5cc	-19.6cc
PISTON DECK CLEARANCE/HIGHT	-0.35mm
PISTON COMP.HEIGHT	31.65mm (OEM -3.35)
ROD C-to-C	147.00mm (OEM -3.0)
HEAD GASKET BORE	86.5mm

COMPRESSION RATIO Ref.

HEAD GASKET	TOMEI PISTON	CP PISTON
86.5.-1.0mm	9.25	9.24
86.5.-1.2mm	9.11	9.10
86.5.-1.5mm	8.92	8.91
86.5.-1.8mm	8.73	8.72

BLOCK RELATED PRODUCTS

MAKE	ENGINE	CATEGORY	NOTE 1	NOTE 2	PART NO.
NISSAN INFINITI	VR38DETT	STROKER KIT	4.1L	TOMEI	TA201A-NS01A
				CP	TA201A-NS01AP
		PISTON	for 4.1L	TOMEI	TA202A-NS01A
				CP	TA202A-NS01AP
		CON-ROD	for 4.1L		TA203A-NS01A
		CRANKSHAFT	for 4.1L		TA204D-NS01A
	VQ35HR	CON-ROD	for 3.5L(STD)		TA203A-NS03A
	VQ35DE	CON-ROD	for 3.5L(STD)		TA203A-NS04A
	RB26DETT	STROKER KIT	2.8L Semi-C.W.	TOMEI	TA201A-NS05A
				CP	TA201A-NS05AP
			2.8L Full-C.W.	TOMEI	TA201A-NS05B
				CP	TA201A-NS05BP
			2.6L(STD) Full-C.W.	TOMEI	TA201A-NS05C
				CP	TA201A-NS05CP
		PISTON	for 2.6L(STD)/2.8L	TOMEI	TA202A-NS05A
				CP	TA202A-NS05AP
		CON-ROD	for 2.6L(STD)		TA203A-NS05A
			for 2.8L		TA203A-NS05B
		CRANKSHAFT	for 2.6L(STD)	Full-C.W.	TA204B-NS05A
			for 2.8L	Full-C.W.	TA204B-NS05B
			for 2.8L	Semi-C.W.	TA204C-NS05A
	RB25DET	STROKER KIT	2.8L Semi-C.W.	TOMEI	TA201A-NS05A
				CP	TA201A-NS05AP
			2.8L Full-C.W.	TOMEI	TA201A-NS05B
				CP	TA201A-NS05BP
			2.6L Full-C.W.	TOMEI	TA201A-NS05C
				CP	TA201A-NS05CP
		PISTON	for 2.6L/2.8L	TOMEI	TA202A-NS05A
				CP	TA202A-NS05AP
		CON-ROD	for 2.5L(STD)/2.6L		TA203A-NS05A
			for 2.8L		TA203A-NS05B
		CRANKSHAFT	for 2.6L	Full-C.W.	TA204B-NS05A
			for 2.8L	Full-C.W.	TA204B-NS05B
			for 2.8L	Semi-C.W.	TA204C-NS05A
	RB25DE(T) NEO6	CON-ROD	for 2.5L(STD)		TA203A-NS05A
	RB25DE	CON-ROD	for 2.5L(STD)		TA203A-NS05A
	SR20DET	STROKER KIT	2.2L	TOMEI	TA201A-NS08A
				CP	TA201A-NS08AP
		PISTON	for 2.2L	TOMEI	TA202A-NS08A
				CP	TA202A-NS08AP
			for 2.0L(STD)	TOMEI	TA202A-NS08B
		CON-ROD	for 2.0L(STD)/2.2L		TA203A-NS08A
		CRANKSHAFT	for 2.2L		TA204B-NS08A
	SR20DE SR18DE	CON-ROD	for 2.0L(STD)/1.8L(STD)		TA203A-NS08A
	KA24DE	CON-ROD	for 2.4L(STD)		TA203A-NS16A
TOYOTA	4A-G 16V	STROKER KIT	1.8L	CP	TA201A-TY01AP
		PISTON	for 1.8L	CP	TA202A-TY01AP
		CON-ROD	for 1.6L(STD)/1.8L		TA203A-TY01A
		CRANKSHAFT	for 1.8L		TA204B-TY01A
	4A-G 20V	STROKER KIT	1.8L	CP	TA201A-TY02AP
		PISTON	for 1.8L	CP	TA202A-TY02AP
		CON-ROD	for 1.6L(STD)/1.8L		TA203A-TY01A
		CRANKSHAFT	for 1.8L		TA204B-TY01A
	2JZ-GTE	STROKER KIT	3.4L	TOMEI	TA201A-TY03A
				CP	TA201A-TY03AP
			3.6L	TOMEI	TA201A-TY03B
				CP	TA201A-TY03BP
		PISTON	for 3.4L	TOMEI	TA202A-TY03A
				CP	TA202A-TY03AP
			for 3.6L	TOMEI	TA202A-TY03B
				CP	TA202A-TY03BP
			for 3.0L(STD)	TOMEI	TA202A-TY03C
		CON-ROD	for 3.0L(STD)/3.4L		TA203A-TY03A
			for 3.6L		TA203A-TY03B
		CRANKSHAFT	for 3.4L		TA204B-TY03A
		CRANKSHAFT	for 3.6L		TA204B-TY03B
	1JZ-GTE	CON-ROD	for 2.5L(STD)		TA203A-TY04A
SUBARU	EJ25	STROKER KIT	2.6L	TOMEI	TA201A-SB02A
				CP	TA201A-SB02AP
		PISTON	for 2.5L(STD)/2.6L	TOMEI	TA202A-SB02A
				CP	TA202A-SB02AP
		CON-ROD	for 2.6L		TA203A-SB02A
			for 2.5L(STD)		TA203A-SB01A
		CRANKSHAFT	for 2.6L	Full-C.W.	TA204B-SB02A
	EJ20	CON-ROD	for 2.0L(STD)		TA203A-SB01A
MITSUBISHI	4G63	STROKER KIT	2.2L	TOMEI	TA201A-MT01A
				CP	TA201A-MT01AP
			2.3L	TOMEI	TA201A-MT01B
				CP	TA201A-MT01BP
		PISTON	for 2.2L/2.3L	TOMEI	TA202A-MT01A
				CP	TA202A-MT01AP
		CON-ROD	for 2.0L(STD)/2.2L		TA203A-MT01A
			for 2.3L		TA203A-MT01B
		CRANKSHAFT	for 2.2L	Full-C.W.	TA204B-MT01A
			for 2.3L	Full-C.W.	TA204B-MT01B
	4B11	STROKER KIT	2.3L	TOMEI	TA201A-MT02A
				CP	TA201A-MT02AP
		PISTON	for 2.3L	TOMEI	TA202A-MT02A
				CP	TA202A-MT02AP
		CON-ROD	for 2.0L(STD)/2.3L		TA203A-MT02A
		CRANKSHAFT	for 2.3L	Full-C.W.	TA204B-MT02A
