FULL TITANIUM MUFFLER for INTEGRA TYPE S DE5

FULL TITANIUM MUFFLER for INTEGRA TYPE S DE5

PART No.PRODUCT NAME
TB6090-HN06F
FULL TITANIUM MUFFLER
EXPREME Ti INTEGRA TYPE S DE5
TYPE-D
INVENTORY→

APPLICATION

MAKERENGINEMODEL
ACURAK20CDE5 INTEGRA TYPE S

FULL TITANIUM MUFFLER SPECIFICATION

 TOMEIOEM
PART No.TB6090-HN06F-
MATERIALTITANIUM-
MAIN PIPE DIAMETER3.2inch
[80.5mm ]
2.4inch
[60.0mm]
MAIN PIPE THICKNESS1.0mm-
SUB SILENCER DIAMETER4.7inch
[118.0mm]
4.88inch
[124.0 mm]
SUB SILENCER THICKNESS1.0mm-
SILENCER DIAMETER--
SILENCER THICKNESS--
EXIT DIAMETER4.5inch
[115.0mm)]
3.3inch x 2 / 4.33inch x 1
[86.0mm x 2 / 110.0mm x 1 ]
EXIT THICKNESS1.0mm-
FLANGE THICKNESS8.0mm6.0mm
WEIGHT26.7lbs
[12.1kg]
42.2lbs
[19.1kg]

Only muffler installed.

 TOMEI
with
Sound Reducer ver.2
91db
with
Sound Reducer
98db
without
Sound Reducer
107db
  • TOMEI POWERED USA is proud to announce the release of a full titanium exhaust system specifically designed for the Acura Integra Type S.

    • Available for purchase starting December 17th.
    • Inventory is stocked domestically in the USA.

  • Key Features of the Acura Integra Type S:

    • Powered by a 320-horsepower 2.0L turbocharged engine.
    • Equipped with a 6-speed manual transmission.
    • Built on the exceptional driving dynamics of the Honda Civic Type R.
    • Combines daily driving comfort with spirited, sporty performance.


  • Highlights of TOMEI POWERED’s Full Titanium Exhaust System:

    • Constructed entirely from high-purity titanium, including pipes and silencers.

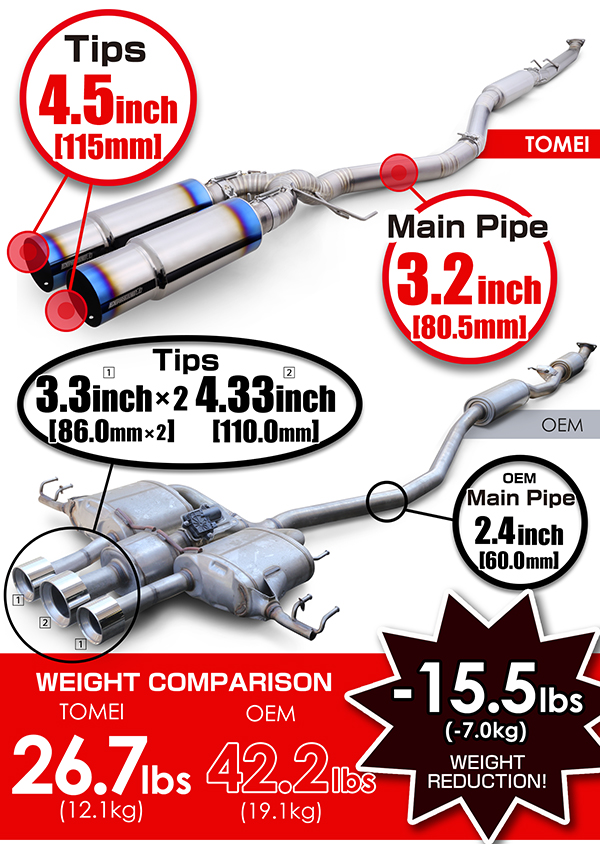

    • Reduces weight from the stock exhaust’s 19.1 kilograms to just 12.1 kilograms—a remarkable 7-kilogram reduction.
    • Achieves a level of lightness unattainable with stainless steel systems.


  • Performance Enhancements:

    • Features a straight-through design to minimize exhaust resistance.
    • Pipe diameter increased from the stock 60mm to 80.5mm.
    • Works synergistically with ECU tuning and increased boost pressure to maximize engine performance.


  • Design Elements:

    • The 4.5-inch dual silencers, centered at the rear, provide a perfect blend of beauty, aggression, and race-inspired styling.


  • Sound Characteristics:

    • Utilizes 1.0mm-thin titanium construction, an optimized straight-through design, and premium ADVANTEX glass wool.
    • Produces a deep, sharp, and resonant exhaust note unique to turbocharged engines.
    • The sound is so exhilarating that it may make an audio system feel unnecessary, elevating the overall driving experience.
    • Includes a sound reducer for those who prefer a quieter setup.


  • Additional Advantages:

    • Designed without compromise for serious tuning enthusiasts, free from Japan’s stringent noise regulations.
    • Offers a louder sound profile with unparalleled power gains.
    • Proven globally in applications like the Civic Type R (FK8/FL5), where it has earned acclaim for its outstanding performance.


  • Summary:

    • The full titanium exhaust system for the Acura Integra Type S is the ultimate choice for drivers serious about improving speed and experiencing the perfect exhaust note.


  • Future at TOMEI POWERED USA:

    • We remain committed to uncompromising development. Stay tuned for more exciting innovations!

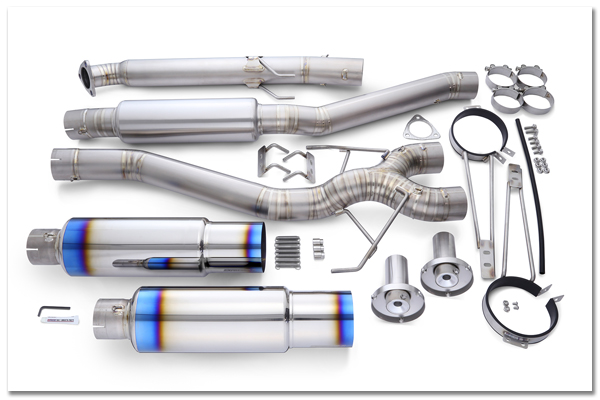

This kit includes all the components necessary for installation including the bolts and nuts. Bolt Smooth Paste is also included to help prevent the bolts becoming seized under heat.

EXHAUST PRODUCTS COMPATIBILITY LIST

MODELCATEGORYMATERIALTYPEPARTS NO.
NISSAN INFINITI
35 GT-RJDM/
USDM
MUFFLERTIQUADTB6070-NS01A
400ZJDM/
USDM
MUFFLERTISINGLETB6090-NS21C
DUALTB6090-NS21D
Y PIPETI TB6110-NS21A
370ZJDM/
USDM
MUFFLERTISINGLETB6090-NS02A
Y PIPETI TB6110-NS02A
MID PIPETI TB6100-NS02A
350ZJDM/
USDM
MUFFLERTISINGLETB6090-NS04A
EX-MANIFOLDSUSVQ35DETB6010-NS04A
Y PIPETI TB6110-NS02A
MID PIPETIVQ35DETB6100-NS04A
VQ35HRTB6100-NS02A
32 GT-RJDMMUFFLERTISINGLETB6090-NS05A
33 GT-RJDMMUFFLERTISINGLETB6090-NS05B
34 GT-RJDMMUFFLERTISINGLETB6090-NS05C
32,33,34 GT-RJDMEX-MANIFOLDSUS TB6010-NS05A
TURBINE OUTLETSUS TB6020-NS05A
FRONT PIPETI TB6080-NS05A
34 SKYLINE
2DOOR
JDMMUFFLERTISINGLETB6090-NS06A
34 SKYLINE
4DOOR
JDMMUFFLERTISINGLETB6090-NS06B
32,33,34
SKYLINE
JDMTURBINE OUTLETSUSRB20,25DETTB6020-NS06A
13 SILVIA,
180SX,240SX
JDM/
USDM
MUFFLERTISINGLETB6090-NS08A
14 SILVIA,
240SX
JDM/
USDM
MUFFLERTISINGLETB6090-NS08B
15 SILVIAJDMMUFFLERTISINGLETB6090-NS08C
13,14,15 SILVIA,180SXJDMEX-MANIFOLDSUSSR20DETTB6010-NS08A
TURBINE OUTLETSUSSR20DETTB6020-NS08C
VARIOUS
NISSAN
MID PIPETITYPE-ATB6100-NS00A
2017+ Q60USDMMUFFLERTISINGLETB6090-NS21B
Y PIPETI TB6110-NS21A
G35 COUPE SKYLINE V35 COUPEJDM/
USDM
MUFFLERTISINGLETB6090-NS04G
EX-MANIFOLDSUSVQ35DETB6010-NS04A
Y PIPETI TB6110-NS02A
MID PIPETIVQ35DETB6100-NS04A
Q50,RV37 SKYLINE 400RJDM/
USDM
MUFFLERTISINGLETB6090-NS21A
Y PIPETI TB6110-NS21A
TOYOTA
2013+ 86,
SCION FR-S
JDM/
USDM
MUFFLERTISINGLE 60STB6090-SB03A
SINGLE 60RTB6090-SB03B
SINGLE 80TB6090-SB03C
SINGLE 80 ver.2TB6090-SB05A
DUALTB6090-SB05B
EX-MANIFOLDSUSUNEQUALTB6010-SB03B
EQUALTB6010-SB03A
UNEQUAL ver.2TB6010-SB05A
EQUAL ver.2TB6010-SB05B
JOINT PIPESUS TB6060-SB03A
ver.2TB6060-SB05A
MID PIPETIFOR 60S,60R
(M/T ONLY)
TB6100-SB03A
FOR 80,ver2,DUAL
(M/T ONLY)
TB6100-SB03B
BUMPER COVERCARBONEARLY LHTE301A-SB03A
EARLY RHTE301A-SB03B
FRP86 LATE LHTE301A-SB03C
86 LATE RHTE301A-SB03D
2021+ GR86JDM/
USDM
MUFFLERTISINGLE 80 ver.2TB6090-SB05A
DUALTB6090-SB05B
EX-MANIFOLDSUSUNEQUAL ver.2TB6010-SB05A
EQUAL ver.2TB6010-SB05B
JOINT PIPESUSver.2TB6060-SB05A
MID PIPETIFOR 80,ver2,DUAL
(M/T ONLY)
TB6100-SB03B
GR SUPRA
3.0L
JDM/
USDM
MUFFLERTISINGLETB6090-TY06A
TIDUALTB6090-TY06B
80 SUPRAJDM/
USDM
MUFFLERTISINGLETB6090-TY03A
MID PIPETITB6110-TY03A
ADAPTERTITB6120-0000A
86 LEVIN/TRUENOJDM/
USDM
MUFFLERTISINGLE RTB6090-TY01A
SINGLE STB6090-TY01B
MID PIPETI TB6100-TY01A
100 CHASER,MARK2JDMMUFFLERTISINGLETB6090-TY04A
TURBINE OUTLETSUS TB6020-TY04A
MITSUBISHI
EVO7-9 JDM BUMPERJDMMUFFLERTISINGLETB6090-MT01A
EVO8-9 USDM BUMPERUSDMMUFFLERTISINGLETB6090-MT01B
EVO4-9JDM/
USDM
EX-MANIFOLDSUS TB6010-MT01A
EVO7-9JDM/
USDM
OUTLET COMPONENTSUS TB6060-MT01A
MID PIPETI TB6100-MT01A
EVO10JDM/
USDM
MUFFLERTISINGLETB6090-MT02A
OUTLET COMPONENTSUS TB6060-MT02A
MID PIPETI TB6100-MT02A
SUBARU
2013+ BRZJDM/
USDM
MUFFLERTISINGLE 60STB6090-SB03A
SINGLE 60RTB6090-SB03B
SINGLE 80TB6090-SB03C
SINGLE 80 ver.2TB6090-SB05A
DUALTB6090-SB05B
EX-MANIFOLDSUSUNEQUALTB6010-SB03B
EQUALTB6010-SB03A
UNEQUAL ver.2TB6010-SB05A
EQUAL ver.2TB6010-SB05B
JOINT PIPESUS TB6060-SB03A
ver.2TB6060-SB05A
MID PIPETIFOR 60S,60R
(M/T ONLY)
TB6100-SB03A
FOR 80,ver2,DUAL
(M/T ONLY)
TB6100-SB03B
BUMPER COVERCARBONEARLY LHTE301A-SB03A
EARLY RHTE301A-SB03B
FRP86 LATE LHTE301A-SB03C
86 LATE RHTE301A-SB03D
2021+ BRZJDM/
USDM
MUFFLERTISINGLE 80 ver.2TB6090-SB05A
DUALTB6090-SB05B
EX-MANIFOLDSUSUNEQUAL ver.2TB6010-SB05A
EQUAL ver.2TB6010-SB05B
JOINT PIPESUSver.2TB6060-SB05A
MID PIPETIFOR 80,ver2,DUAL
(M/T ONLY)
TB6100-SB03B
2002+ WRX,WRX STI GDF USDMUSDMMUFFLERTISINGLETB6090-SB02A
2002+ WRX,WRX STI GDUSDMDOWN PIPESUSEJ25TB6060-SB02A
2008+ WRX,WRX STI GH/GRF USDMUSDMMUFFLERTISINGLETB6090-SB02B
2011+ WRX,WRX STI GE/GVF/VA USDMUSDMMUFFLERTISINGLETB6090-SB02C
DUALTB6090-SB02D
2008+ WRX,WRX STI
GR/GV/GE/GH/VA
USDMDOWN PIPESUSEJ25TB6060-SB02B
2002+ WRX
2004+ WRX STI
JDM/
USDM
EX-MANIFOLDSUSUNEQUALTB6010-SB02A
EQUALTB6010-SB02B
2015+ WRXJDM/
USDM
EX-MANIFOLDSUSUNEQUALTB6010-SB04A
EQUALTB6010-SB04B
USDMMID PIPETI TB6100-SB04A
2022+ WRXJDM/
USDM
MUFFLERTISINGLETB6090-SB06A
DUALTB6090-SB06B
WRX,WRX STI GDB A-D JDMJDMMUFFLERTISINGLETB6090-SB01A
WRX,WRX STI GDB E-G JDMJDMMUFFLERTISINGLETB6090-SB01B
WRX,WRX STI GR JDMJDMMUFFLERTISINGLETB6090-SB01C
WRX, WRX STI GV/VA JDMJDMMUFFLERTISINGLETB6090-SB01D
DUALTB6090-SB02D
WRX STI TWIN SCROLLJDMEX-MANIFOLDSUSEQUALTB6010-SB01A
MAZDA
NA MX-5JDM/
USDM
MUFFLERTISINGLETB6090-MZ01A
NB MX-5JDM/
USDM
MUFFLERTISINGLETB6090-MZ02A
NC MX-5JDM/
USDM
MUFFLERTISINGLETB6090-MZ03A
MID PIPETI TB6100-MZ03A
ND MX-5JDM/
USDM
MUFFLERTISINGLETB6090-MZ06A
FD RX-7JDM/
USDM
MUFFLERTISINGLETB6090-MZ05A
MID PIPETI TB6100-MZ05A
HONDA
FL5 CIVIC
TYPE-R
JDM/
USDM
MUFFLERTISINGLETB6090-HN06D
DUALTB6090-HN06E
FK8 CIVIC
TYPE-R
JDM/
USDM
MUFFLERTISINGLE RTB6090-HN06A
SINGLE STB6090-HN06B
DUALTB6090-HN06C
S2000JDM/
USDM
MUFFLERTISINGLETB6090-HN04A
MID PIPETI TB6100-HN04A
ACURA
DE5 INTEGRA
TYPE S
USDMMUFFLERTIDUALTB6090-HN06F
HYUNDAI
GENESIS
COUPE 2.0T
USDMMUFFLERTISINGLETB6090-HY01A
MID PIPETI TB6100-HY01A
BUMPER COVERCARBON TE301A-HY01A
FORD
2015+
MUSTANG ECOBOOST
USDMMUFFLERTISINGLETB6090-FR01A
BUMPER COVERCARBONPREMIUMTE301A-FR01A
 TE301A-FR01B
FOCUS STUSDMMUFFLERTISINGLETB6090-FR02A
