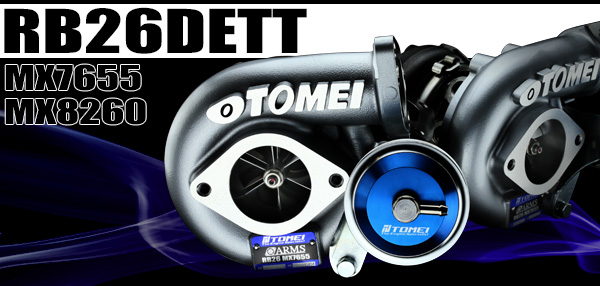

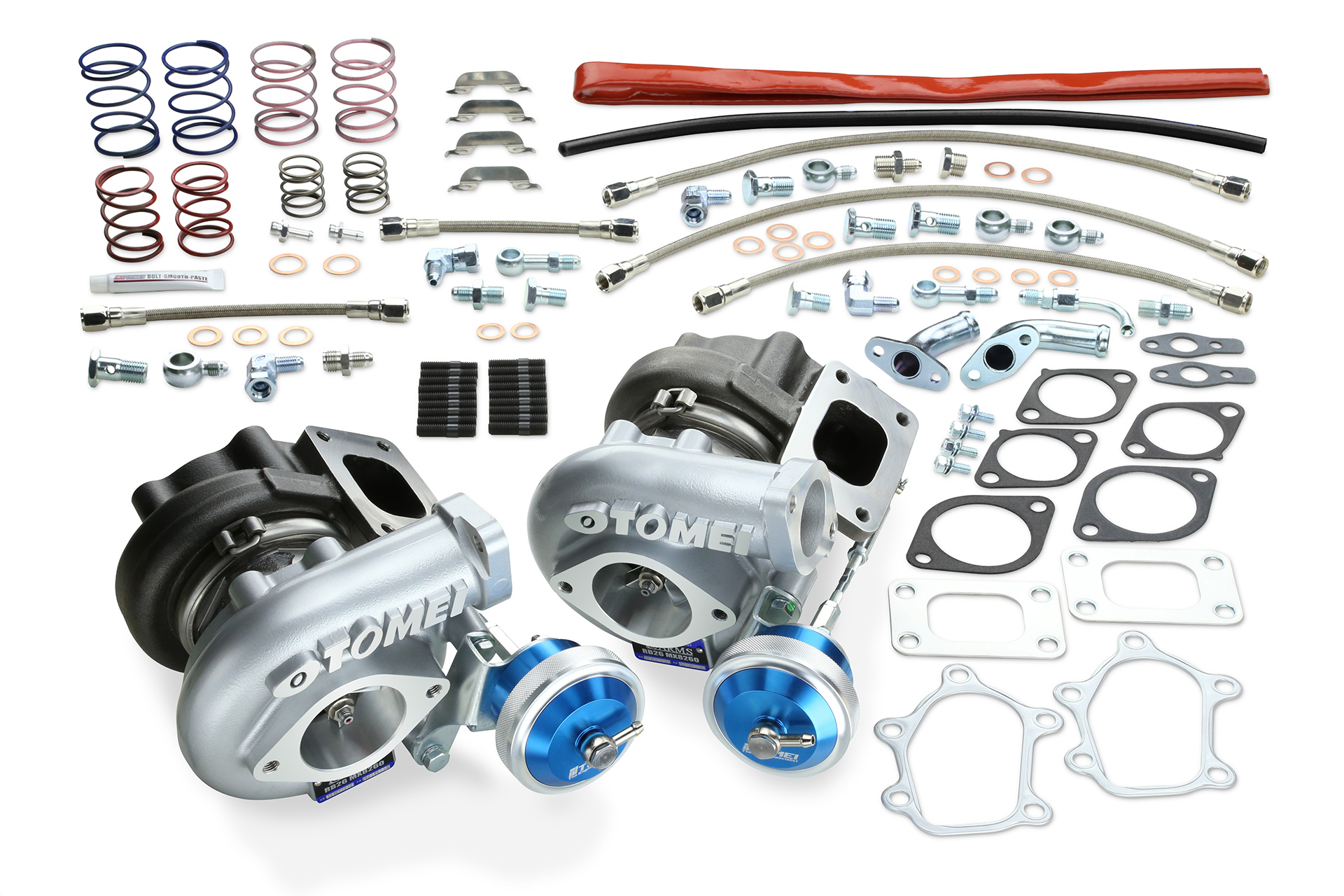

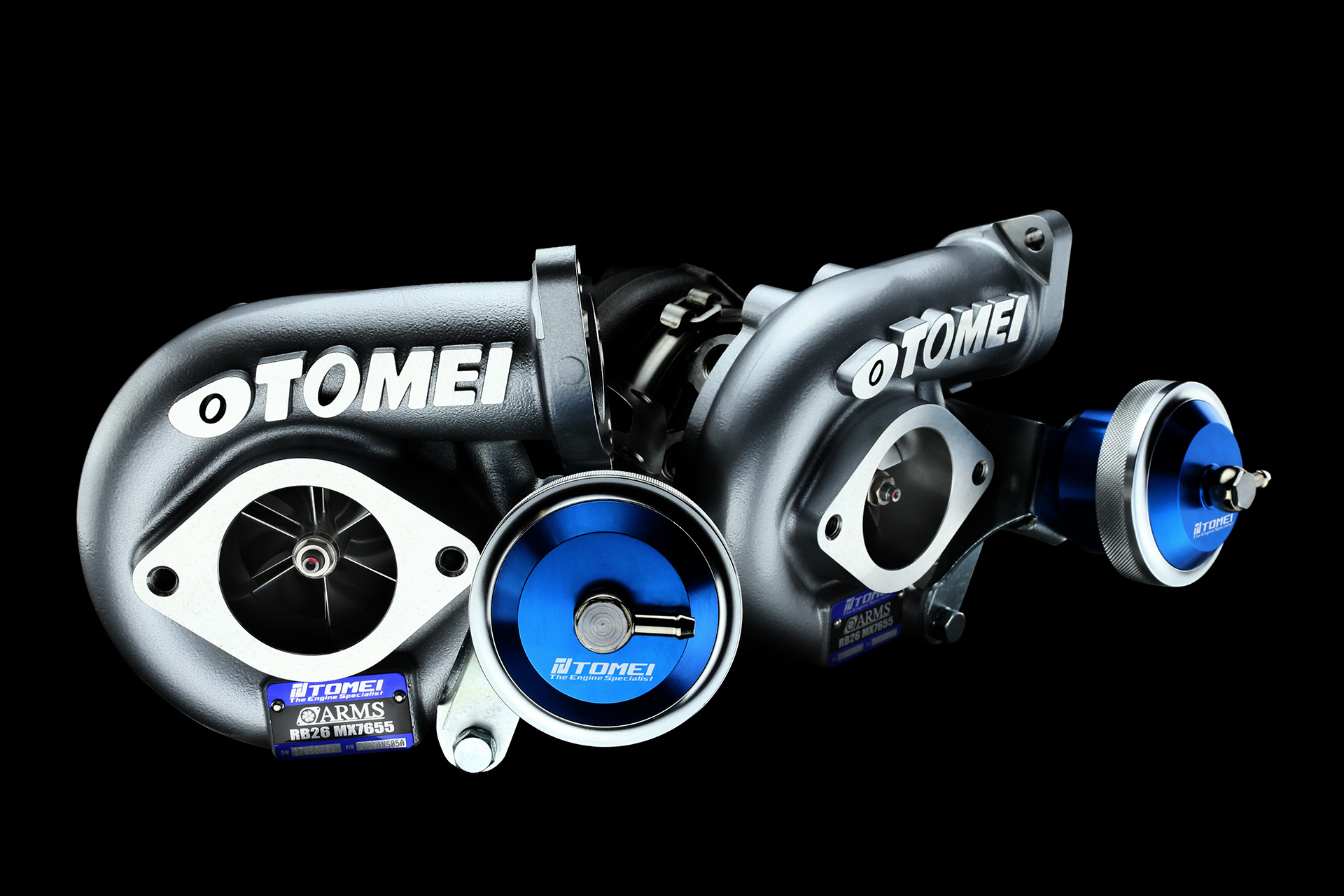

P/NTB401A-NS05A

P/NTB401A-NS05B
MSRP $2,990.00(USD)

BEARING TYPE JOURNAL BEARING

INITIAL BOOST SETTING
MX7655 1.0 kgf/cm2
MX8260 1.0 kgf/cm2

COMPRESSOR WHEEL   TURBINE WHEEL
  MX7655 MX8260
Ⓐ IND(mm) 50.3 52.6
Ⓑ EXD(mm) 68.0 68.0
TRIM 55 60
BLADES 6 6
MATERIAL A2618
PRODUCTION CNC BILLET

  MX7655 MX8260
Ⓒ EXD(mm) 47.5 58.8
Ⓓ IND(mm) 56.0 67.0
TRIM 72 77
BLADES 12 11
MATERIAL K418
PRODUCTION CAST

COMPRESSOR HOUSING   TURBINE HOUSING
  MX7655 MX8260
IND(mm) 51.3 53.5
EXD(mm) 38.75 38.75
A/R 0.74 0.74

  MX7655 MX8260
IND T25 T25
EXD RB26DETT
A/R 0.73

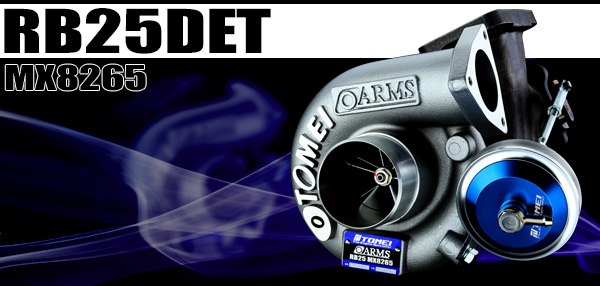

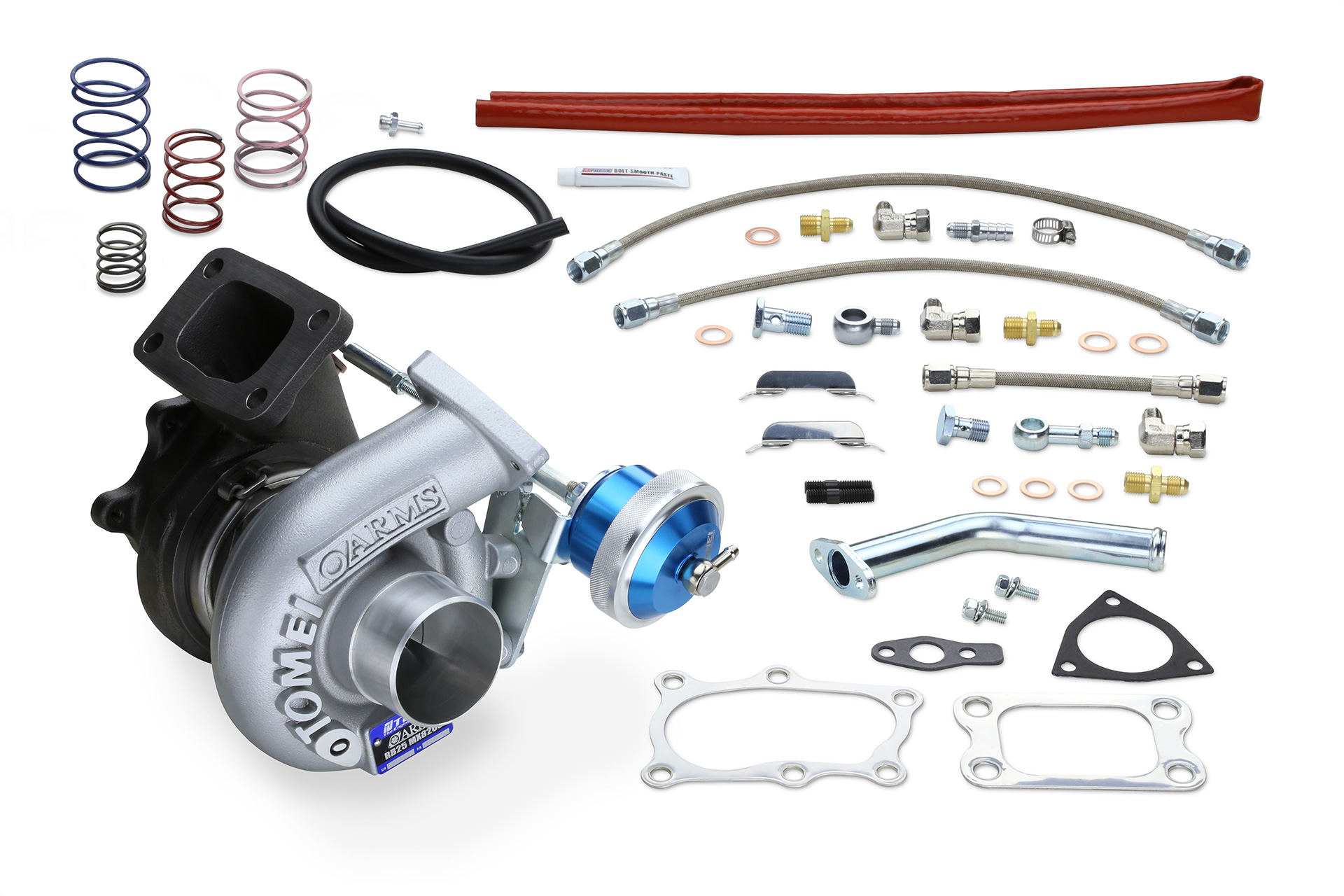

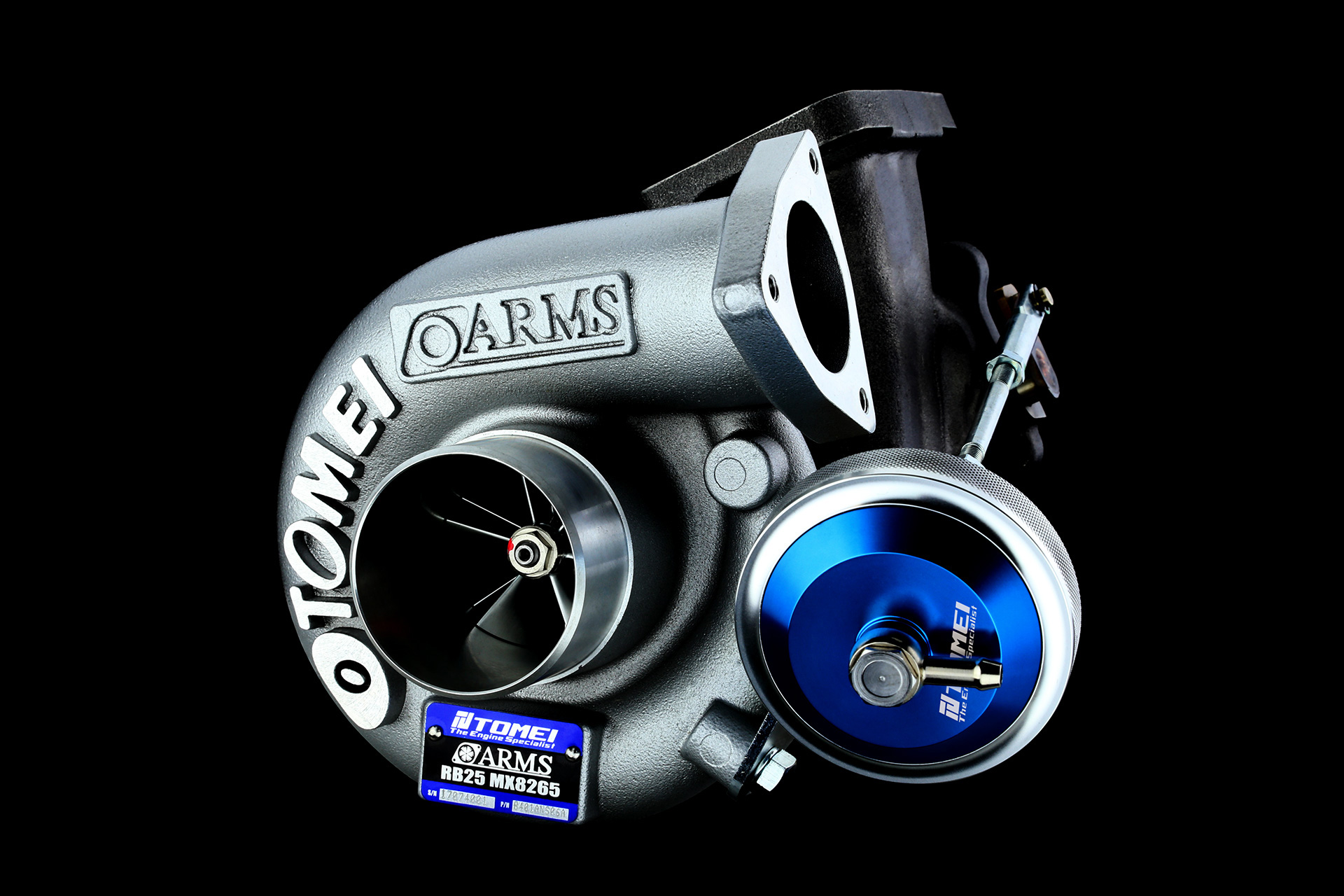

P/N TB401A-NS06A
MSRP $1,580.00(USD)

BEARING TYPE JOURNAL BEARING

INITIAL BOOST SETTING 1.0 kgf/cm2

COMPRESSOR WHEEL   TURBINE WHEEL
  MX8265
Ⓐ IND(mm) 54.8
Ⓑ EXD(mm) 76.2
TRIM 52
BLADES 6
MATERIAL A2618
PRODUCTION CNC BILLET

  MX8265
Ⓒ EXD(mm) 58.8
Ⓓ IND(mm) 67.0
TRIM 77
BLADES 12
MATERIAL K418
PRODUCTION CAST

COMPRESSOR HOUSING   TURBINE HOUSING
  MX8265
IND(mm) 55.8
EXD(mm) 42.62
A/R 0.57

  MX8265
IND(mm) T3
EXD(mm) RB25
A/R 0.57

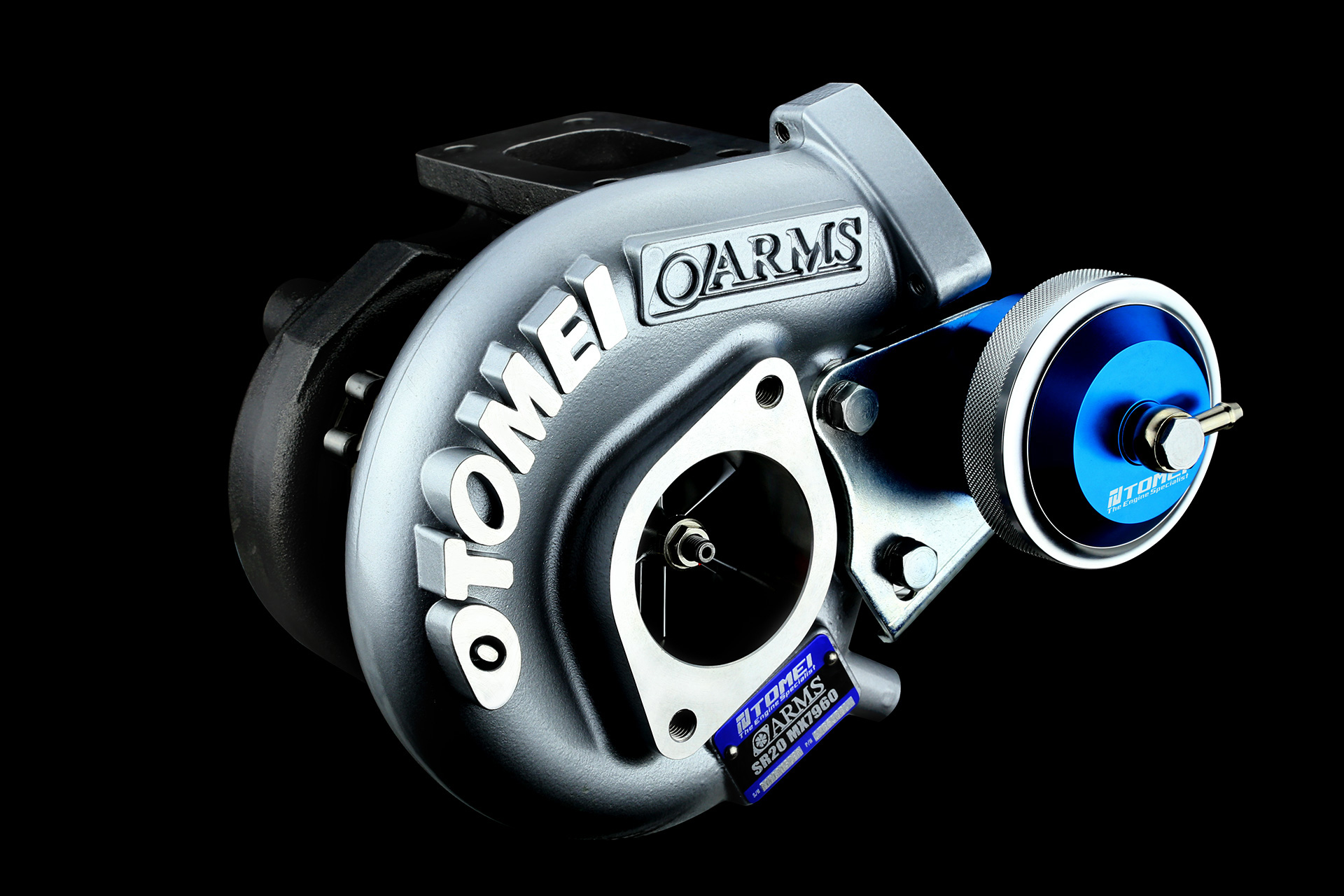

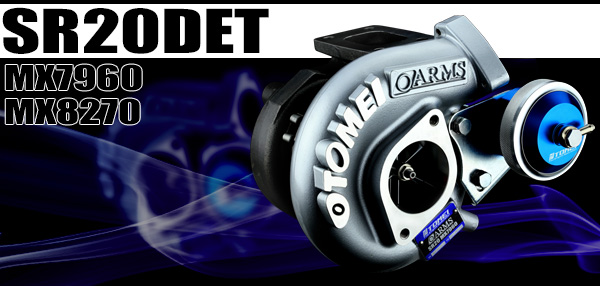

P/N TB401A-NS08A

P/N TB401A-NS08B
MSRP $1,580.00(USD)

BEARING TYPE JOURNAL BEARING

INITIAL BOOST SETTING
MX7960 1.0 kgf/cm2
MX8270 1.0 kgf/cm2

COMPRESSOR WHEEL   TURBINE WHEEL
  MX7960 MX8270
Ⓐ IND(mm) 52.6 59.0
Ⓑ EXD(mm) 68.0 76.2
TRIM 60 60
BLADES 6 6
MATERIAL A2618
PRODUCTION CNC BILLET

  MX7960 MX8270
Ⓒ EXD(mm) 54.0 58.8
Ⓓ IND(mm) 61.0 67.0
TRIM 79 77
BLADES 11 11
MATERIAL K418
PRODUCTION CAST

COMPRESSOR HOUSING   TURBINE HOUSING
  MX7960 MX8270
IND(mm) 53.5 60.0
EXD(mm) 38.75 38.5
A/R 0.62 0.62

  MX7960 MX8270
IND T25
EXD SR20DET
A/R 0.57

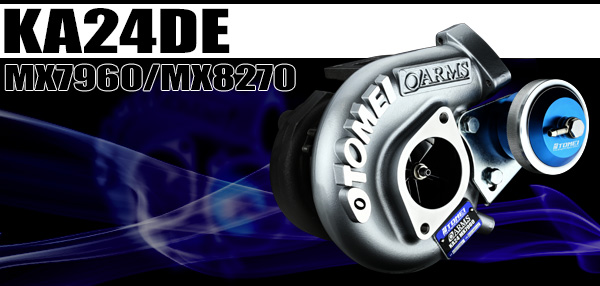

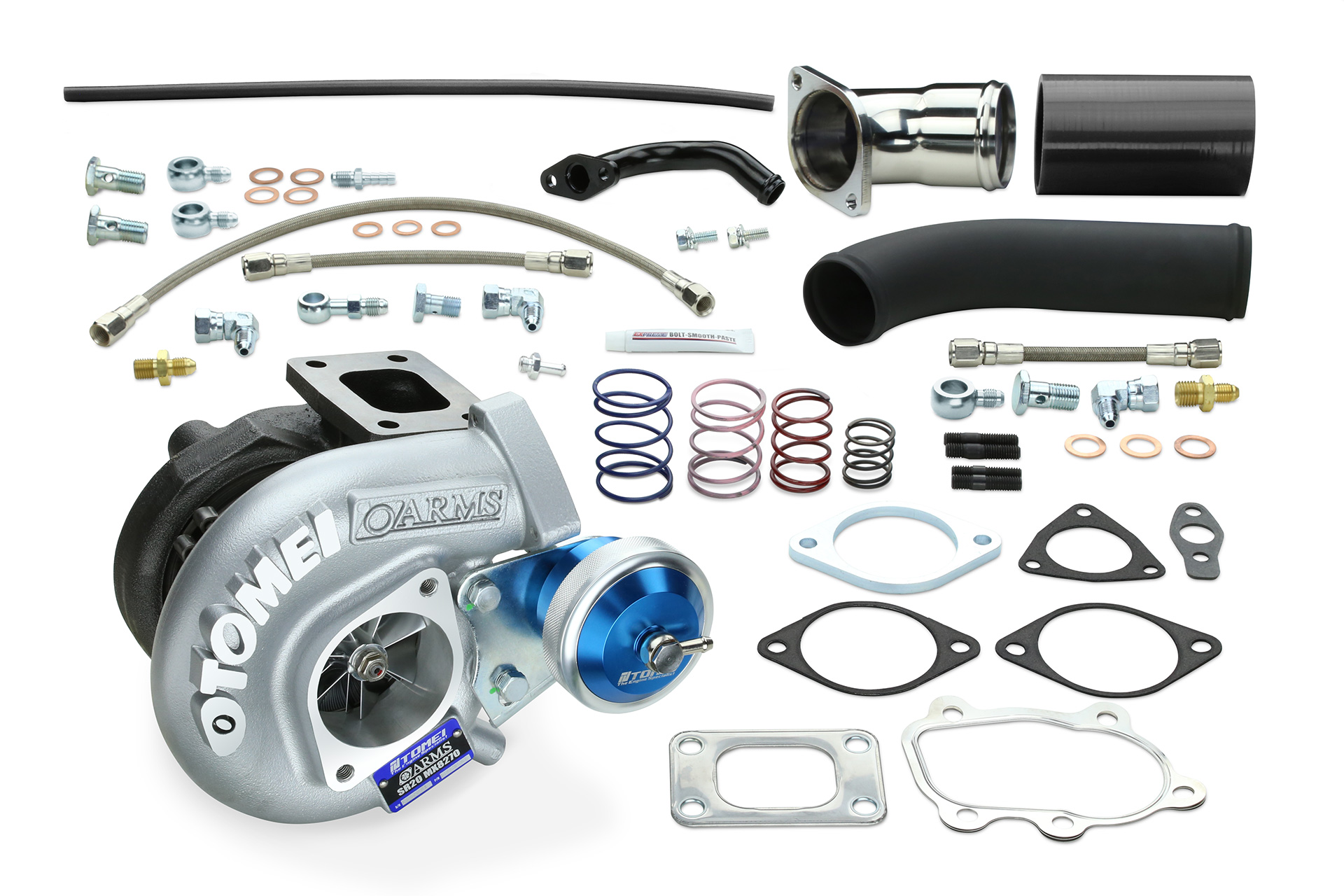

P/N TB401A-NS16C

P/N TB401A-NS16D
MSRP $1,580.00(USD)

BEARING TYPE JOURNAL BEARING

INITIAL BOOST SETTING
MX7960 1.0 kgf/cm2
MX8270 1.0 kgf/cm2

COMPRESSOR WHEEL   TURBINE WHEEL
  MX7960 MX8270
Ⓐ IND(mm) 52.6 59.0
Ⓑ EXD(mm) 68.0 76.2
TRIM 60 60
BLADES 6 6
MATERIAL A2618
PRODUCTION CNC BILLET

  MX7960 MX8270
Ⓒ EXD(mm) 54.0 58.8
Ⓓ IND(mm) 61.0 67.0
TRIM 79 77
BLADES 11 11
MATERIAL K418
PRODUCTION CAST

COMPRESSOR HOUSING   TURBINE HOUSING
  MX7960 MX8270
IND(mm) 60.0 53.5
EXD(mm) 38.5 38.75
A/R 0.62 0.62

  MX7960 MX8270
IND(mm) T25
EXD(mm) SR20DET
A/R 0.57

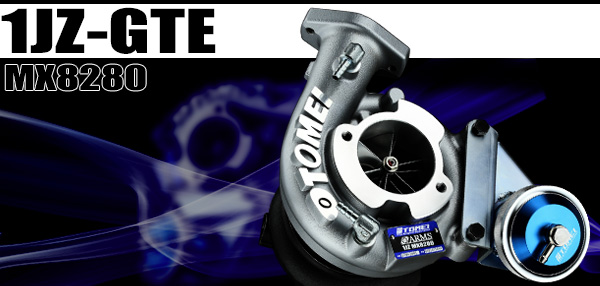

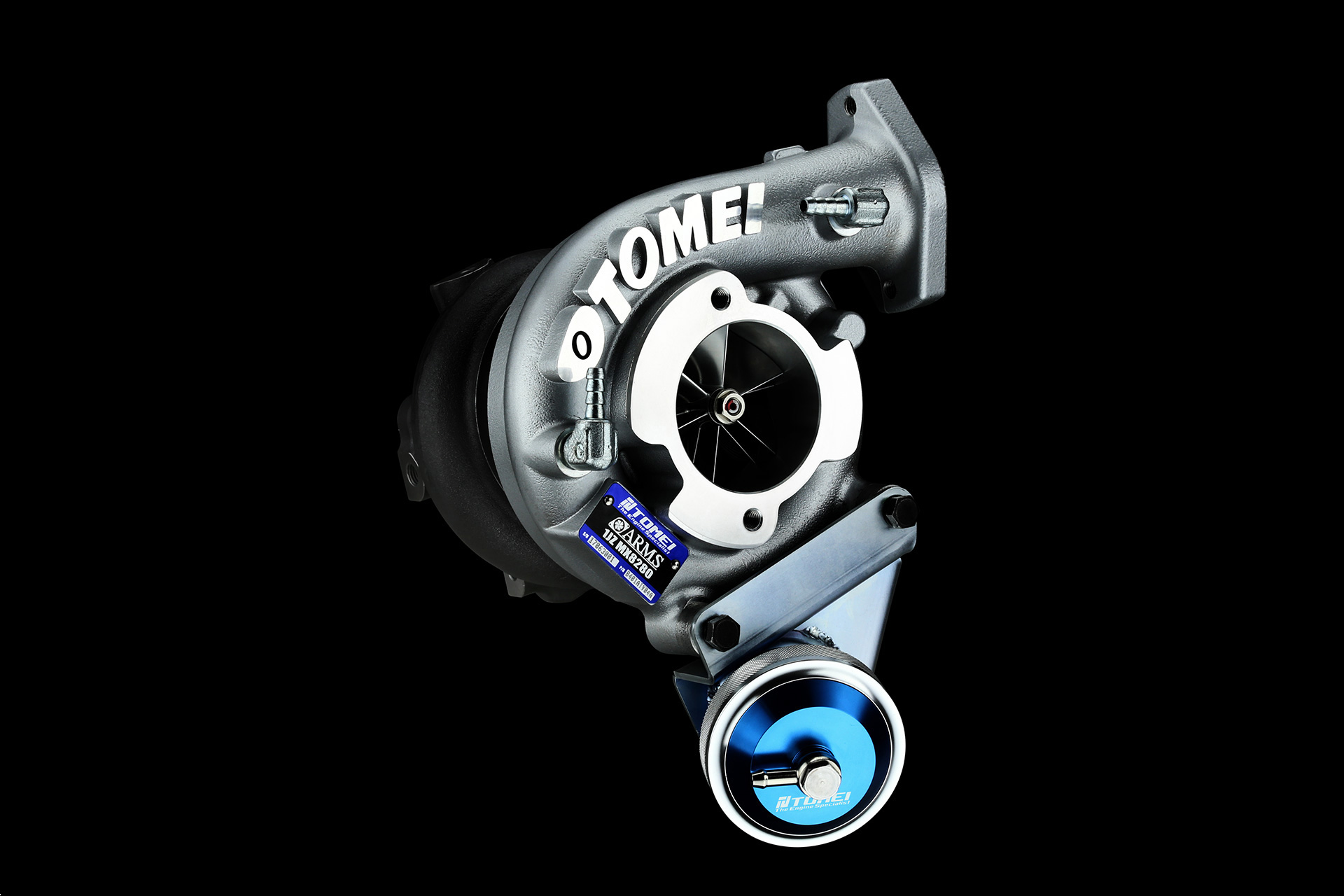

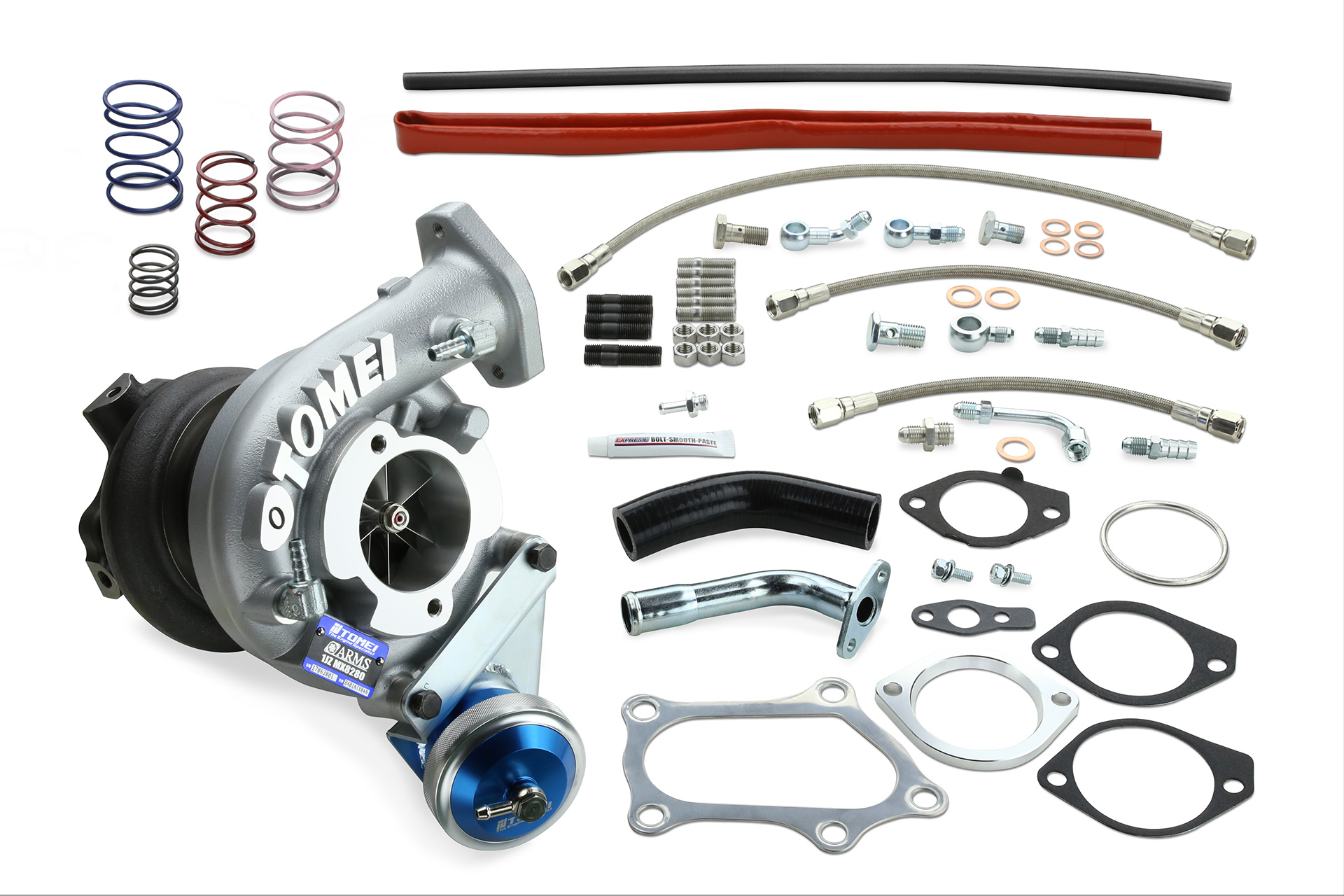

P/N TB401A-TY04A
MSRP $1,580.00(USD)

BEARING TYPE JOURNAL BEARING

INITIAL BOOST SETTING 1.0 kgf/cm2

COMPRESSOR WHEEL   TURBINE WHEEL
  MX8280
Ⓐ IND(mm) 61.4
Ⓑ EXD(mm) 82.0
TRIM 56
BLADES 6
MATERIAL A2618
PRODUCTION CNC BILLET

  MX8280
Ⓒ EXD(mm) 58.8
Ⓓ IND(mm) 67.0
TRIM 77
BLADES 11
MATERIAL K418
PRODUCTION CAST

COMPRESSOR HOUSING   TURBINE HOUSING
  MX8280
IND(mm) 62.4
EXD(mm) 45.46
A/R 0.54

  MX8280
IND(mm) 47.89
EXD(mm) 1JZ
A/R 0.67

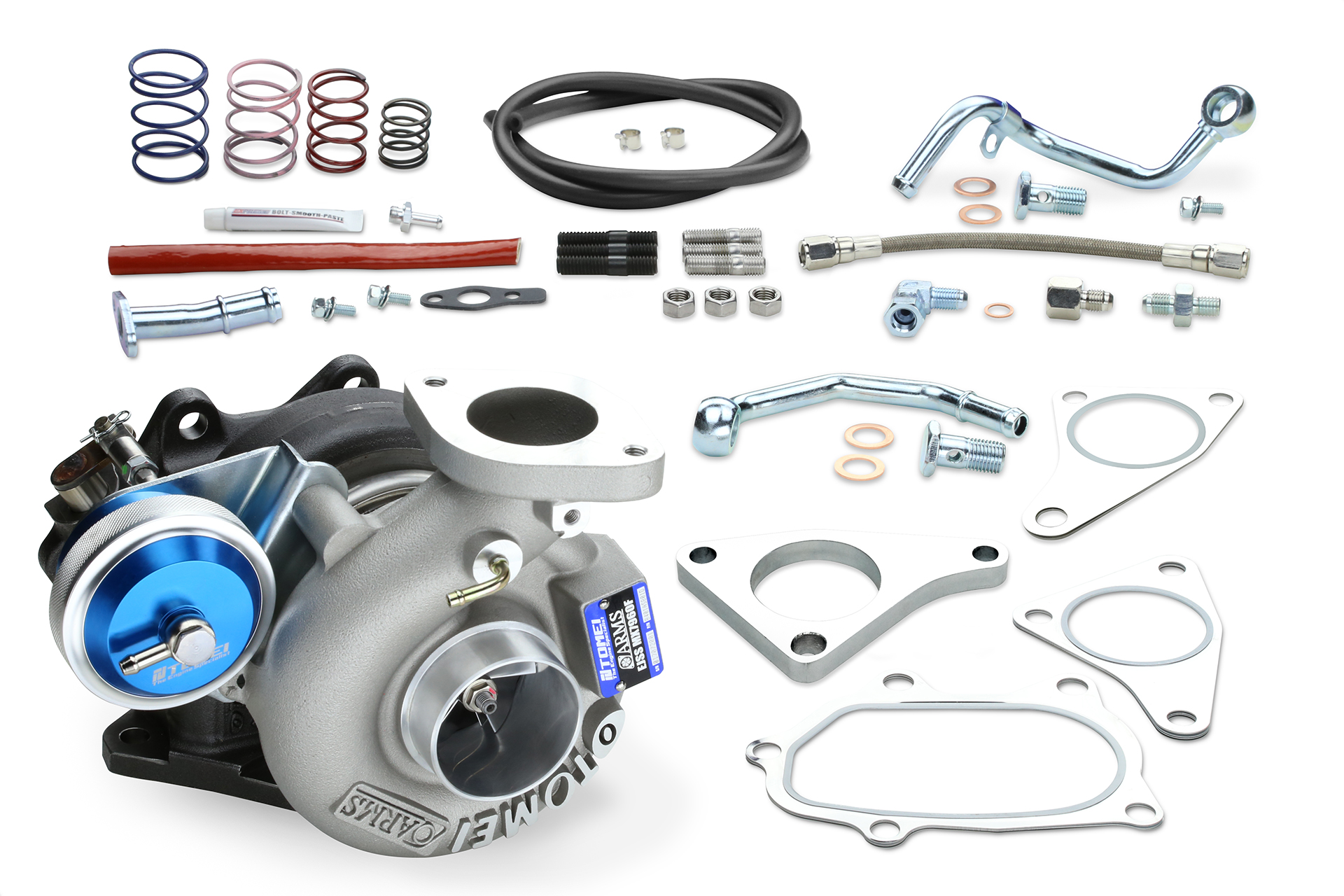

MX7960F   MX8265

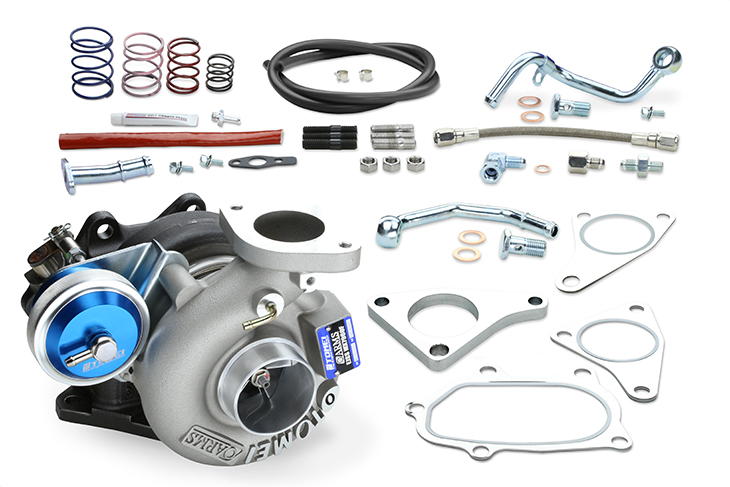

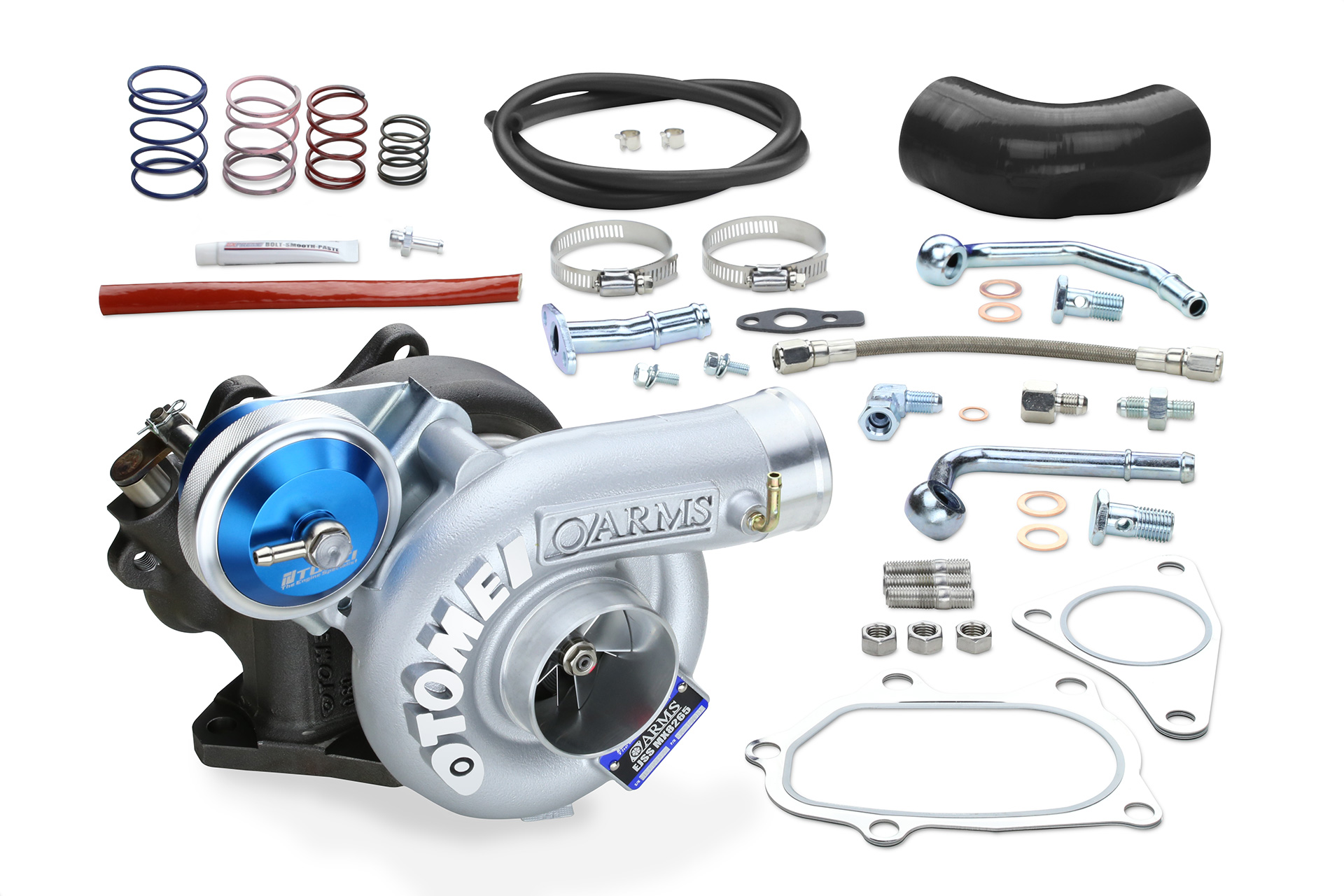

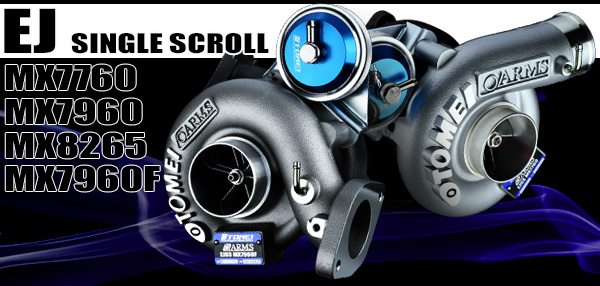

P/N TB401A-SB01A

P/N TB401A-SB01B

P/N TB401A-SB01C

P/N TB401A-SB01D
MSRP $1,580.00(USD)

BEARING TYPE JOURNAL BEARING

INITIAL BOOST SETTING
MX7760 1.0 kgf/cm2
MX7960 1.0 kgf/cm2
MX8265 1.0 kgf/cm2
MX7960F 1.0 kgf/cm2

COMPRESSOR WHEEL   TURBINE WHEEL
  MX7760 MX7960 MX8265 MX7960F
Ⓐ IND(mm) 52.6 52.6 54.8 52.6
Ⓑ EXD(mm) 68.0 68.0 76.2 68.0
TRIM 60 60 52 60
BLADES 6 6 6 6
MATERIAL A2618
PRODUCTION CNC BILLET

  MX7655 MX7690 MX8265 MX7960F
Ⓒ EXD(mm) 49.1 54.0 58.8 54.0
Ⓓ IND(mm) 56.0 61.0 67.0 61.0
TRIM 77 79 77 79
BLADES 12 11 11 11
MATERIAL K418
PRODUCTION CAST

COMPRESSOR HOUSING   TURBINE HOUSING
  MX7760 MX7960 MX8265 MX7960F
IND 53.6 53.6 55.8 53.46
EXD 41.63 41.63 41.5 44.2
A/R 0.78 0.78 0.78 0.78

  MX7760 MX7960 MX8265 MX7960F
IND 45.0 45.0 45.0 45.0
EXD EJ EJ EJ EJ
A/R 0.57 0.57 0.57 0.57

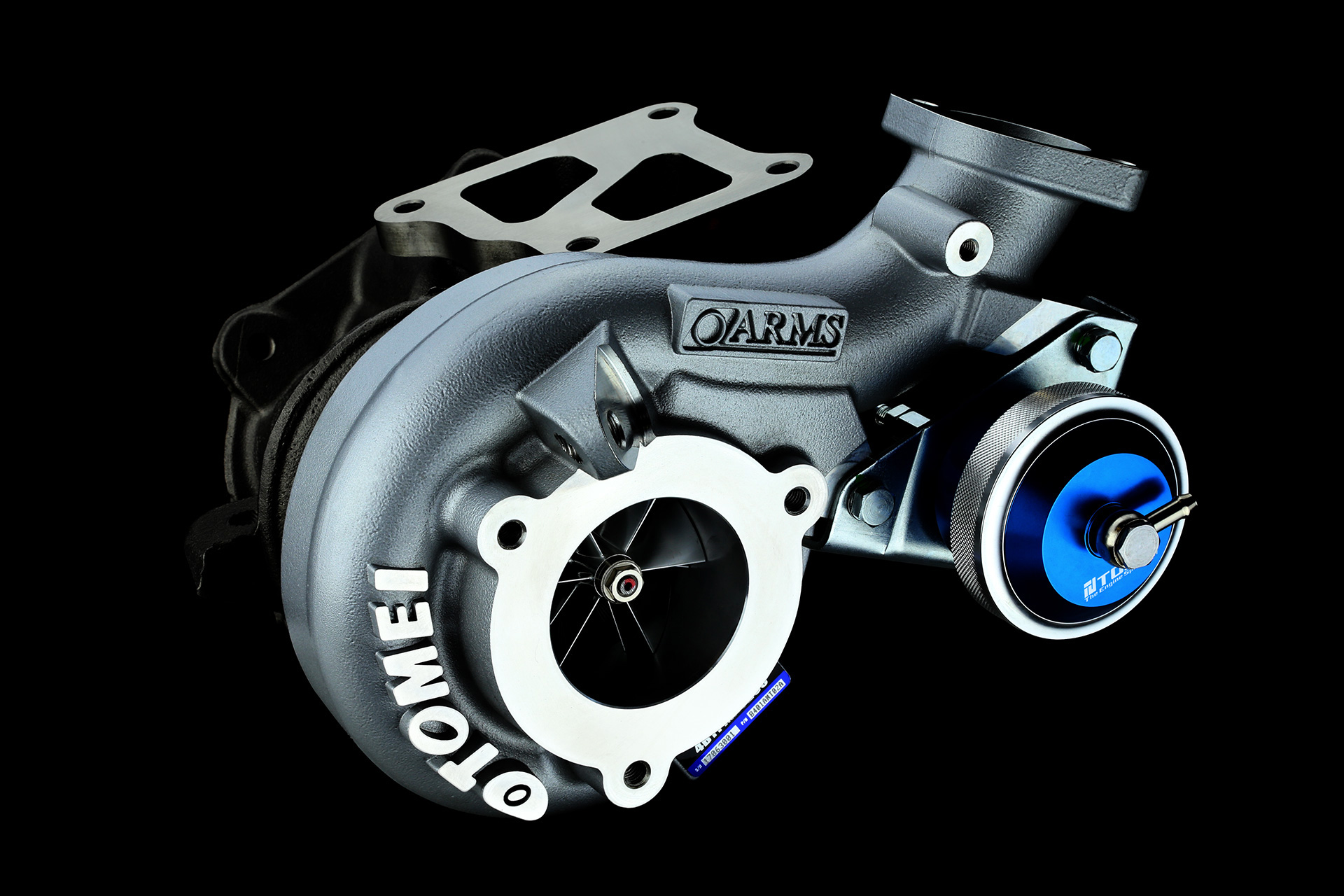

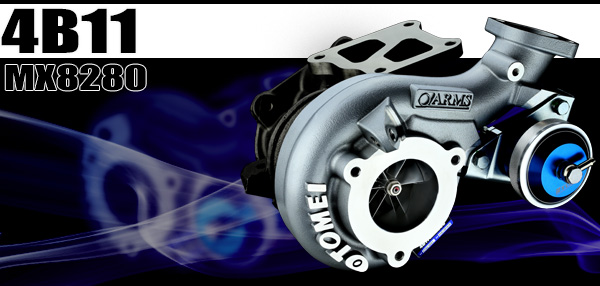

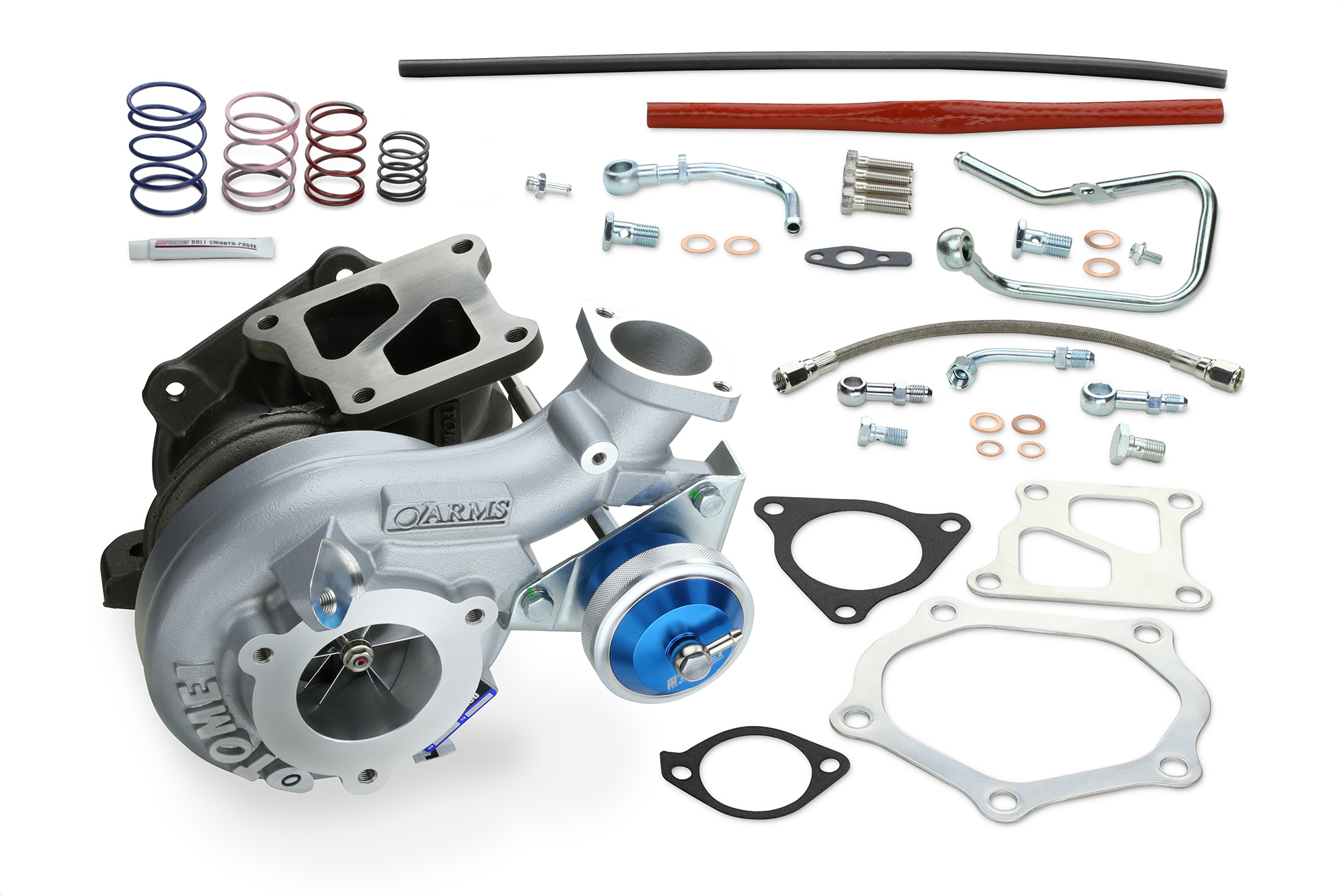

P/N TB401A-MT02A
MSRP $1,580.00(USD)

BEARING TYPE JOURNAL BEARING

INITIAL BOOST SETTING 1.0 kgf/cm2

COMPRESSOR WHEEL   TURBINE WHEEL
  MX8280
Ⓐ IND(mm) 61.4
Ⓑ EXD(mm) 82.0
TRIM 56
BLADES 6
MATERIAL A2618
PRODUCTION CNC BILLET

  MX8280
Ⓒ EXD(mm) 58.8
Ⓓ IND(mm) 67.0
TRIM 77
BLADES 11
MATERIAL K418
PRODUCTION CAST

COMPRESSOR HOUSING   TURBINE HOUSING
  MX8280
IND 62.4
EXD 40.2
A/R 0.51

  MX8280
IND 4B11
EXD 4B11
A/R 0.89

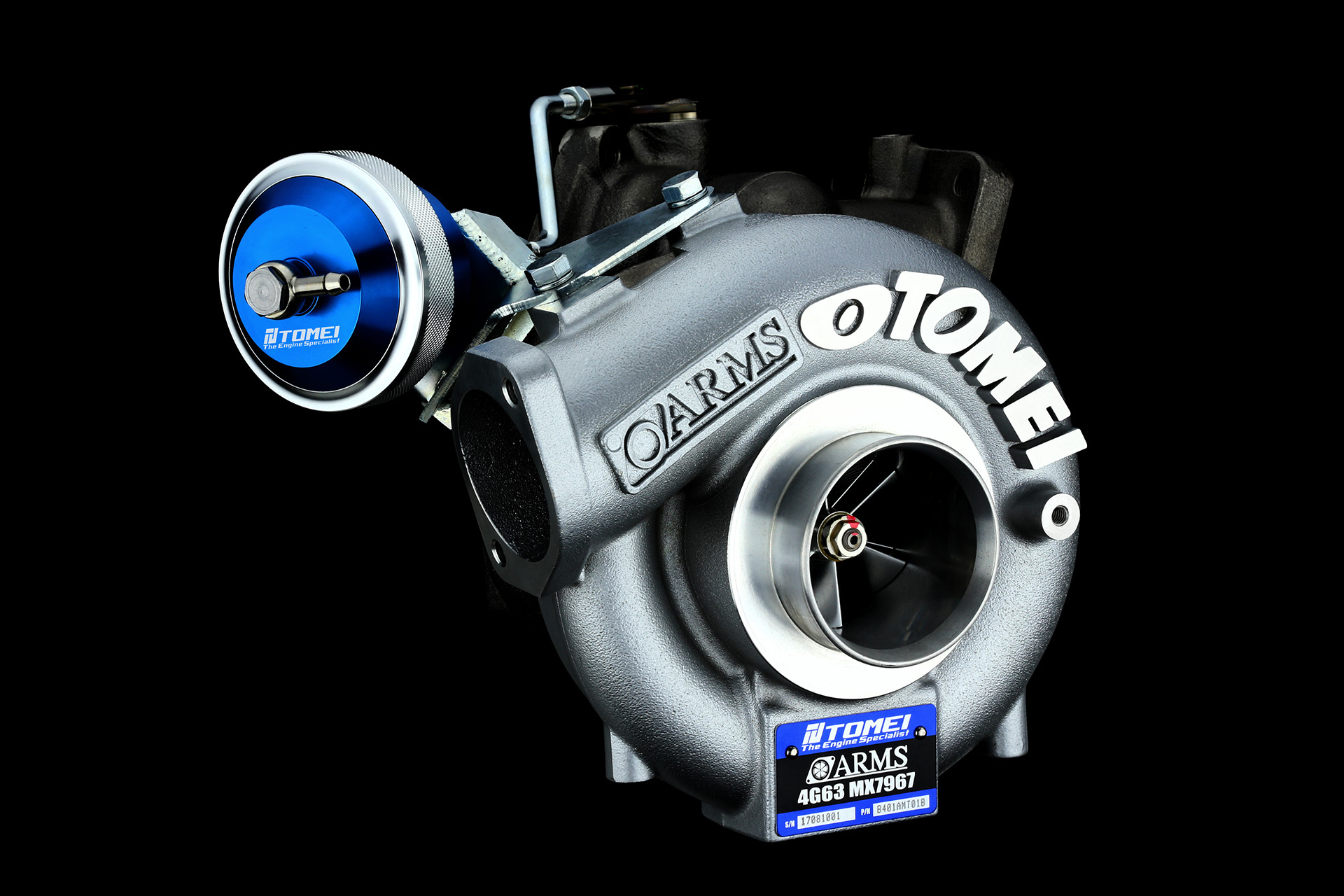

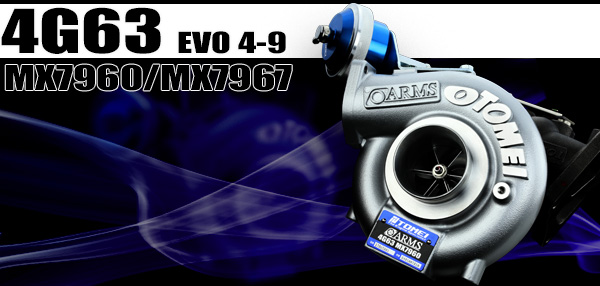

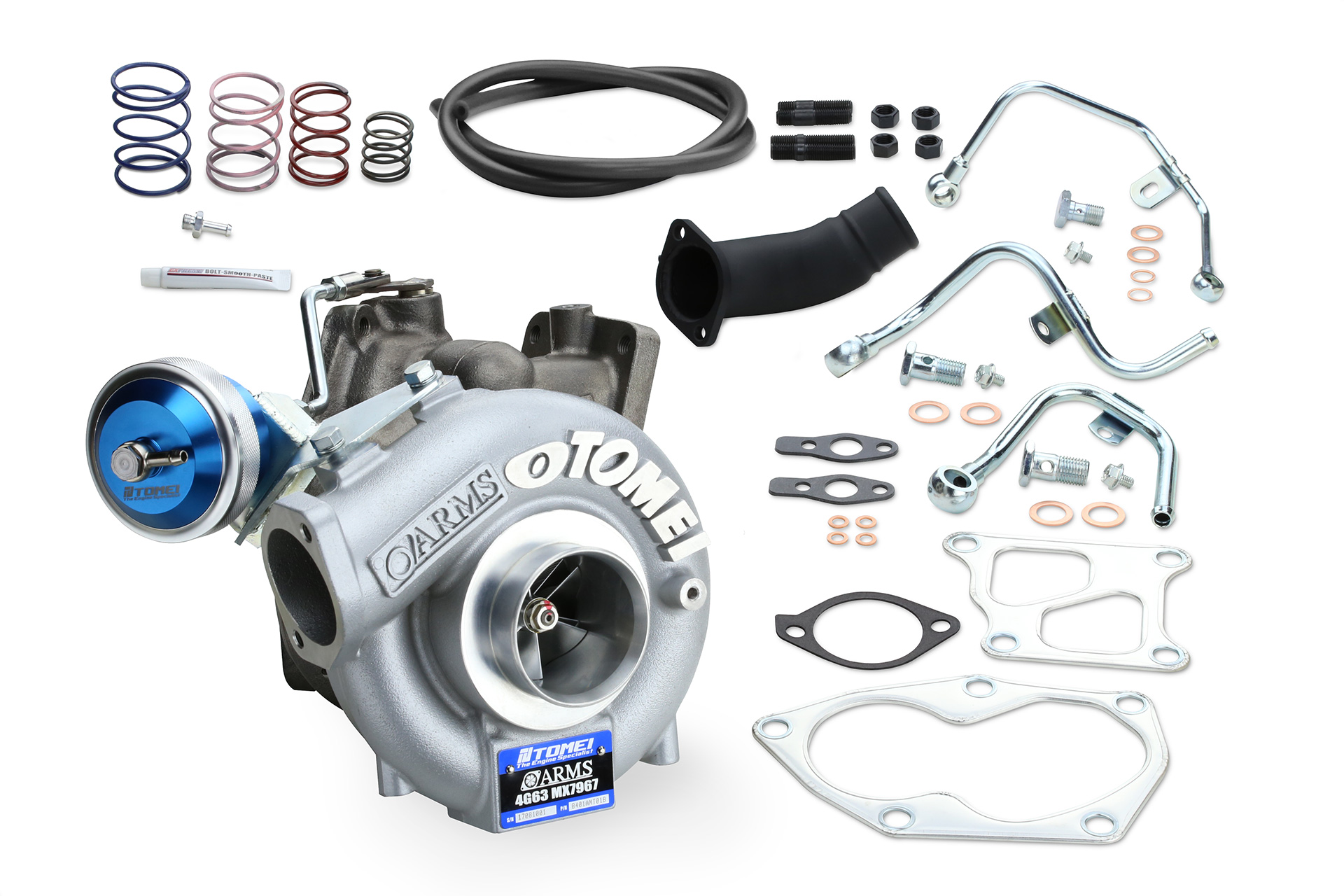

P/N TB401A-MT01A

P/N TB401A-MT01B
MSRP $1,580.00(USD)

BEARING TYPE JOURNAL BEARING

INITIAL BOOST SETTING
MX7960 1.0 kgf/cm2
MX7967 1.0 kgf/cm2

COMPRESSOR WHEEL   TURBINE WHEEL
  MX7960 MX7967
Ⓐ IND(mm) 52.6 61.4
Ⓑ EXD(mm) 68.0 82.0
TRIM 60 56
BLADES 6 6
MATERIAL A2618
PRODUCTION CNC BILLET

  MX7960 MX7967
Ⓒ EXD(mm) 54.0 54.0
Ⓓ IND(mm) 61.0 61.0
TRIM 79 79
BLADES 11 11
MATERIAL K418
PRODUCTION CAST

COMPRESSOR HOUSING   TURBINE HOUSING
  MX7960 MX7967
IND(mm) 61.85 60.63
EXD(mm) 50.0 50.0
A/R

  MX7960 MX7967
IND(mm) 4G63 4G63
EXD(mm) 4G63 4G63
A/R 0.77 0.77

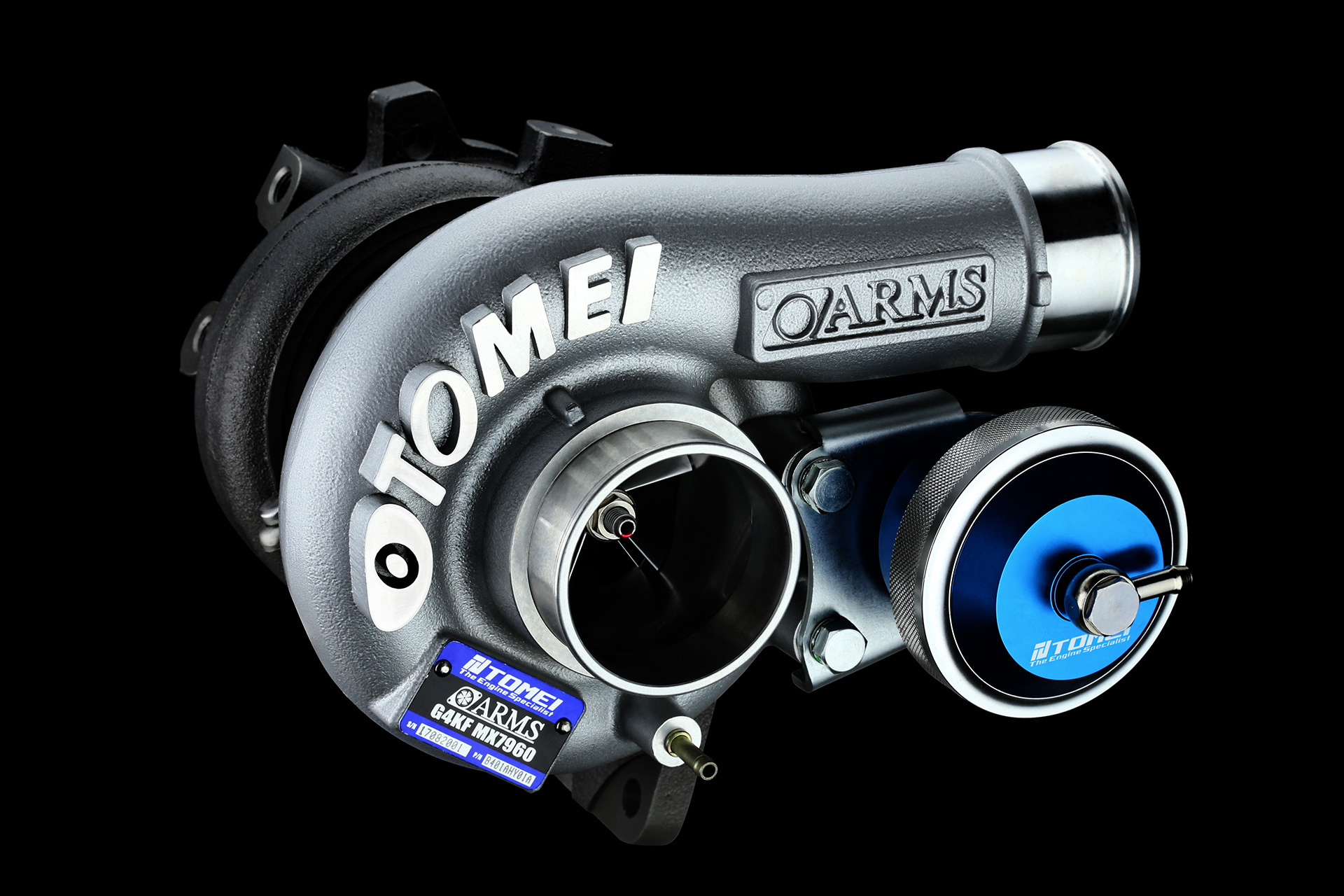

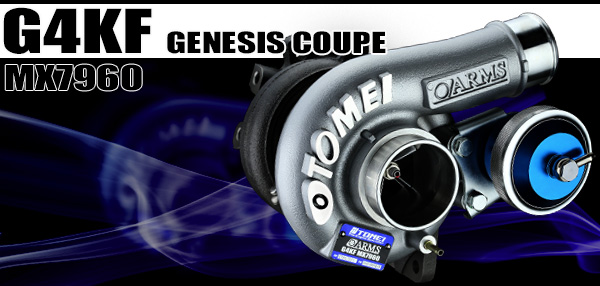

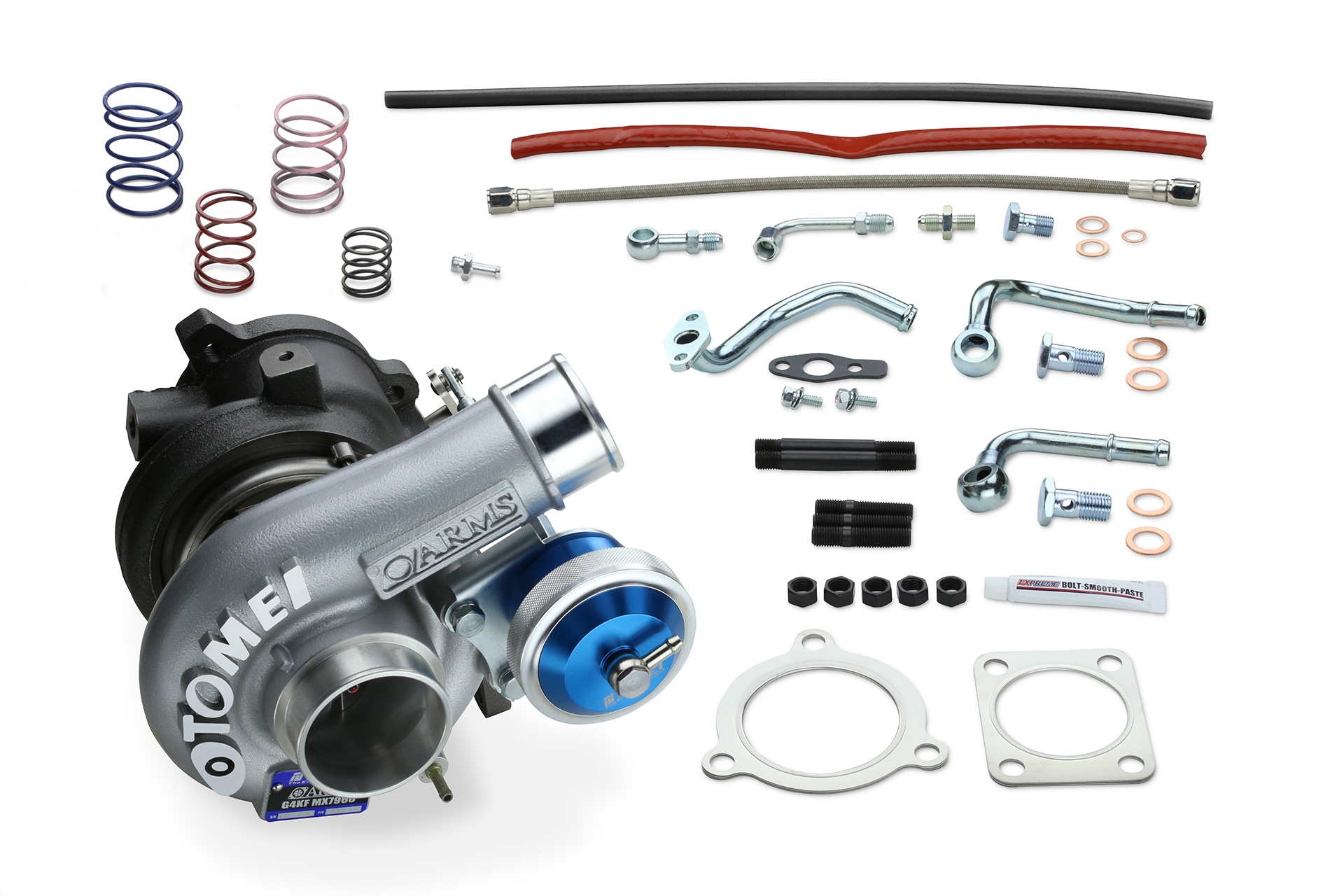

P/N TB401A-HY01A
MSRP $1,580.00(USD)

BEARING TYPE JOURNAL BEARING

INITIAL BOOST SETTING 1.0 kgf/cm2

COMPRESSOR WHEEL   TURBINE WHEEL
  MX7960
Ⓐ IND(mm) 52.6
Ⓑ EXD(mm) 68.0
TRIM 60
BLADES 6
MATERIAL A2618
PRODUCTION CNC BILLET

  MX7960
Ⓒ EXD(mm) 54.0
Ⓓ IND(mm) 61.0
TRIM 79
BLADES 11
MATERIAL K418
PRODUCTION CAST

COMPRESSOR HOUSING   TURBINE HOUSING
  M7960
IND(mm) 55.5
EXD(mm) 41.7
A/R 0.73

  M7960
IND(mm) 52.0
EXD(mm) 66.0
A/R 0.57
