A comprehensive solution for empowering
the KA24DE with SR20DET turbos!
Part No. TB401A-NS16A
Part No. TB401A-NS16B
MSRP $1,390.00(USD)
Easy to install user-centric design.
Turbo power with only minimal modifications.
KA24DE Turbo Installation Guide
Detailed, step-by-step guide, complete with photos.

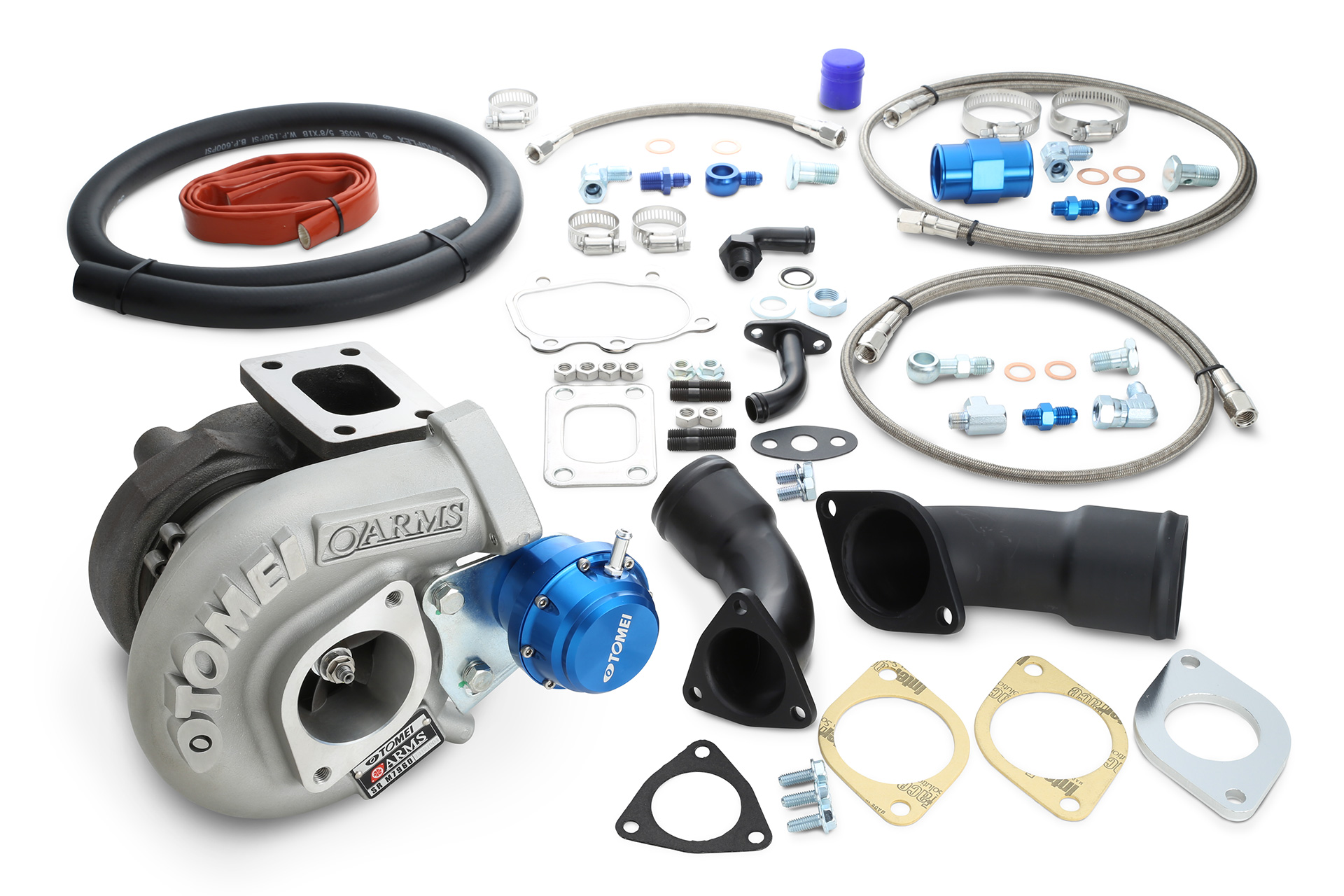

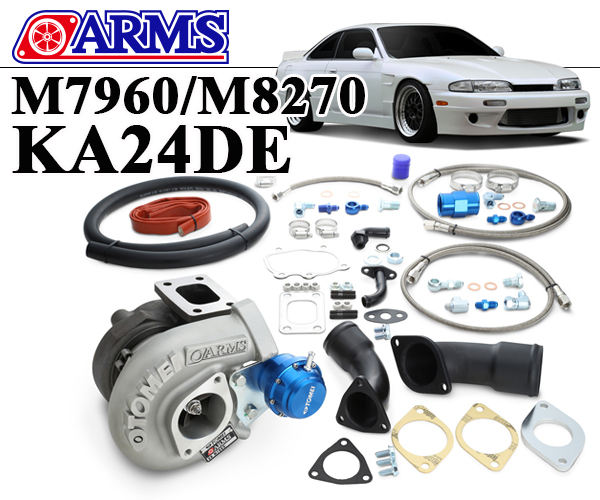

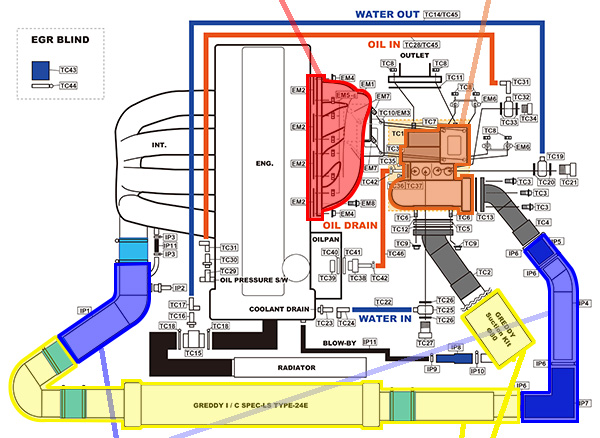

KIT CONTENTS TURBO CHARGER KIT
Turbocharger Unit
1
Compressor Out Pipe
1
Compressor Out Gasket
1
Flange Bolt M6
3
Compressor In Pipe
1
Compressor In Pipe Gasket
2
Compressor In Pipe Adapter
1
Turbine In Gasket
1
Hexagon Nut M8×P=1.25
4
Stud Bolt M8×P=1.25×L=35mm
2
Flange Nut M8×P=1.25
2
Stud Bolt M8×P=1.25×L=38mm
2
Hexagon Nut M8×P=1.25
2
Turbine Out Gasket
1
Mesh Hose 940mm
1
3way Adapter
1
Fitting PT1/8-AN4
1
Fitting 4AN M to F 90°
2
Banjo Fitting M12 4AN
1
Washer M12
2
Banjo Bolt M12
1
Oil Drain Pipe A
1
Oil Return Gasket
1
Bolt M6×P=1.0×L=16mm
2
Oil Drain Pipe B
1
Nut M16
1
Flat Washer M16
1
Seal Washer M16
1
Hose Band 18-32mm
2
Mesh Hose 1350mm
1
Water Pipe Adapter
1
Fitting PT1/8-AN4
1
Fitting 4AN M to F 90°
1
Hose Band 27-51mm
2
Banjo Fitting M14 4AN
1
Washer M14
2
Water Bolt
1
Mesh Hose 200mm
1
Fitting PT1/4-AN4
1
Fitting 4AN M to F 90°
1
Banjo Fitting M14 4AN
1
Washer M14
2
Water Bolt
1
Hose Band 18-32mm
1
Blind Plug
1
Heat Protecter Hose
1
Oil Proof Hose
1

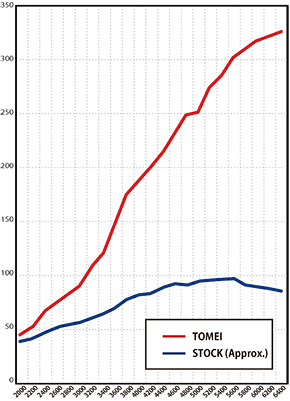

240SX DYNO TEST
SPEC 240SX KA24DE ‘96
>TOMEI TURBO KIT M8290
>TOMEI TUBO PIPING KIT
>TOMEI Camshaft 270°- 9.8mm
>TOMEI Exhaust Manifold
>TOMEI Outlet Pipe
>TOMEI EXPREME Ti Cat Straight pipe
>TOMEI EXPREME Ti Muffler
>TOMEI Fuel Pump Universal 255L/h
>GREDDY SPEC-LS TYPE-24E
>GREDDY Suction Kit Φ80
>TOMEI Prototype Piston 89.5mm
>TOMEI Prototype Connecting Rod
>TOMEI Head Gasket Φ90-1.2mm
>INJECTOR DYNAMICS 725-48-14
>HALTECH Platinum Sport 1000
TURBO CHARGER SPECIFICATION
Primary exhaust pressure at low RPMs remain identical to stock
Increased peak power
Response equal to stock trim
Maintains boost pressure at high RPMs
COMPRESSOR WHEEL
TURBINE WHEEL
M7960
M8270
TYPE
60
70
TRIM
60
60
INNER DIA.
52.6mm
59.0mm
OUTER DIA.
68.0mm
76.2mm
BLADES
6/6
6/6
M7960
M8270
TYPE
79
82
TRIM
78
77
INNER DIA.
61.0mm
67.0mm
OUTER DIA.
54.0mm
58.8mm
BLADES
11
11

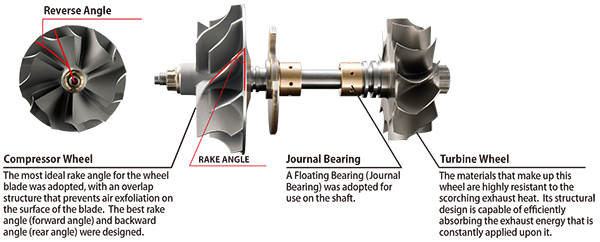

INTERNAL COMPONENT ANALYSIS

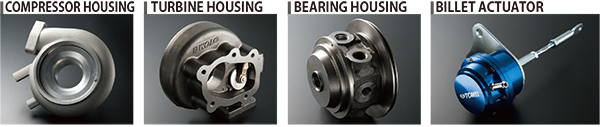

All the housings made with different materials of metal were first closely examined and tested for energy absorption, friction, and cooling capabilities. The most ideal components were designed and utilized.
Our all new Billet Aluminum actuator is designed for added strength. This will give that extra support when needed for higher boost applications.

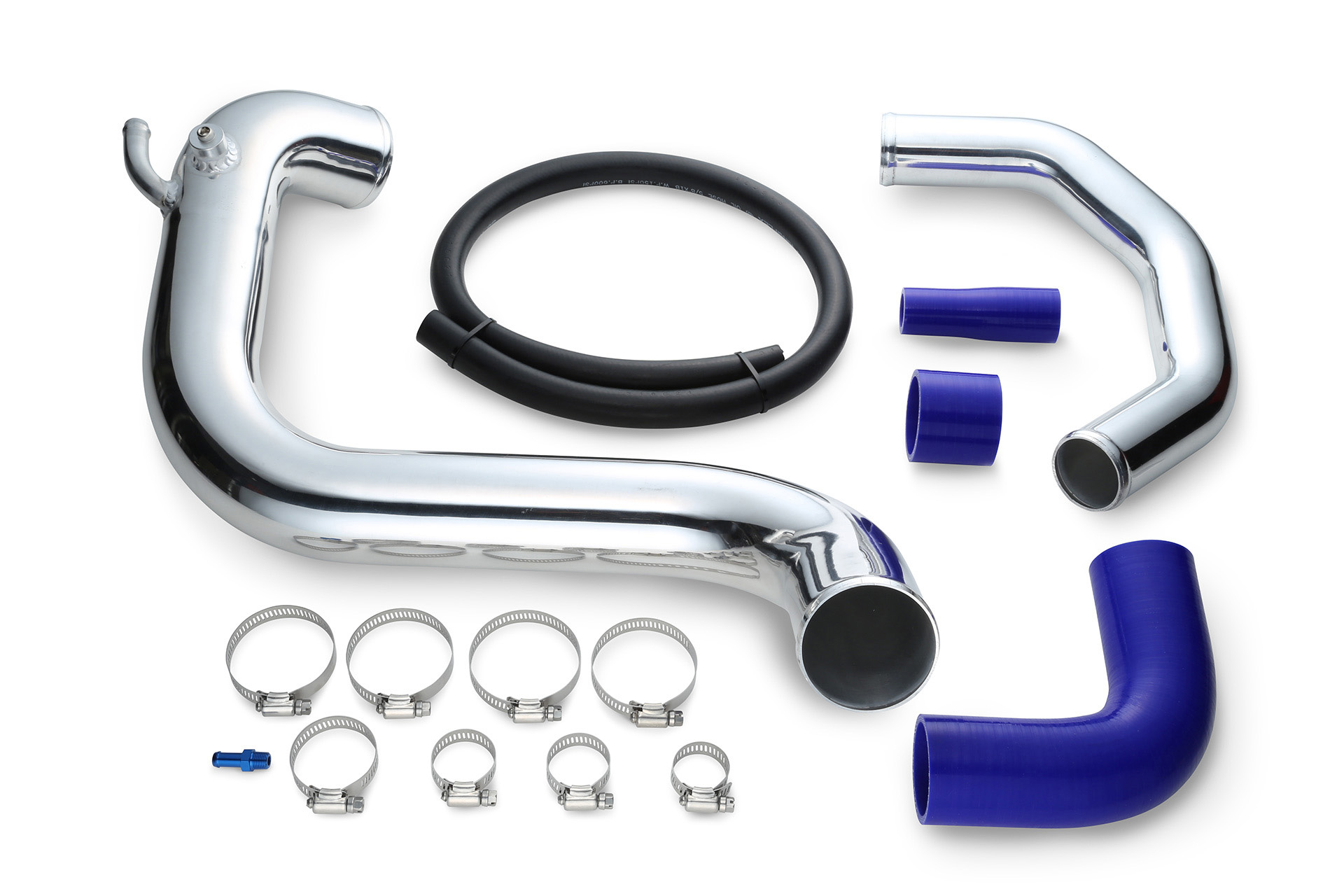

This product is designed to be used in conjunction with the TOMEI KA24DET CORE TURBO PARTS and GREDDY SUCTION KIT INTERCOOLER KIT listed below.Alternative products from other manufacturers can also be used instead but may require additional modifications to complete the installation.
