£ For EVO@IV`VI
@

£ For EVO VII`IX
@
Contents
Outlet (Dump Pipe)
Front Pipe
Gasket
Expreme Thermo Bandage
Bracket (Only for EVO IV~VI)
Bolts for Installation
Bolt Smooth Paste
Sticker
Installation Manual
@
After Extensive testing, we know this is the best!!

It is commonly believed that performance efficiency can be improved by reducing the secondary exhaust pressure from the turbine. The torque will be affected when the pipes diameter is too wide.
We here at Tomei had invested over a year in researching all possible aspects and combinations for the best performance gain throughout the entire area. The end result was a decrease in exhaust resistance in all areas and best results is achieved with our Outlet ( dump pipe ) and front pipe as a combined set.

Manufactured by Lost Wax Method for the Highest Quality.
@
*Turbo Mount Bracket @

Inner Diameter

@

Weight

@
@
Outlet (Dump Pipe)
ƒΣ70 specification (ƒΣ65 inner diameter)
Manufactured by Lost Wax method
Turbine bracket
SUS304 stainless steel
The pilot by-pass has been maximized
Front Pipe
ƒΣ70 enlarged pipe
SUS304 stainless steel
Outlet (Dump Pipe) with matching inner diameter and straight fitting flange.
@
Increased performance through
@
NOTES
The Expreme 4G63 Outlet (Dump Pipe) with Front Pipe can only be used with the factory fitting.
----Example----
Genuine Outlet (Dump Pipe){Expreme Front Pipe
Non Compatible
Expreme Outlet (Dump Pipe){Genuine Front Pipe
Non Compatible

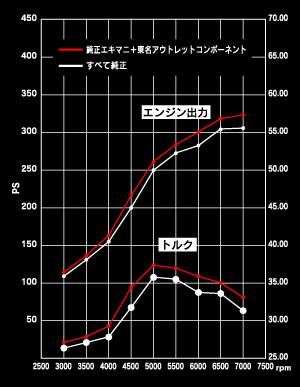

The Expreme Outlet which shows the performance upgrad with the use of the Dump Pipe combined.

Genuine Comparison

@
OUTLET COMPONENT
OUTLET
(Outlet (Dump Pipe))
{ FRONT PIPE
(Front Pipe)
@
EXPREME Outlet Component for 4G63
Application Type Part Number
EVO IV-VI 4G63 193092
EVO VII-IX 193093
Outlet (Dump Pipe)
MATERIAL Pipe Diameter
(ƒΣ)
Pipe Thickness
(mm)
Weight
(k‚‡)
Pipe Flange
SUS304 Steel 70
(Inner Diameter 65)
2.5 1.75
(Normal 3.05)
Front Pipe
Material Pipe Diameter
(ƒΣ)
Pipe Thickness
(mm)
Weight
(k‚‡)
Pipe Flange
SUS304 Steel 70
(Inner Diameter 65)
2.0 (EVO IV-VI)3.8
(EVO VII-IX)3.9
@
Contents

Outlet (Dump Pipe)/Front Pipe/Gasket

@

MSRP : Discontinued
