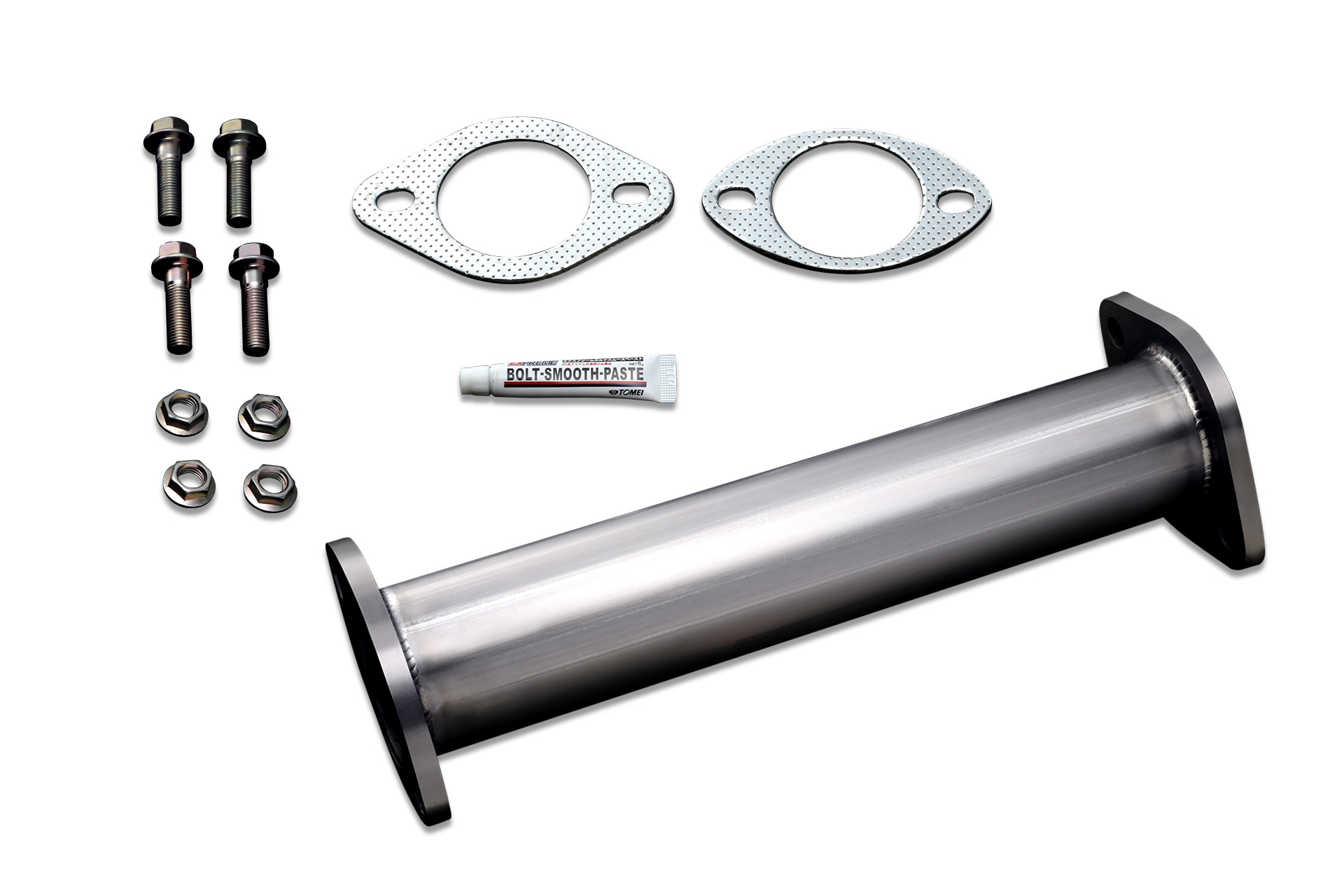

| KIT CONTENTS |
|
| STRAIGHT PIPE (1) |
|
| GASKET/F (1) |
|
| GASKET/R (1) |
|
| FLANGE BOLT M10 (4) |
|
| FLANGE NUT M10 (4) |
|
| BOLT SMOOTH PASTE (1) |
|
|
|
|
|
| |
|
|
MSRP $290.00 (USD) |
|
| PART NUMBER：TB6100-TY01A |
|
|
|
| ※ Designed for Competition Use only |
|

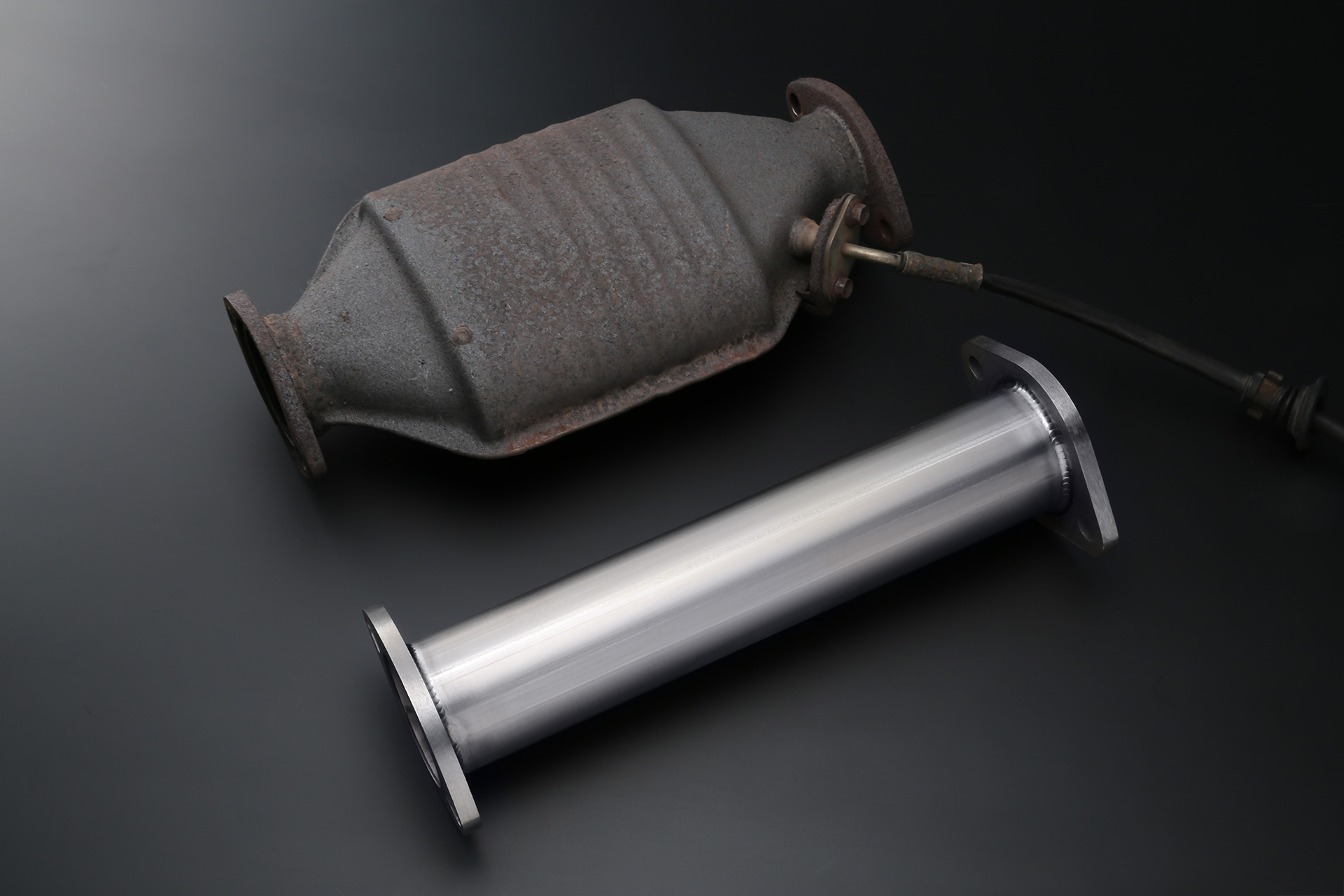

| SPECIFICATIONS COMPARISON VS STOCK |
|
|
| |
|
TOMEI |
STOCK |
PART No. |
TB6100-TY01A |
ー |
MSRP |
$240.00 (USD) |
ー |
MATERIAL |
Ti |
ー |
PIPE DIAMETER |
2.38inch(60.5mm) |
2.13inch(54.0mm) |
PIPE THICKNESS |
1.0mm |
2.0mm |
FLANGE THICKNESS |
8.0mm |
9.0mm |
WEIGHT |
1.1lb(0.5kg) |
6.28lb(2.85kg) |
|
|
| |
 |
|
| Other exhaust related parts for the AE86 |
|
| EXPREME Ti TITANIUM MUFFLER |
|
|
| |
