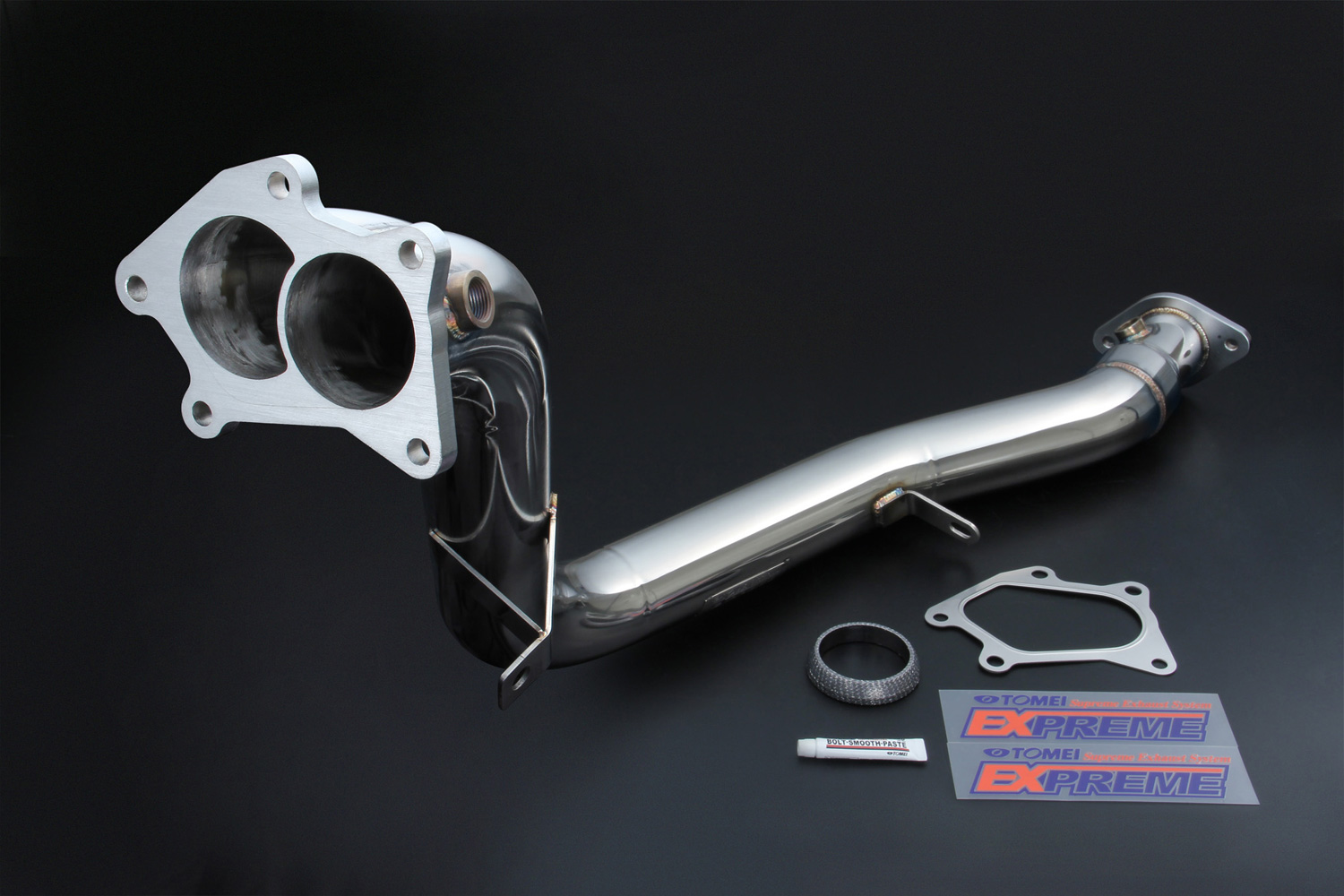

STRAIGHT DOWN PIPE for GDB APPLIED C/D |
Outstanding Performance,
Ultra Light & Catayst Free! |
| |
| |
|
純正 |
TOMEI |
MATERIAL
|
STEEL
|
SUS304
|
PIPE DIAMETER （Φ）
|
60.5
|
70.0-60.5 |
PIPE THICKNESS (mm)
|
1.5
|
1.5 |
FLANGE THICKNESS (mm)
|
10.0-8.0
|
11.0-10.0 |
WEIGHT (kg) |
8.8 |
4.5 |
|
| |
| |
 |
| APPLICATION ： GDB APPLIED C/D |
| |
|
Discontinued
New version in development |
|
| |
| Exclusively Designed For Competition Use |
|
|
|
|
|
| T/C FLANGE |
|
| The main port and actuator diaphram are kept seperate. This will allow a smoother exhaust flow. |
|
|
|
| |
|
|
| EXIT SIDE FLANGE |
|
| The main pipe is Φ70.0mm which then tapers to a Φ60.5mm so you can use the stock gasket and muffler. We also have a special Titanium muffler system for this car. |
|
|
| |
|
|
| LAYOUT |
|
| The enlarged pipe diameter significantly reduces the exhaust resistance with the elimination of the catalyst. This also enhances the cars handling. |
|
|
|
|
| |
| |
|
