86/FR-S
[ZN6] |
BRZ
[ZC6] |
86
[ZN8] |
BRZ
[ZD8] |
|
|
|
FA20 |
FA24 |
|
|
|
2012-2021 |
2012-2020 |
2021- |
New
TYPE-80
ver.2 |
TB6090-SB05A |
![](https://www.tomeiusa.com/mailnews/20230210/TB6090-SB05A_layout.jpg) |
✓ |
✓ |
✓ |
✓ |
New
TYPE-D |
TB6090-SB05B |
![](https://www.tomeiusa.com/mailnews/20230210/TB6090-SB05B_layout.jpg) |
✓ |
✓ |
✓ |
✓ |
TYPE-60S |
TB6090-SB03A |
![](https://www.tomeiusa.com/mailnews/20230210/TB6090-SB03A_layout.jpg) |
✓ |
✓ |
|
|
TYPE-60R |
TB6090-SB03B |
![](https://www.tomeiusa.com/mailnews/20230210/TB6090-SB03B_layout.jpg) |
✓ |
✓ |
|
|
TYPE-80 |
TB6090-SB03C |
![](https://www.tomeiusa.com/mailnews/20230210/TB6090-SB03C_layout.jpg) |
✓ |
✓ |
|
|
|
|
|
PART No. |
PRODUCT NAME |
MSRP(USD) |
|
TB6090-SB05A |
FULL TITANIUM MUFFLER
EXPREM Ti 86/FR-S/BRZ
TYPE-80 ver.2
INVENTORY→ |
$1,390.00 |
![](https://www.tomeiusa.com/mailnews/20230210/TB6090-SB05A_layout.jpg) |
TB6090-SB05B |
FULL TITANIUM MUFFLER
EXPREM Ti 86/FR-S/BRZ
TYPE-D
INVENTORY→ |
$1,890.00 |
![](https://www.tomeiusa.com/mailnews/20230210/TB6090-SB05B_layout.jpg) |
TB6090-SB03A |
FULL TITANIUM MUFFLER
EXPREM Ti 86/FR-S/BRZ
TYPE-60S
INVENTORY→ |
$1,290.00 |
![](https://www.tomeiusa.com/mailnews/20230210/TB6090-SB03A_layout.jpg) |
TB6090-SB03B |
FULL TITANIUM MUFFLER
EXPREM Ti 86/FR-S/BRZ
TYPE-60R
INVENTORY→ |
$1,290.00 |
![](https://www.tomeiusa.com/mailnews/20230210/TB6090-SB03B_layout.jpg) |
TB6090-SB03C |
FULL TITANIUM MUFFLER
EXPREM Ti 86/FR-S/BRZ
TYPE-80
INVENTORY→ |
$1,290.00 |
![](https://www.tomeiusa.com/mailnews/20230210/TB6090-SB03C_layout.jpg) |
|
|
Application:
TOYOTA/SCION 86/FRS [ZN6/ZN8] SUBARU BRZ [ZC6/ZD8]
|
|
![](image_ti/86brz/BRZseries.jpg) |
|
![](image_ti/86brz/86series.jpg) |
|
|
![](image_ti/86brz/typebetsu_type-80-ver2.jpg) |
|
![](image_ti/86brz/typebetsu_type-d.jpg) |
|
![](image_ti/86brz/typebetsu_type-60s.jpg) |
|
![](image_ti/86brz/typebetsu_type-60r.jpg) |
|
![](image_ti/86brz/typebetsu_type-80.jpg) |
|
|
|
![](image_ti/nb-miata/NB-muffler_future_10.jpg) |
![](image_ti/86brz/comparison.jpg) |
|

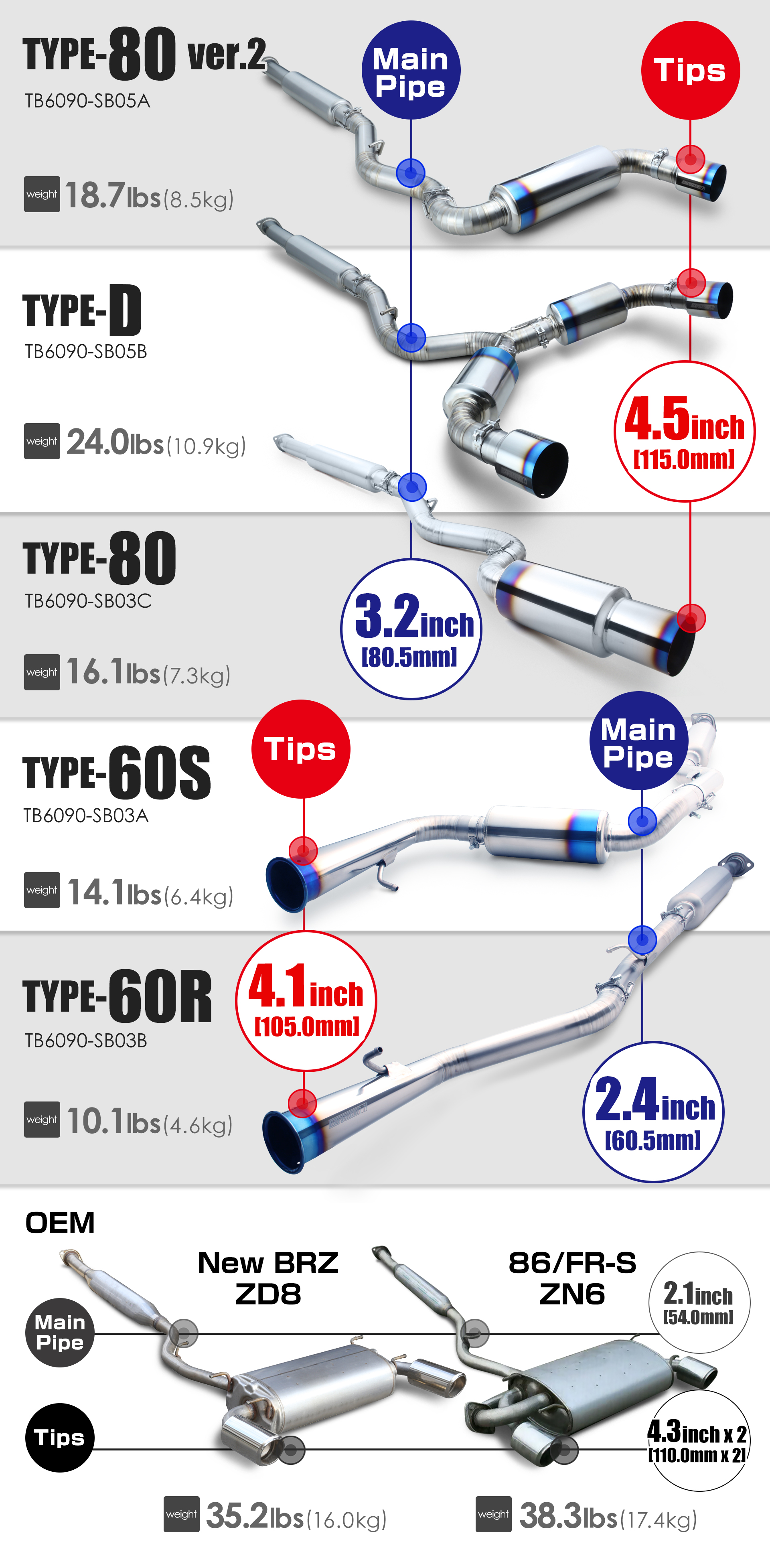

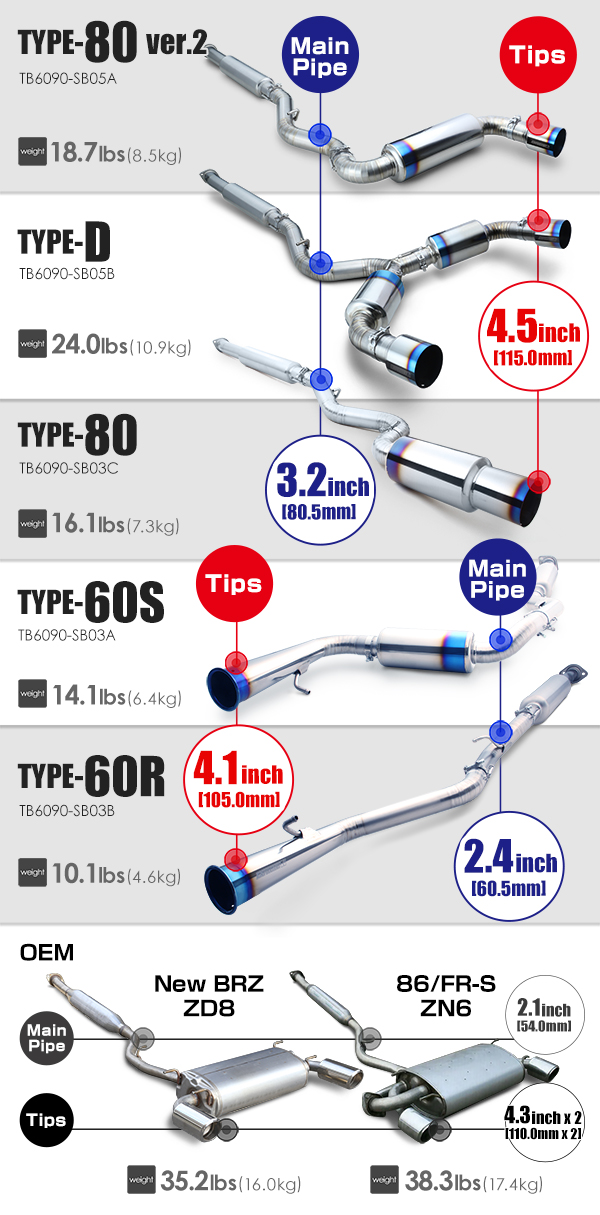

FULL TITANIUM MUFFLER SPECIFICATION |
|
TOMEI |
OEM |
|
TYPE-80 Ver.2 |
TYPE-D |
TYPE-60R |
TYPE-60S |
TYPE-80 |
ZN8/ZD8 |
ZN6/ZC6 |
PART No. |
TB6090-SB05A |
TB6090-SB05B |
TB6090-SB03A |
TB6090-SB03B |
TB6090-SB03C |
- |
- |
APPLICATION |
|
|
|
|
MATERIAL |
TITANIUM |
STEEL |
MAIN PIPE
DIAMETER |
3.2inch
(80.5mm )
|
3.2-3.0inch
(80.5-76.3mm ) |
2.4inch
(60.5mm ) |
3.2inch
(80.5mm ) |
2.1-2.2inch
(53.5-55.0mm) |
2.1inch
(54.0mm) |
MAIN PIPE
THICKNESS |
1.0mm |
- |
- |
SILENCER
DIAMETER |
6.0inch
(152.0mm) |
6.0inch x2
(152.0mm x2) |
- |
- |
- |
10.6 x24.8inch
(270x630mm) |
- |
SILENCER
THICKNESS |
1.0mm |
- |
- |
SUB SILENCER
DIAMETER |
4.6inch (118.0mm) |
- |
- |
- |
4.6inch (118.0mm) |
SUB SILENCER
THICKNESS |
1.0mm |
- |
- |
- |
- |
- |
EXIT
DIAMETER |
4.5inch
(115.0mm) |
4.5inch x2
(115.0mm x2) |
4.1inch
(105.0mm) |
4.5inch
(115.0mm) |
4.3inch
(110.0mm x2) |
4.3inch x2
(110.0mm x2) |
EXIT
THICKNESS |
1.0mm |
- |
- |
FLANGE
THICKNESS |
8.0mm |
- |
- |
WEIGHT |
18.7lbs
(8.5kg) |
24.0lbs
(10.9kg) |
10.1lbs
(4.6kg) |
14.1lbs
(6.4kg) |
16.1lbs
(7.3kg) |
35.2lbs
(16.0kg) |
38.3lbs
(17.4kg) |
|
|
|
![](image_ti/nb-miata/NB-muffler_future_14.jpg) |

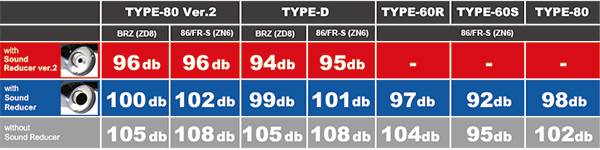

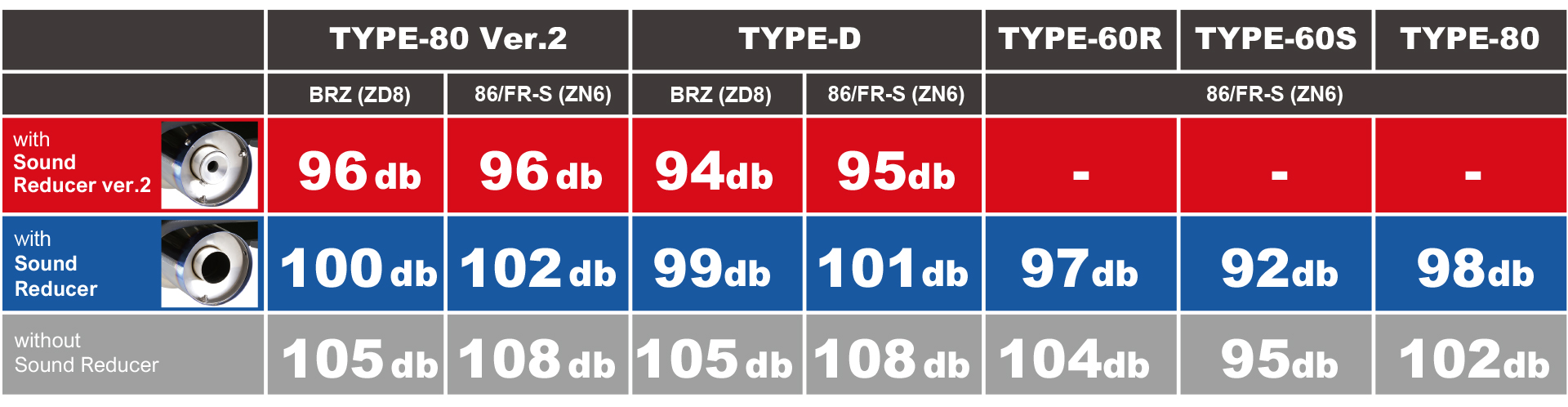

Only Muffler installed |
![](image_ti/86brz/sound.jpg) |
|
|
![](image_ti/civic/20200221_17.jpg) |
This kit includes all the components necessary for installation including the bolts and nuts. Bolt Smooth Paste is also included to help prevent the bolts becoming seized under heat. |
|
|
|
|
