PART No. |
PRODUCT NAME |
MSRP(USD) |
|
TB6090-FR02A |

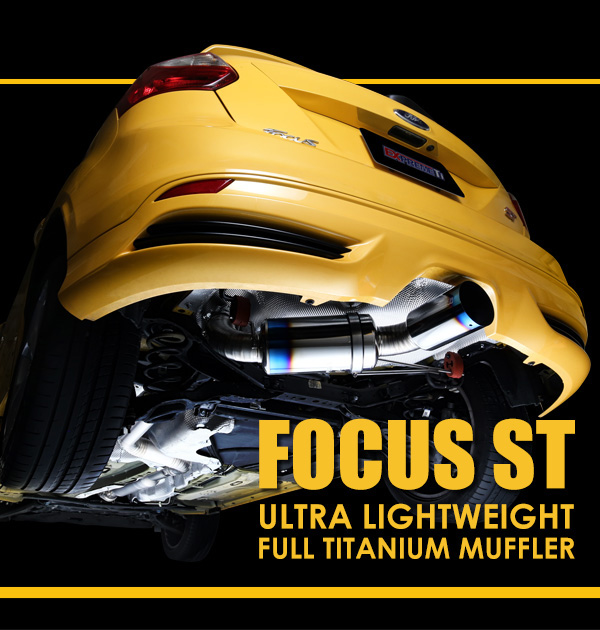

FULL TITANIUM MUFFLER KIT
EXPREME Ti FOCUS ST 2013-2018 |
$1,590.00 |
![](https://www.tomeiusa.com/searchimage/thum/TB6090-FR02A.jpg) |
|
|
![](image_ti/20_20space.gif) |
![](image_ti/focus/20200131_03.jpg) |
|
![](image_ti/focus/20200131_05.jpg) |
|
![](image_ti/focus/20200131_07.jpg) |
|
![](image_ti/focus/20200131_09.jpg) |
|

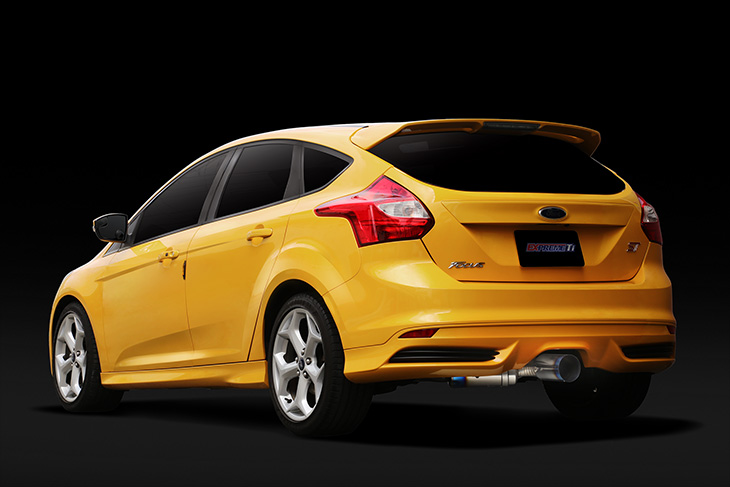

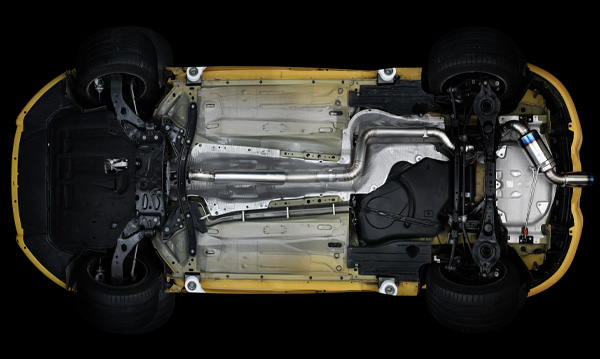

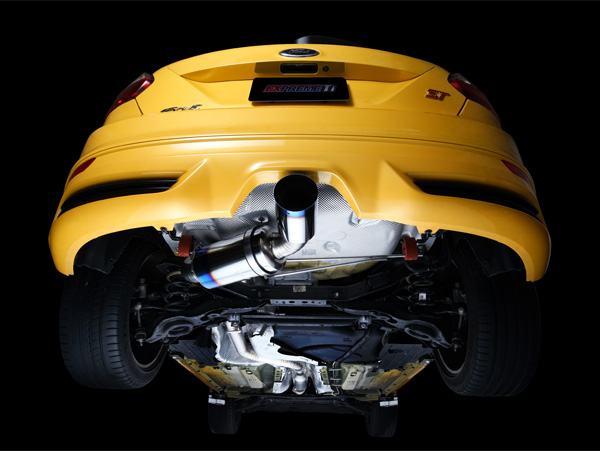

Application: FORD FOCUS ST 2013-2018
|
|
![](image_ti/focus/20200131_12.jpg) |
|

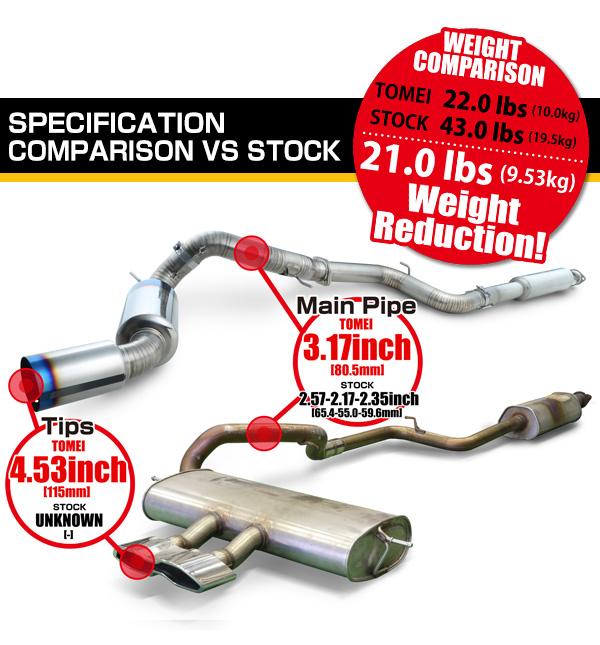

TOMEI
|
STOCK |
PART No. |
TB6090-FR02A |
- |
MSRP |
$1,490.00iUSDj |
- |
MATERIAL |
Ti |
- |
MAIN PIPE DIAMETER |
3.17inch(80.5mm) |
2.57-2.17-2.35inch(65.4-55.0-59.6mm) |
MAIN PIPE THICKNESS |
1.0mm |
2.0mm |
CENTER SILENCER DIAMETER |
4.65inch(118.0mm) |
7.3x5.56inch(185.4x141.2mm) |
CENTER SILENCER THICKNESS |
1.0mm |
- |
MAIN SILENCER DIAMETER |
5.98inch(152.0mm) |
- |
MAIN SILENCER THICKNESS |
1.0mm |
- |
EXIT DIAMETER |
4.53inch(115mm) |
- |
EXIT THICKNESS |
1.0mm |
- |

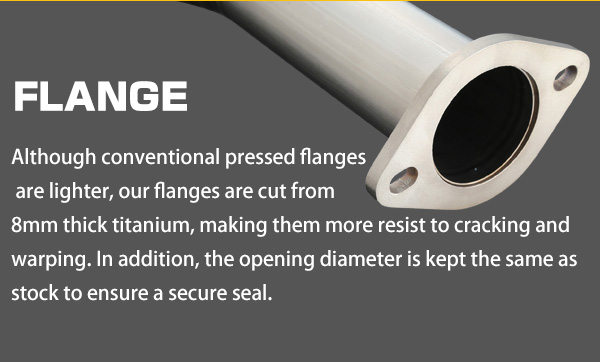

FLANGE THICKNESS |
8.0mm |
10.0mm |
WEIGHT |
22.0lbs(10.0kg) |
43.0lbs(19.5kg) |
|
|
|
![](image_ti/focus/20200131_14.jpg) |
![](image_ti/focus/20200131_15.jpg) |
|
|
![](image_ti/focus/20200131_17.jpg) |
![](image_ti/focus/20200131_18.jpg)
|

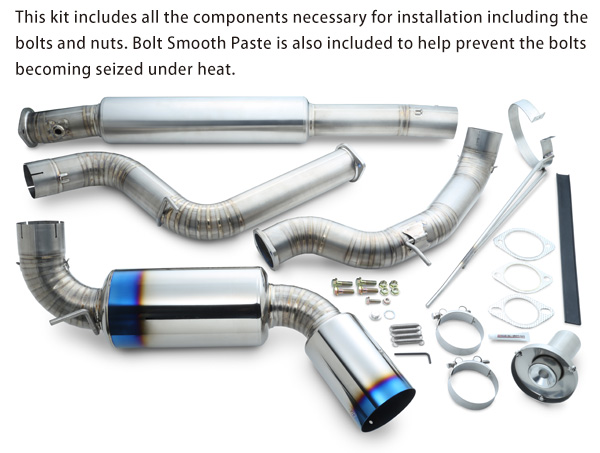

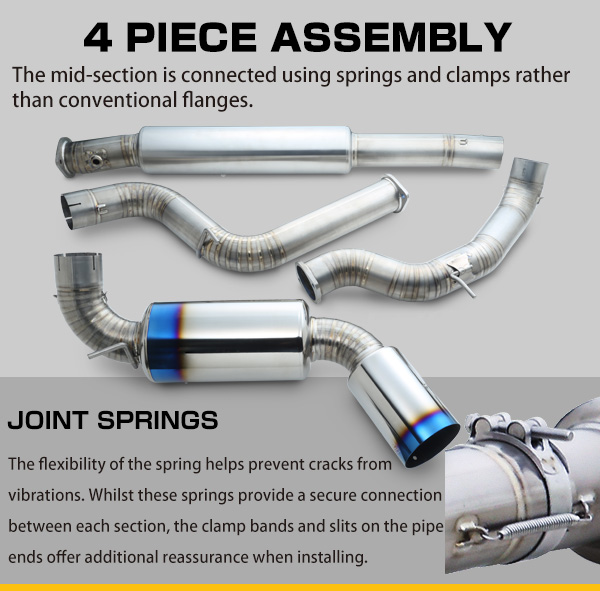

MAIN PIPE A |
|
SPRING |
MAIN PIPE B |
|
FLANGE BOLT M10*P1.25 35mm |
MAIN PIPE C |
|
FLANGE NUT M10 P1.25 |

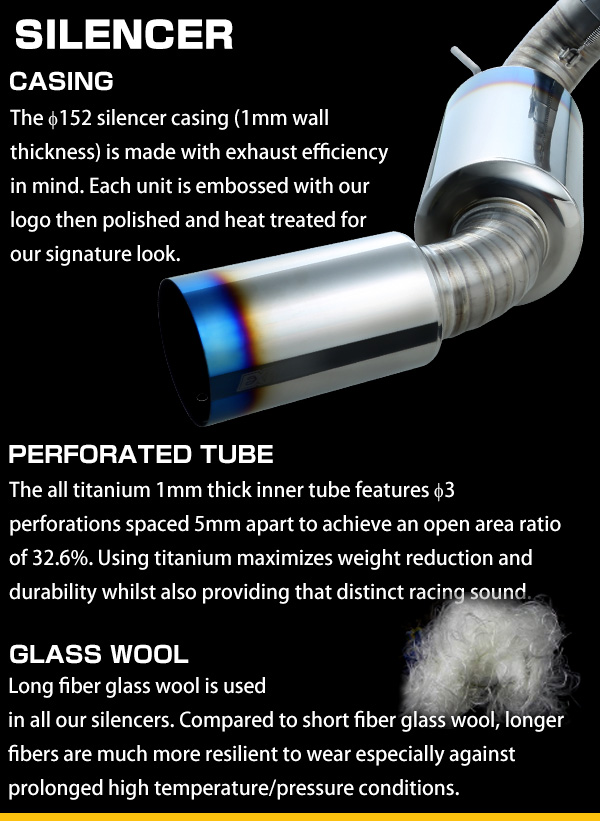

SILENCER |
|
FLANGE BOLT M8 P1.25 25mm |
SILENCER BAND |
|
FLANGE NUT M8 P1.25 |
SILENCER BAND RUBBER 152mm |
|
A/F SENSOR PLUG M18*P1.5 |
FLANGE GASKET 763-2-105 |
|
COPPER WASHER M18-1.0 |
FLANGE GASKET 80-2-105 |
|

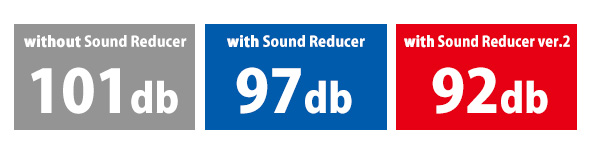

SOUND REDUCER ver.2 Φ115 |
FLANGE GASKET 635-2-99 |
|
HEX KEY |
CLAMP BAND 79-85 |
|
BOLT SMOOTH PASTE |
|
|
|
