Application:
INFINITI G35 COUPE / NISSAN SKYLINE V35 COUPE
|
| |
 |
 |
| |

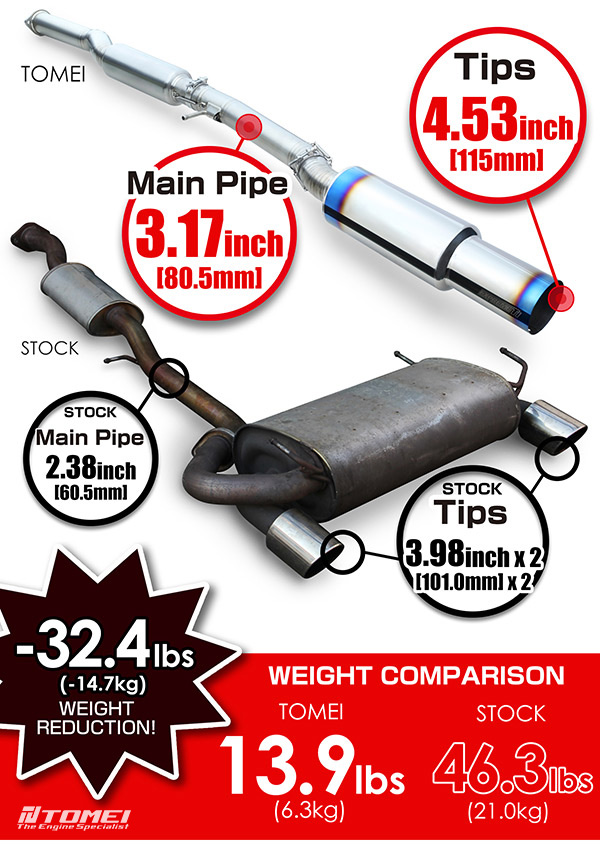

| FULL TITANIUM MUFFLER SPECIFICATION |
| |
TOMEI |
STOCK |
| PART No. |
TB6090-NS04G |
- |
| MSRP |
$1,390.00(USD) |
- |
| MATERIAL |
Ti |
STAINLESS |
| MAIN PIPE DIAMETER |
3.17inch(80.5mm) |
2.38inch(60.5mm) |
| MAIN PIPE THICKNESS |
1.0mm |
1.5mm |
| SILENCER DIAMETER |
5.98inch(152.0mm) |
3.98inch(101.0mm) x2 |
| SILENCER THICKNESS |
1.0mm |
- |
| EXIT DIAMETER |
4.53inch(115.0mm) |
- |
| EXIT THICKNESS |
1.0mm |
- |
| FLANGE THICKNESS |
8.0mm |
8.0mm |
| WEIGHT |
6.3kg |
21.0kg |
|
| |
| |
 |
| Only Muffler installed |
 |
| |
| |
 |
| This kit includes all the components necessary for installation including the bolts and nuts. Bolt Smooth Paste is also included to help prevent the bolts becoming seized under heat. |
|
|
 |
| |
 |
 |
| |

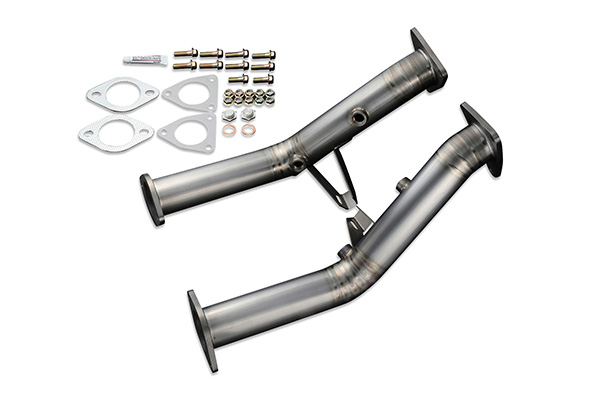

Part No. TB6100-NS04A
 |
Part No. TB6100-NS04A
|
|
| |
| |
|
