Dramatic performance increase
&
significant weight reduction!
|
| |
 |
|
|
Application :
JZX100 CRESTA 1JZ-GTE EARLY/LATE AT/MT
JZX100 CHASER 1JZ-GTE EARLY/LATE AT/MT
JZX100 MARK II 1JZ-GTE EARLY/LATE AT/MT |
MSRP $1,290.00 (USD) |
|
| PART NUMBERFTB6090-TY04A |
|
|
|
|
|
| SPECIFICATION COMPARISON VS STOCK |
|
| |
 |
|
|
TOMEI |
STOCK |
PART No. |
TB6090-TY04A |
| |
MSRP |
$1,190.00 (USD) |
| |
MATERIAL |
TTi |
| |
MAIN PIPE A DIAMETER |
3.15inch(80mm) |
2.38inch(60.5mm) |
MAIN PIPE THICKNESS |
1.0 |
1.5 |
SILENCER DIAMETER |
5.98inch(152mm)
|
7.09×16.93inch(180×430mm) Oval |
SILENCER THICKNESS |
1.0 |
1.5mm |
EXIT DIAMETER |
4.53inch(115mm) |
2.5×2.13inch(63.5×54.0mm) Oval
|
EXIT THICKNESS |
1.0mm |
- |
FLANGE THICKNESS |
8.0mm |
8.0mm |
WEIGHT |
15.43lbs(7.0kg) |
47.4 lbs(21.5 kg) |
|
|
|

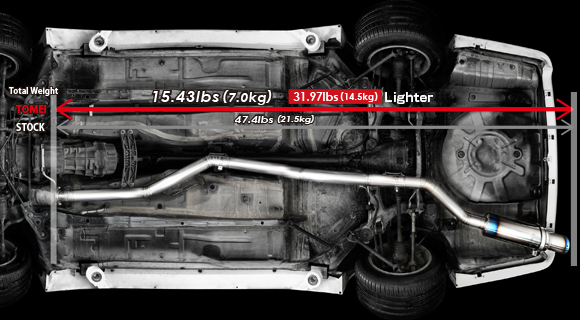

| WEIGHT COMPARISON |
TOMEI |
STOCK |
| 15.43 lbs (7.0 kg) |
47.4 lbs(21.5 kg) |
|
|
31.97lbs
(14.5kg)
Weight Reduction!! |
|
|

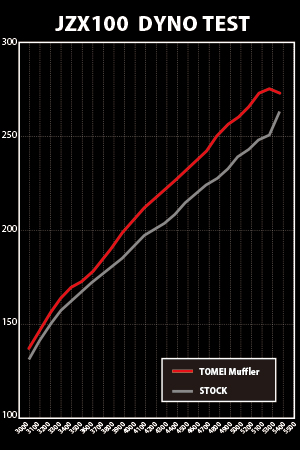

| TEST DATA |
|
| |
|
| |
| EXHAUST NOISE TEST |
|
 |
|
|
|
| |
|
|

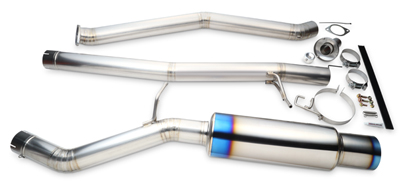

| MAIN PIPE A (1) |
|
| MAIN PIPE B (1) |
|
| SILENCER (1) |
|
| GASKET (1) |
|
| FLANGE BOLT M10 L=35mm P=1.25mm (2) |
|
| FLANGE NUT M10 P=1.25mm (2) |
|
| CLAMP BAND (2) |
|
| SPRING (2) |
|
| SILENCER BAND (1) |
|
|
|
| SILENCER BAND RUBBER (1) |
|
| FLANGE BOLT M8 L=25mm P=1.25mm (1) |
|
| FLANGE NUT M8 P=1.25mm (1) |
|
| SOUND REDUCER ver.2 (1) |
|
| BUTTON BOLT (3) |
|
| FLANGE NUT (3) |
|
| ALLEN KEY (1) |
|
| ZIP TIE (1) |
|
| BOLT SMOOTH PASTE (1) |
|
|
|
|
|
|
