Application:
INFINITY Q50 / NISSAN SKYLINE 400R
|
|

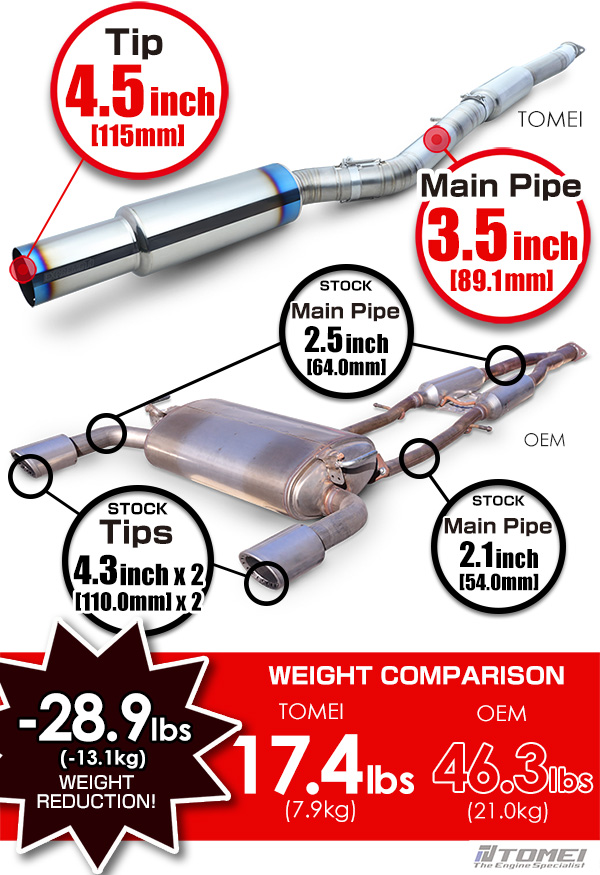

![](image_ti/fd3s/tit_comparison_10.jpg) |
![](image_ti/q50/Q50_comparisson_600.jpg) |
|
FULL TITANIUM MUFFLER SPECIFICATION |
|
TOMEI |
STOCK |
PART No. |
TB6090-NS21A |
- |
MSRP |
$1,390.00(USD) |
- |
MATERIAL |
Ti |
- |
MAIN PIPE DIAMETER |
3.5inch(89.1mm) |
2.5-2.1-2.5inch
(64.0-54.0-64.0mm) |
MAIN PIPE THICKNESS |
1.0mm |
- |
SUB SILENCER DIAMETER |
4.6inch(118.0mm) |
3.9inch(100.0mm) x2 |
SUB SILENCER THICKNESS |
1.0mm |
- |
SILENCER DIAMETER |
6.0inch(152.0mm) |
27.6x12.6x7.5inch
(700.0x320.0x190.0mm) |
SILENCER THICKNESS |
1.0mm |
- |
EXIT DIAMETER |
4.5inch(115.0mm) |
4.3inch(110.0mm)x2 |
EXIT THICKNESS |
1.0mm |
- |
FLANGE THICKNESS |
8.0mm |
8.0mm |
WEIGHT |
17.4lbs
(7.9kg) |
46.3lbs
21.0kg |
|
|
|

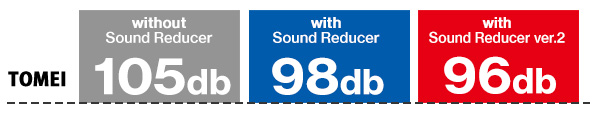

![](image_ti/q50/tit_sound_q50.jpg) |
Only Muffler installed |
![](image_ti/g35/G35_sound.jpg) |
|
|
![](image_ti/civic/20200221_17.jpg) |

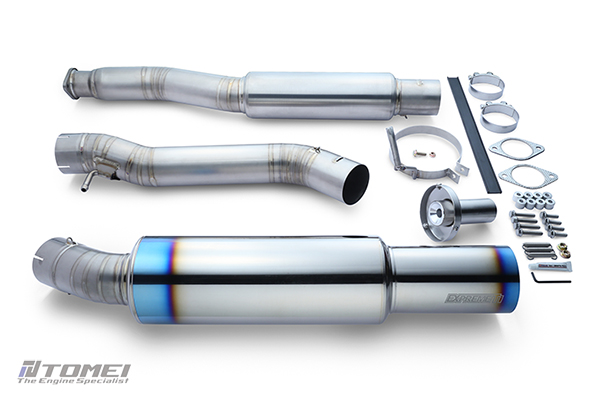

This kit includes all the components necessary for installation including the bolts and nuts. Bolt Smooth Paste is also included to help prevent the bolts becoming seized under heat. |
|
|
![](image_ti/q50/q50_kit.jpg) |
|
|
