Application:
INFINITI Q60
|
| |
| |
 |
 |
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
| |
 |
 |
| |
| FULL TITANIUM MUFFLER SPECIFICATION |
| |
TOMEI |
STOCK |
| PART No. |
TB6090-NS21B |
- |
| MSRP |
$1,390.00(USD) |
- |
| MATERIAL |
Ti |
- |

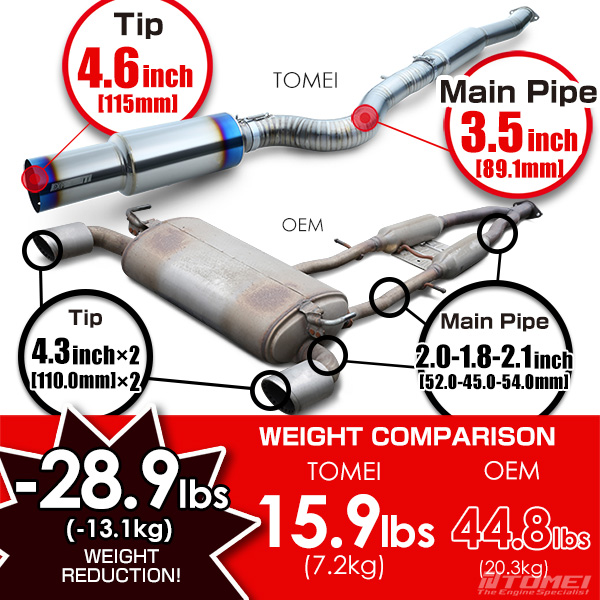

| MAIN PIPE DIAMETER |
3.5inch
(89.1mm) |
2.0-1.8-2.1inch
(52.0-45.0-54.0mm) |
| MAIN PIPE THICKNESS |
1.0mm |
- |
| SUB SILENCER DIAMETER |
4.6inch
(118.0mm) |
3.4inch x2
(100.0mm) x2 |
| SUB SILENCER THICKNESS |
1.0mm |
- |
| SILENCER DIAMETER |
6.0inch
(152.0mm) |
27.6x12.6x7.5inch
(700.0x320.0x190.0mm) |
| SILENCER THICKNESS |
1.0mm |
- |
| EXIT DIAMETER |
4.5inch
(115.0mm) |
4.3inch x2
(110.0mm) x2 |
| EXIT THICKNESS |
1.0mm |
- |
| FLANGE THICKNESS |
8.0mm |
8.0mm |

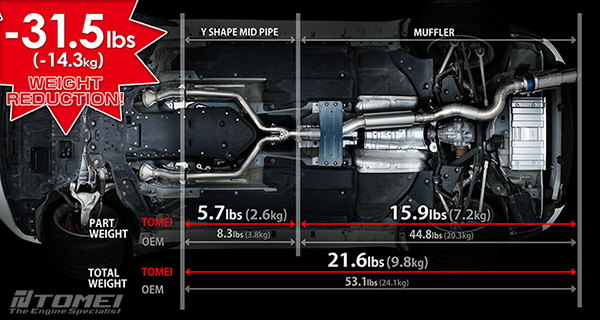

| WEIGHT |
15.9lbs
(7.2kg) |
44.8lbs
(20.3kg) |
|
| |
| |
 |
| Only Muffler installed |
 |
| |
| |
 |

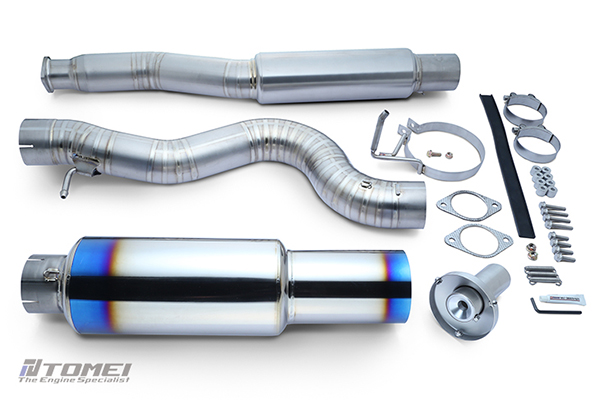

| This kit includes all the components necessary for installation including the bolts and nuts. Bolt Smooth Paste is also included to help prevent the bolts becoming seized under heat. |
|
|
 |
| |
|
