TYPE AX |
|

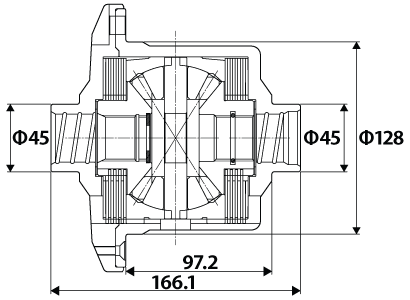

Main body dimensions. |
![](axa01.gif) |
|
Size of ring gear bolts |
Φ12.0
(Hole diameter
Φ12.3) |
Number of ring gear bolts |
10 |
Ring gear bolts PCD |
150 |
|
|
|
|
|
![](kara.gif) |
Dimensions of the flanges left side slot |
|
![](axa02-e.jpg) |
|
Number of Teeth |
29T |
snap ring |
Without |
Washer |
With |
The manufacturers genuine parts side flange part number. |
38220-73L01 |
38220-53F01 |
|
|
|
|
Dimensions of the flanges right side slot |
|
![](axa03-e.jpg) |
|
Number of Teeth |
29T |
snap ring |
Without |
Washer |
With |
The manufacturers genuine parts side flange part number. |
38220-73L01 |
38220-53F01 |
|
|
|
|
|
Check the specifications and dimensions at the end. |
|
|
![](kara.gif) |
TYPE CX |
![](kara.gif) |

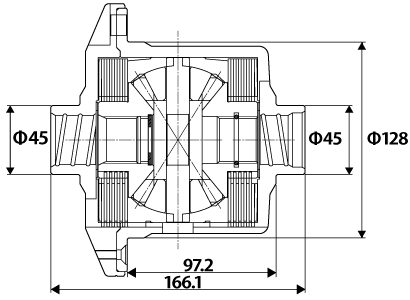

Main body dimensions. |
![](cxa01.gif) |
|
Size of ring gear bolts |
Φ13.0
(Hole diameter
Φ13.3) |
Number of ring gear bolts |
10 |
Ring gear bolts PCD |
150 |
|
|
|
|
|
![](kara.gif) |
Dimensions of the flanges left side slot |
|
![](cxa02-e.gif) |
|
Number of Teeth |
29T |
snap ring |
Without |
Washer |
With |
The manufacturers genuine parts side flange part number. |
38220-73L00 |
38220-92L00 |
|
|
|
|
Dimensions of the flanges right side slot |
|
![](cxa03-e.gif) |
|
Number of Teeth |
29T |
snap ring |
With |
Washer |
Without |
The manufacturers genuine parts side flange part number. |
38220-73L00 |
38220-92L00 |
|
|
|
|
|
Check the specifications and dimensions at the end. |
|
![](kara.gif) |
TYPE EX |
![](kara.gif) |

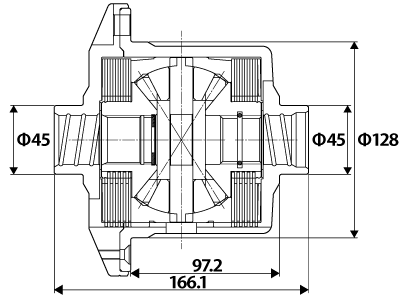

Main body dimensions. |
![](exa01.gif) |
|
Size of ring gear bolts |
Φ13.0
(Hole diameter
Φ13.3) |
Number of ring gear bolts |
10 |
Ring gear bolts PCD |
150 |
|
|
|
|
|
![](kara.gif) |
Dimensions of the flanges left side slot |
|
![](exa02-e.gif) |
|
Number of Teeth |
30T |
snap ring |
Without |
Washer |
With |
The manufacturers genuine parts side flange part number. |
38220-AA075 |
38220-94L00 |
|
|
|
|
Dimensions of the flanges right side slot |
|
![](exa03-e.gif) |
|
Number of Teeth |
30T |
snap ring |
With |
Washer |
Without |
The manufacturers genuine parts side flange part number. |
38220-AA075 |
38220-94L00 |
|
|
|
|
|
Check the specifications and dimensions at the end. |
|
![](kara.gif) |
TYPE EA |
![](kara.gif) |

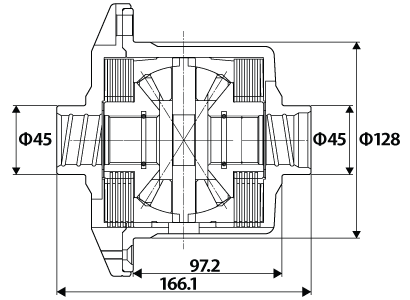

Main body dimensions. |
![](ea01.gif) |
|
Size of ring gear bolts |
Φ13.0
(Hole diameter
Φ13.3) |
Number of ring gear bolts |
10 |
Ring gear bolts PCD |
150 |
|
|
|
|
|
![](kara.gif) |
Dimensions of the flanges left side slot |
|
![](ea02-e.gif) |
|
Number of Teeth |
30T |
snap ring |
With |
Washer |
Without |
The manufacturers genuine parts side flange part number. |
338220-4P060 |
38220-05U11 |
|
|
|
|
Dimensions of the flanges right side slot |
|
![](ea03-e.gif) |
|
Number of Teeth |
30T |
snap ring |
With |
Washer |
Without |
The manufacturers genuine parts side flange part number. |
38220-4P061 |
38220-05U10 |
|
|
|
|
|
Check the specifications and dimensions at the end. |
TYPE EA Application Compatibility |
|
![](kara.gif) |
TYPE IA |
![](kara.gif) |

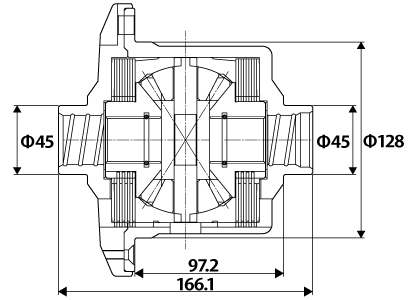

Main body dimensions. |
![](ia01.gif) |
|
Size of ring gear bolts |
Φ12.0
(Hole diameter
Φ12.3) |
Number of ring gear bolts |
10 |
Ring gear bolts PCD |
150 |
|
|
|
|
|
![](kara.gif) |
Dimensions of the flanges left side slot |
|
![](ia02-e.gif) |
|
Number of Teeth |
29T |
snap ring |
With |
Washer |
Without |
The manufacturers genuine parts side flange part number. |
38220-51F01 |
|
|
|
|
Dimensions of the flanges right side slot |
|
![](ia03-e.gif) |
|
Number of Teeth |
29T |
snap ring |
With |
Washer |
Without |
The manufacturers genuine parts side flange part number. |
38220-51F00 |
|
|
|
|
|
Check the specifications and dimensions at the end. |
TYPE IA Application Compatibility |
|
![](kara.gif) |
TYPE HA |
![](kara.gif) |
Main body dimensions. |

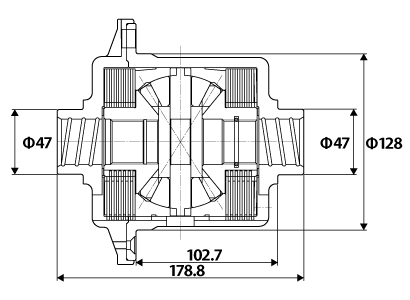

![](ha01.gif) |
|
Size of ring gear bolts |
Φ13.0
(Hole diameter
Φ13.3) |
Number of ring gear bolts |
10 |
Ring gear bolts PCD |
150 |
|
|
|
|
|
![](kara.gif) |
Dimensions of the flanges left side slot |
|
![](ha02.gif) |
|
Number of Teeth |
31T |
snap ring |
Without |
Washer |
Without |
The manufacturers genuine parts side flange part number. |
38220-AR011 |
|
|
|
|
Dimensions of the flanges right side slot |
|
![](ha03-e.gif) |
|
Number of Teeth |
31T |
snap ring |
With |
Washer |
Without |
The manufacturers genuine parts side flange part number. |
38220-AR010 |
|
|
|
|
|
Check the specifications and dimensions at the end. |
TYPE HA Application Compatibility |
|
![](kara.gif) |
TYPE HX |
![](kara.gif) |

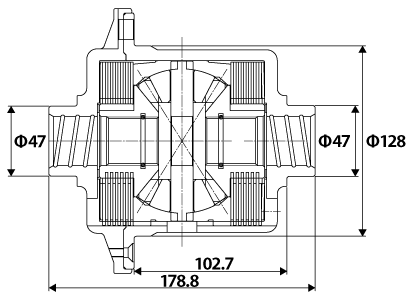

Main body dimensions. |
![](hxa01.gif) |
|
Size of ring gear bolts |
Φ13.0
(Hole diameter
Φ13.3) |
Number of ring gear bolts |
10 |
Ring gear bolts PCD |
150 |
|
|
|
|
|
![](kara.gif) |
Dimensions of the flanges left side slot |
|
![](hxa02-e.gif) |
|
Number of Teeth |
31T |
snap ring |
With |
Washer |
Without |
The manufacturers genuine parts side flange part number. |
|
|
|
|
|
Dimensions of the flanges right side slot |
|
![](hxa03-e.gif) |
|
Number of Teeth |
31T |
snap ring |
With |
Washer |
Without |
The manufacturers genuine parts side flange part number. |
|
|
|
|
|
|
Check the specifications and dimensions at the end. |
TYPE HX Application Compatibility |
|
![](kara.gif) |
TYPE F |
![](kara.gif) |

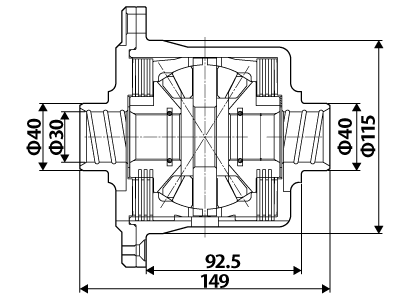

Main body dimensions. |
![](f01.gif) |
|
Size of ring gear bolts |
Φ11
(Hole diameter
Φ11.3) |
Number of ring gear bolts |
8 |
Ring gear bolts PCD |
135 |
|
|
|
|
|
![](kara.gif) |
Dimensions of the flanges left side slot |
|
![](f02-e.gif) |
|
Number of Teeth |
27T |
snap ring |
With |
Washer |
Without |
The manufacturers genuine parts side flange part number. |
38220-50F00 |
|
|
|
|
Dimensions of the flanges right side slot |
|
![](f03-e.gif) |
|
Number of Teeth |
27T |
snap ring |
With |
Washer |
Without |
The manufacturers genuine parts side flange part number. |
38220-50F00 |
|
|
|
|
|
Check the specifications and dimensions at the end. |
TYPE F Application Compatibility |
|
![](kara.gif) |
TYPE G |
![](kara.gif) |

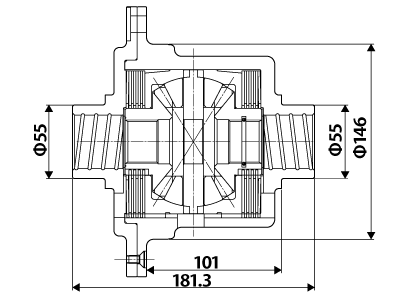

Main body dimensions. |
![](g01.gif) |
|
Size of ring gear bolts |
Φ12.3 |
Number of ring gear bolts |
12 |
Ring gear bolts PCD |
176 |
|
|
|
|
|
![](kara.gif) |
Dimensions of the flanges left side slot |
|
![](g02.gif) |
|
Number of Teeth |
31T |
snap ring |
Without |
Washer |
Without |
The manufacturers genuine parts side flange part number. |
38220-40P11 |
|
|
|
|
Dimensions of the flanges right side slot |
|
![](g03-e.gif) |
|
Number of Teeth |
31T |
snap ring |
With |
Washer |
Without |
The manufacturers genuine parts side flange part number. |
38220-40P10 |
|
|
|
|
|
Check the specifications and dimensions at the end. |
TYPE G Application Compatibility |
|
![](kara.gif) |
![](tit_toyota.gif) |
|
TYPE TA |
![](kara.gif) |

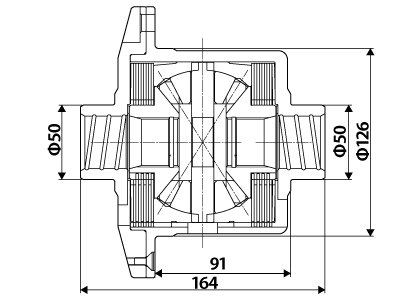

Main body dimensions. |
![](taa01.gif) |
|
Size of ring gear bolts |
Φ11.0 (Hole diameterφ11.3) |
Number of ring gear bolts |
10 |
Ring gear bolts PCD |
160 |
|
|
|
|
|
![](kara.gif) |
Dimensions of the flanges left side slot |
|
![](taa02-e.gif) |
|
Number of Teeth |
30T |
snap ring |
Without |
Washer |
Without |
snap ring groove |
With |
The manufacturers genuine parts side flange part number. |
41309-51010 |
|
|
|
|
Dimensions of the flanges right side slot |
|
![](taa03-e.gif) |
|
Number of Teeth |
30T |
snap ring |
Without |
Washer |
Without |
snap ring groove |
With |
The manufacturers genuine parts side flange part number. |
41309-51010 |
|
|
|
|
|
Check the specifications and dimensions at the end. |
TYPE TA Application Compatibility |
|
![](kara.gif) |
TYPE TX |
![](kara.gif) |

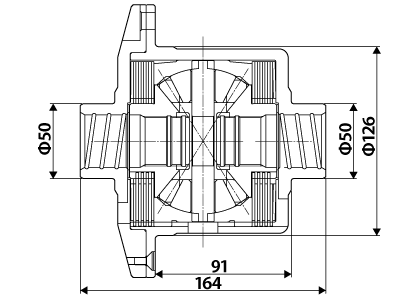

Main body dimensions. |
![](txa01.gif) |
|
Size of ring gear bolts |
Φ11.0 (Hole diameterφ11.3) |
Number of ring gear bolts |
10 |
Ring gear bolts PCD |
160 |
|
|
|
|
|
![](kara.gif) |
Dimensions of the flanges left side slot |
|
![](txa02-e.gif) |
|
Number of Teeth |
30T |
snap ring |
Without |
Washer |
Without |
snap ring groove |
With×2 |
The manufacturers genuine parts side flange part number. |
41309-22090 |
|
|
|
|
Dimensions of the flanges right side slot |
|
![](txa03-e.gif) |
|
Number of Teeth |
30T |
snap ring |
Without |
Washer |
Without |
snap ring groove |
With |
The manufacturers genuine parts side flange part number. |
41309-22090 |
|
|
|
|
|
Check the specifications and dimensions at the end. |
TYPE TX Application Compatibility |
|
![](kara.gif) |
TYPE TG |
![](kara.gif) |

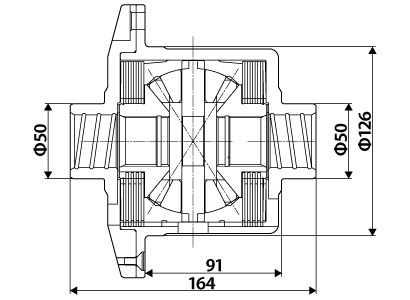

Main body dimensions. |
![](tga01.gif) |
|
Size of ring gear bolts |
Φ11.0
(Hole diameter
Φ11.3) |
Number of ring gear bolts |
10 |
Ring gear bolts PCD |
160 |
|
|
|
|
|
![](kara.gif) |
Dimensions of the flanges left side slot |
|
![](tga02-e.gif) |
|
Number of Teeth |
30T |
snap ring |
Without |
Washer |
Without |
snap ring groove |
With |
The manufacturers genuine parts side flange part number. |
― |
|
|
|
|
Dimensions of the flanges right side slot |
|
![](tga03-e.gif) |
|
Number of Teeth |
30T |
snap ring |
Without |
Washer |
Without |
snap ring groove |
With |
The manufacturers genuine parts side flange part number. |
― |
|
|
|
|
|
Check the specifications and dimensions at the end. |
TYPE TG Application Compatibility |
|
![](kara.gif) |
TYPE TB |
![](kara.gif) |

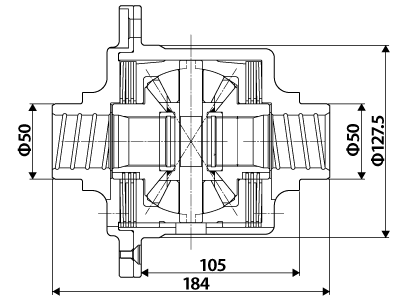

Main body dimensions. |
![](tb01.gif) |
|
Size of ring gear bolts |
Φ12.0
(Hole diameterΦ12.3) |
Number of ring gear bolts |
10 |
Ring gear bolts PCD |
150 |
|
|
|
|
|
![](kara.gif) |
Dimensions of the flanges left side slot |
|
![](tb02-e.gif) |
|
Number of Teeth |
30T |
snap ring |
Without |
Washer |
Without |
snap ring groove |
With |
The manufacturers genuine parts side flange part number. |
41309-24020 |
|
|
|
|
Dimensions of the flanges right side slot |
|
![](tb03-e.gif) |
|
Number of Teeth |
30T |
snap ring |
Without |
Washer |
Without |
snap ring groove |
With |
The manufacturers genuine parts side flange part number. |
41309-24020 |
|
|
|
|
|
Check the specifications and dimensions at the end. |
TYPE TB Application Compatibility |
|
![](kara.gif) |
TYPE TD |
![](kara.gif) |

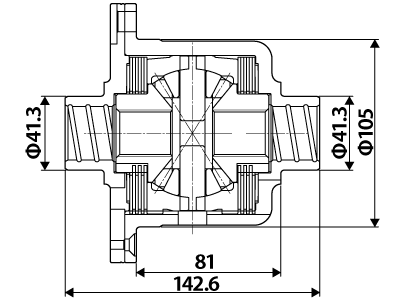

Main body dimensions. |
![](td01.gif) |
|
Size of ring gear bolts |
Φ11.0
(Hole diameterΦ11.3) |
Number of ring gear bolts |
8 |
Ring gear bolts PCD |
125 |
|
|
|
|
|
![](kara.gif) |
Dimensions of the flanges left side slot |
|
![](td02.gif) |
|
Number of Teeth |
23T |
snap ring |
Without |
Washer |
Without |
snap ring groove |
Without |
The manufacturers genuine parts side flange part number. |
42311-12101 |
42311-14121 |
|
|
|
|
Dimensions of the flanges right side slot |
|
![](td03.gif) |
|
Number of Teeth |
23T |
snap ring |
Without |
Washer |
Without |
snap ring groove |
Without |
The manufacturers genuine parts side flange part number. |
42311-12101 |
42311-14121 |
|
|
|
|
|
Check the specifications and dimensions at the end. |
TYPE TD Application Compatibility |
|
![](kara.gif) |
TYPE TE |
![](kara.gif) |
Main body dimensions. |

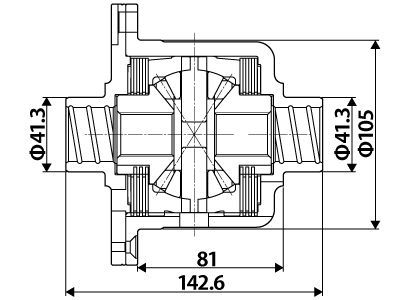

![](te01.gif) |
|
Size of ring gear bolts |
Φ11.0
(Hole diameterΦ11.3) |
Number of ring gear bolts |
8 |
Ring gear bolts PCD |
125 |
|
|
|
|
|
![](kara.gif) |
Dimensions of the flanges left side slot |
|
![](te02.gif) |
|
Number of Teeth |
23T |
snap ring |
Without |
Washer |
Without |
snap ring groove |
Without |
The manufacturers genuine parts side flange part number. |
42311-12100 |
|
|
|
|
Dimensions of the flanges right side slot |
|
![](te03.gif) |
|
Number of Teeth |
23T |
snap ring |
Without |
Washer |
Without |
snap ring groove |
Without |
The manufacturers genuine parts side flange part number. |
42311-12100 |
|
|
|
|
|
Check the specifications and dimensions at the end. |
TYPE TE Application Compatibility |
|
|
TYPE TC |
![](kara.gif) |
Main body dimensions. |

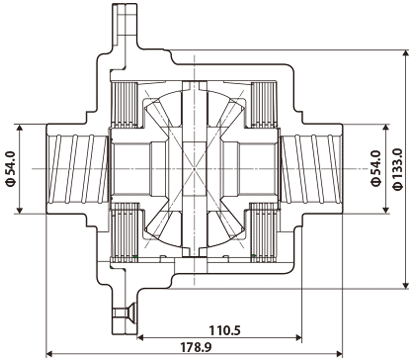

![](tc01.gif) |
|
Size of
ring gear bolts |
M12
(Hole diameter Φ12.3) |
Number of ring gear bolts |
12 |
Ring gear bolts PCD |
160 |
|
|
|
|
![](kara.gif) |
Dimensions of the flanges left side slot |
|
![](tc02.gif) |
|
Number of Teeth |
35T |
snap ring |
Without |
Washer |
Without |
snap ring groove |
Without |
The manufacturers genuine parts side flange part number. |
41309-14080 |
|
|
|
|
Dimensions of the flanges right side slot |
|
![](tc03.gif) |
|
Number of Teeth |
35T |
snap ring |
Without |
Washer |
Without |
snap ring groove |
Without |
The manufacturers genuine parts side flange part number. |
41309-14080 |
|
|
|
|
|
Check the specifications and dimensions at the end. |
TYPE TC Application Compatibility |
|
|
![](kara.gif) |
![](tit_mazda.gif) |
|
TYPE ZC |
![](kara.gif) |
Main body dimensions. |

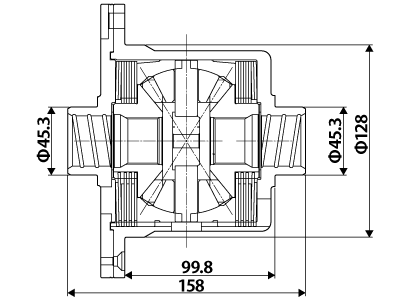

![](zca01.gif) |
|
Size of ring gear bolts |
Φ10.0
(Hole diameterΦ10.3) |
Number of ring gear bolts |
10 |
Ring gear bolts PCD |
160 |
|
|
|
|
|
![](kara.gif) |
Dimensions of the flanges left side slot |
|
![](zca02-e.gif) |
|
Number of Teeth |
23T |
snap ring |
Without |
Washer |
Without |
snap ring groove |
With |
The manufacturers genuine parts side flange part number. |
― |
|
|
|
|
Dimensions of the flanges right side slot |
|
![](zca03-e.gif) |
|
Number of Teeth |
23T |
snap ring |
Without |
Washer |
Without |
snap ring groove |
With |
The manufacturers genuine parts side flange part number. |
― |
|
|
|
|
|
Check the specifications and dimensions at the end. |
TYPE ZC Application Compatibility |
|
![](kara.gif) |
TYPE ZD |
![](kara.gif) |
Main body dimensions. |

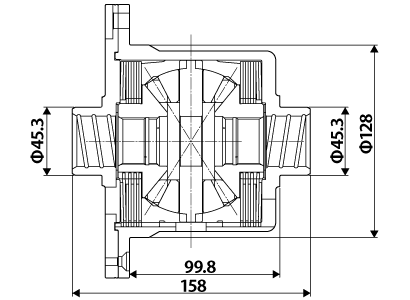

![](zda01.gif) |
|
Size of ring gear bolts |
Φ10.0
(Hole diameterΦ10.3) |
Number of ring gear bolts |
10 |
Ring gear bolts PCD |
160 |
|
|
|
|
|
![](kara.gif) |
Dimensions of the flanges left side slot |
|
![](zda02-e.gif) |
|
Number of Teeth |
30T |
snap ring |
Without |
Washer |
Without |
snap ring groove |
With |
The manufacturers genuine parts side flange part number. |
― |
|
|
|
|
Dimensions of the flanges right side slot |
|
![](zda03-e.gif) |
|
Number of Teeth |
30T |
snap ring |
Without |
Washer |
Without |
snap ring groove |
With |
The manufacturers genuine parts side flange part number. |
― |
|
|
|
|
|
Check the specifications and dimensions at the end. |
TYPE ZD Application Compatibility |
|
![](kara.gif) |
TYPE ZA |
![](kara.gif) |
Main body dimensions. |

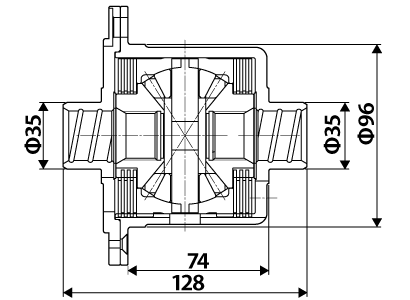

![](za01.gif) |
|
Size of ring gear bolts |
Φ10.0
(Hole diameterΦ10.3) |
Number of ring gear bolts |
8 |
Ring gear bolts PCD |
114 |
|
|
|
|
|
![](kara.gif) |
Dimensions of the flanges left side slot |
|
![](za02-e.gif) |
|
Number of Teeth |
24T |
snap ring |
Without |
Washer |
Without |
snap ring groove |
With |
The manufacturers genuine parts side flange part number. |
― |
|
|
|
|
Dimensions of the flanges right side slot |
|
![](za03-e.gif) |
|
Number of Teeth |
24T |
snap ring |
Without |
Washer |
Without |
snap ring groove |
With |
The manufacturers genuine parts side flange part number. |
― |
|
|
|
|
|
Check the specifications and dimensions at the end. |
TYPE ZA Application Compatibility |
|
![](kara.gif) |
TYPE ZB |
![](kara.gif) |
Main body dimensions. |

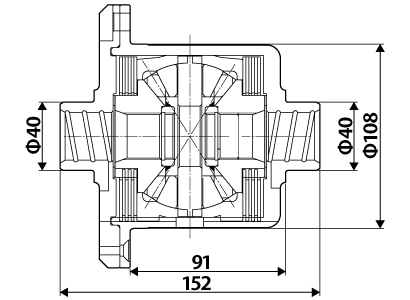

![](zb01.gif) |
|
Size of ring gear bolts |
Φ10.0
(Hole diameterΦ10.3) |
Number of ring gear bolts |
10 |
Ring gear bolts PCD |
134 |
|
|
|
|
|
![](kara.gif) |
Dimensions of the flanges left side slot |
|
![](zb02-e.gif) |
|
Number of Teeth |
26T |
snap ring |
Without |
Washer |
Without |
snap ring groove |
With |
The manufacturers genuine parts side flange part number. |
― |
|
|
|
|
Dimensions of the flanges right side slot |
|
![](zb03-e.gif) |
|
Number of Teeth |
26T |
snap ring |
Without |
Washer |
Without |
snap ring groove |
With |
The manufacturers genuine parts side flange part number. |
― |
|
|
|
|
|
Check the specifications and dimensions at the end. |
TYPE ZB Application Compatibility |
|
![](kara.gif) |
TYPE ZE |
![](kara.gif) |
Main body dimensions. |

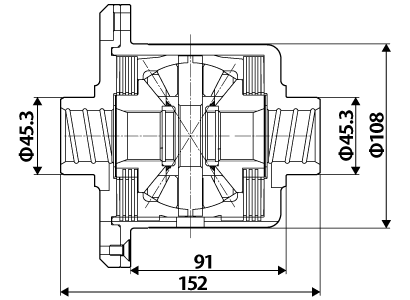

![](ze01.gif) |
|
Size of ring gear bolts |
Φ10.0
(Hole diameterΦ10.3) |
Number of ring gear bolts |
10 |
Ring gear bolts PCD |
134 |
|
|
|
|
|
![](kara.gif) |
Dimensions of the flanges left side slot |
|
![](ze02-e.gif) |
|
Number of Teeth |
28T |
snap ring |
Without |
Washer |
Without |
snap ring groove |
With |
The manufacturers genuine parts side flange part number. |
― |
|
|
|
|
Dimensions of the flanges right side slot |
|
![](ze03-e.gif) |
|
Number of Teeth |
28T |
snap ring |
Without |
Washer |
Without |
snap ring groove |
With |
The manufacturers genuine parts side flange part number. |
― |
|
|
|
|
|
Check the specifications and dimensions at the end. |
TYPE ZE Application Compatibility |
|
![](kara.gif) |
TYPE ZF |
![](kara.gif) |
Main body dimensions. |

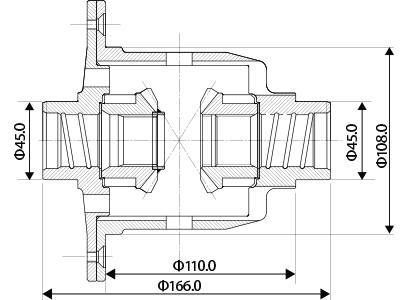

![](zf01.gif) |
|
Size of ring gear bolts |
M12 |
Number of ring gear bolts |
10 |
Ring gear bolts PCD |
134 |
|
|
|
|
|
![](kara.gif) |
Dimensions of the flanges left side slot |
|
![](zf02.gif) |
|
Number of Teeth |
28T |
snap ring |
Without |
Washer |
Without |
The manufacturers genuine parts side flange part number. |
― |
|
|
|
|
Dimensions of the flanges right side slot |
|
![](zf03.gif) |
|
Number of Teeth |
28T |
snap ring |
Without |
Washer |
Without |
The manufacturers genuine parts side flange part number. |
― |
|
|
|
|
|
Check the specifications and dimensions at the end. |
TYPE ZF Application Compatibility |
|
|
|
![](kara.gif) |
![](tit_honda.gif) |
|
TYPE BA |
![](kara.gif) |

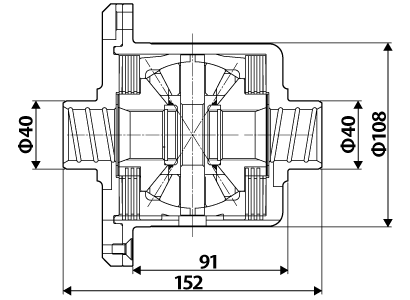

Main body dimensions. |
![](ba01.gif) |
|
Size of ring gear bolts |
Φ10.0
(Hole diameterΦ10.3) |
Number of ring gear bolts |
10 |
Ring gear bolts PCD |
134 |
|
|
|
|
|
![](kara.gif) |
Dimensions of the flanges left side slot |
|
![](ba02-e.gif) |
|
Number of Teeth |
28T |
snap ring |
Without |
Washer |
Without |
snap ring groove |
With |
The manufacturers genuine parts side flange part number. |
― |
|
|
|
|
Dimensions of the flanges right side slot |
|
![](ba03-e.gif) |
|
Number of Teeth |
28T |
snap ring |
Without |
Washer |
Without |
snap ring groove |
With |
The manufacturers genuine parts side flange part number. |
― |
|
|
|
|
|
Check the specifications and dimensions at the end. |
TYPE BA Application Compatibility |
|
![](kara.gif) |
![](tit_subaru.gif) |
|
TYPE TG |
![](kara.gif) |
Main body dimensions. |
![](tga01.gif) |
|
Size of ring gear bolts |
Φ11.0
(Hole diameter
Φ11.3) |
Number of ring gear bolts |
10 |
Ring gear bolts PCD |
160 |
|
|
|
|
|
![](kara.gif) |
Dimensions of the flanges left side slot |
|
![](tga02-e.gif) |
|
Number of Teeth |
30T |
snap ring |
Without |
Washer |
Without |
snap ring groove |
With |
The manufacturers genuine parts side flange part number. |
― |
|
|
|
|
Dimensions of the flanges right side slot |
|
![](tga03-e.gif) |
|
Number of Teeth |
30T |
snap ring |
Without |
Washer |
Without |
snap ring groove |
With |
The manufacturers genuine parts side flange part number. |
― |
|
|
|
|
|
Check the specifications and dimensions at the end. |
TYPE TG Application Compatibility |
|
![](kara.gif) |
![](kara.gif) ![](tit_hyundai.gif) |
|
|
TYPE KA |
![](kara.gif) |

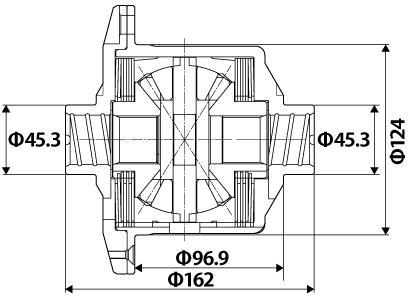

Main body dimensions. |
![](kaa01.gif) |
|
Size of ring gear bolts |
Φ11.0
(Hole diameter
Φ11.3) |
Number of ring gear bolts |
10 |
Ring gear bolts PCD |
160 |
|
|
|
|
|
![](kara.gif) |
Dimensions of the flanges left side slot |
|
![](kaa02.gif) |
|
Number of Teeth |
30T |
snap ring |
Without |
Washer |
Without |
snap ring groove |
Without |
The manufacturers genuine parts side flange part number. |
― |
|
|
|
|
Dimensions of the flanges right side slot |
|
![](kaa03.gif) |
|
Number of Teeth |
30T |
snap ring |
Without |
Washer |
Without |
snap ring groove |
Without |
The manufacturers genuine parts side flange part number. |
― |
|
|
|
|
|
Check the specifications and dimensions at the end. |
TYPE KA Application Compatibility |
|
|
