![](image/pic/rb26_oilpump/RB26oilpump_1-_EN_01.jpg) |
|
![](image/pic/kara10.gif) |
PART No. |
PRODUCT NAME |
MSRP(USD) |
|
TB203A-NS05A |
OVERSIZED
OIL PUMP
RB26DETT/
RB25DE(T)/
RB20DE(T) |
$1,380.00 |
![](image/pic/rb26_oilpump/TB203A-NS05A_200.jpg) |
|
![](image/pic/kara10.gif) |
![](image/pic/rb26_oilpump/RB26oilpump_1-_EN_03.jpg) |
![](image/pic/kara10.gif) |
![](image/pic/rb26_oilpump/RB26oilpump_point2_EN.jpg) |
![](image/pic/kara10.gif) |
![](image/pic/rb26_oilpump/RB26oilpump_point3_EN.jpg) |
![](image/pic/kara10.gif) |

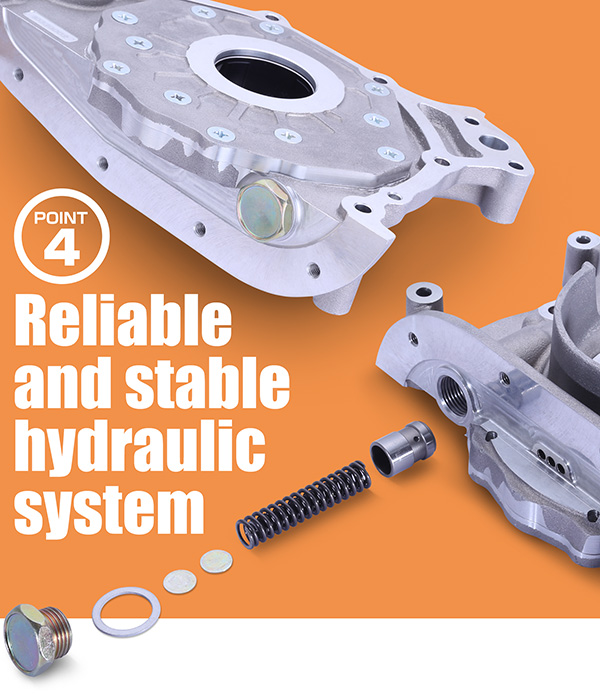

![](image/pic/rb26_oilpump/RB26oilpump_point4_EN.jpg) |
[RB26DETT OIL PRESSURE REFERENCE DATA] |
@RPM@ |
Oil pressure(kgf/cm2) |
Double spring + 2 shim
(Out of the box specifications)
|
Double spring + 1 shim |
3000 |
5.94 |
5.50 |
3500 |
6.10 |
5.70 |
4000 |
6.32 |
5.70 |
4500 |
6.50 |
5.90 |
5000 |
6.60 |
5.90 |
5500 |
6.60 |
6.00 |
6000 |
6.53 |
6.00 |
6500 |
6.20 |
5.80 |
7000 |
6.10 |
5.65 |
7500 |
6.00 |
5.60 |
|
|
|
SPECIFICATION COMPARISON VS. STOCK |
|
![](image/spacer_free.gif) |
|
TOMEI
|
STOCK(RB26DETT) |
PART No. |
TB203A-NS05A |
- |
MSRP |
$1,380.00iUSDj |
- |

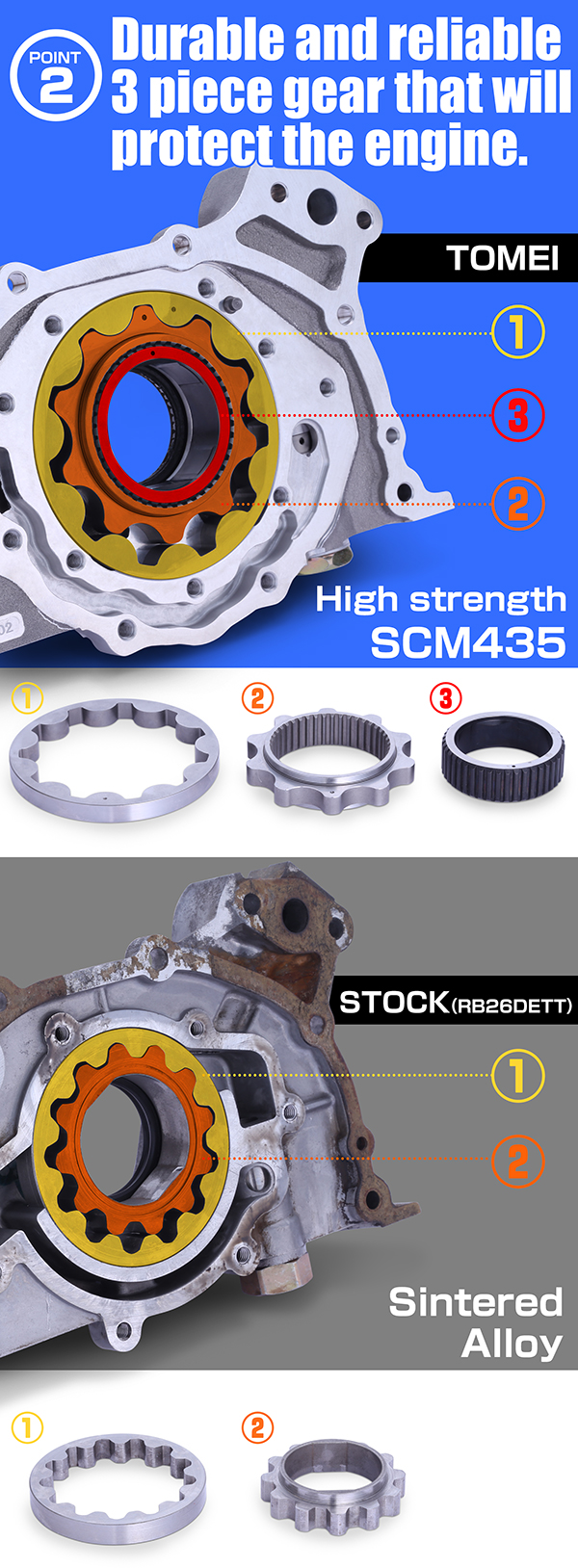

GEAR MATERIAL |
SCM435 |
SINTERED ALLOY |
GEAR SET |
3 PIECE GEAR |
2 PIECE GEAR |

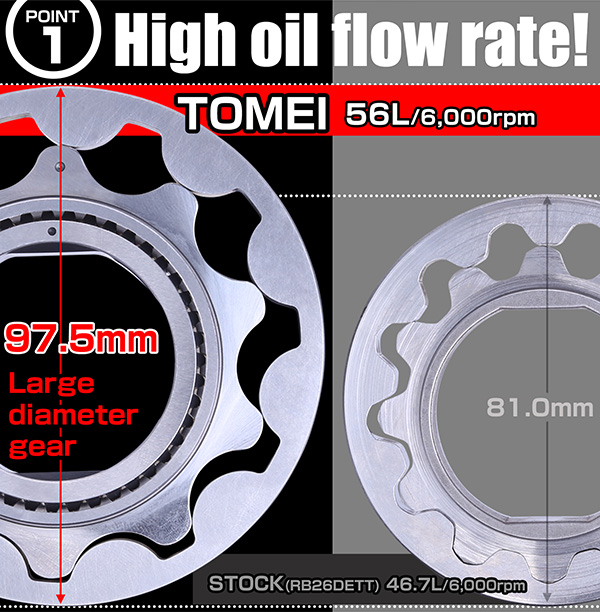

FLOW RATE |
56.0L/6000rpm |
46.7L/6000rpm |
OUTER GEAR DIAMETER |
97.5mm |
81.0mm |
OUTER GEAR THICKNESS |
9.5mm |
11.0mm |

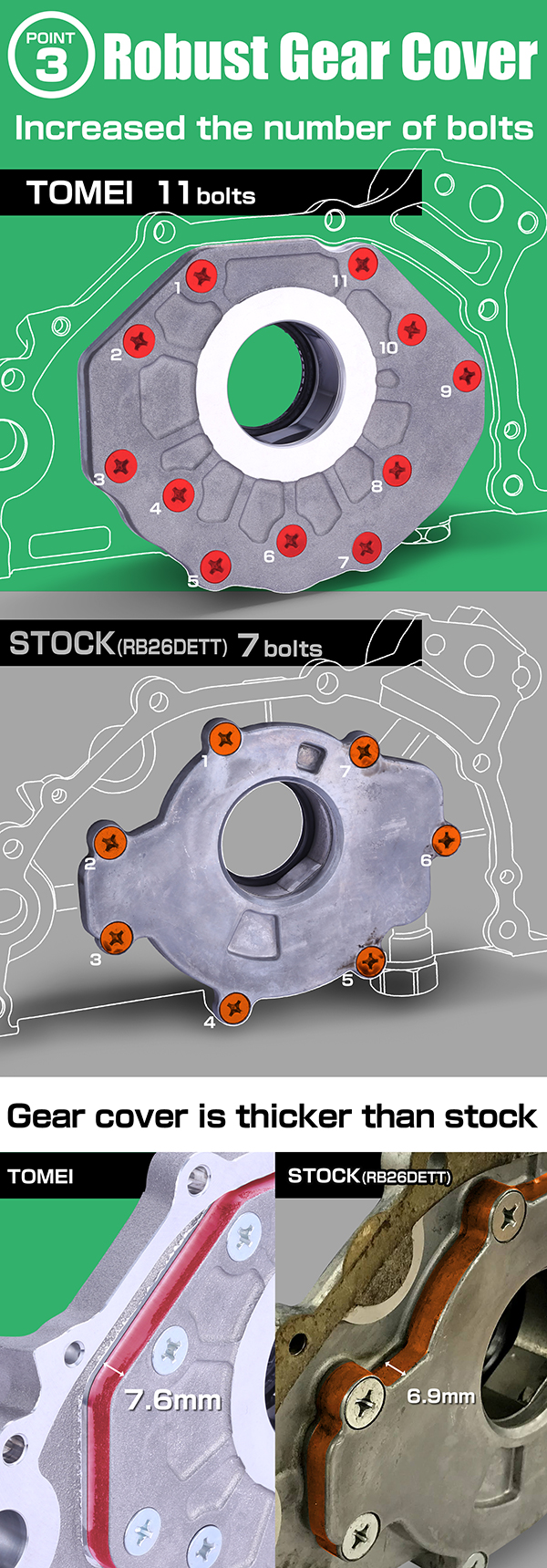

GEAR COVER THICKNESS |
7.6mm |
6.9mm |
|
![](image/pic/kara10.gif) |

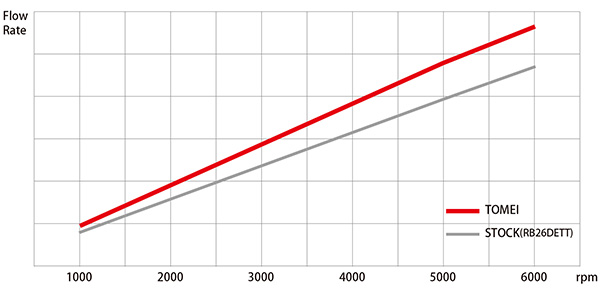

[OIL PUMP FLOW RATES] |
![](image/pic/rb26_oilpump/gluf_600.jpg) |
![](image/pic/kara10.gif) |

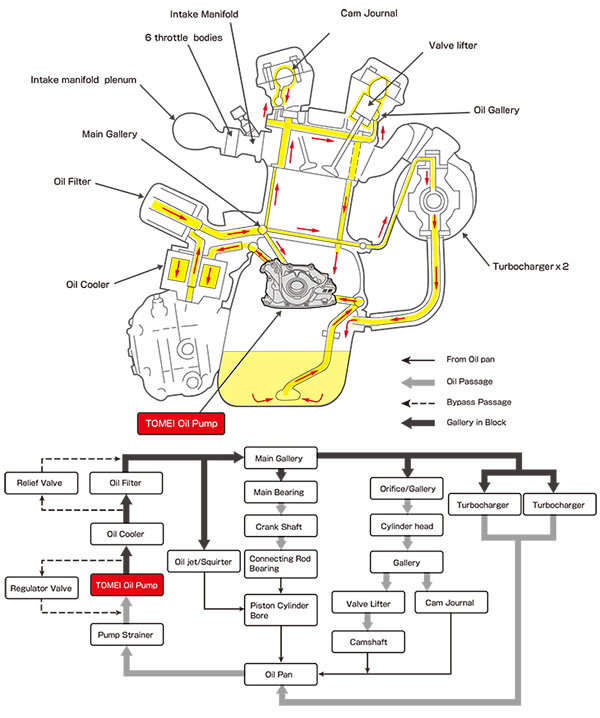

[RB26 OIL FLOW DIAGRAM] |
![](image/pic/rb26_oilpump/RB26_oilflow_diagram_600.jpg) |
|
![](image/pic/rb26_oilpump/rb26_oilpump_syoumen_600.jpg) |
![](image/pic/rb26_oilpump/rb26_oilpump_ura-naname_600.jpg) |
![](image/pic/rb26_oilpump/rb26_oilpump_naname_600.jpg) |
![](image/pic/rb26_oilpump/rb26_oilpump_naname_gearout_600.jpg) |
@ |
|
|
@ |
