RB28 FORGED "8-COUNTER WEIGHT" CRANKSHAFT |
 |
|
 |
 |
|
| Product |
Model |
Part
No. |
MSRP(USD) |
Note |
|
NISSAN
RB28 Forged
"8-Counterweight
" Crankshaft |
2.8L |
121025 |
$4,640.00 |
Special
piston & conrods
must be used. |
|
|
Stroke:77.7mm
(Normal 73.7mm)
Weight :20kg (Normal 20kg) |
| |
-
Superior
Response & Torque
design
-
Stroke 77.7mm
-
8 Counter Weight Type
-
Small Type Counterweight
-
Pulley section has
WPC Treatment
-
Highly Accurately
Balanced
|
|
|
|
|
|
SR22 FORGED "FULL-COUNTER"CRANKSHAFT |
|
|
|
 |
|
| Product |
Model |
Part
No. |
MSRP(USD) |
Note |
|
NISSAN
SR22 Forged
"Full-Counter" Crankshaft |
2.2L |
121008 |
$3,040.00 |
Special
Pistons
Required |
|
|
*Stroke: 91.0mm
(STD: 86.0mm)
*Weight: 18kg (STD: 17kg) |
|
|
|
|
|
4G63-22 FORGED "FULL-COUNTER" CRANKSHAFT |
|
|
|
 |
|
| Product |
Model |
Part
No. |
MSRP(USD) |
Note |
|
4G63
Forged Fullcounter
Crankshaft |
2.2L |
121011 |
$2,100.00
|
Special
pistons/Conrods
required |
|
|
*Stroke: 94.0mm (Normal 88.0mm)
*Weight : 17kg (Normal 14kg) |
|
|
|
|
|
4G63-23 FORGED BILLET FULL COUNTER CRANKSHAFT |
|
|
|
 |
|
Product |
Model |
Part
No. |
MSRP(USD) |
Note |
4G63 FORGED BILLET FULL COUNTER CRANKSHAFT |
2.3L |
121044 |
$2,100.00 |
Special
pistons/Conrods
required |
|
*Stroke :100.0mm(Normal 88.0mm)
*Weight: 18.5 kg(Normal 14kg)
■ EDGE SHAPE COUNTER WEIGHT
■ BALANCED FULL COUNTERWEIGHT |
|
|
|
|
|
EJ22 FORGED STRENGTHENED FULLCOUNTER CRANKSHAFT |
|
|
|
 |
|
| Product |
Model |
Part
No. |
MSRP(USD) |
Note |
|
EJ22 Forged Strengthened
Fullcounter Crankshaft |
2.2L |
121033 |
$1,710.00 |
|
|
|
*Stroke:79.0mm
(Normal 75.0mm)
*Weight :9.4kg (Normal
9.4kg) |
| |
NITRIDE SURFACE TREATMENT |
- Minimal
Heat Treatment Distortion
- Minimal
Size Change
- No
reduction in the Cores
strength
- Resistance
to abrasions & burn
characteristics
|
-> |
- Metal
protection
- Suited
for high output compatibility
- Suited
for high revolution
- Improvement
Durability
|
*
Since the metals width is
quite narrow for the EJ20
(16.5mm), it is difficult
to guarantee the metals
strength. So to avoid engine
trouble from metal burns
we had to increase the surface
hardness by using the palsonite
hardening process. The end
result was an improved metal
characteristic that reaches
an acceptable level. |
|
|
|
|
|

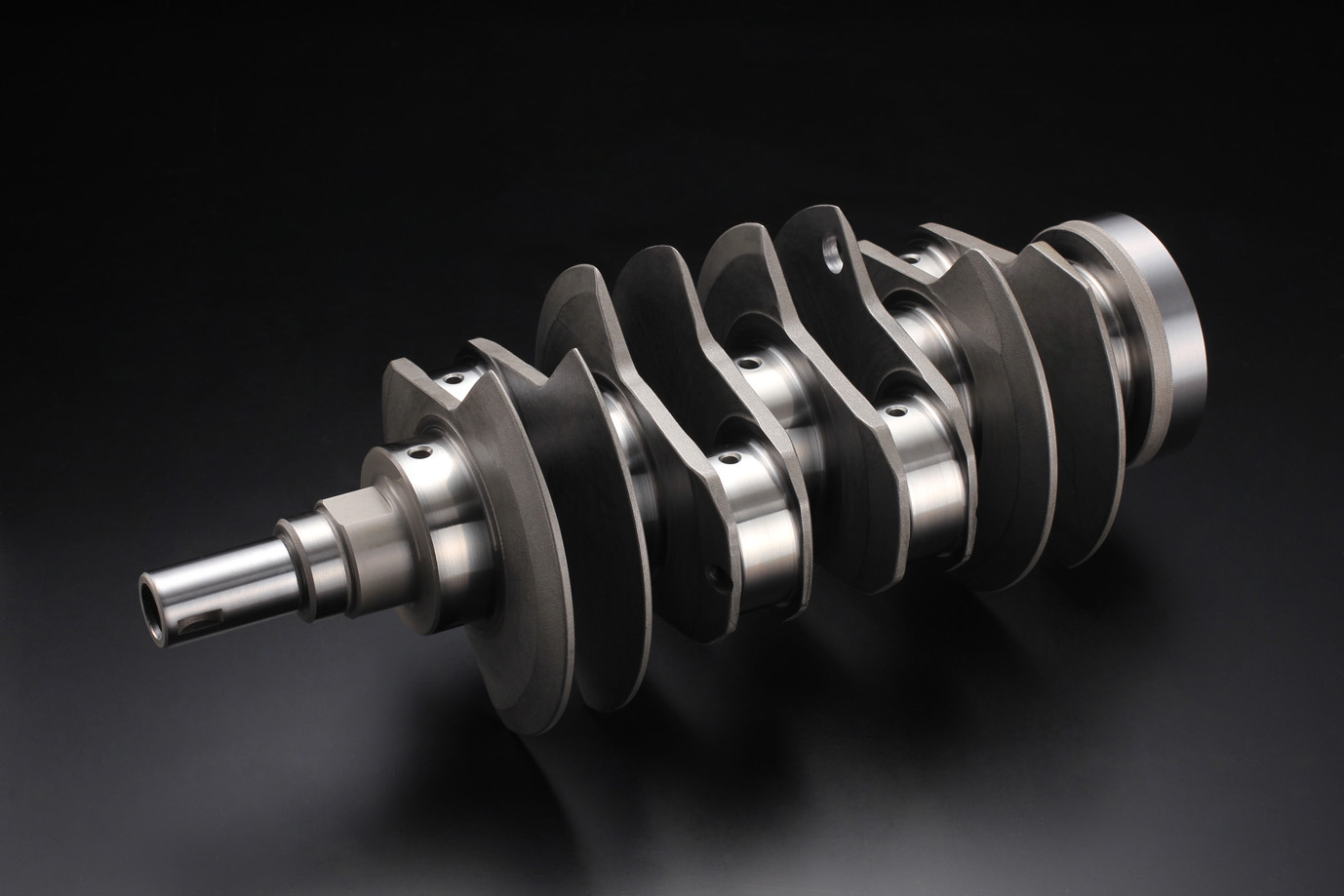

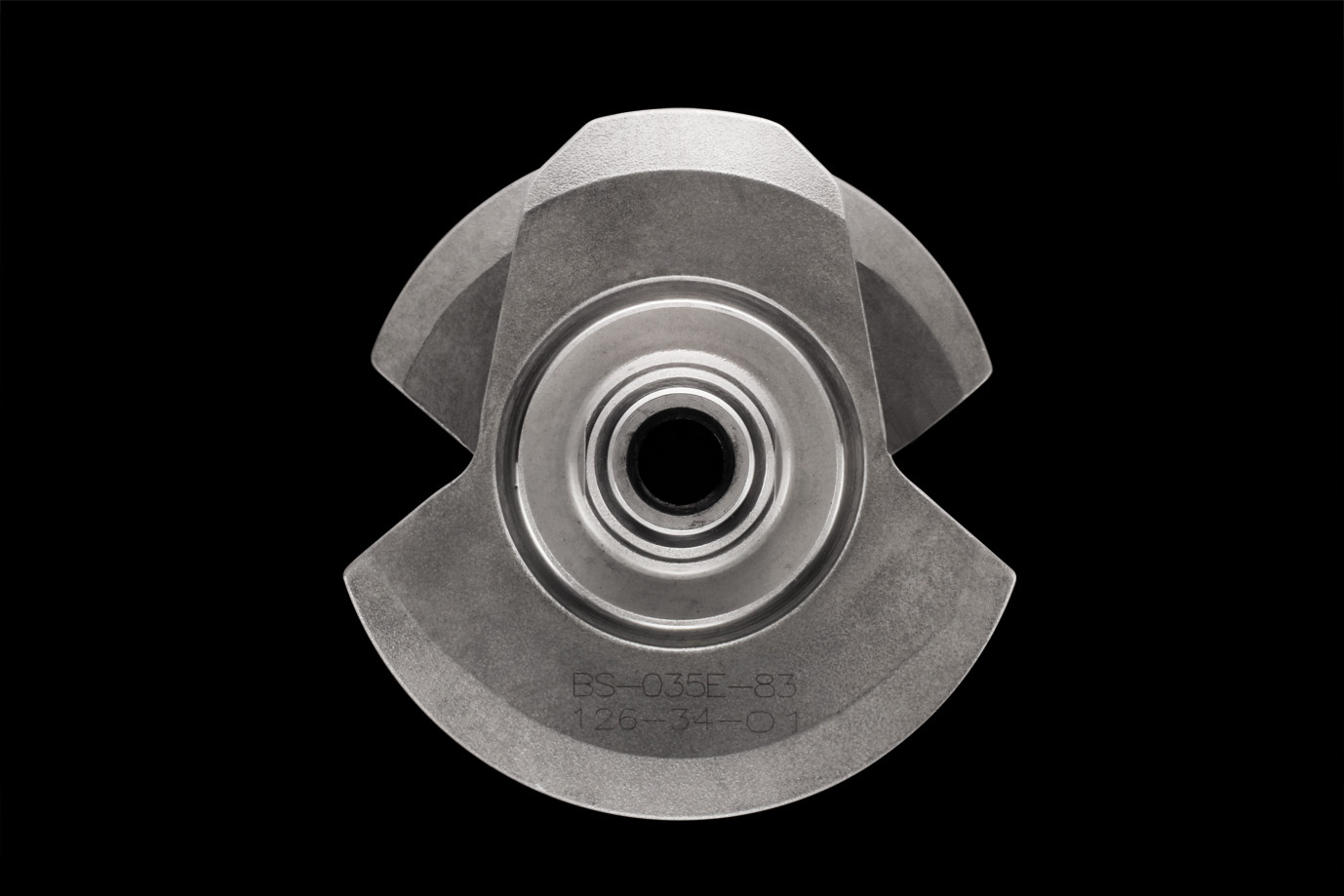

EJ26KIT FORGED FULL COUNTER CRANKSHAFT |
|
|
|
 |
| ■ STRENGTH & PRECISION |
|
|
Product |
Part No. |
MSRP |
FORGED FULL COUNTER
CRANKSHAFT |
121045 |
$1,790.00
(USD) |
|
|
STROKE
（mm） |
WEIGHT
（kg） |
STANDARD
STROKE (mm) |
STANDARD
WEIGHT （kg） |
MATERIAL |
83 |
9.2 |
79 |
9.4 |
SNCM439 |
|
| |
 |

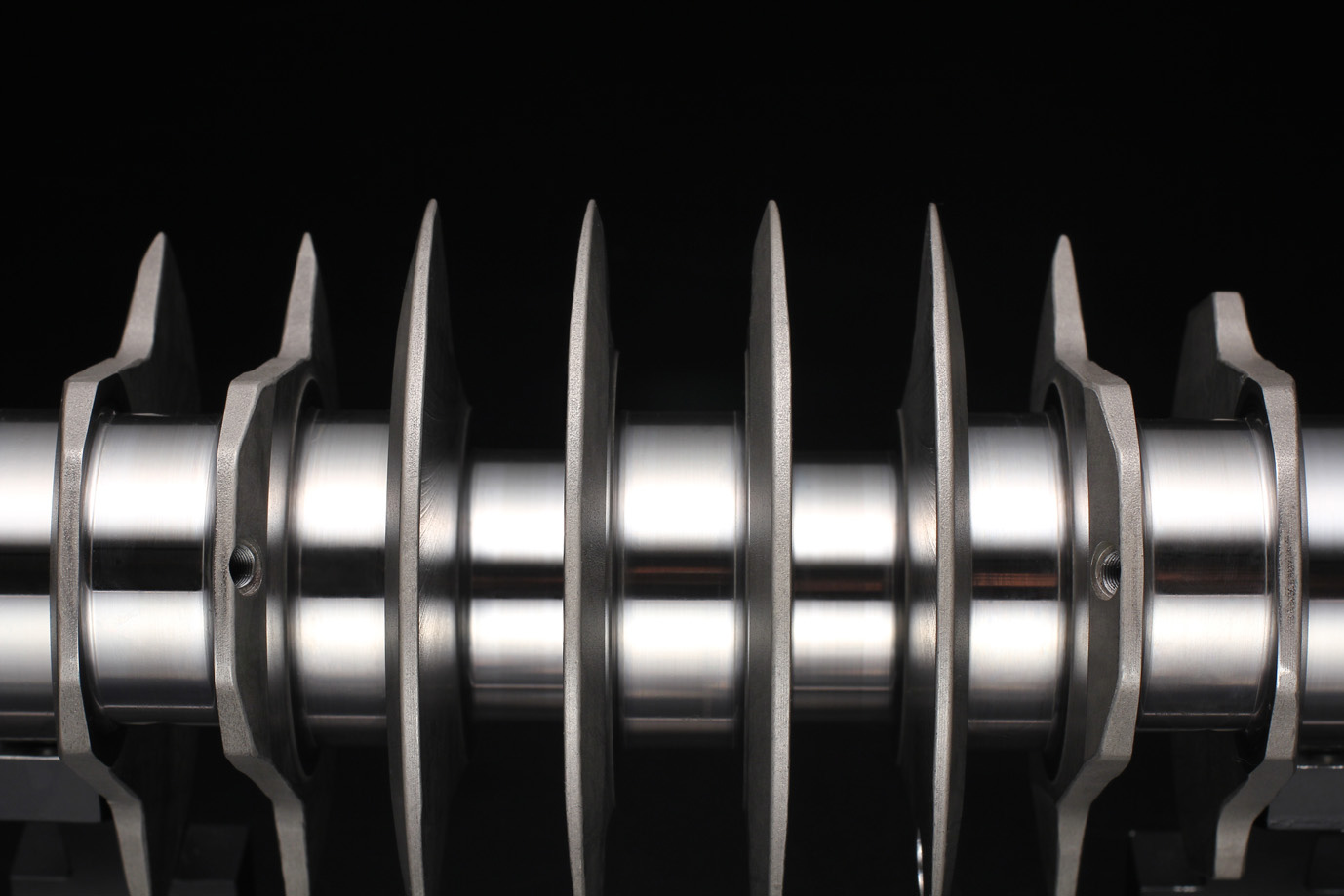

| ■ BALANCED FULL COUNTERWEIGHT |
|
|
 |
| ■ LIGHT & MINIMAL RESISTACE TYPE. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
