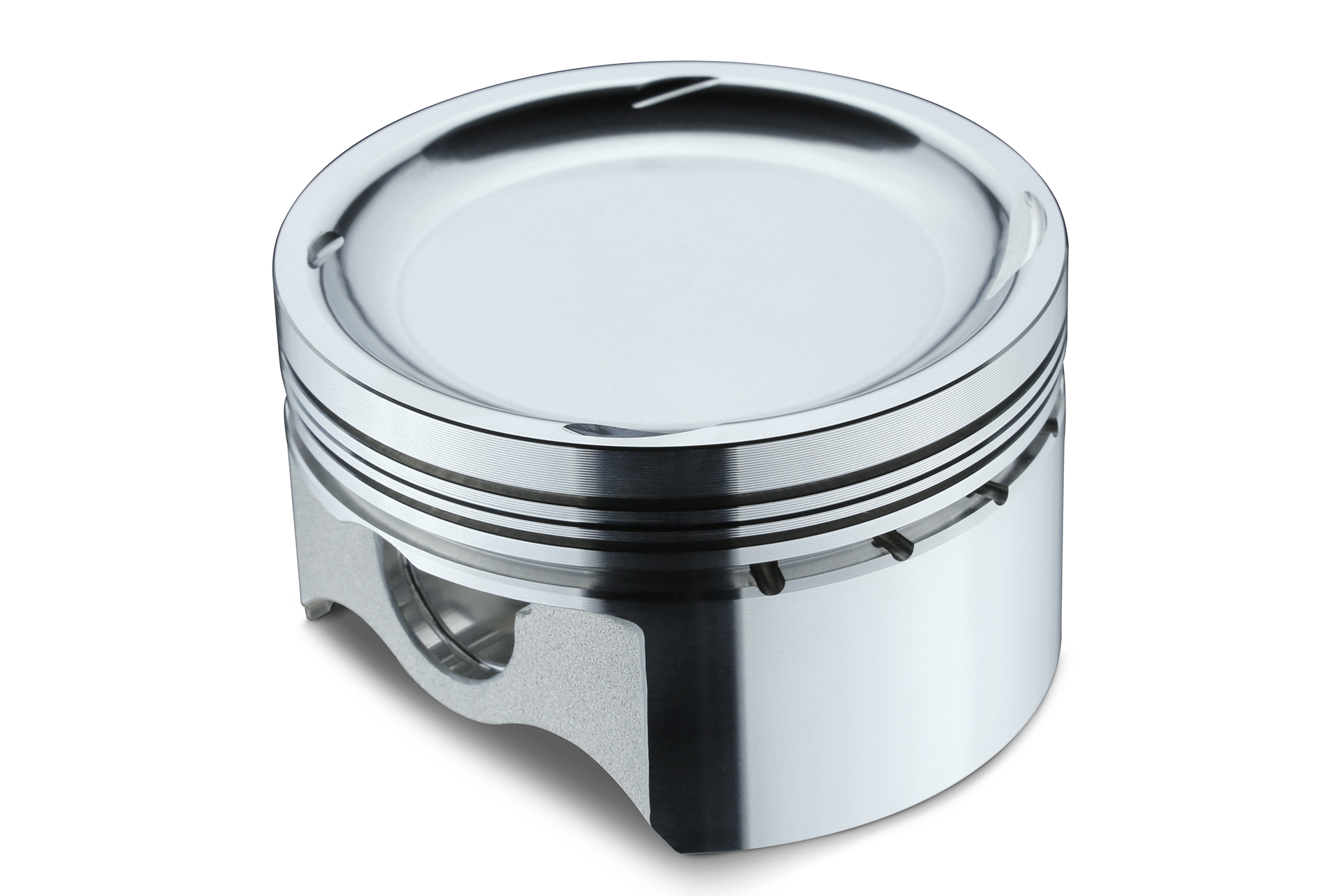

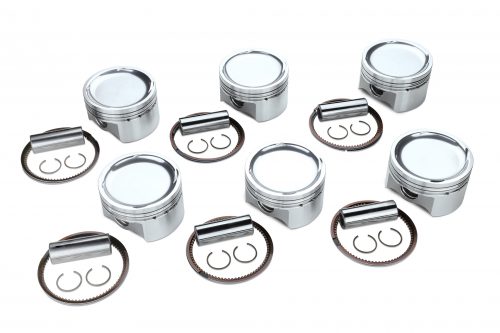

FORGED PISTON KIT 2JZ-GTE 87.00mm CH29.50 (3.6)

$1,560.00

BORE (mm)87.00 (OEM +1.0)
PIN DIA. (mm)22.0
PIN LENGTH (mm)60.0
CLIP INNNER DIA.22.0
VALVE RECESSWITH
COMP.HEIGHT (mm)29.50 (OEM -4.5)
PISTON DOME VOL. (cc)-22.6
PISTON WEIGHT (g)278.5
PIN WEIGHT (g)121.5
TOTAL WEIGHT (g)400.0
TOP RING (mm)1.20 x 3.05
SECOND RING (mm)1.20 x 3.90
OIL RING (mm)2.50 x 2.95
MATERIALA4032
SKU: TA202A-TY03B Categories: , , ,
