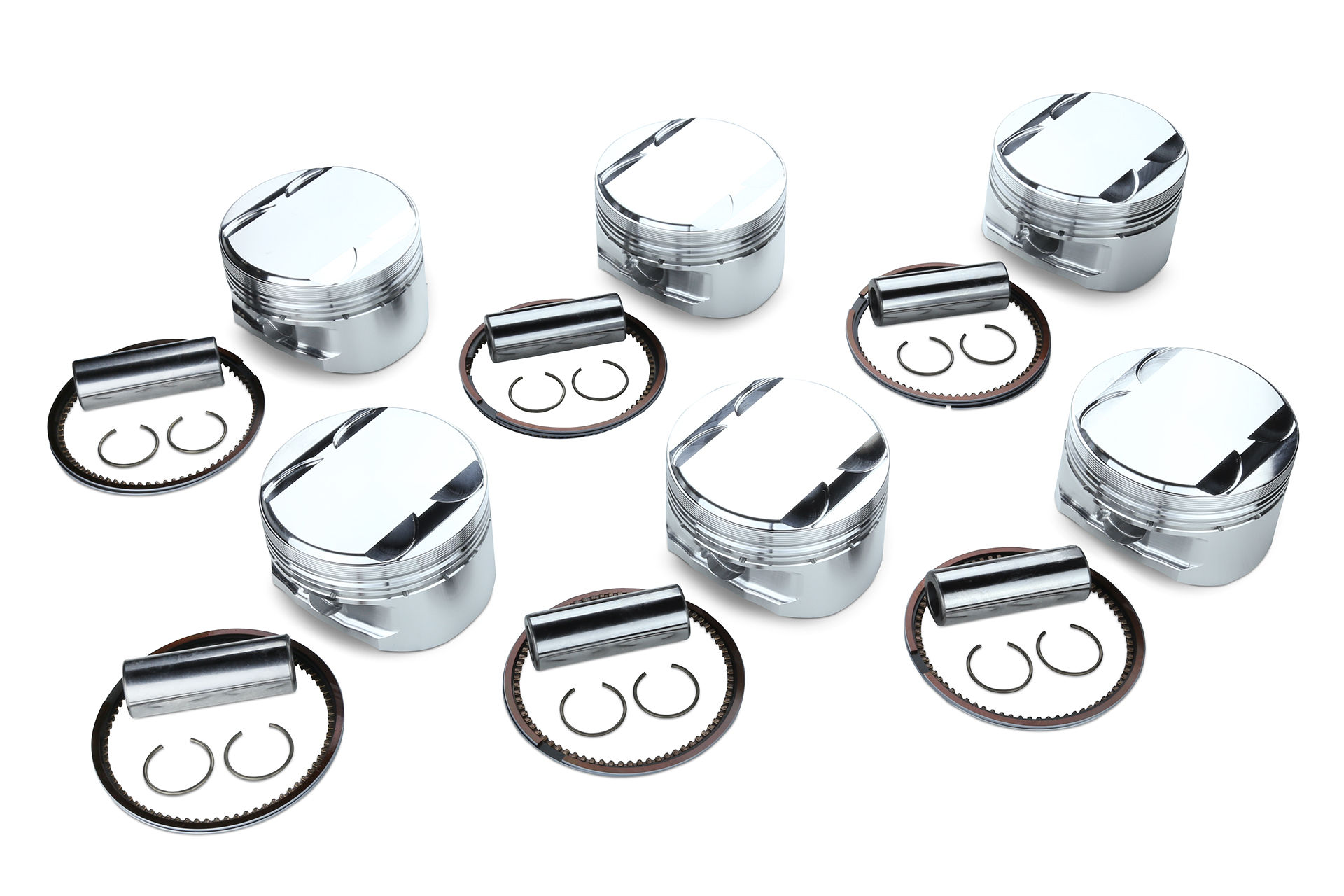

FORGED PISTON KIT RB26DETT 87.00mm CH30.00 (STD/2.8) CP
$1,560.00
| BORE (mm) | 87.00 (OEM +1.0) |
| PIN DIA. (mm) | 21.0 |
| PIN LENGTH (mm) | 60.0 |
| CLIP INNNER DIA. | 21.0 |
| VALVE RECESS | WITH |
| COMP.HEIGHT (mm) | 30.00 (OEM ±0.0) |
| PISTON DOME VOL. (cc) | 12.4 |
| PISTON WEIGHT (g) | 350.0 |
| PIN WEIGHT (g) | 116.0 |
| TOTAL WEIGHT (g) | 466.0 |
| TOP RING (mm) | 1.20 x 2.90 |
| SECOND RING (mm) | 1.20 x 3.00 |
| OIL RING (mm) | 2.00 x 2.70 |
| MATERIAL | A2618 |
