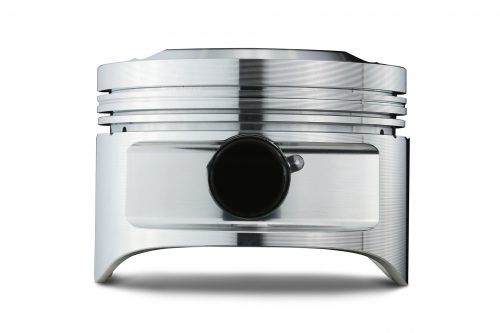

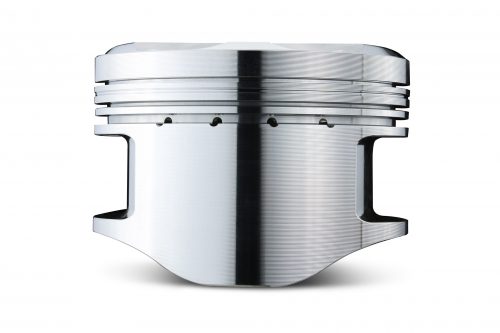

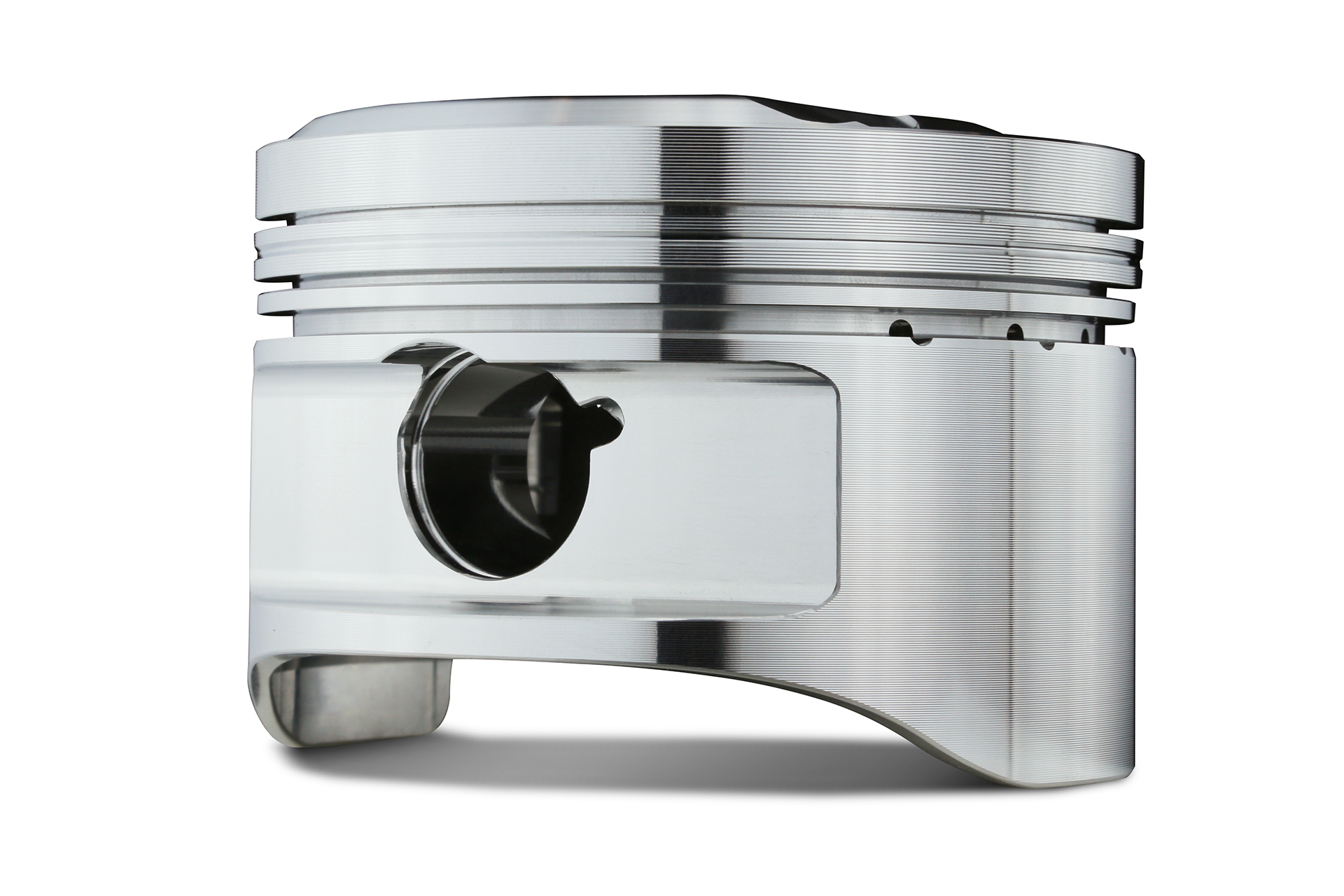

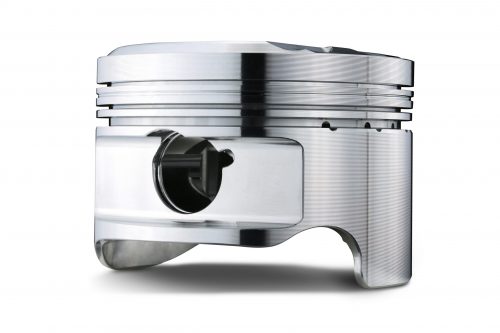

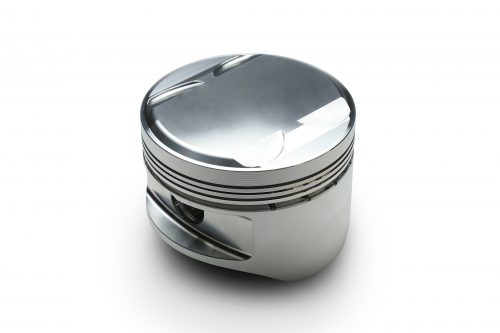

FORGED PISTON KIT RB26DETT 87.00mm CH30.00 (STD/2.8)
$1,560.00
| BORE (mm) | 87.00 (OEM +1.0) |
| PIN DIA. (mm) | 21.0 |
| PIN LENGTH (mm) | 60.0 |
| CLIP INNNER DIA. | 21.0 |
| VALVE RECESS | WITH |
| COMP.HEIGHT (mm) | 30.00 (OEM ±0.0) |
| PISTON DOME VOL. (cc) | 10.8 |
| PISTON WEIGHT (g) | 368.0 |
| PIN WEIGHT (g) | 106.0 |
| TOTAL WEIGHT (g) | 474.0 |
| TOP RING (mm) | 1.20 x 3.05 |
| SECOND RING (mm) | 1.20 x 3.90 |
| OIL RING (mm) | 2.50 x 2.95 |
| MATERIAL | A4032 |
