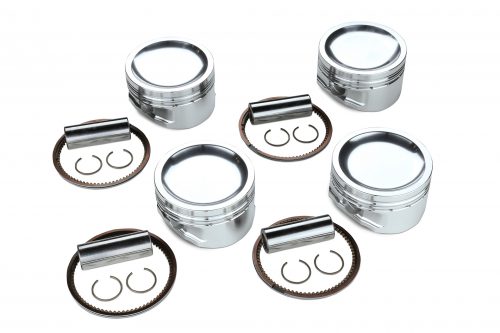

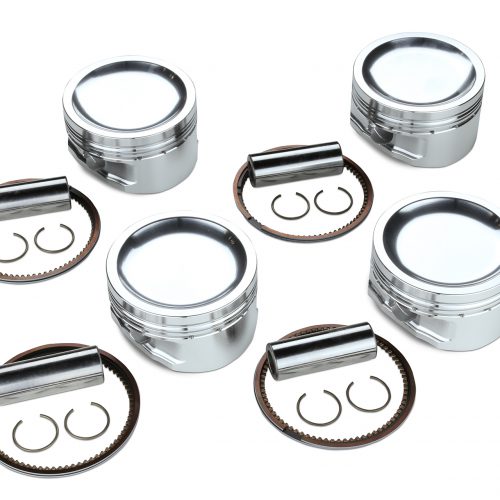

FORGED PISTON KIT SR20DET 87.00mm CH29.50 (2.2) CP
$1,040.00
| BORE (mm) | 87.00 (OEM +1.0) |
| PIN DIA. (mm) | 22.0 |
| PIN LENGTH (mm) | 60.0 |
| CLIP INNNER DIA. | 22.0 |
| VALVE RECESS | WITHOUT |
| COMP.HEIGHT (mm) | 29.50 (OEM -2.5) |
| PISTON DOME VOL. (cc) | -17.8 |
| PISTON WEIGHT (g) | 310.0 |
| PIN WEIGHT (g) | 125.1 |
| TOTAL WEIGHT (g) | 435.1 |
| TOP RING (mm) | 1.20 x 2.90 |
| SECOND RING (mm) | 1.20 x 3.00 |
| OIL RING (mm) | 2.50 x 2.60 |
| MATERIAL | A2618 |
