Ball Bearing Turbo Charger
Journal Bearing Turbo Charger

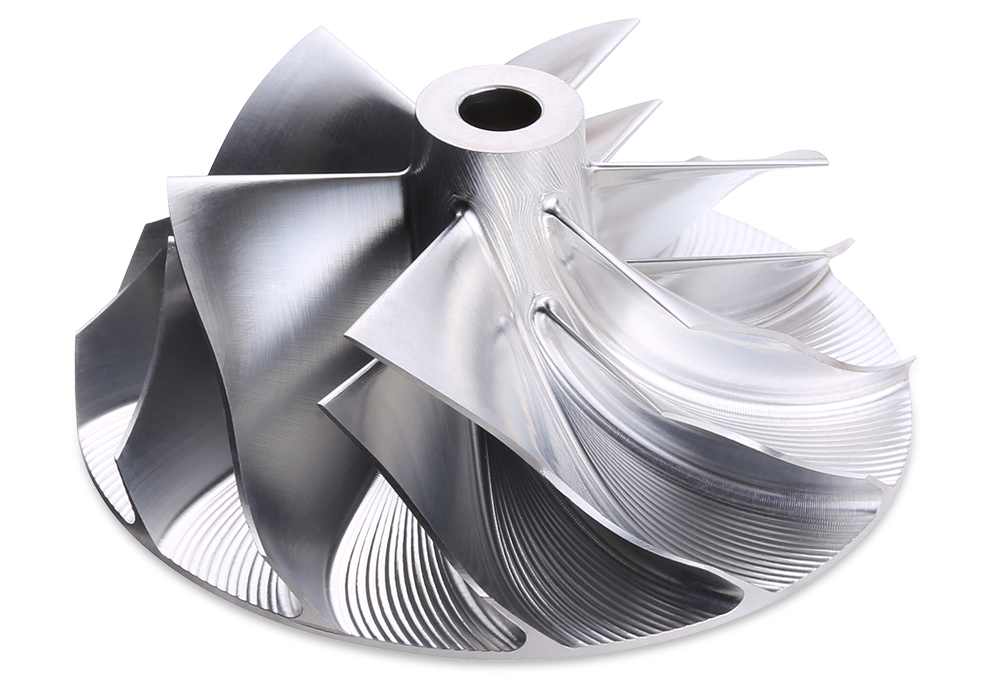

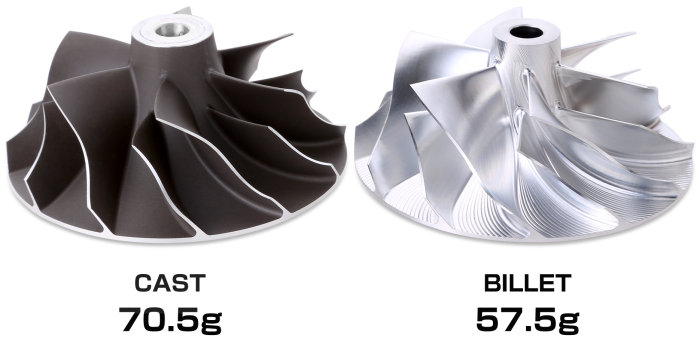

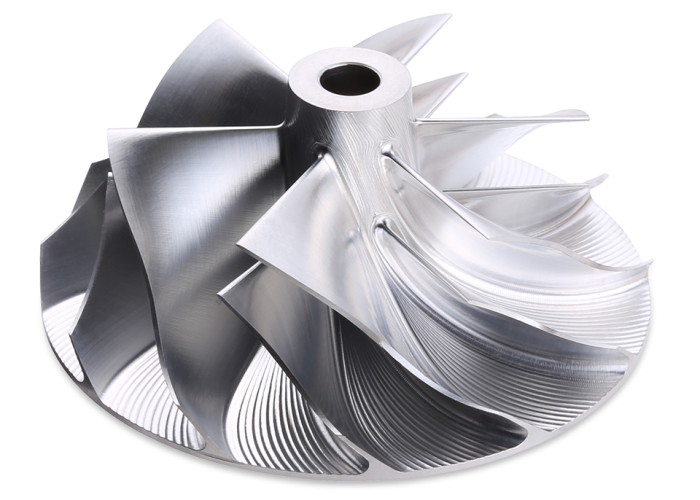

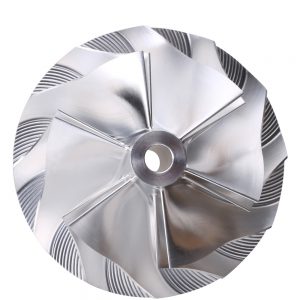

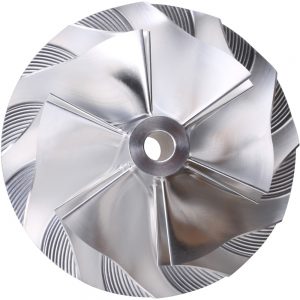

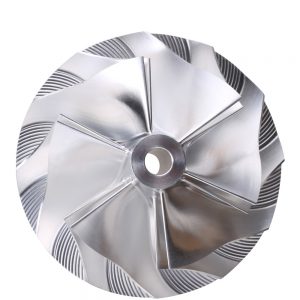

CNC BILLET COMPRESSOR WHEEL
Significant improvement over traditional cast compressor wheels.
Machined from aerospace grade materials,
these highly durable lightweight compressor
wheels feature thinner blades
with a larger surface area for significantly
improved airflow and turbo spool.

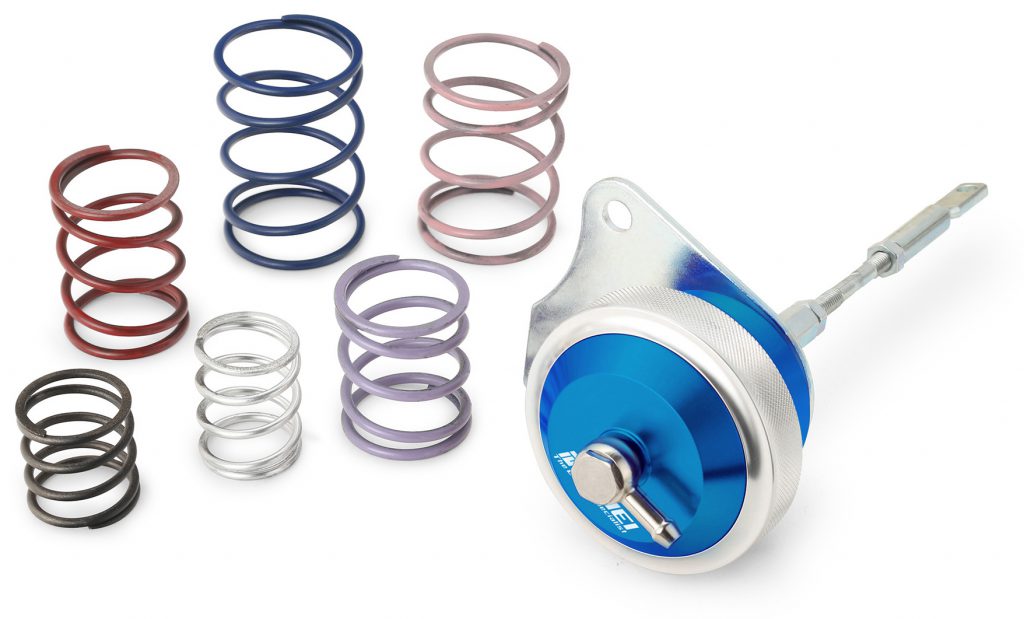

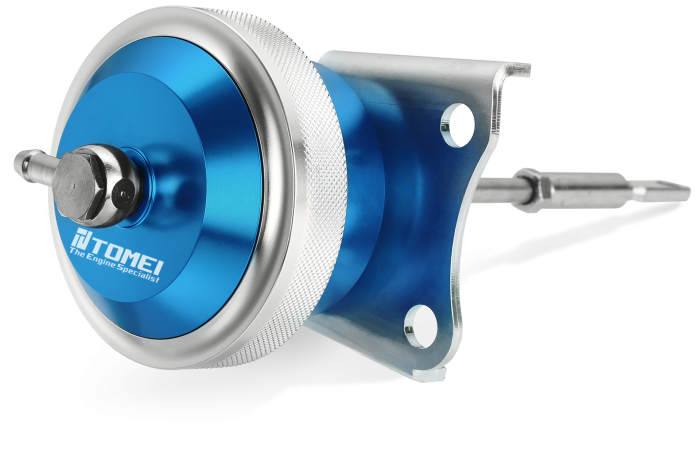

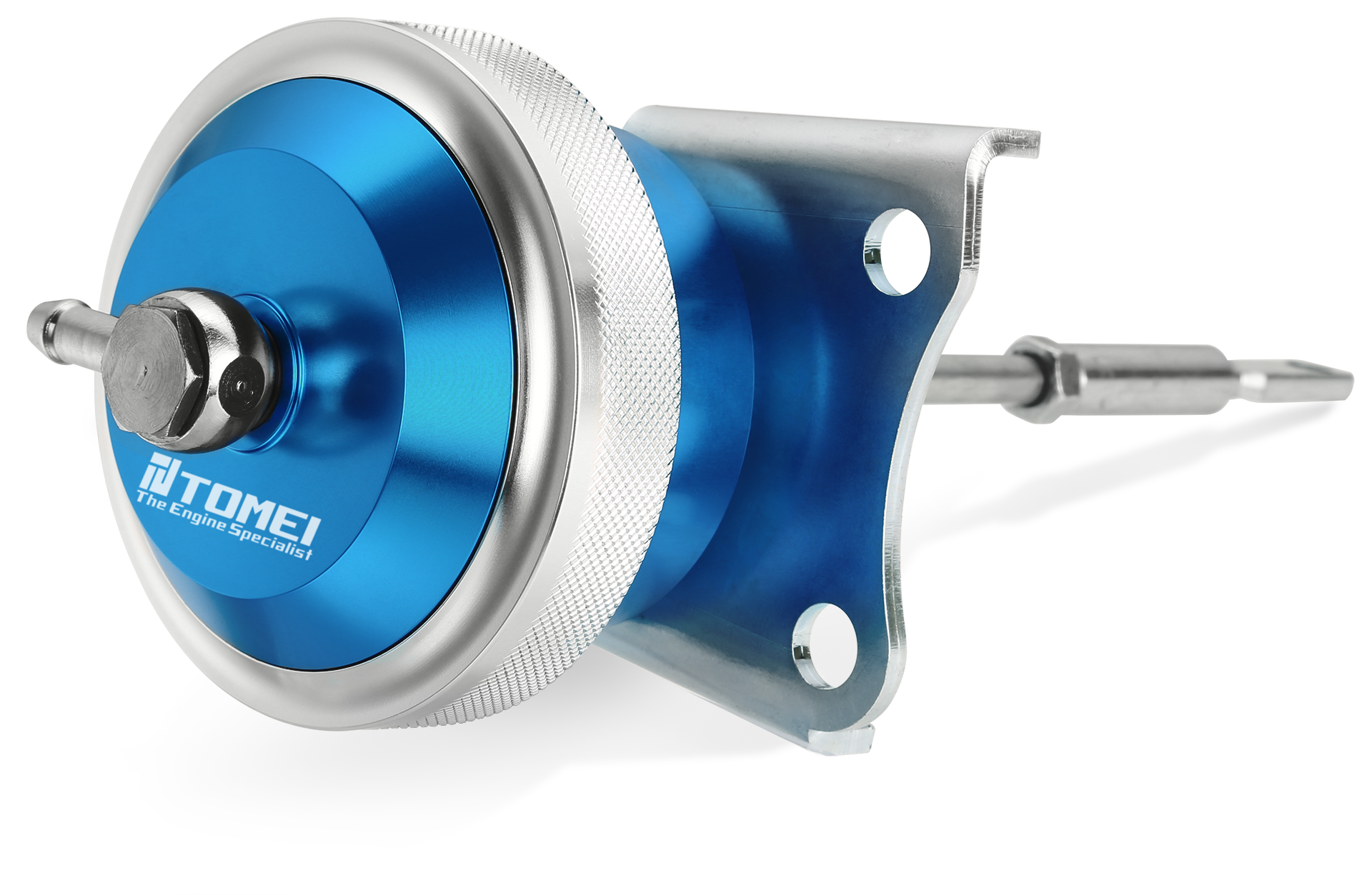

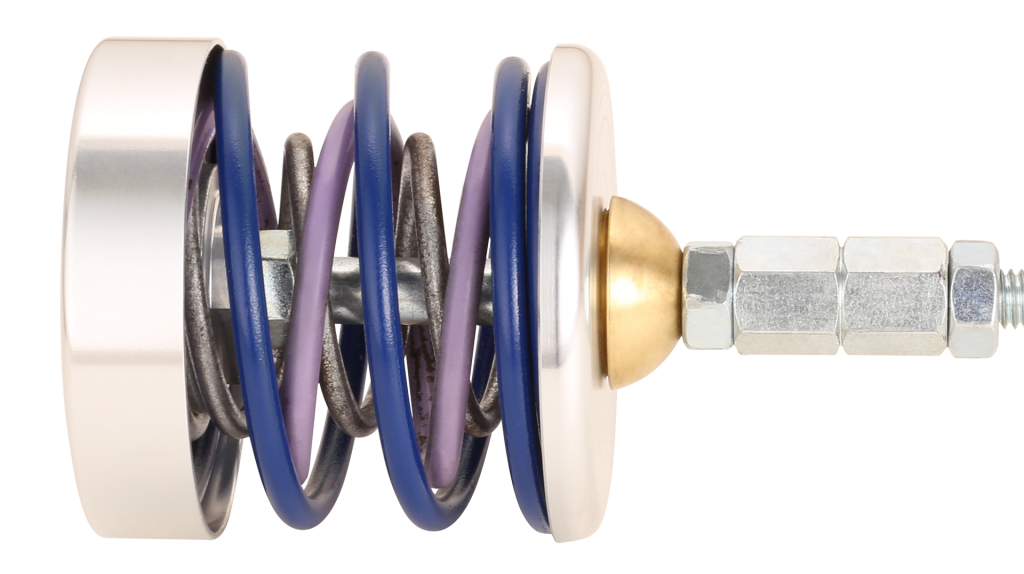

MULTI RATE BILLET ACTUATOR
Large capacity,
reinforced forged billet construction.
Includes a total of 6 springs
for fine boost adjustments.
Swivel type nipple allows
for greater freedom when routing hoses.
Combine up to 3 springs to find the perfect setup.
6 springs included

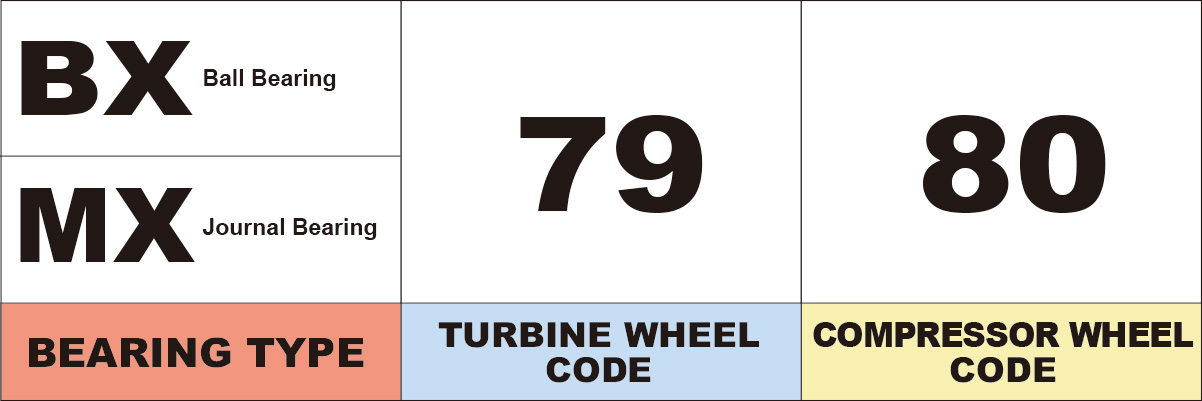

TURBO CHARGER SIZE GUIDE

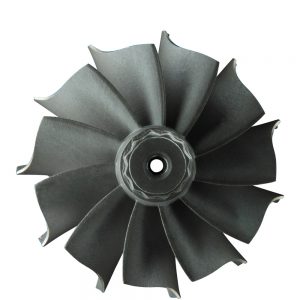

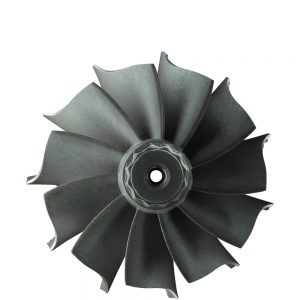

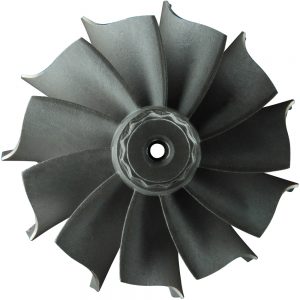

TURBINE WHEEL SIZE
| CODE | 76 | 77 | 79 | 82 | ||
| IND(mm) | 56.0 | 56.0 | 61.0 | 67.0 | ||
| EXD(mm) | 47.5 | 49.1 | 54.0 | 58.8 | ||
| TRIM | 72 | 77 | 79 | 77 | ||
 | |  |  |

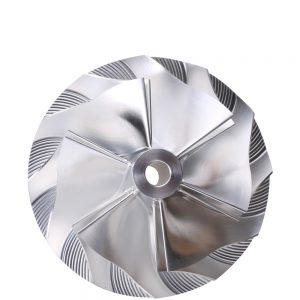

COMPRESSOR WHEEL SIZE
| CODE | 55 | 60 | 65 | 67 | 70 | 80 |
| IND(mm) | 50.3 | 52.6 | 54.8 | 56.3 | 59.0 | 61.4 |
| EXD(mm) | 68.0 | 68.0 | 76.2 | 75.0 | 76.2 | 82.0 |
| TRIM | 56.3 | 75.0 | 56 | 56 | 60 | 56 |
 | |  |  | |  |
TURBOCHARGER PRODUCT LIST
Engine | Size Code | H.P. Range | BX | MX | NOTE |
||
Ball Bearing | Journal Bearing |
||||||
PART No. | MSRP | PART No. | MSRP |
||||
RB26DETT | 7655 | 580 | TB403A-NS05A | US$3,280.00 | TB401A-NS05A | US$2,990.00 | |
8260 | 650 | TB403A-NS05B | US$3,280.00 | TB401A-NS05B | US$2,990.00 | ||
RB25DET | 8265 | 450 | TB403A-NS06A | US$1,780.00 | TB401A-NS06A | US$1,580.00 | |
SR20DET | 7960 | 400 | TB403A-NS08A | US$1,780.00 | TB401A-NS08A | US$1,580.00 | |
8270 | 450 | TB403A-NS08B | US$1,780.00 | TB401A-NS08B | US$1,580.00 | ||
KA24DE | 7960 | 400 | TB403A-NS16C | US$1,780.00 | TB401A-NS16C | US$1,580.00 | ＊1 |
8270 | 450 | TB403A-NS16D | US$1,780.00 | TB401A-NS16D | US$1,580.00 | ＊1 | |
1JZ-GTE | 8280 | 450 | TB403A-TY04A | US$1,780.00 | TB401A-TY04A | US$1,580.00 | |
EJ SINGLE SCROLL | 7760 | 380 | TB403A-SB01A | US$1,780.00 | TB401A-SB01A | US$1,580.00 | |
7960 | 400 | TB403A-SB01B | US$1,780.00 | TB401A-SB01B | US$1,580.00 | ||
8265 | 450 | TB403A-SB01C | US$1,780.00 | TB401A-SB01C | US$1,580.00 | ||
7960F | 400 | TB403A-SB01D | US$1,780.00 | TB401A-SB01D | US$1,580.00 | ＊2 | |
4G63 EVO 4-9 | 7960 | 400 | TB403A-MT01A | US$1,780.00 | TB401A-MT01A | US$1,580.00 | |
7967 | 430 | TB403A-MT01B | US$1,780.00 | TB401A-MT01B | US$1,580.00 | ||
4B11 | 8280 | 450 | TB403A-MT02A | US$1,780.00 | TB401A-MT02A | US$1,580.00 | |
G4KF (HYUNDAI) | 7960 | 400 | TB403A-HY01A | US$1,780.00 | TB401A-HY01A | US$1,580.00 | |
＊1 TOMEI KA24DE turbo exhaust manifold and SR20DET exhaust component is required to use the TOMEI turbo.
＊2 WRX 08-14/LEGACY GT 05-09
